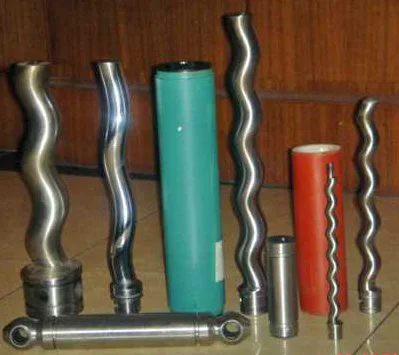

Single Screw Mono Pump

Product Overview

Description

Product parameters

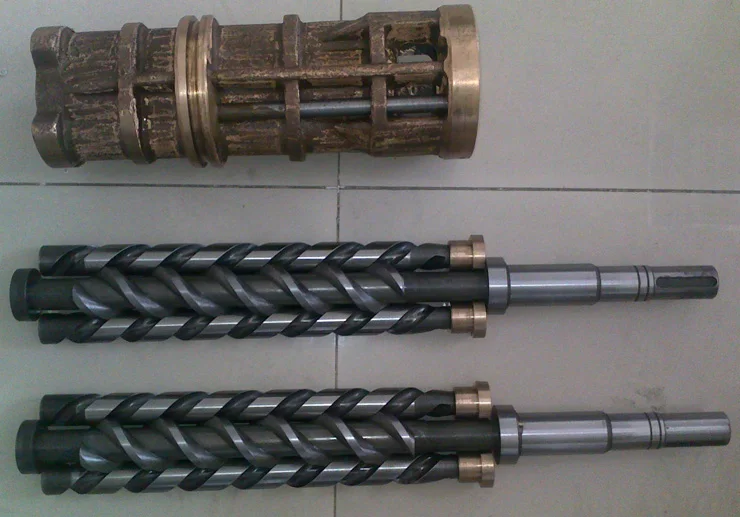

This is 3GS series screw pump.

 Application
It applies to deliver clean and non-corrosive medium which has lubricating troperty at temperature beow ≤150with the viscosity of 5-760cSt,The pump's working pressure range from 0.6MPa to 2.5MPa and flow capacity range from 0.6-123m³/h.
Feature
(1)Medium is delivered in axial direction continuously without agitation and pulsation.
(2)Small vibration and low noise
(3)High pressure and high efficiency
(4)Simple structure,easy disassembly and assembly
(5)Small volume and lighe weight
(6)Slight wear and long life of the pump
Structure:The pumps are sealed generally by mechanical seal and driven by the motor through the claw coupling.

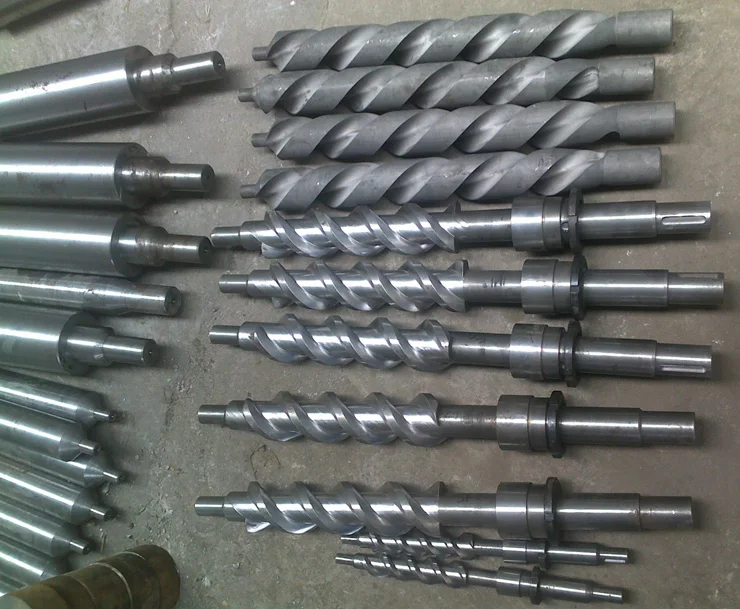

Material: The driving and driven screw 16MnCrS5,40Cr,45,38CrMoALA Pump casing:HT200,QT450-10,ZCuSn10Pl,ZG270-500

Series	Main application	Performancescope
		Capacity m3/h	Pre MPa
3G	Lub oil visc3-20oE;temp≤80	0.6-570	2.5
3GR	Heavy feul lil visc3-50oE;temp≤120	0.6-570	2.5
3GR	Light feul oil visc1.2-5oE;temp≤120	0.6-570	1.6
3GW	High temp feul heated oil;temp≤150	0.6-363	1.6
3GN	High visc oil 100oE;temp≤80	0.6-636	2.5

many other pump can be made as your requirement.
