Support 4K video input HDMI UVC Video Capture with MicroPhone input ezcap261M

Connections

Interface

USB 3.0

Video Input

HDMI

Audio Input

HDMI, 3.5mm microphone In

Video Output

HDMI

Audio Output

HDMI

Hardware Extra

Dimensions

95*39*19.2MM

Weight

40g

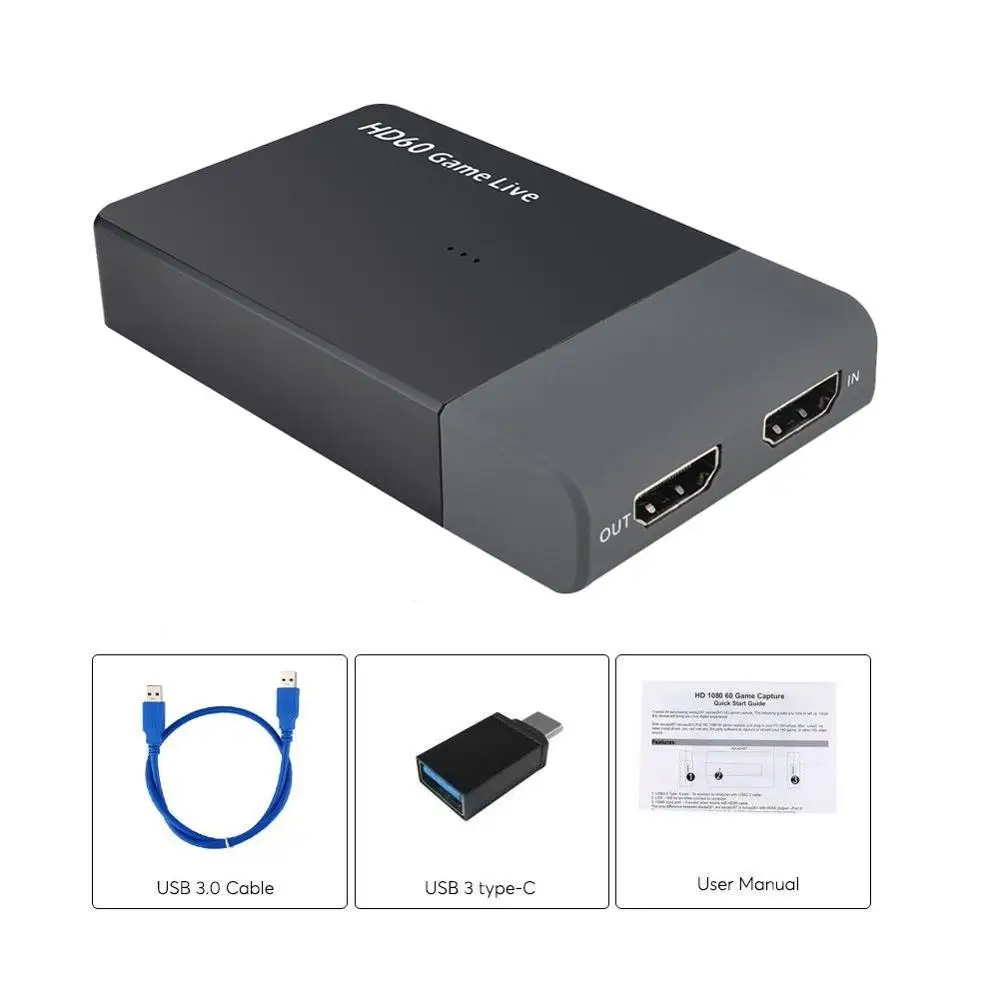

Package Contents

Device

ezcap261M

Others

USB3.0 cable, manual, USB-A to USB-C Adapter

Standards

System Requirement

Windows 7,8,10, OS X 10.9 or later, Linux. PC: Intel Core i5-3400 + NVIDIA GT630, NB: Intel Core i7-3537U 2.0 GHz + NVIDIA GT735, Mac: i5 quad-core or above, VGA card supporting DirectX 10, Sound card, 4GB RAM, Powered USB 3.0 port: Intel chipset with native USB 3.0 host controller (Renesas, Fresco …)

Resolution

720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p), 4K30 HDMI input and output are for ezcap266 only.

Software compatibility:

OBS Studio (windows,OS X); Windows Media Encoder (Windows); Adobe Flash Media Live -Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast (Windows,OS X); vMix(Windows); Potplayer(Windows)and etc.

Development interface compatibility:

DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux) OS X (QuickTime)

Record Quality

Max 1080P 60fps
