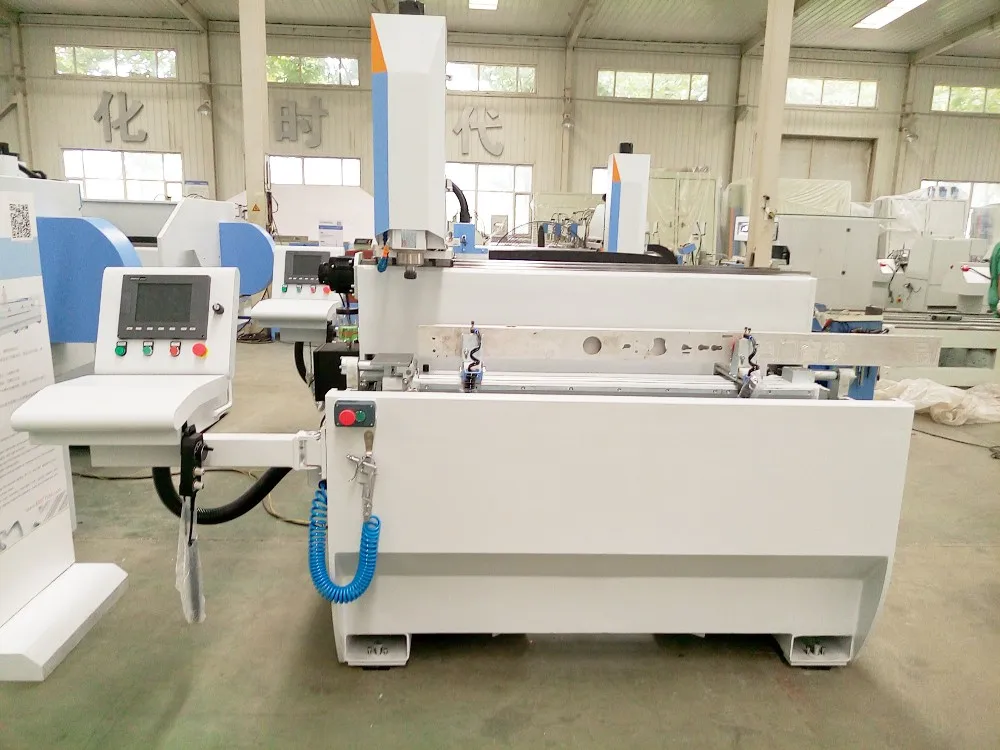

Small Aluminum CNC Machining Center for drilling milling
- Category: >>>
- Supplier: Jinan Parker Machinery Co. Ltd.
Share on (60767255859):
Product Overview
Description
Product Description

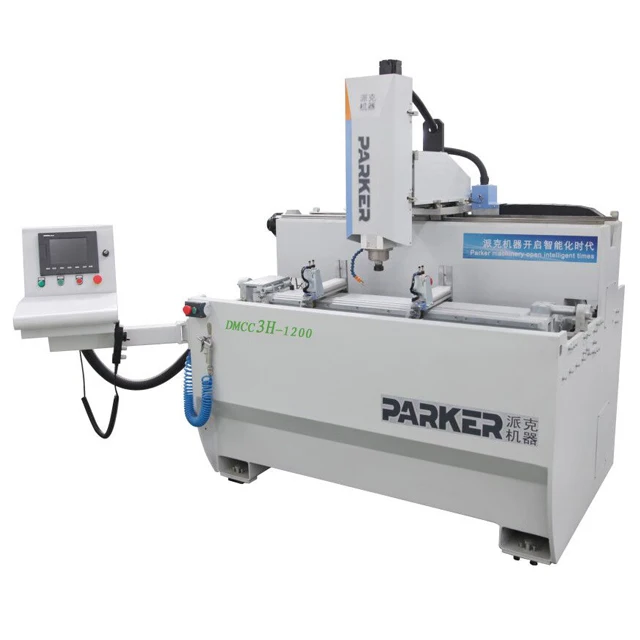

Aluminum 3 Axis CNC Machinging Center
SYNTEC control system from Taiwan, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.
Product Function
3 Axis+1 profile machining centre
Suitable for processing varieties of holes and slots for diversified aluminum and PVC profile.
High-precision linear guide pair, ball screw, pinion and rack and imported servo motor ensure the machine runs steadily with high precision.
High-speed motorized spindle ensure the machine runs steadily with lower noise and better cutting ability.
Vegetable oil microcrystalline cooling system improve the tool life without poison and pollution.
The rotary workbench can change the position among -90°、0° and +90° arbitrarily, one time clamping can finish milling for three sides.
X axis Stroke：1200mm
Y axis Stroke：300mm
Z axis Stroke：300mm
X axis Speed：0～80m/min
Y axis Speed：0～75m/min
Z axis Speed：0～75m/min
Main spindle speed and Power：18000rpm/6kw
Work table position：-90°、0°、+90°
Cutter size: ER32-Ф8
Air Pressure：0.5～0.8MPa
Voltage：380V/50Hz
Power：9kw
Cutter cooling：Auto spraying and cooling
Processing dimension:（W×H×L）：160×160×1200mm
Processing character：Can process three sides of profile per time loading profile
Dimension:（L×W×H）：2525X1330X2060mm
Processing Length Variants
1200mm
2000mm
3200mm
Options
Control System
Automatic Change Tools(for 2000mm and 3200mm)

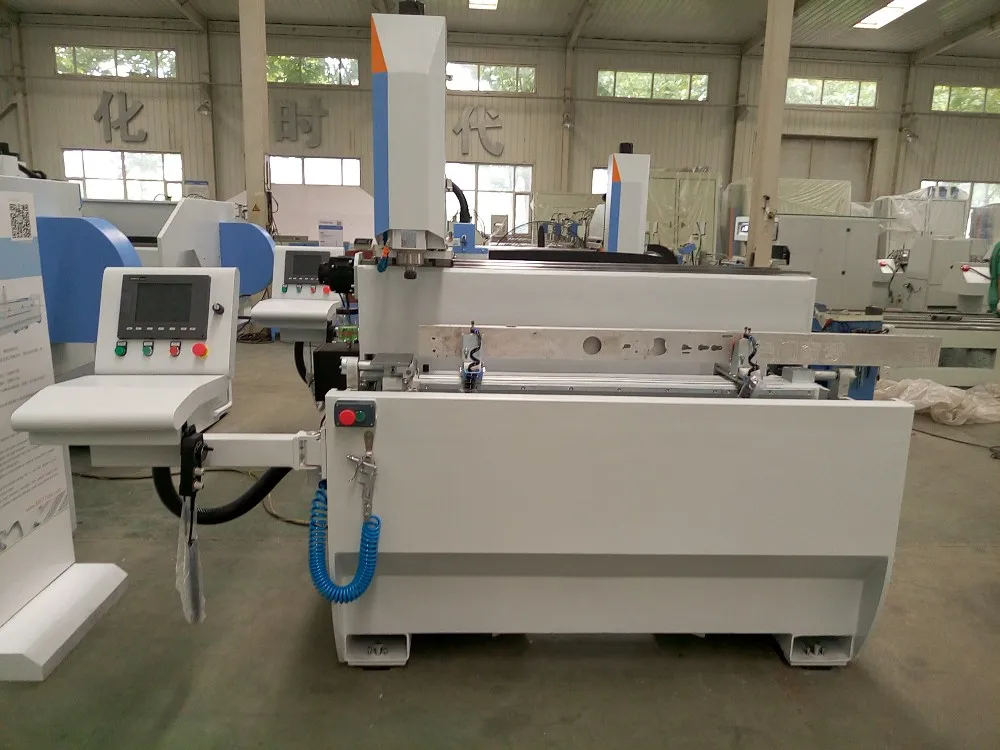

Picture Show
Packing
Parker Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

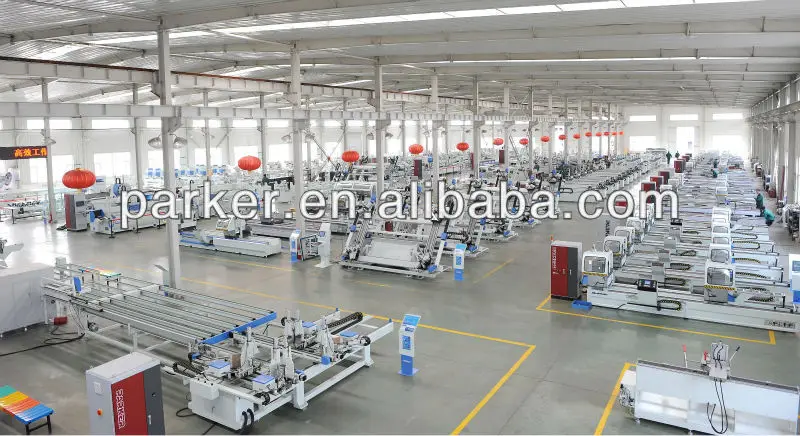

* View our Factory.
After-Sales Service

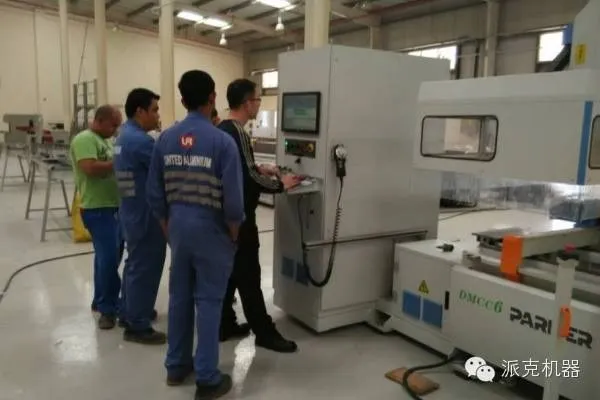

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: HSD, Yaskawa, Schneider, Siemens, and Fanuc,ABBA,OPTIMA(ITALIA),HS: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.

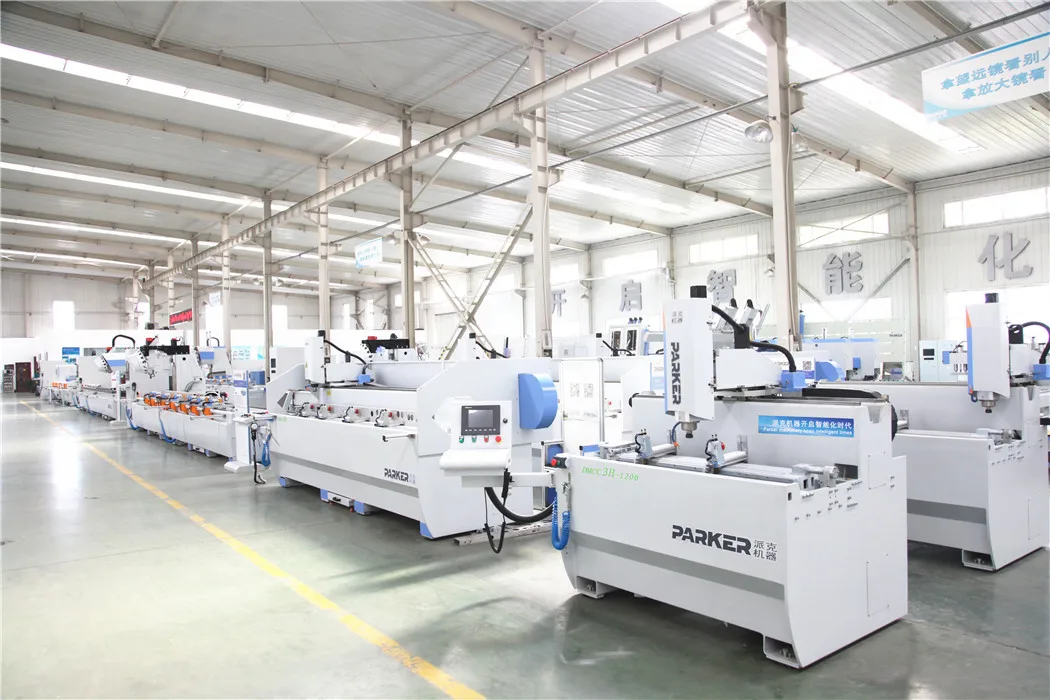

Company Introduction
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
Parker Company Video link:
https://www.youtube.com/watch?v=hYwmgxfRge4
