Product Overview
Description
-35~+350°C Frying Pan Capillary Tube Adjustable Thermostat
Liquid Expansion thermostat work principle
When the refrigerator / oven... changes the temperature, thermostat sensor get heat / cool , the switch can control to open or off to control the temperature.
Liquid expension thermostat character
Accurate,long life, stable, big temperature adjustment range, small temperature difference, easy to install
Company Information
Specifications of Frying Pan Capillary Tube Adjustable Thermostat
1)Designed temperature range: -35°C ~ 350 °C
2)Capillary Length: 300-3000mm
3)On-off temperature difference: 3°C- 10°C
4)Fitting size:28±0.25mm
5)Rated at 16A/250V 50/60Hz
6)Main body temperature: T90 / T150
7)Electric strength: 800v/s between two pin.
8)Insulation resistance≥100MΩ
9)Control type: mechanical temperature controller
10)Contact resistance:≤50MΩ
11)Operating life: ≥ 100,000times
12)Certification: CE and CQC
13)Used for electric water heater, washer, electric oven, fried pan and refrigeration industryetc.
14)Manufactured on customers' request
Model of Frying Pan Capillary Tube Adjustable Thermostat
| MODEL | TEMPERATURE PARAMETER | SWITCH | THE LENGTH OF CAPILLARY | |||||
| L | H | |||||||
| ON | OFF | DIFF | ON | OFF | DIFF | |||
| WRC350-40-701 | -- | (10) | 4±3 | -- | 70±3 | 4±3 | S.P.S.T | 600±30 |
| WRC350-110-702S | -- | -- | -- | Manuel Reset | 110±6 | -- | S.P.S.T.S | 800±50 |
| WRC350-200-704 | -- | (30) | 8±4 | -- | 180±8 | 8±4 | S.P.D.T | 400±30 |
| WRC350-320-701 | -- | (50) | 10±5 | -- | 320±14 | 10±5 | S.P.S.T | 950±50 |
| WRC350-350-701 | -- | (50) | 12±6 | -- | 350±16 | 12±6 | S.P.S.T | 1000±50 |
ApplicantIon of Frying Pan Capillary Tube Adjustable Thermostat
Thermostat used for electric water heater, solar heater, water boiler, frying pan, electric oven, western kitchen equipment, ect.

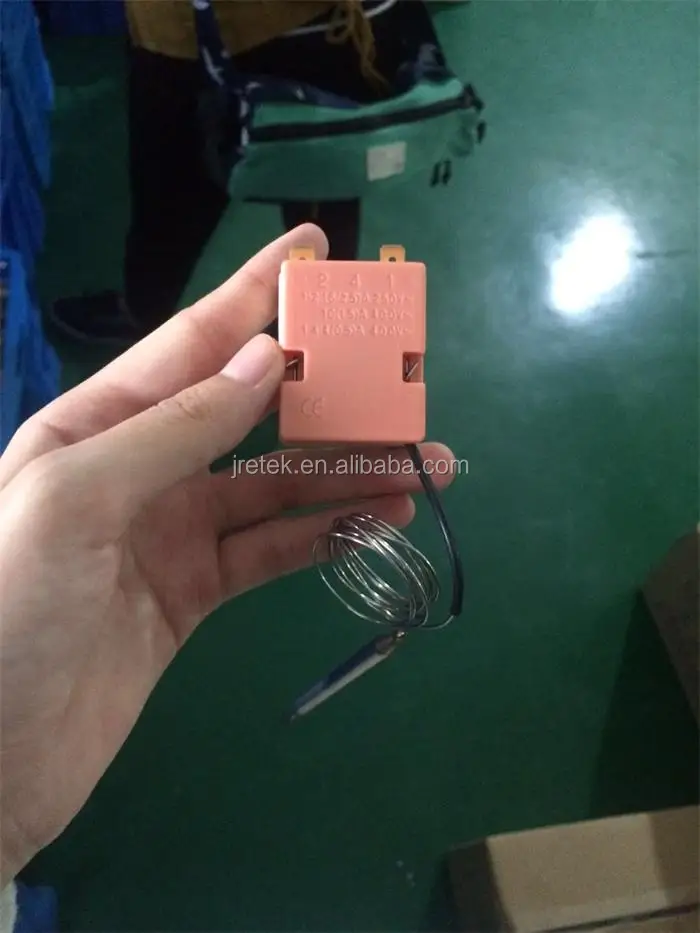

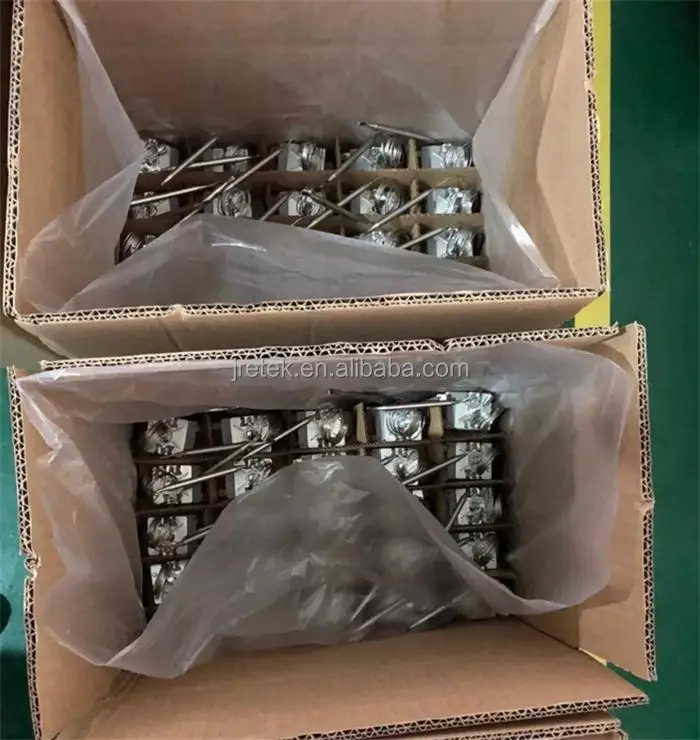

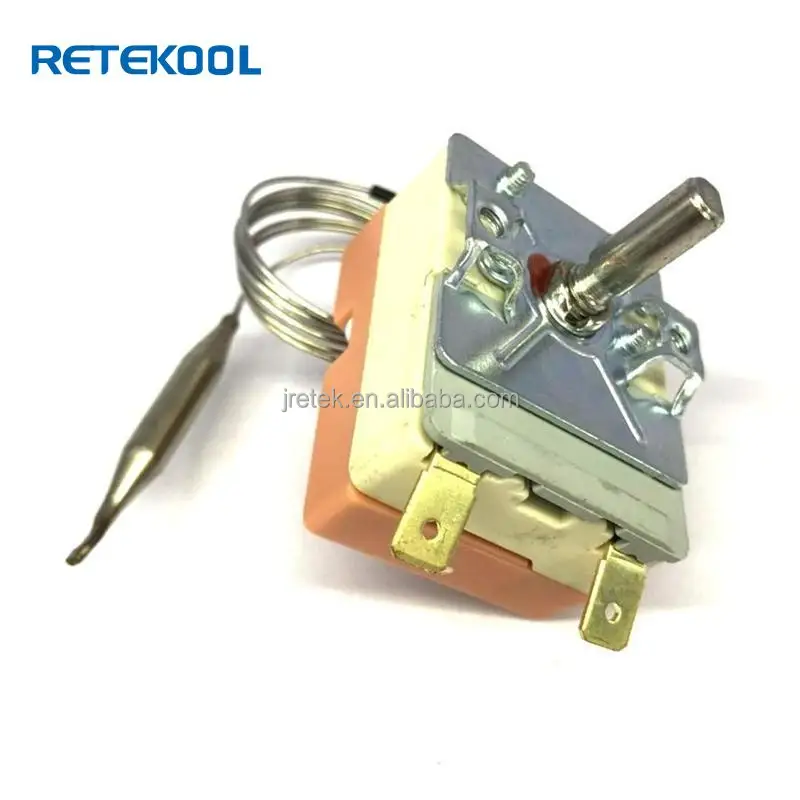

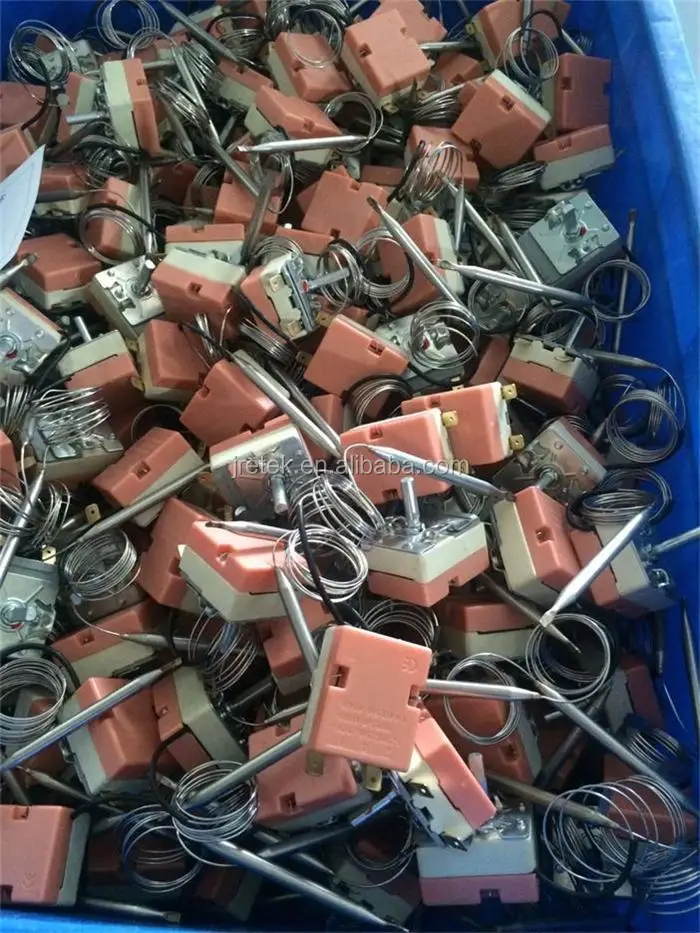

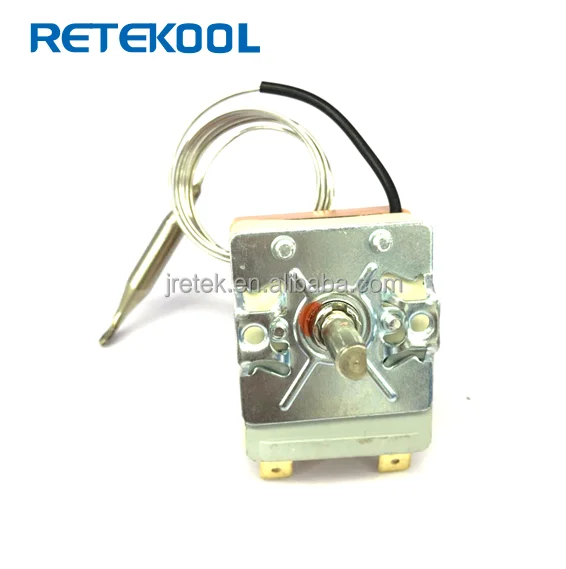

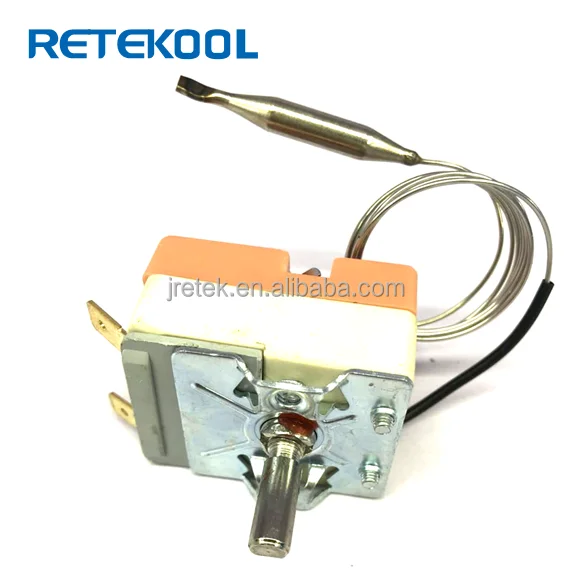

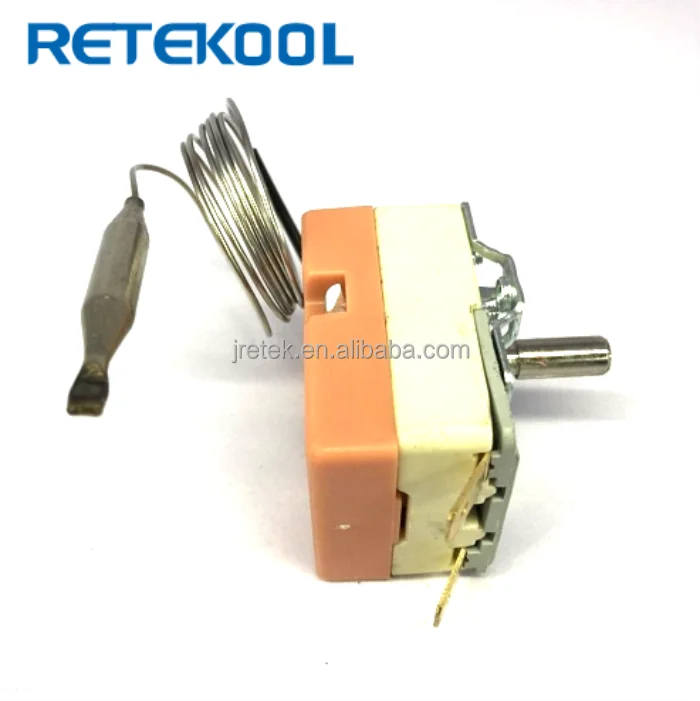

Photo of Frying Pan Capillary Tube Adjustable Thermostat
