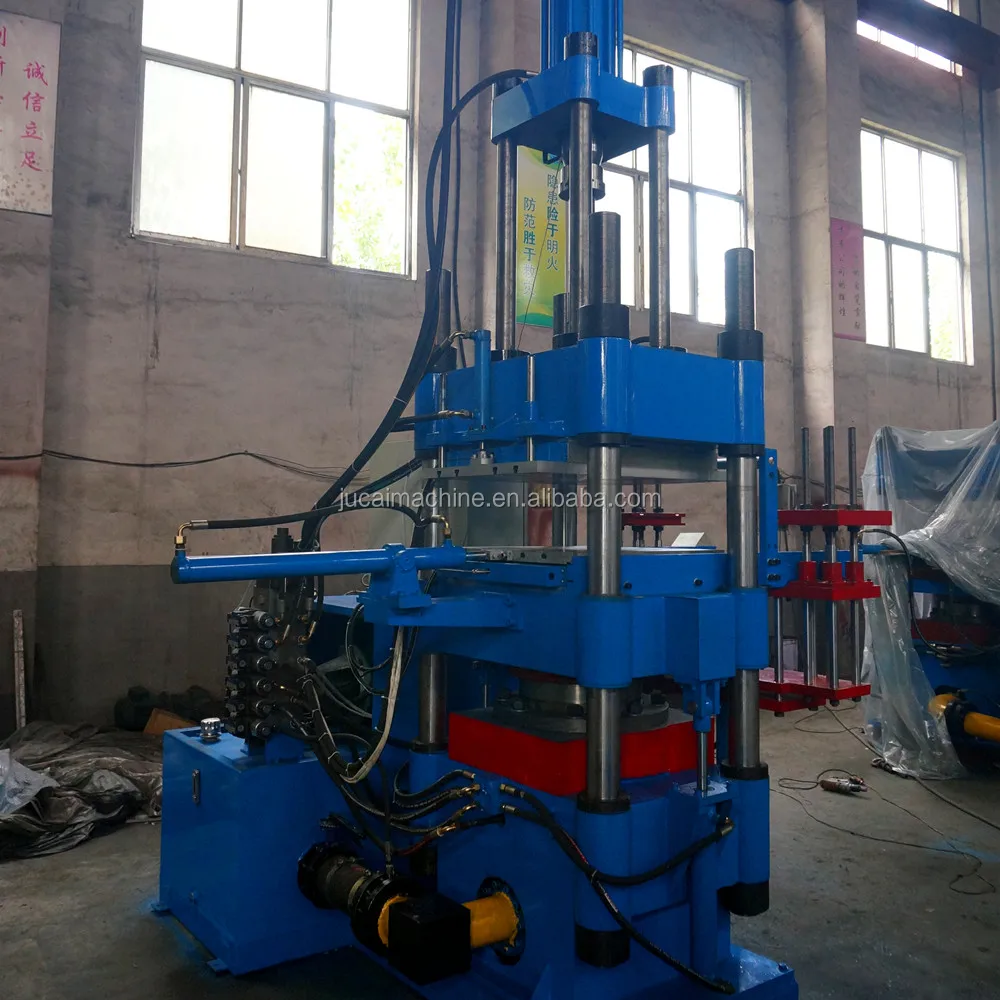

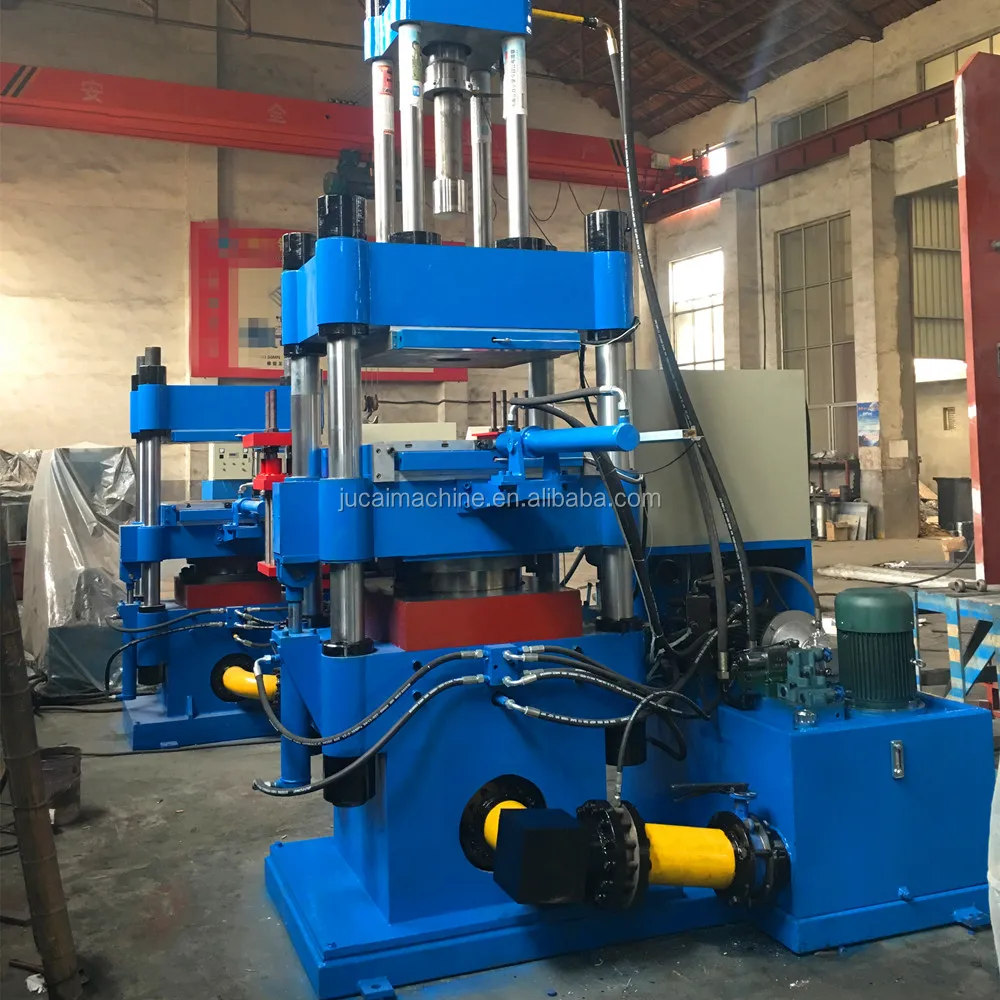

silicon nipples injection molding machine ,injection silicon machine ,silicone moulding machine injection mold
- Category: >>>
- Supplier: Qingdao Jiuzhou Jucai Machine Co. Ltd.
Share on (60767285030):
Product Overview
Description
Product Description
RUBBER INJECTION MOLDING MACHNE
Our company provides a wide range of solid rubber injection molding machine since 2004 year
Size of heating plate :400*400 ,450*450,500*500,600*600,600*650,650*650,600*750
machine type : frame type , pillar type , Jaw Type
Hydraulic spare part : Taiwan Brand , Japan Brand
Electrical cabinet : Taiwan Brand , Japan Brand , Gemenay Brand
Product Application
1.Applicable for various rubber moulding production
2.PLC control & touch screen
3.Auto mold closing, air exhaust, temperature control, timing setting
4.Custom mold push out system
5.Well-sealed hydraulic cylinder with precise grinding and finishing
6.Stable hydraulic pressure station
Main Features
1.This machine adopts the advanced PLC controller together with touching screen , which makes the machine easy operation and repair.
2.The machine adopts the imported high pressure vane pump and Proportional combination valve pressure flow, so it has reasonale design and good stability , little noise , small consumption.
3.The mold speed is felixable at vairous stages. At the beginning of mold closing , it owns the fast speed while when it will reach the top mold , the speed will be reduced to avoid the damage maybe caused due to high speed . After finish vulcanization , the mold opening speed will be faster to save the time to enhance the working efficiency .Meanwhile the product made by this machie has good quality with little waste edges .
4.This machine is suitable for various kinds of rubber molded products
5.The machine can be equipped with 2RT/3RT/4RT devices for easy operation
Model | 100 T | 200 T | 300 T |
mold clamping force | 100 ton | 200 ton | 300 ton |
stroke | 300mm | 300mm | 300mm |
plate size | 450*500mm | 500*560mm | 600*600mm |
motor | 7.5kw | 11kw | 11kw |
heating power | 9.5kw | 10.8kw | 15.5kw |
cylinder diameter | 260mm | 320mm | 360mm |
machine weight | 6000 kg | 7000kg | 9000kg |
Detailed Images
The machine structure decides its precision , service life and stability
1.The machine adopts the world advanced UG software and PO0-E3D analysis aided design to integrally cast and form the optimal design of high rigidity , tight structure and long life service
2.Heating Plate is made of deep hole processing , after carburizing process,by using the principle of heat flux,high precision , and the advantage temperature analysis of optimal design
3.Use computer CNC processing to ensure the optimal precision of design
4.Japanese technology planar average pressure correction with a highest precision up to 0.2mm
5.Heating plate/ in-and-out template adopts carburizing treatment and is completed by grinding and nitriding , long wearproof,not easy to be deformed and high planar precision
High Efficient and stable oil pressure design
1.Vacuum and plate vulcanizing series machine adopts double motors , double oil pumps, double coolers , double oil systems .
2.Unique oil circuit design with no shock and low noise during oil circuit operation to improve efficiency and reduce energy consumption
3.Unique design of high speed circuit makes slow mode locking switch stable and adjustable to adapt to different types of model
4.Oil seals from Japan in the whole plant and special oil-proof design have no oil leakage and good durability. split type fast vacuum system is faster in vacuum pump with higher rate of finished products
5.The oil circuit system has special design with no vibration , good stability , and is faster than similar machines when in-and out mold goes up and down
Introduction on electrical control
1.The machine adopts the original Japan or Germany PLC controller , concise and clear wire connection , stable and reliable operation , low fault rate
2.Full computerized monitoring function , user-friendly concept programming design , easy lively input interface , real time display system
3.Professionally design PLC output contact protection circuit board to make its internal total electric contacts work within DC5V 5mA ; Electromagnetism all adopts no site switch DC24V safe electric furnace control to ensure the control system stable and lasting
4.Electrical element adopts international standardized configuration which permanently avoid customers worries
Uniform Temperature
1. Introduce the latest foreign digital style test high-end technology,provide higher thermodynamic property and better quality stability than traditional design
2.Electric heating , automatic short circuit current detection system breaks the circuit of electric heating temperature system and gives an automatic alert . when it has problem
3.Automatic temperature curve record , temperature control is a continuous prompt , by which improves the machine operation quality
4.Using Japanese famous brand digital temperature controller , it can control scale vein output , PID adjustable , precise humidity operation , so that the temperature is controlled 2C . The program has one week preview function
1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
