Safe 433MHZ Wireless Remote Control Duplicator for Car Gate Garage Door

Product Overview

Description

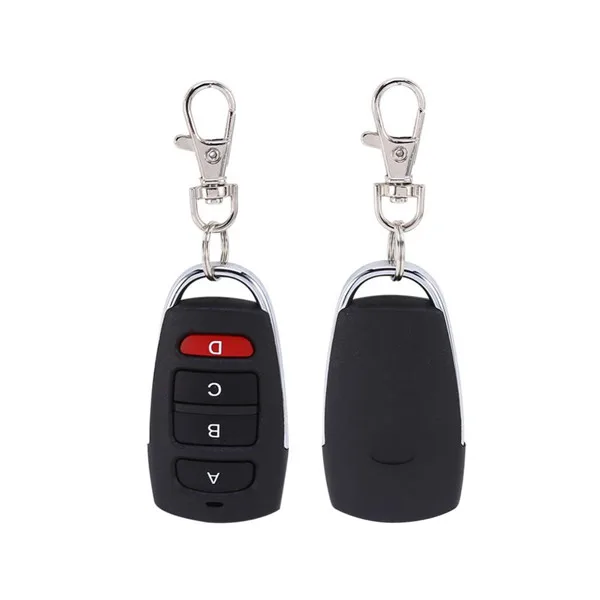

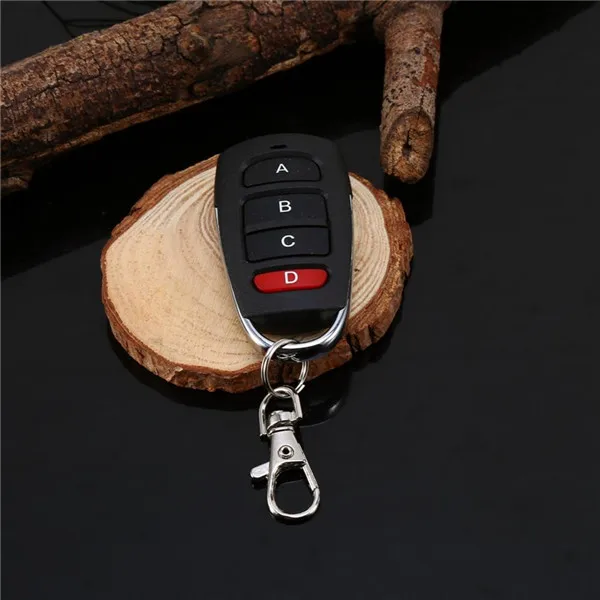

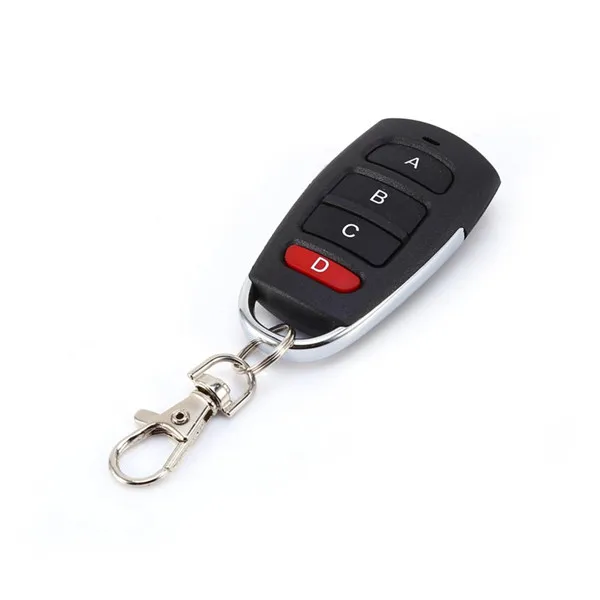

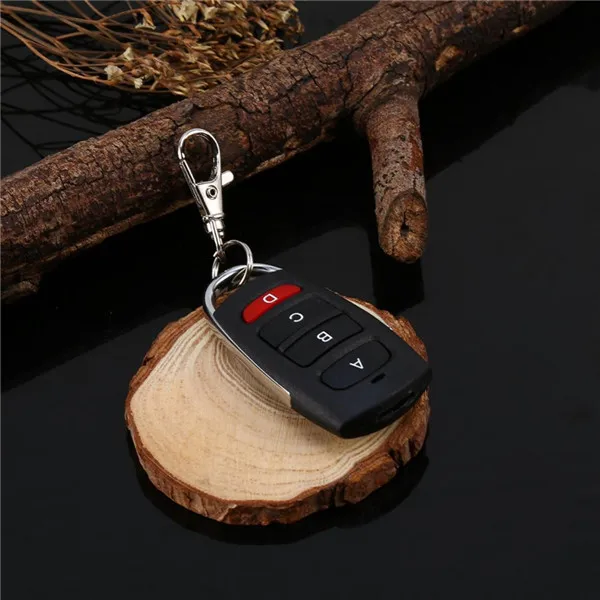

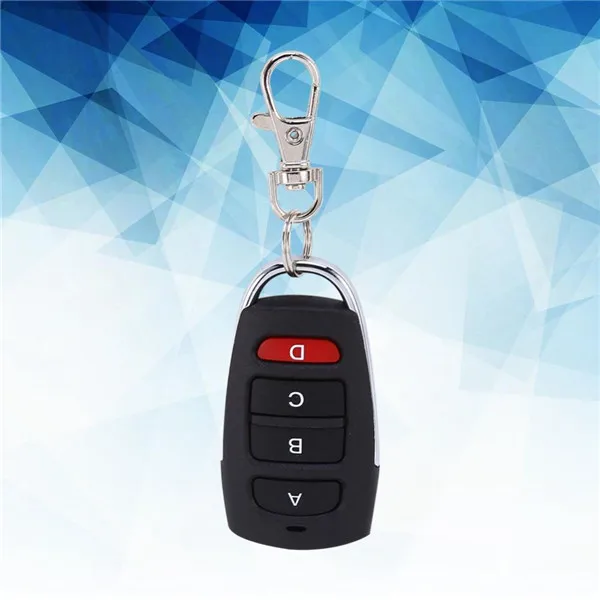

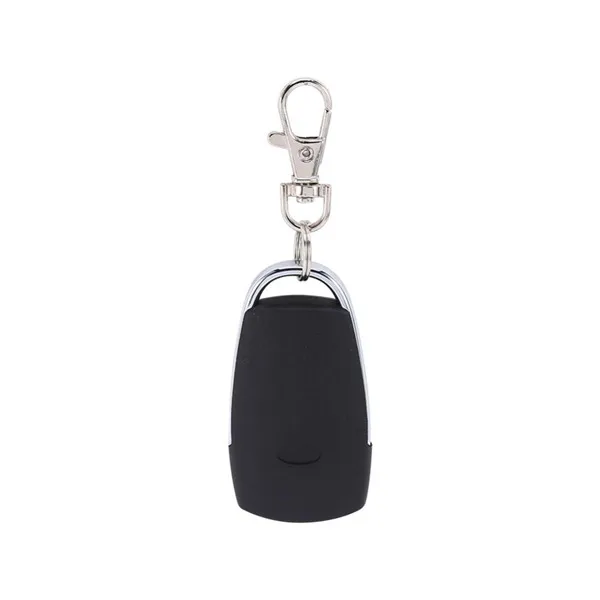

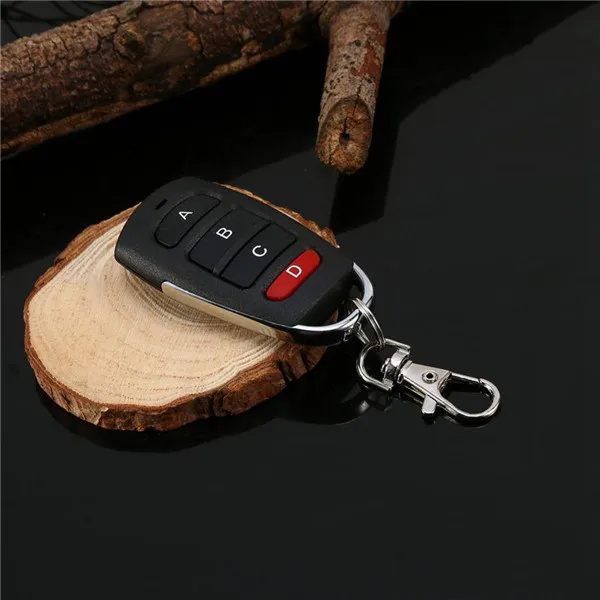

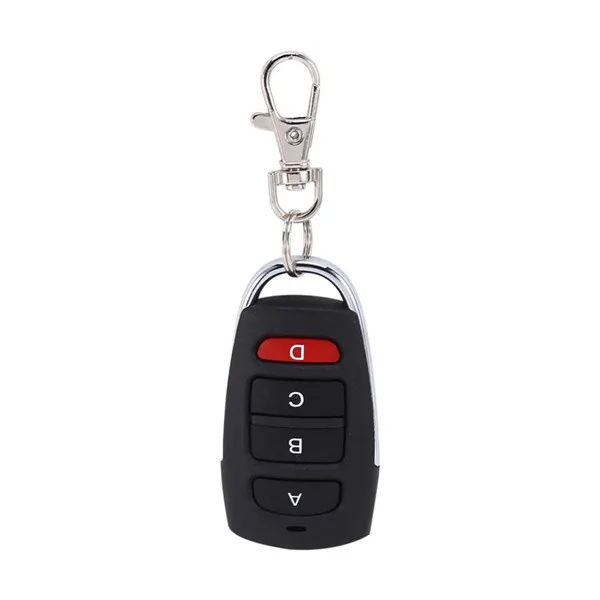

Safe 433MHZ Wireless Remote Control Duplicator for Car Gate Garage Door



Features:

1. Remote control duplicator RT433 will provide you some backup remotes via clone original remote.

2. RT433 is widely used in home alarm , panic, buttons, garage door, rolling curtain, etc.

3. Delicate and nice appearance, 4 control button

4. Adopt the radio frequency technology, long transmitting distance,high transmitting sensitivity, no signal obstruct

Specifications:

Condition: 100% Brand New and High Quality
Color: Black
Material: Plastic
Size: Approx. 6.8cm x 4cm x 1.6cm ( Length*width*Height )
Work Voltage: DC 12V
Work Current: ≤ 12mA
Transmitted Power: ≥10mW
Work Frequency: 433 MHz
Transmitting Distance: within 80M ( open space)

Battery: 2pcs CR2016 Button Batteries (Not Included)

Work Temperature: -20℃~70℃
Storage Temperature: -10℃~50℃
Humidity: under 85%
Occasion: home/ shopping mall burglar alarm , electrombile/car/motorcycle alarm, door&window controler , other industry control.

User Manual:
The Chipset Compatibility:
2260 (all the manufacturers)
2262 (all the manufacturers)
PT 2264 / 2240 / 5326 (all the manufacturers)
SC5262, HT/600 / 6P20B / 680 / 6207 / 6010 / 6012 / 6014, SMC918 Series, 527 (all the manufacturers)
1527 (all the manufacturers)
2240 (all the manufacturers)
HCS101/ 200 / 201 (Parts of code)
HCS300 / 301 (Parts of code)
Parts of single chip...

How To Use:
1. Erase the code
1) Press button A and B at the same time until LED flash
2) Release button B and keep pressing button A , then press button B 3 times, LED flash fast indicate succeed to clean code (can release button A now)
2. Duplicating
1) Put duplicator aside of original transmitter , as close as possible
2) Press and hold button A of original transmitter and button A of duplicator at the same time, until duplicator's LED flash and keep lighting.
3) Release both buttons, finish code copy , copy other button in the same way.
3. Resume
Press and hold button C and D for 3 seconds, the LED flash , OK all buttons return back to the latest copy codes.

Package Included:
1 X 4-Channel Remote Control (Battery is not included)

Please Note:
1. Please check the size measurement chart carefully before making payment.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
4. Instruction is not included.
