Product Overview

Description


Products description

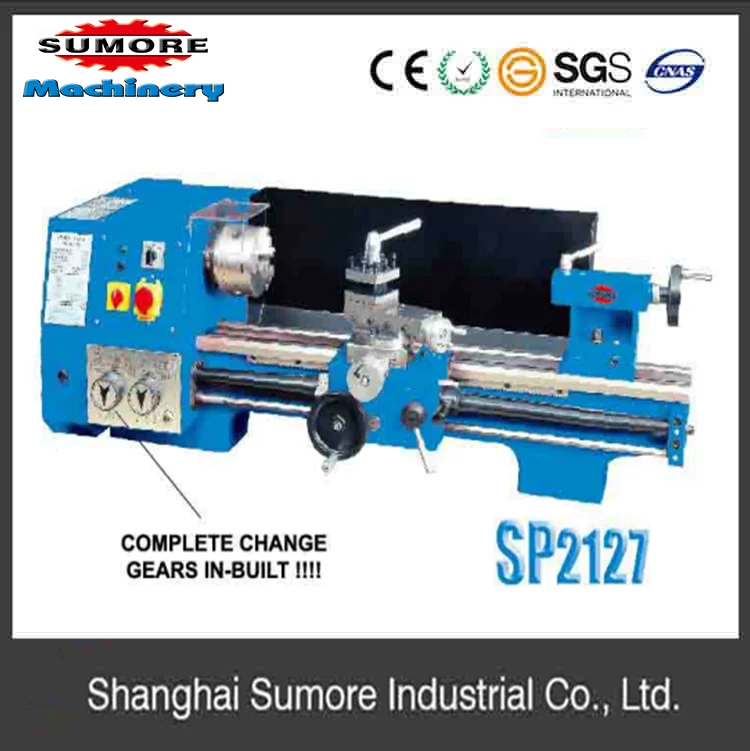

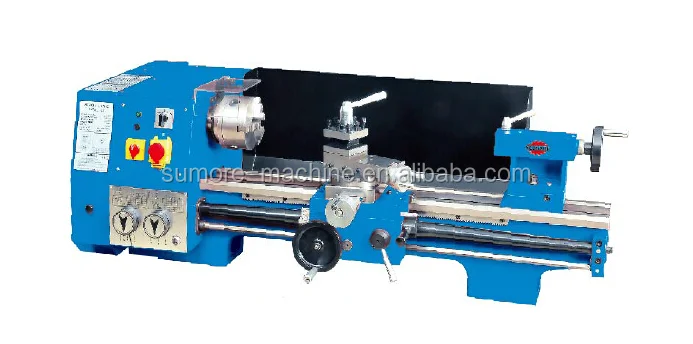

SP2127 Chinese mini metal lathe machine is widely used small conventional lathe machine. Features or advantage of lathe machineare as below:

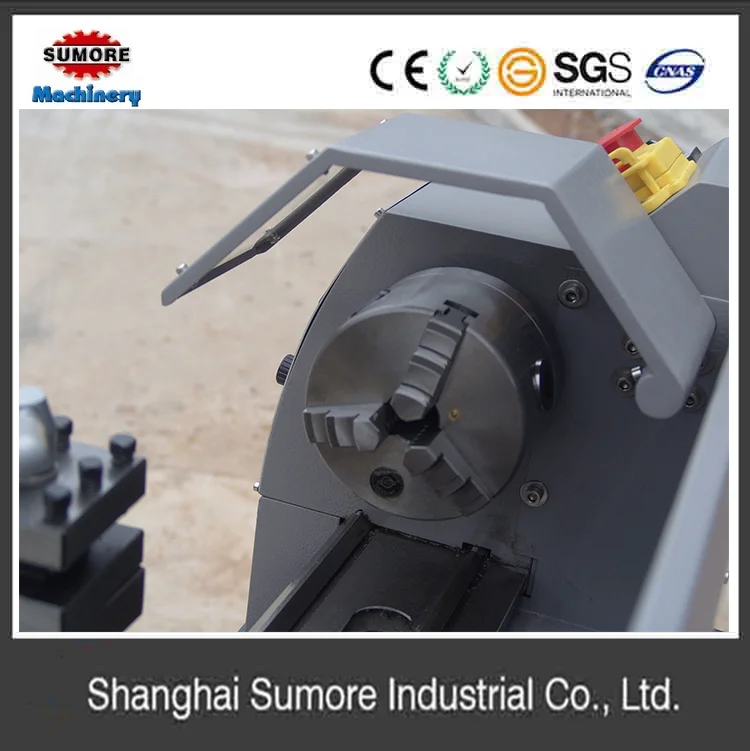

1.Chuck guard is with automatic power off.
2.Gear drive
3.Brushless motor is available.
4.Metric 14 threads and Imperial 9 threads.
5.Widely used, simple to operate, and a wide range of processing. After high frequency quenching process and precision grinding of high-quality cast iron bed.
6.Good quality and reasonable factory price.
7.Made in China, supplier from Shanghai China.
8.Good aftersale service.
9.Power supply could be customized 110v/220V.
10.All machines have to pass the checklist of the machine precision before shipment






Technical Data



Swing over Bed

280 mm

Distance Between Centers

600 / 750 mm

Spindle Bore

25 mm

Headstock Spindle Taper

MT 4

Range of Spindle Speeds

125 - 2,000 rpm

Compound Slide Travel

80 mm

Cross Slide Travel

155 mm

Tailstock Quill Taper

MT 2

Number of Inch Threads

9

Range of Inch Threads

12 - 96 TPI

Number of Metric Threads

14

Range of Metric Threads

0.250 - 2.500 mm

Motor Power

750 w

Overall Dimensions (LxWxH)

1,260 / 1,410 x 630 x 470 mm

Net Weight

170 / 175 kg

Packing Size (LxWxH)

1370 / 1520 x 740 x 650 mm

Gross Weight

220 / 230 kg

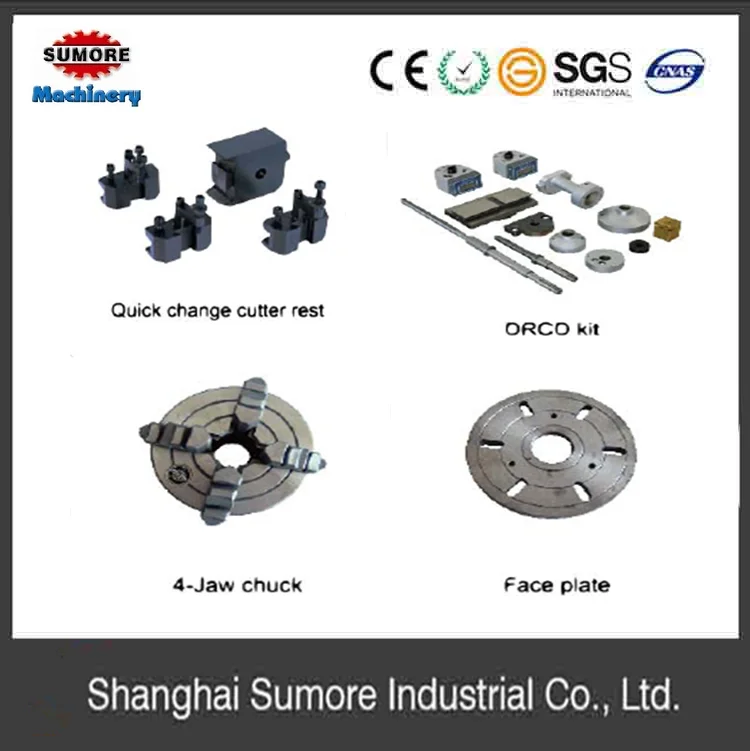

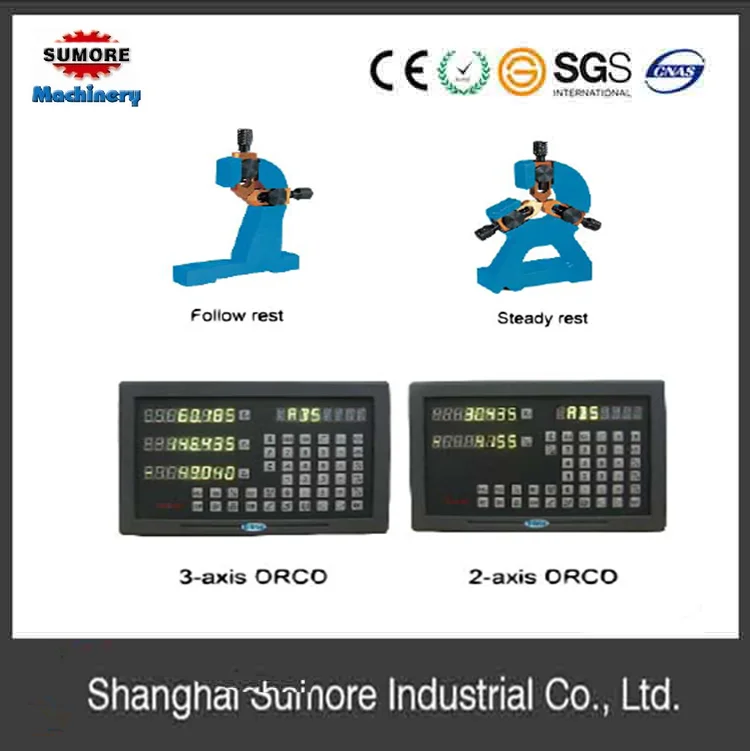

Accessories

Standard Accessories

Optional Accessories

3-jaw chuck

4-jaw Chuck

Dead Center

Face Plate

Cutting Tools

Face Plate Clamping Kit

Change Gear Set

TiN Coated Cutting Tools & Replaceable Tips

Splash Guard

Steady Rest

Chuck Safety Guard

Follow Rest

Stand

Drill Chuck and Drill Arbor

Oil Tray

Live Center

Oil Gun

Quick Change Tool Post

Manual & Parts List

Clutch for Feed Rod



Lead Screw Guard

 Digital Readout Cutting Depth
 Coolant System
 Work Light





 tips banner 2.jpg


Packaging & Shipping



Package

1 set/polywood case  (aluminum strips strengthen)

Minimum Order Quantity (MOQ)1 sets
Full Container Loading Quantity (FCL)27-36 sets/20’GP  (unitary; customerized packing available)
Delivery Time25 calendar days after receiving of advance / full payment






Certificates


Company Information

Shanghai Sumore Industrial Co., Ltd. (Sumore Machinery) was established back into year

2001. The core business of Sumore Machinery was focused on full machinery business chain,

which involves research and development, fabrication and production, foreign trading and

domestic sales on a wild range of products, such as power tools, woodworking equipments,

metal-processing machines and all related accessories.
