Plastic Medical Syringe Cover Making Machine

Product Overview

Description

Horizontal Injection Moulding Machine for Plastic Products

Consist of plasticizing system, injection system, the clamping system and transmission system of



plastic injection molding equipment.



Our company use die casting technologies applied to injection molding machines for many years.



In mechanical, hydraulic, electric control, etc for comprehensive improvement, perfect combination



of dynamic pressure casting and speed.







Advantage:

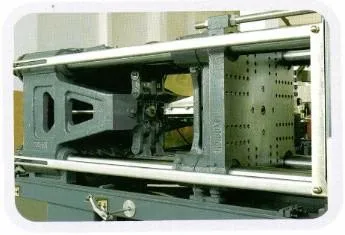

1. Clamping Unit



Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite Element Analysis;



High speed clamping is stable while low pressure protection is accurate; Automatic lubrication system;



Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you



to choose.

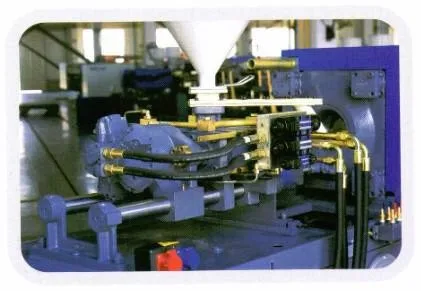

2. Injection Unit



Double-cylinder balance injection system; Shot weight is precisely controlled by transducer;



Using hydraulic motor to carry out variable speed.

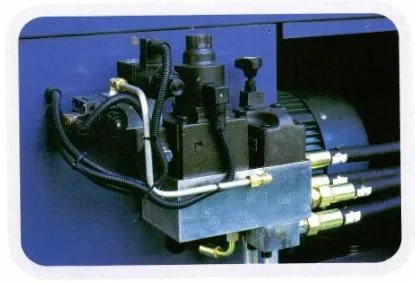

3. Hydraulic Unit



Domestic high-tech divided hydraulic system; Hydraulic safety device; Imported high quality



hydraulic components are applied.

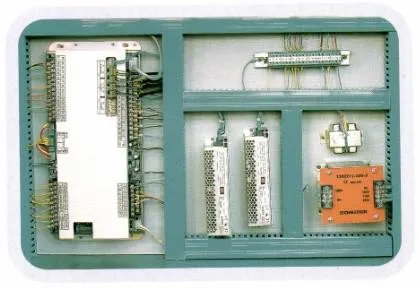

4. Electric Unit



Special controller for plastic injection molding machine; All the main components are imported from



famous company, for example: TE(France), Gefran(Italy),etc.

Technical Specification:

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	40	45	48
	Screw L/D Ratio	L/D	22.5	20.3	19
	Injection Volume	cm3	251	318	362
	Shot Weight	g	229	289	329
	Injection Pressure	Mpa	202	159	140
Clamping Unit	Clamping Force	KN	1680
	Opening Stroke	mm	420
	Mould Thickness(Min-Max)	mm	180-500
	Space Between Tie-Bars	mm	455×455
	Ejector Force	KN	45
	Ejector Stroke	mm	140
General	Motor Power	KW	15
	Heater	KW	10
	Pump Pressure	Mpa	16
	Machine Dimension	m	5.2×1.3×2.1
	Machine Weight	T	4.8
	Mould Orientation Ring Diameter	mm	Φ125
	Nozzle Radius	mm	SR15

Accessory list



Components	Brand/Country
Hydraulic motor	Intermot or Cazoni/USA
Hydraulic pump	Tokimec /Japan or Vickers /U.S.A
Directional valve	Vickers /U.S.A
Proportional valve	Yuken /Taiwan
Orbit hydraulic motor	EATON /U.S.A
Seal and "o" ring	Valqua /Japan
Hydraulic hose	LAFAGOMMA /Italy or AWROQUIP /U.S.A
Pressure meter	VDO /Germany
Contactor	Schneider /France
Fuse holder or phase breaker	Schneider /France
Limit switch	Omron /Japan or Telemecanique /France
Air breaker	Schneider /France or Fuji /Japan
Position Transducer	Gefran /Italy
Sensor	Omron /Japan
Computer	Techmation /Taiwan (PC based,color LCD)
Clamping Platen	QT450 /China (precise casting)
Tie bar	Cr40(after special heat treatment)/China
Screw and Barrel	38CrMoALA /China
Remark: components changed due to technology and supplier without pre-notice





Pre-sales service:

1- Inquiry and consulting support

2- View our factory

After-sales service

1- Traning how to instal the machine, training how to use the machine

2- Engineers available to service machinery overseas.

3- 1 year free warranty( caused by quality problems),from the machine arrived at buyer's factory.

4- Lifetime maintenance and life time spare parts supply.
