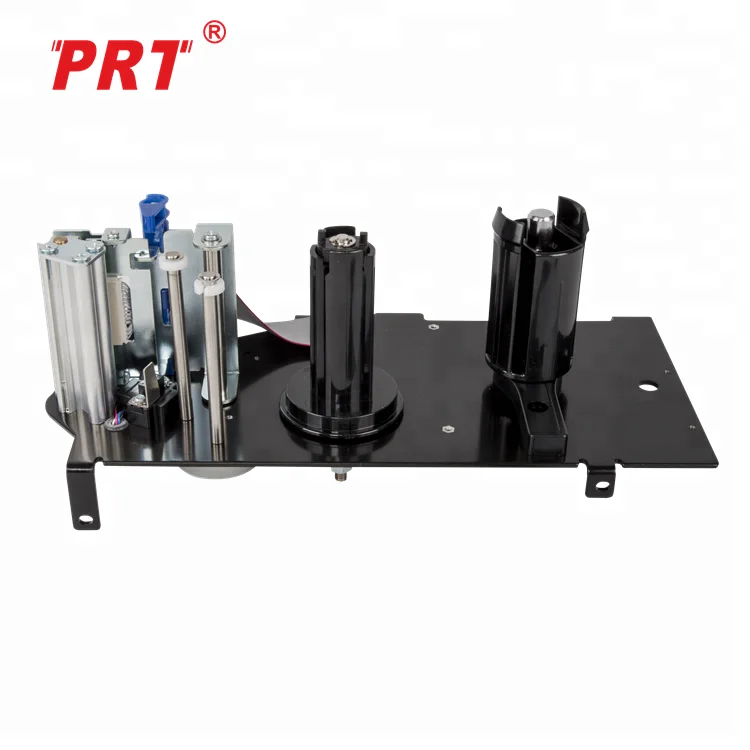

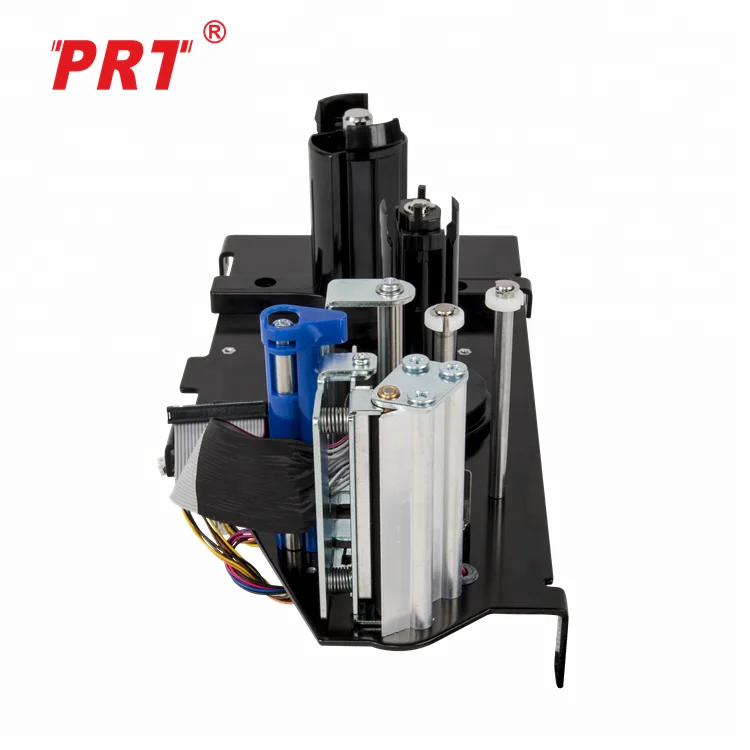

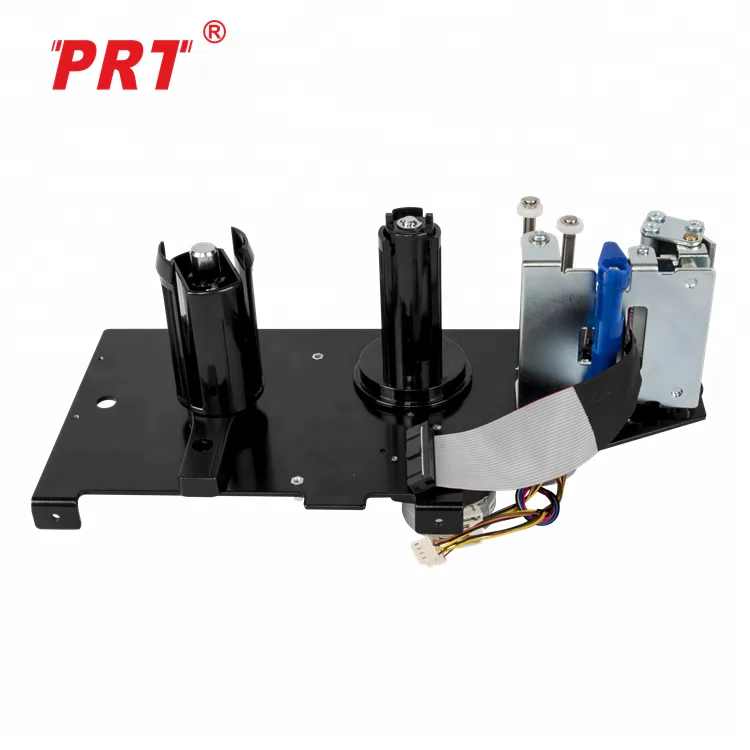

PT562 63mm Label Thermal Printer Module for Automatic Label Applicator
- Category: >>>
- Supplier: Xiamen PRT Technology Co. Ltd.
Share on (60767356135):
Product Overview
Description
Product Description
Specification:
| Model | PT562 |
| PRINTING CHARACTERISTICS | |
| Print Method | Direct line thermal |
| Resolution | 8 dots/mm |
| Max. Printing Width | 56mm |
| Number of Dots | 448 |
| Max. Printing Speed | Max. 150 mm/s |
| MEDIA | |
| Media Type | Label/Receipt Paper |
| Paper Width | Max. 63mm |
| Paper Roll Inner Diameter | 12.5mm or 40.5mm |
| Paper Roll Outside Diameter | 120 mm |
| Media Total Thickness | Max. 150um |
| DETECTION | |
| Head Temperature | By thermistor |
| Paper Out | By photo sensor |
| Platen Open | By mechanical SW |
| Paper Taken | NA |
| POWER SUPPLY | |
| TPH Logic Voltage | 3.0V - 5.5V |
| Drive Voltage | 24V±10% |
| PEAK CURRENT | |
| Head(Max.) | 3.39A(24V/96dots) |
| Motor | 750mA |
| RELIABILITY | |
| Pulse Activation | 100 million |
| Abrasion Resistance | 100KM |
| ENVIRONMENTAL | |
| Operating Temperature | 0 - 50℃ |
| PHYSICAL CHARACTERISTICS | |
| Dimensions(W*D*H) | 280*140*129.4mm |
| Mass | 522g |
