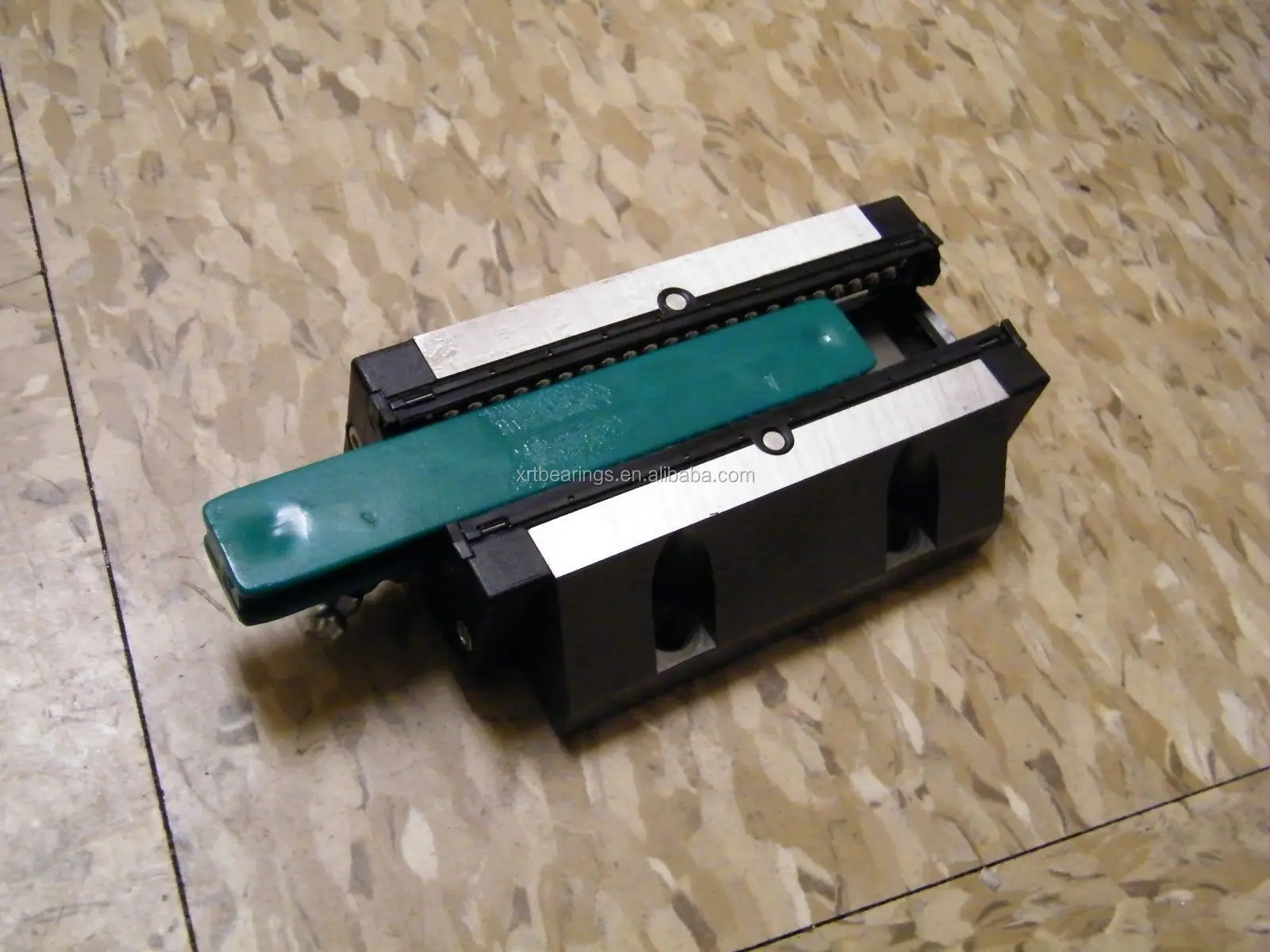

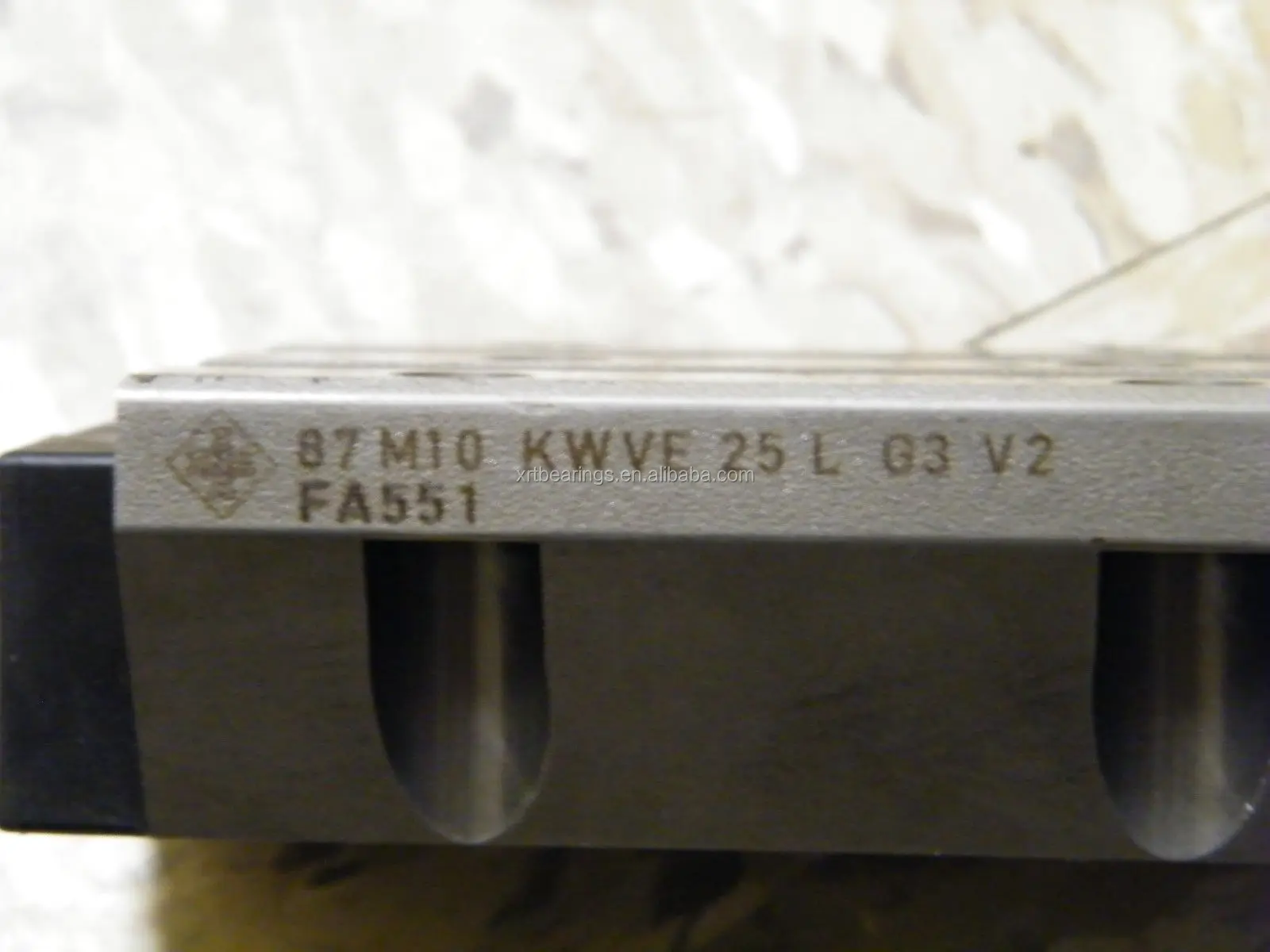

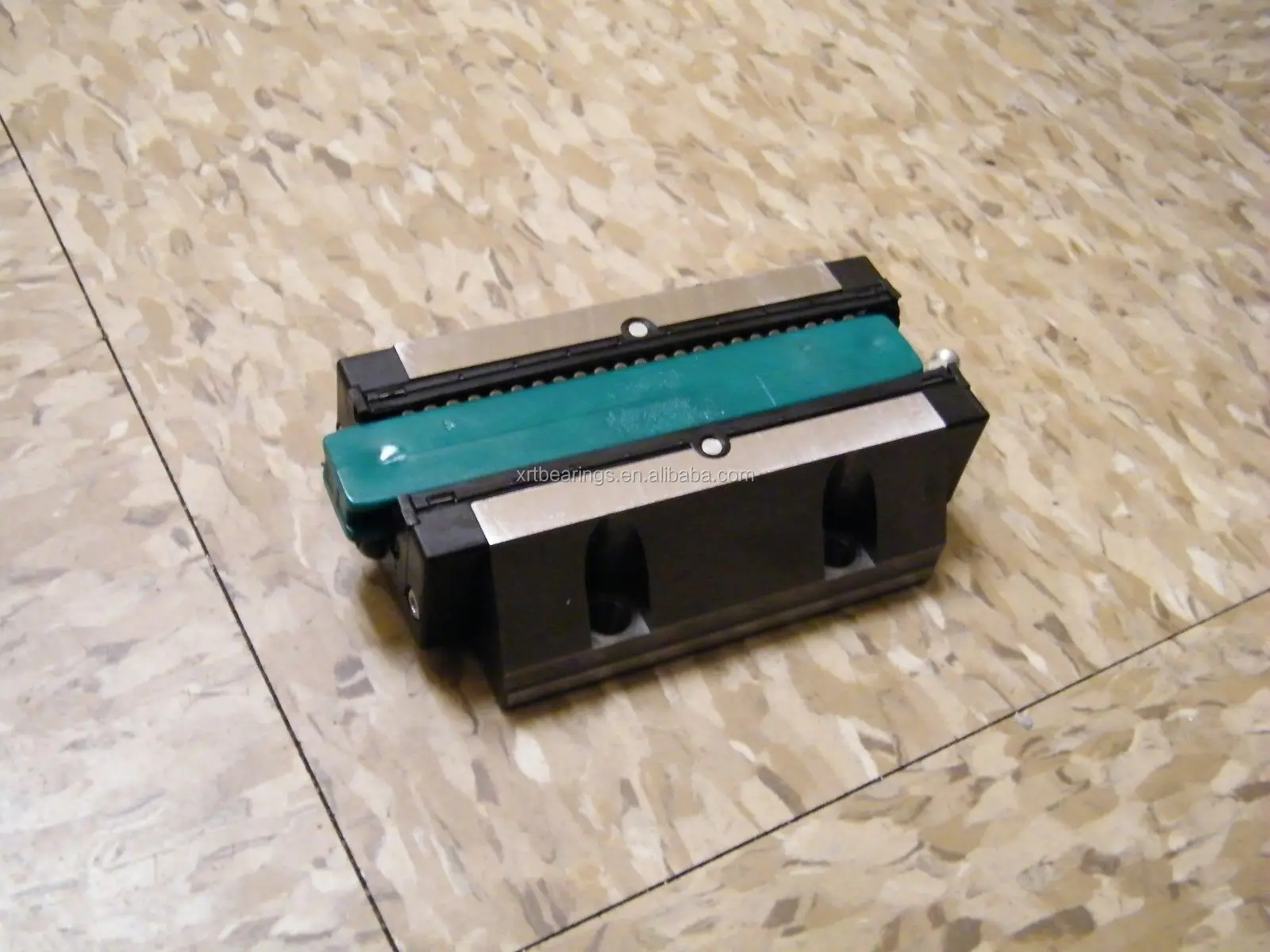

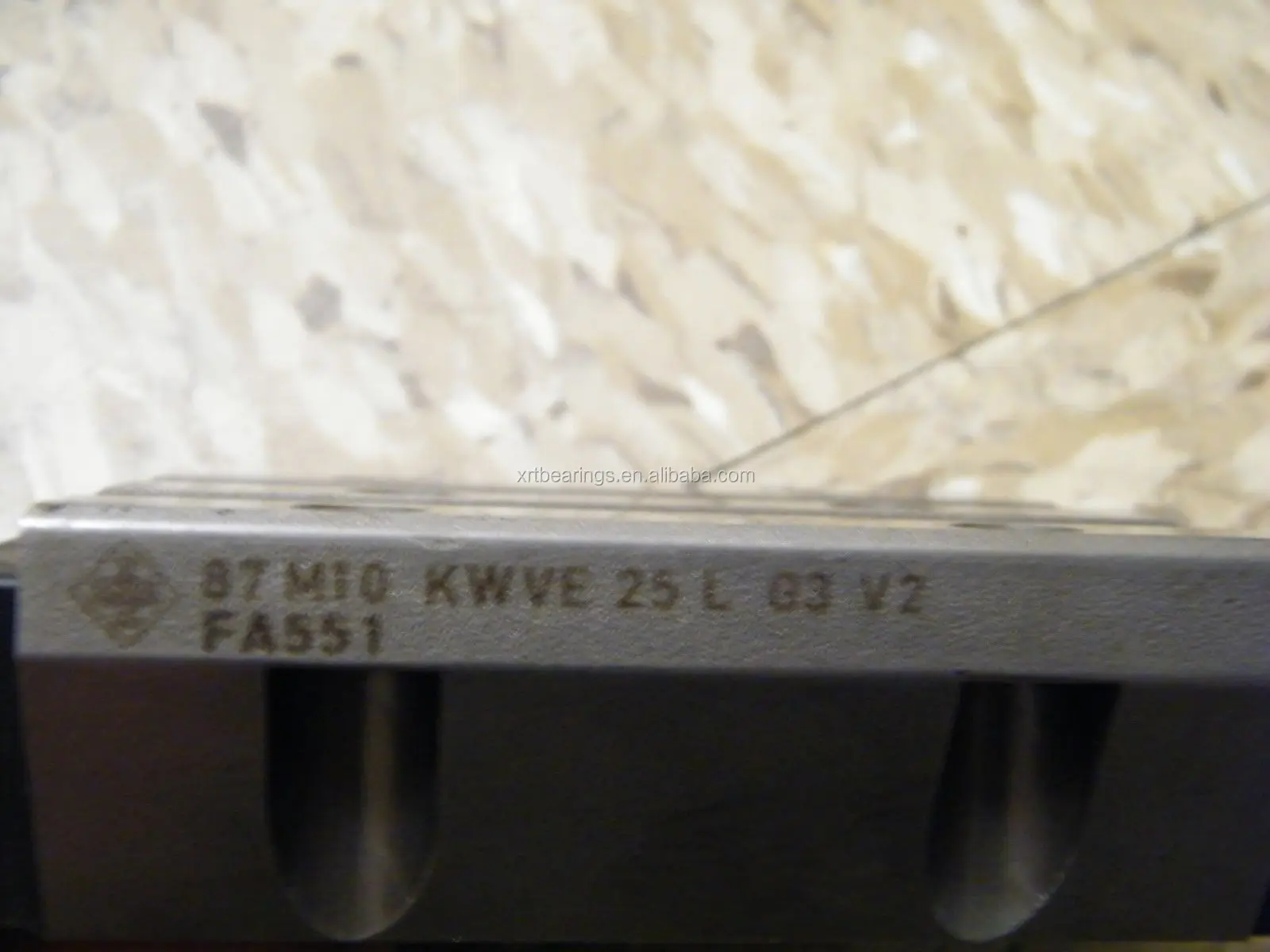

KWVE 25 L G3 V2 LINEAR BEARING KWVE25 KWVE25L Linear Roller Guide Bearings

Bearings Parameters

KWVE-25-L-G3-V2 LINEAR BEARING KWVE25 KWVE25L Linear Roller Guide Bearings:

Four-row linear recirculating ball bearing and guideway assemblies description:

Four-row linear recirculating ball bearing and guideway assemblies represent the most extensive and complex group within the range of monorail guidance systems.

They are used where linear guidance systems with high load carrying capacity and rigidity must move heavy loads with high running and positional accuracy as well as low friction. The guidance systems are preloaded and are suitable for long, unlimited stroke lengths.

Depending on the operating conditions, accelerations up to 150 m/s2 and speeds up to 360 m/min are possible. Where designs are planned with extensive use of accessories and travel speeds >180 m/min.

The units are available in full complement design and with Quad-Spacers. A guidance system comprises at least one carriage with rolling elements, a guideway and two-piece plastic closing plugs. The four-row linear recirculating ball bearing and guideway assemblies are supplied with initial greasing as standard.

Four-row linear recirculating ball bearing and guideway assemblies are linear guidance systems of X-life quality. They are characterised by improved technological characteristics, increased robustness and a longer operating life.

Linear Guide Bearing Specifications:
