Product Overview
Description
Products Description

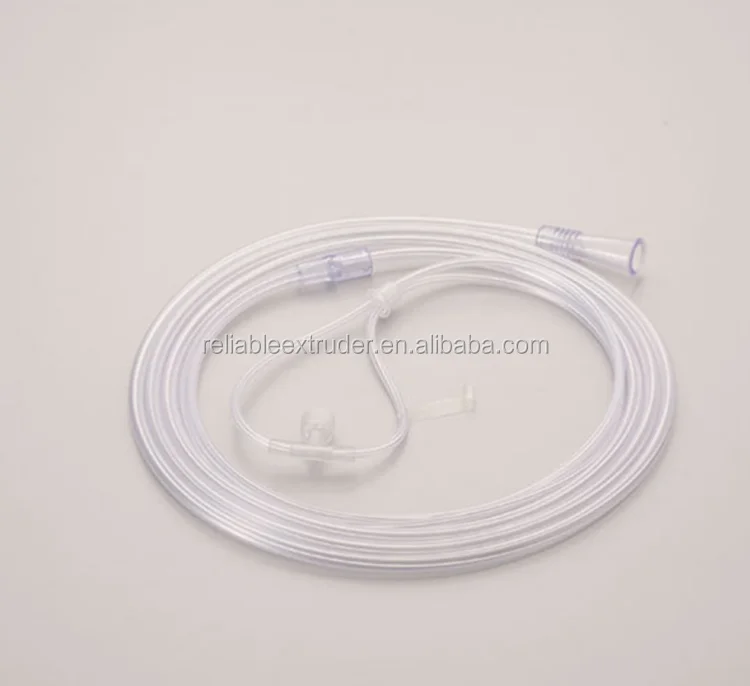

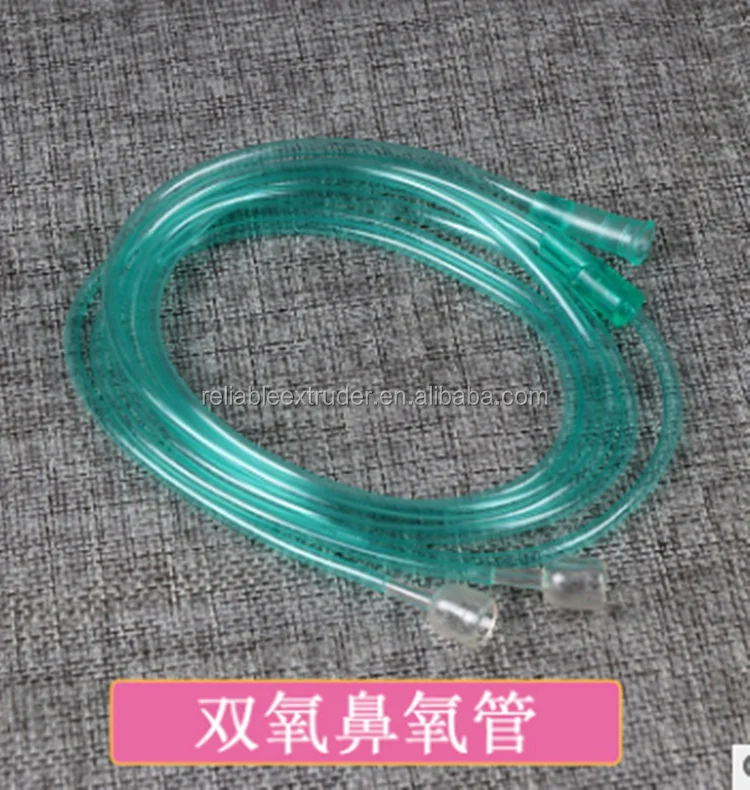

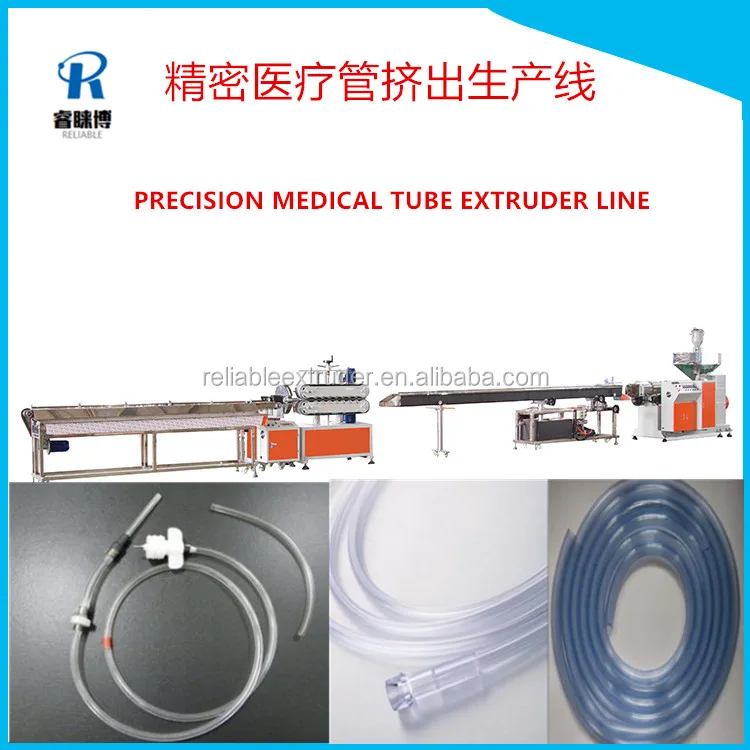

PVC Nasal Oxygen Tube extrusion line

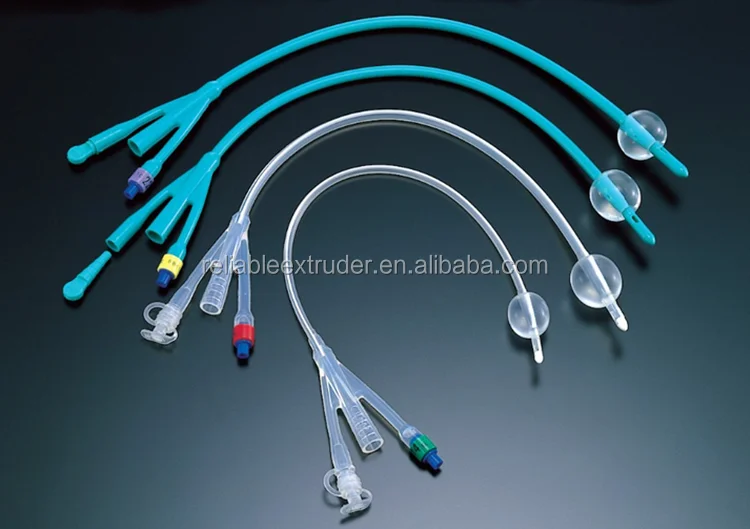

PVC Oxygen Tube extrusion line is mainly used in the production of central venous catheter, capillary, perforated pipe of various types of precision medical catheter.
Applicable material: PVC, PU

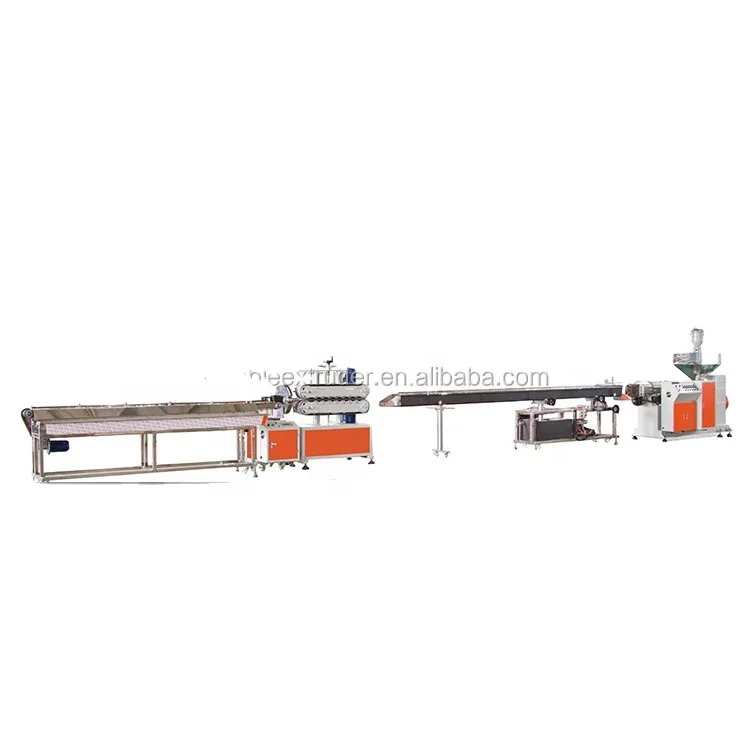

precision extruder------extruder die------Vacuum calibration tank-----Haul off and cutter unit----Convey and product collect system)-----Diameter controller
precision extruder------extruder die------Vacuum calibration tank-----Haul off and cutter unit----Convey and product collect system)-----Diameter controller
Application
applicable to the production of high precisely medical oxgen tube, shield tube,latex tube and PVC short tube of disposable infusion apparatus and other conduits
Main Features:
2. The main extruder adopts high stable AC motor, double reduction hardened gear box drive, to ensure the energy saving production, smo
Reference Style

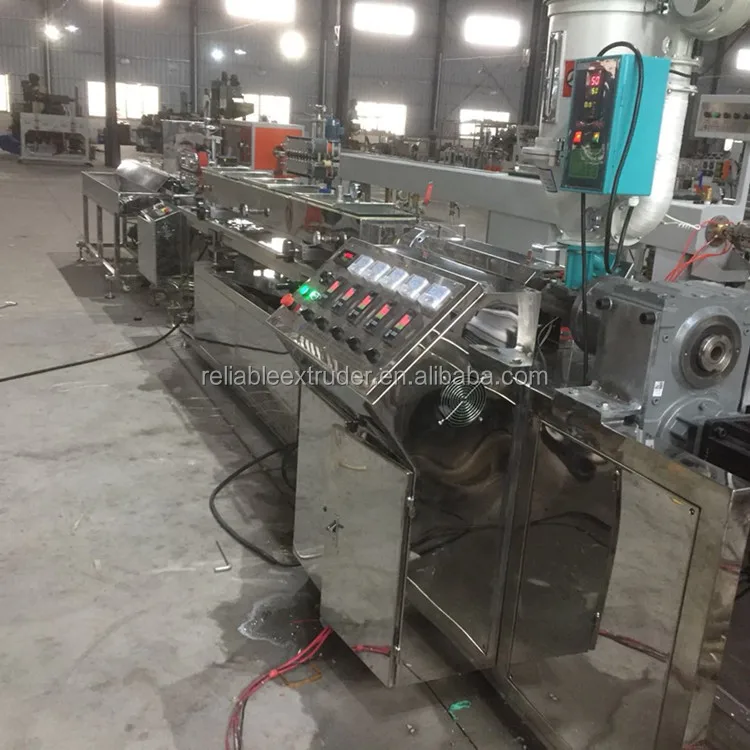

Mechanical Scene Photos

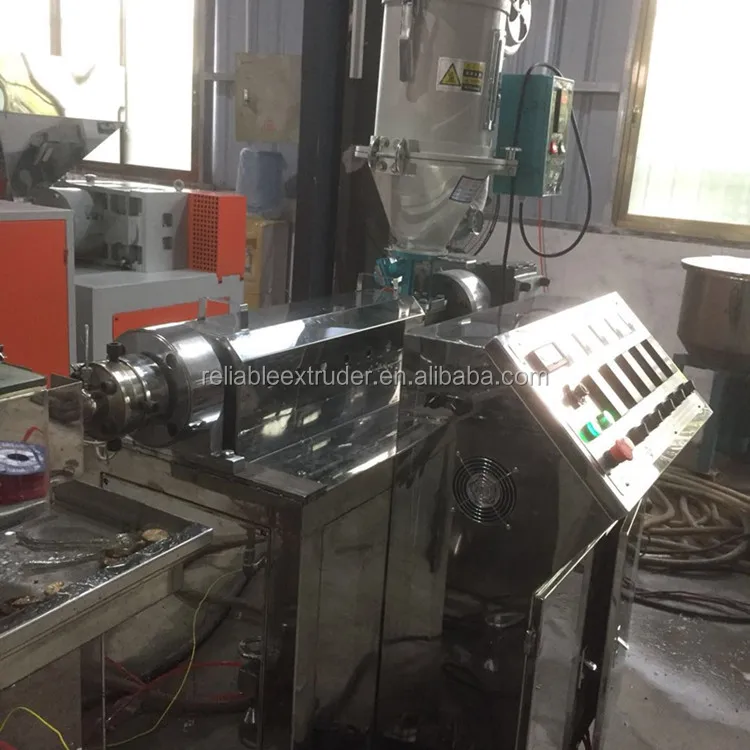

PVC screw designed by Germany technology, with bigger L/D and compression ratio, ensures high speed and stable extrusion, meanwhile provides excellent plasticity.
Extruder with “SIEMENS” A/C frequency motor and high class “ABB” inverter, which provide accuracyand stable output control, “Huibang” PID intelligent temperature controller, accuracyof temperature control: ±1°C;
Collection device

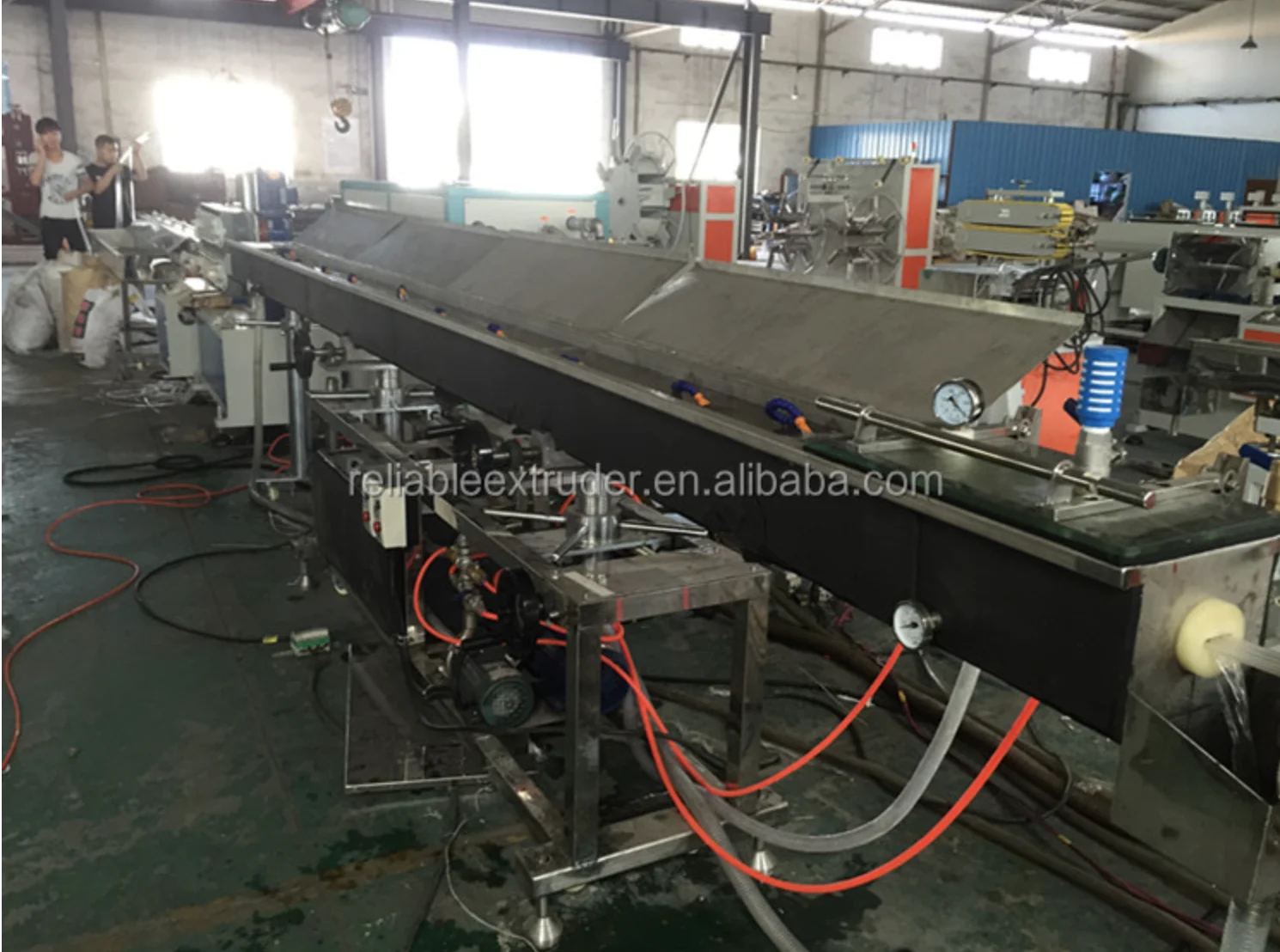

Main body of cooling tank is made from medical standard stainless steel SUS316 material, which can tolerate long-term oxide etch with 10ppm sodium hypochlorite water.
Tank frame with spiral elevating device, can be 3D moved, trouble free operation;
Equipped with stainless steel reservoir and medical standard stainless steel centrifugal pump which can form water circulation loop with outside cooling water supply;
Tank frame with spiral elevating device, can be 3D moved, trouble free operation;
Equipped with stainless steel reservoir and medical standard stainless steel centrifugal pump which can form water circulation loop with outside cooling water supply;

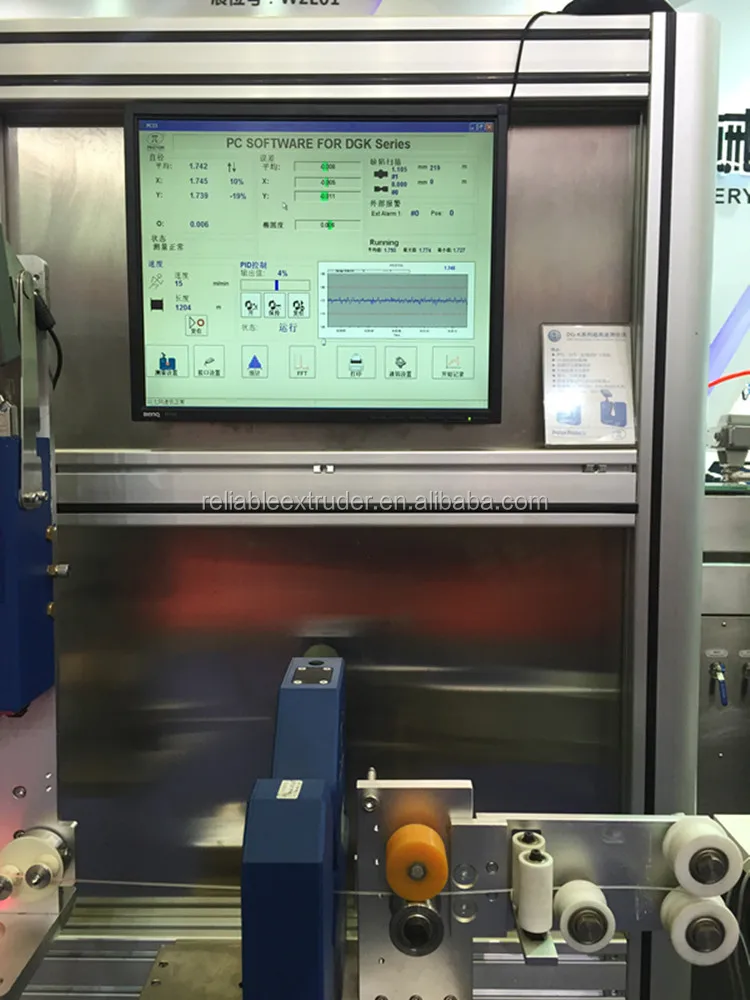

Adopt Laser Mike bi-direction high speed diameter measurement system, which can realize measuring the diameter, ovality and positional value of product on line.Diameter measuring precision can get to ±0.02MM;

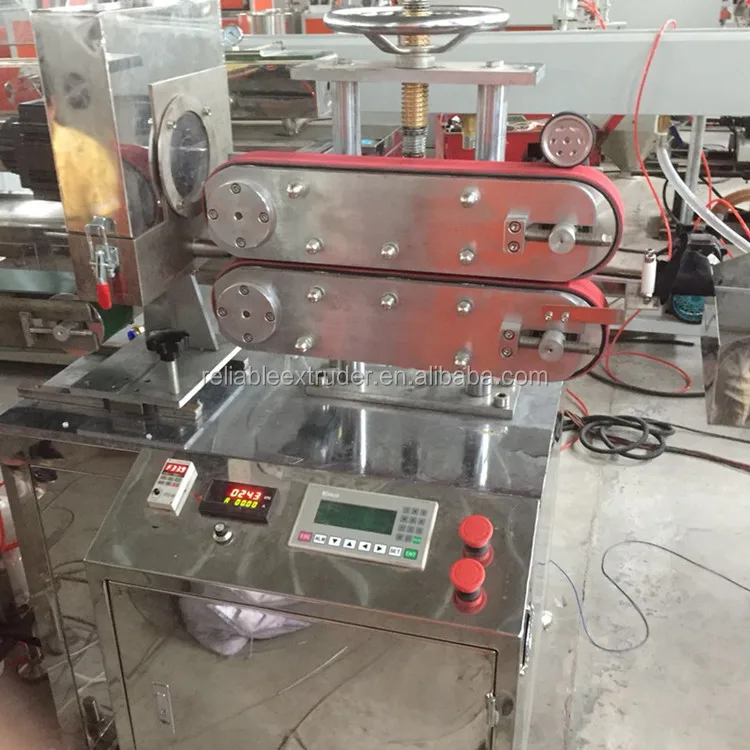

Puller adopts imported multilayer composite wearable strap (accord with medical sanitary requirements), with high level precision roller driving, stepless speed control;

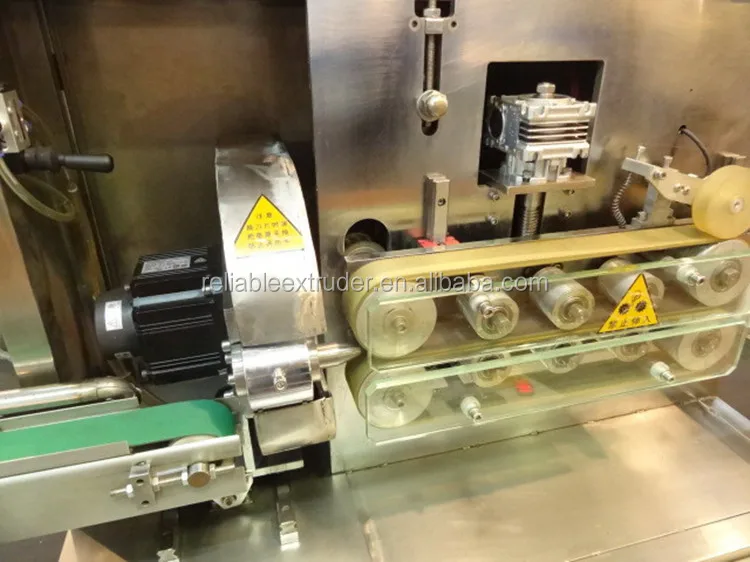

Cutter equips with low inertia aluminum alloy rotating knife arm structure, together with locking device and alcohol cooling system for cutting knife.
Driven and controlled by TECOServo system, which offers high speed and high accuracy cutting action.
With Japan Mitsubishi PLC programmable control and SIEMENS human-computer interface, cutter can realize continuous cutting, timing cutting, length counting cutting etc. Cutting length can be set freely, automatic counting.
Driven and controlled by TECOServo system, which offers high speed and high accuracy cutting action.
With Japan Mitsubishi PLC programmable control and SIEMENS human-computer interface, cutter can realize continuous cutting, timing cutting, length counting cutting etc. Cutting length can be set freely, automatic counting.
