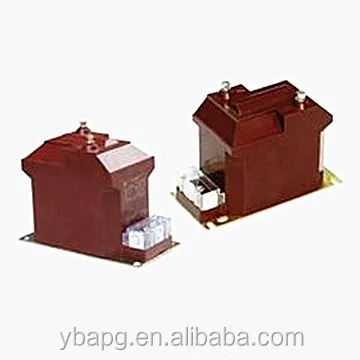

JDZ10-3,6,10A1 JDZX10-3,6,10A1G type voltage transformer

Summary

This type of voltage transformer is single-phase, indoor, dry type completely closed product, when using a single or two sets of JDZ10-3 or a group of JDZ10-6 JDZ10-10A, a group of two for V / V connection, JDZF10-3, 610 units of two groups of V/V/V connection. It is suitable for power metering, voltage monitoring and relay protection in rated frequency 50Hz or 60 Hz, rated voltage is 3 KV, 6 KV, and 10kV power system.

Specifications

Transformer is used for measuring and monlitoring voltage or current in the circuit

1. High accuracy

2. Cast resin type

Package and delivery

use membrane plastic film and other parts use wooden case for safety shipment

Delivery time : shipped in 30 days after payment.

Ambient temperature

1. Not more than 30003 m above sea level;

2. The ambient temperature is not higher than 40g C, not lower than -5C;

3. The relative humidity of the surrounding air is not greater than 65 ~ (20) C ~ (-1);

4. Meet Class II pollution grade;

5. Non-corrosive gas in installation

6. Rated insulation level: JDZ10-6 7.2/32/60kV / JDZ10-10 12/42/75kV

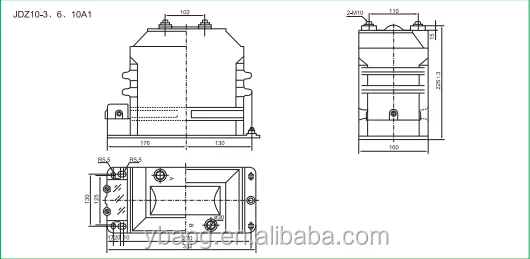

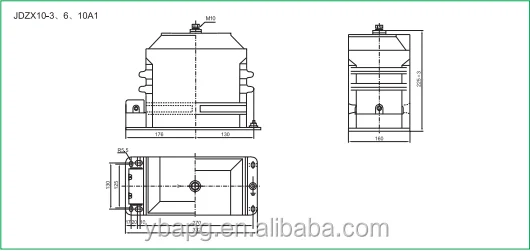

Structure

The voltage transformer is totally enclosed , and the winding is an epoxy resin all - vacuum cast all - insulating structure . The iron core is formed by winding high - quality silicon steel sheet . The transformer is insulated by epoxy resin . The product is small in volume , light in weight , only occupies only a limited space , all the windings are completely cast in epoxy resin , and the transformer has excellent insulating property , impact resistance and mechanical pressure , and can protect the windings from moisture . The marks of the terminal of the primary winding lead - out wire are A , N ; the marks of the lead - out terminal of the secondary winding are a and n , and all the marks of the lead - out wire terminal of the secondary winding are clearly marked on the pouring body . The grounding bolt on the clamping piece is provided with a grounding bolt for grounding , and the lower bracket is used for mounting . The whole structure is compact and convenient to use .

Technical data

Type

Rated voltage ratio(v)

Rated secondary output(VA)

Max.output(VA)

Rated insulation level(KV)

Notes

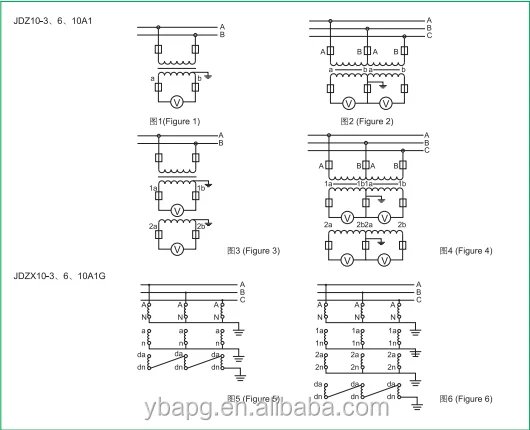

Wiring diagram

0.2

0.5

1 class

3 class
