dc digital panel amp meter current meter ammeter with LCD display input dc 0 9999A with RS485 modbus accuracy 0.5 PZ72L DI
- Category: >>>
- Supplier: Acrel Electric Co. Ltd.
Share on (60767434168):
Product Overview
Description
Product Description
dc digital panel amp meter current meter ammeter with LCD display input dc 0-9999A with RS485 modbus accuracy 0.5 PZ72L-DI
PZ series DC digital amp meter is designed for application in DC cabinet,solar power supply and telecom station. It can measure voltage,current of DC system.It can be used for local display and connected
with the control equipment to regroup measuring and controlling system.
It can be equipped with RS 485 communication under Modbus-RTU protocol;it has options of analog output,relay alarm and switch state.
Technical data
| Model | PZ72L-AI | ||
| Dimension | |||
| Panel size | 75*75mm | ||
| Cut out | 67*67mm | ||
| Depth | 98mm | ||
| Technical data | |||
| Phase | Single phase | ||
| Display | LCD | ||
| Input | AC 1A or 5A | ||
| Power | AC 85~270V | ||
| Accurracy | 0.5 class | ||
| Option | One analog output(programmable 4-20mA) | ||
Detailed Images

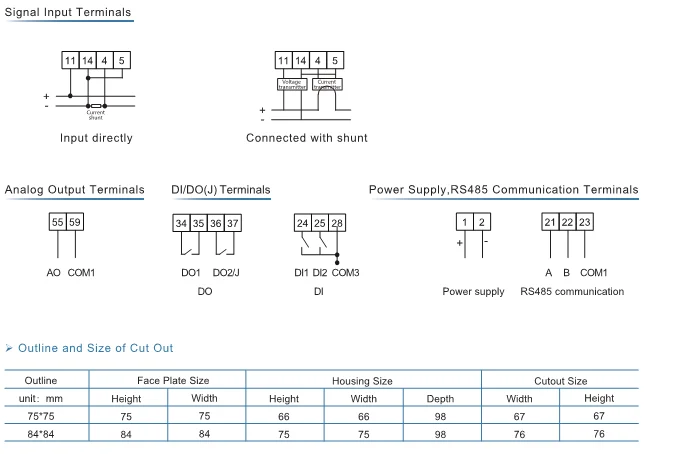

Wiring
