Big promotion 2018 Used CNC Plasma Cutting table Machinery

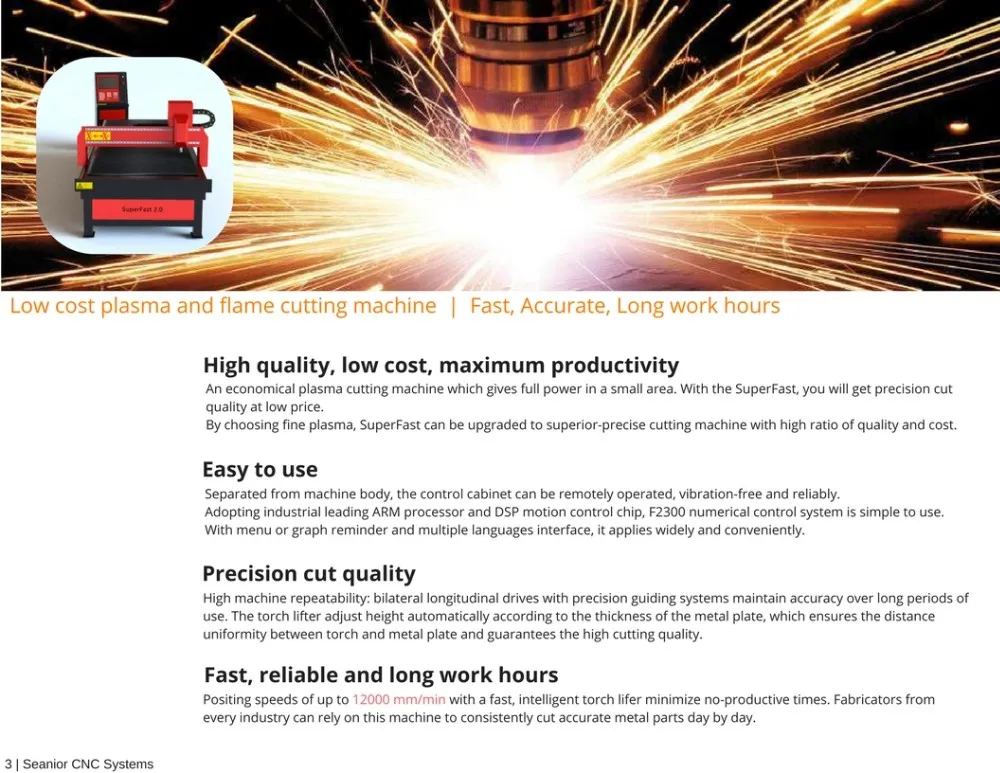

Low cost plasma and oxy-fuel cutting machine.

Are you looking for an economical plasma cutting machine which gives full power in a small area? With the SuperFast you will get high precision cut quality at low price.

Thanks to the space saving, compact construction, the machine can be quickly installed.
High machine repeatability:linear guidance ensures the parts cut in one area of the table for the exact same as parts cut anywhere else on the table.

Effectively applied to cutting mild steel, stainless steel and non-ferreous alloy metal fast and accurate.
Numerically controled driver, closed-loop self-feedback walking control system, fast response, anti-interference, maintenance-free planetary gear reducer of large torque, low back lash--all the aboves guarantee fast cutting speed, high precision and long life usage.

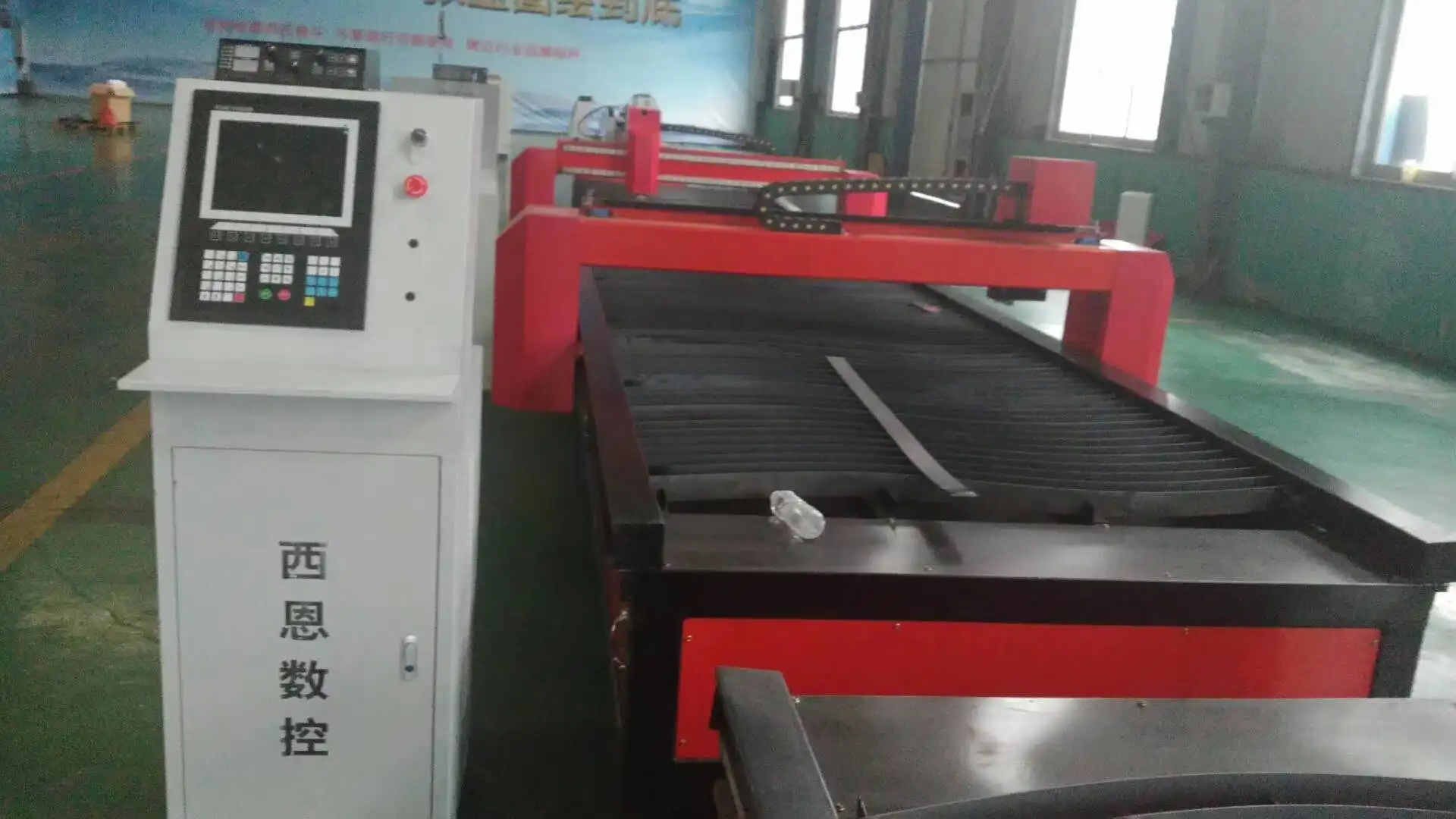

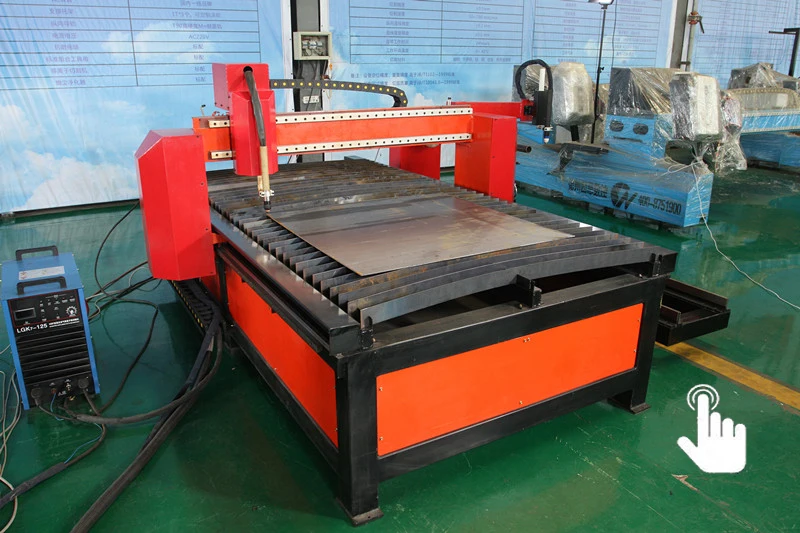

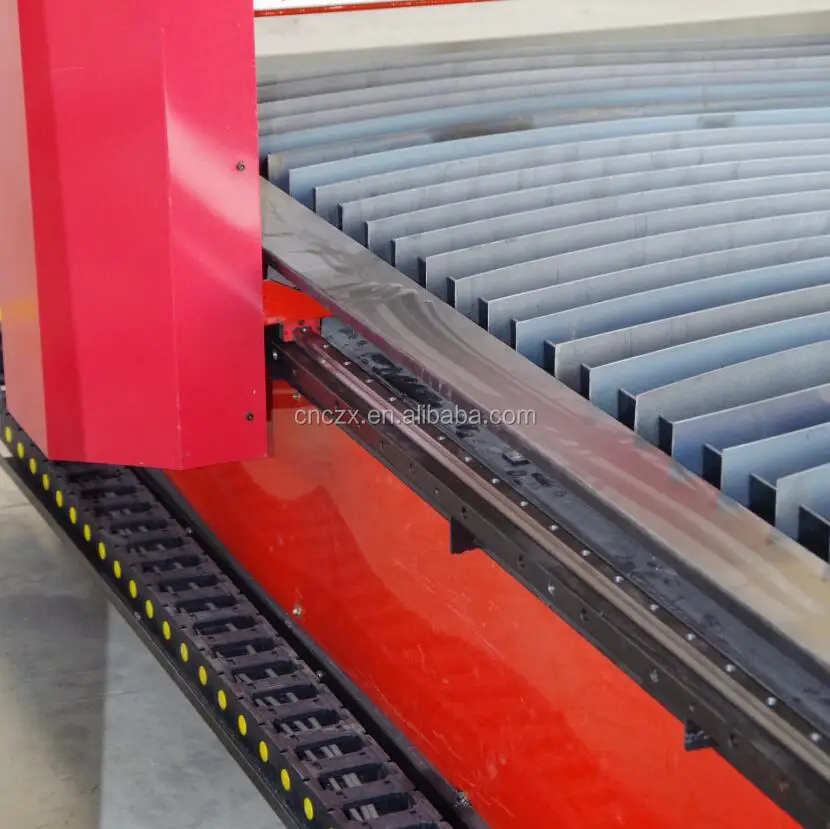

Hot Sale Used CNC Table Plasma Cutting Machine

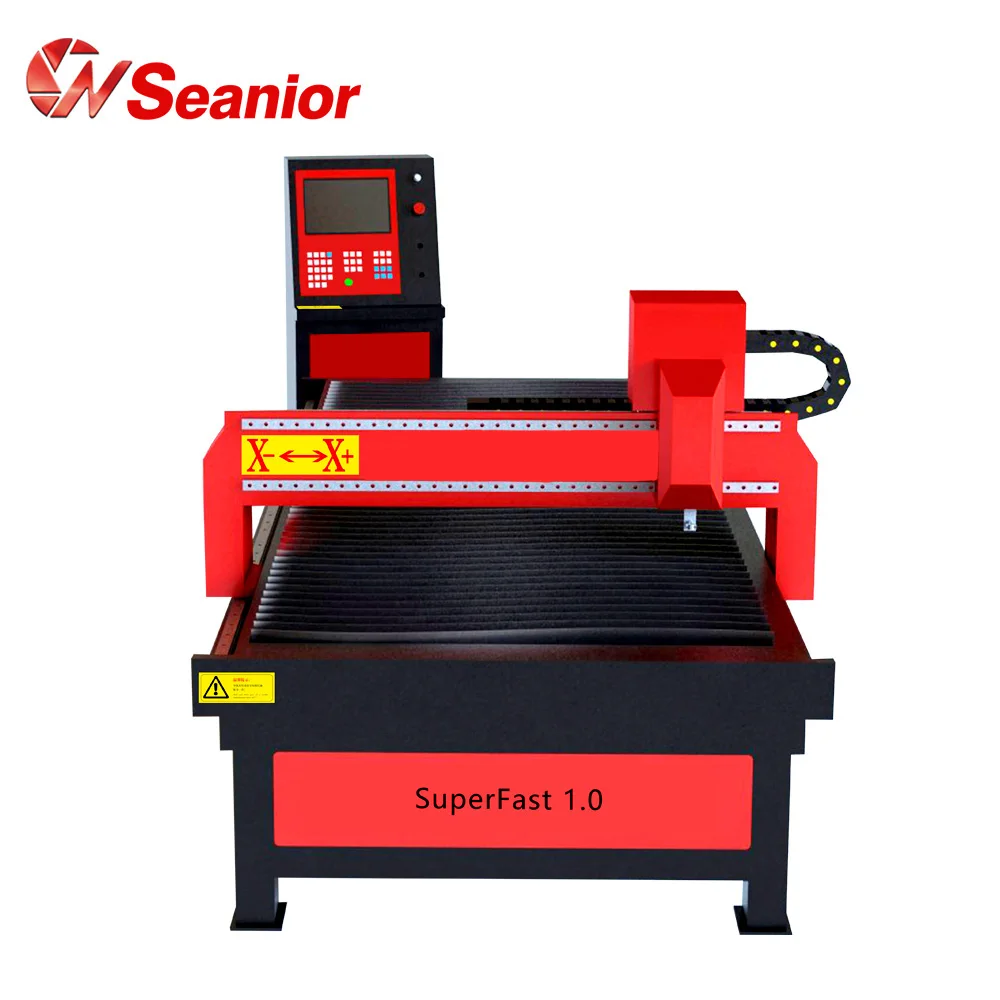

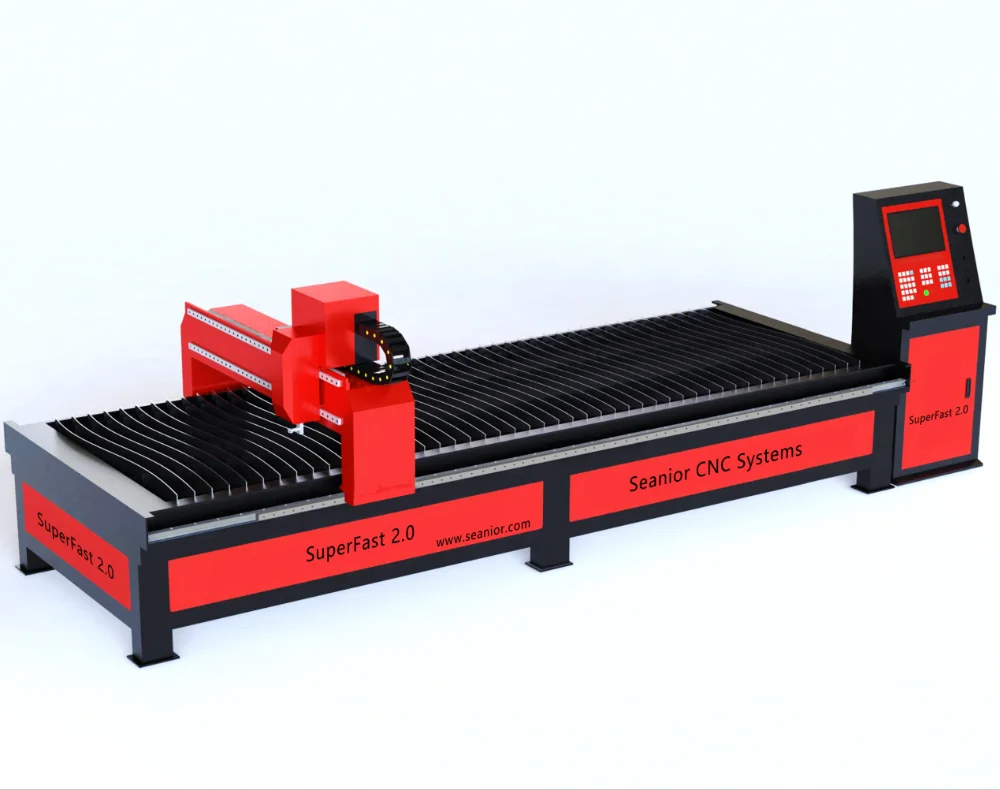

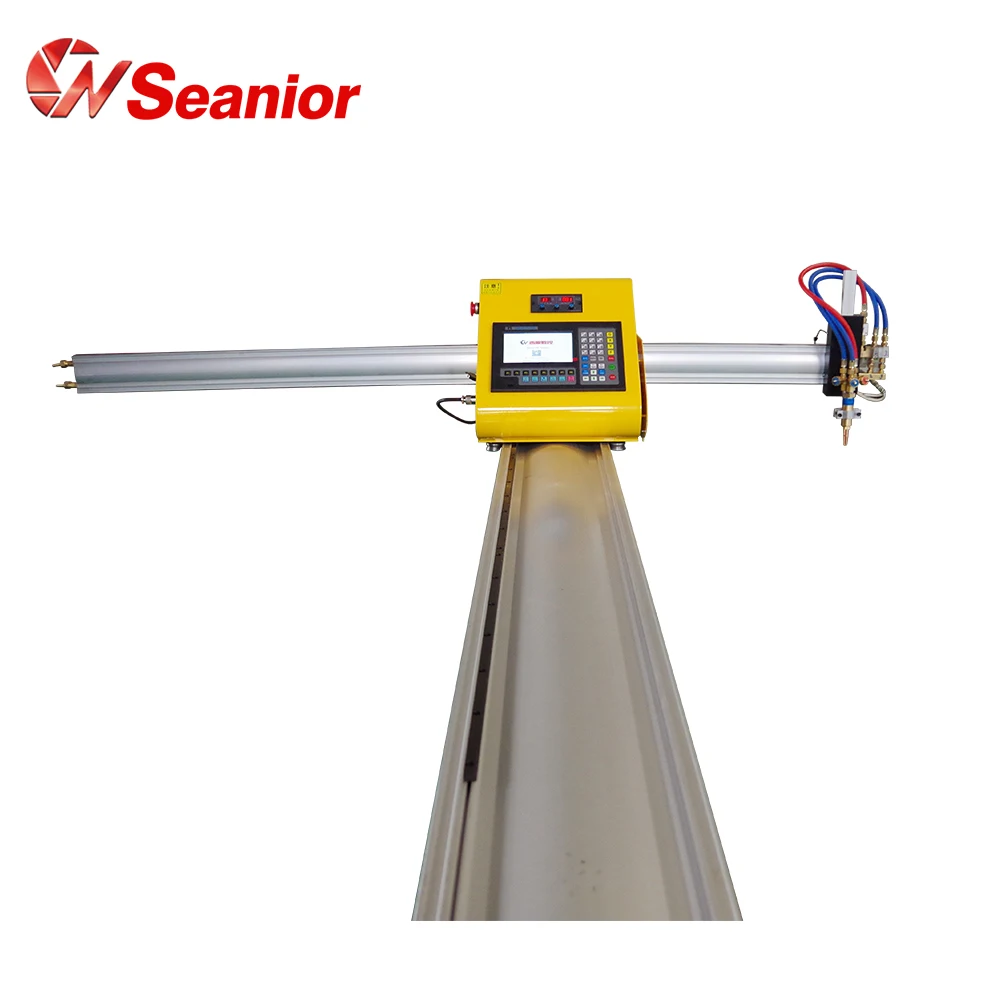

(CNC Plasma Cutting Machine            Model: SuperFast 1540)

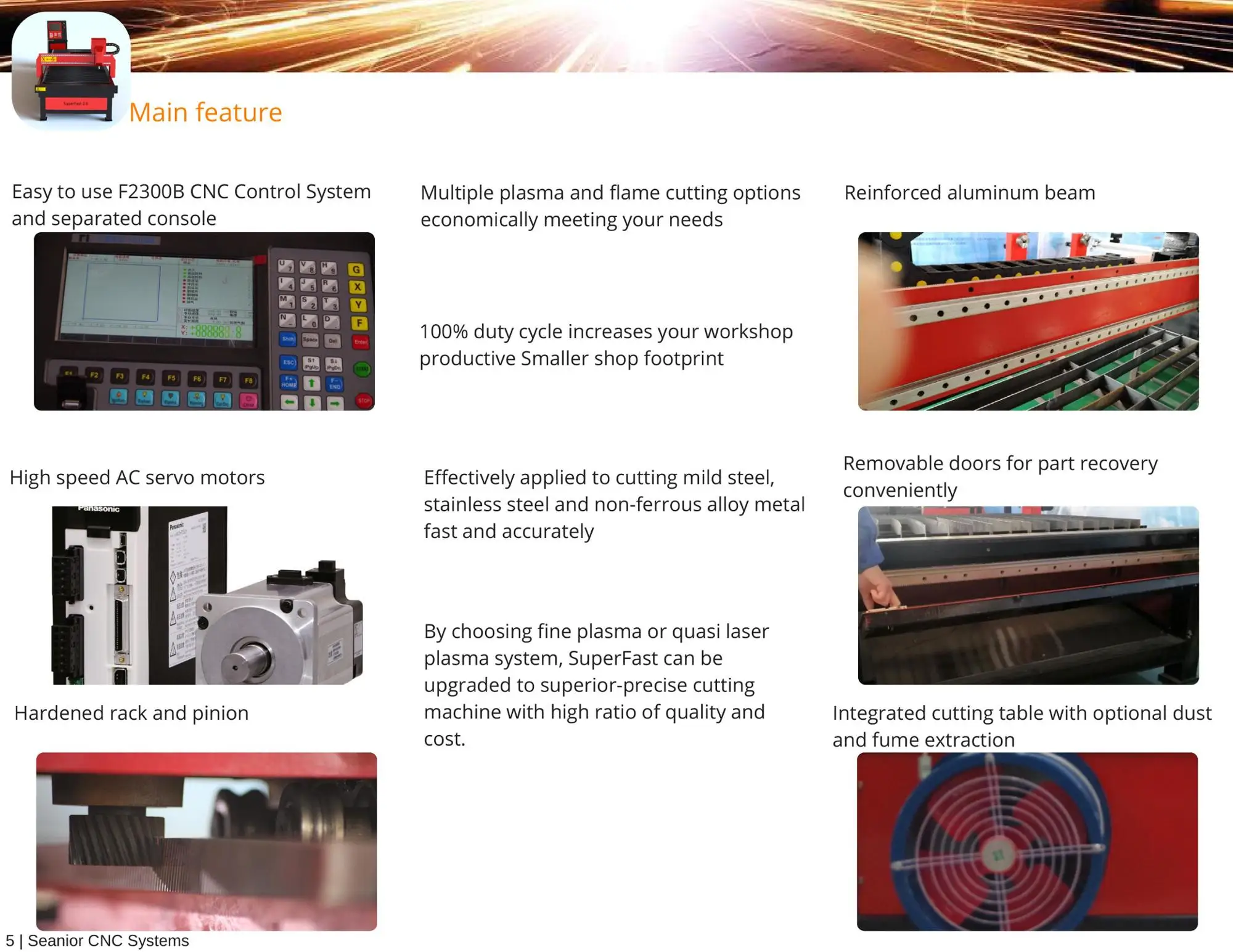

Product Presentation

Technical Parameters

Technical item	Technical parameters
effective cutting width	1500mm
effective cutting length	4000mm
material thickness	0.5-15mm /1.0-20mm and more
torch lifter vertical traveling distance	≤150mm
cutting precision	±0.5mm
cutting speed	100-12000 mm/min
lengthwise linear accuracy	±0.2 mm
linear repeating accuracy	±0.2 mm
rail track installation accuracy	side linear straightness: ±0.1mm
parallelism of the lengthwise and the horizontal surface	±0.1mm
duty cycle	24h
temperature of the working environment	-20~55℃
material to cut	mild steel, stainless steel, alloy, aluminum, copper, titanium and other non-ferrous metal

Machine configuration
cutting method	plasma cutting

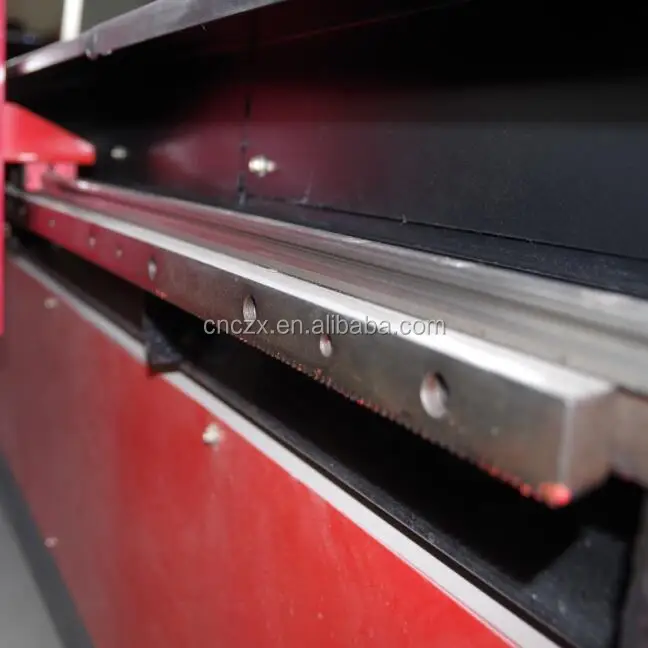

movement rail track	double axle linear rail track
movement motor/motion controller	full digital servo motor/high-precision stepping motor
distance-adjusting system	plasma arc voltage automatic height adjustment
control system	industrial anti-dust numerical control
general nesting software	Pronest,Starcam,Fastcam,
anti-collision system	360°anti-collision protection method
elevating body	ball screw / electronic push rod

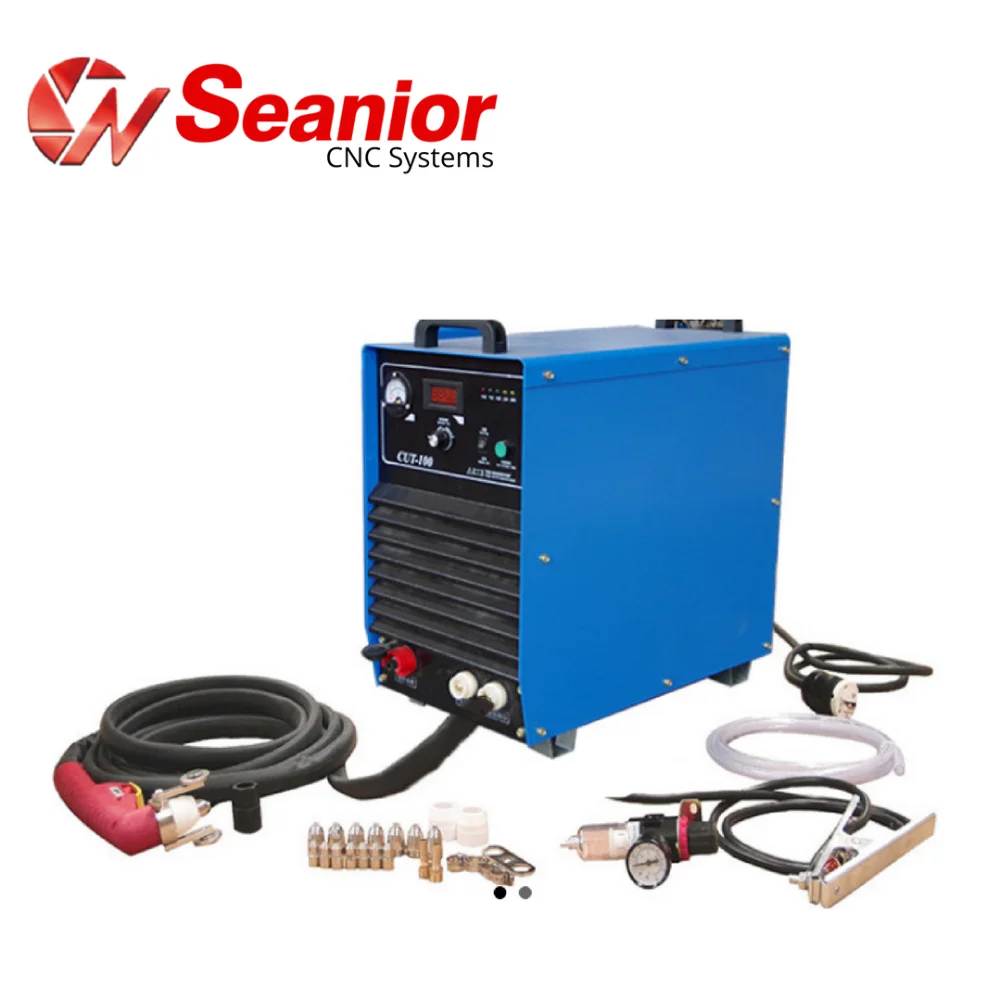

plasma cutter	USA brand or China HUAYUAN LKG series or Customized
dust and fume extractor	fan machine
connecting power source	plasma power supply AC380V/50HZ, machine body power supply AC220V/50HZ
prerequisite	air pump, 3-phase power supply

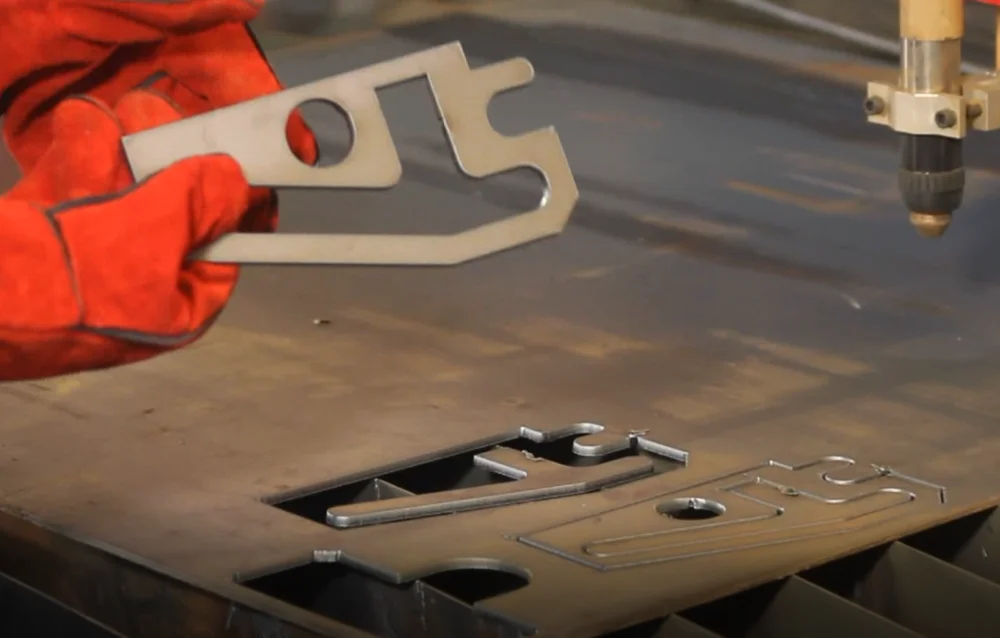

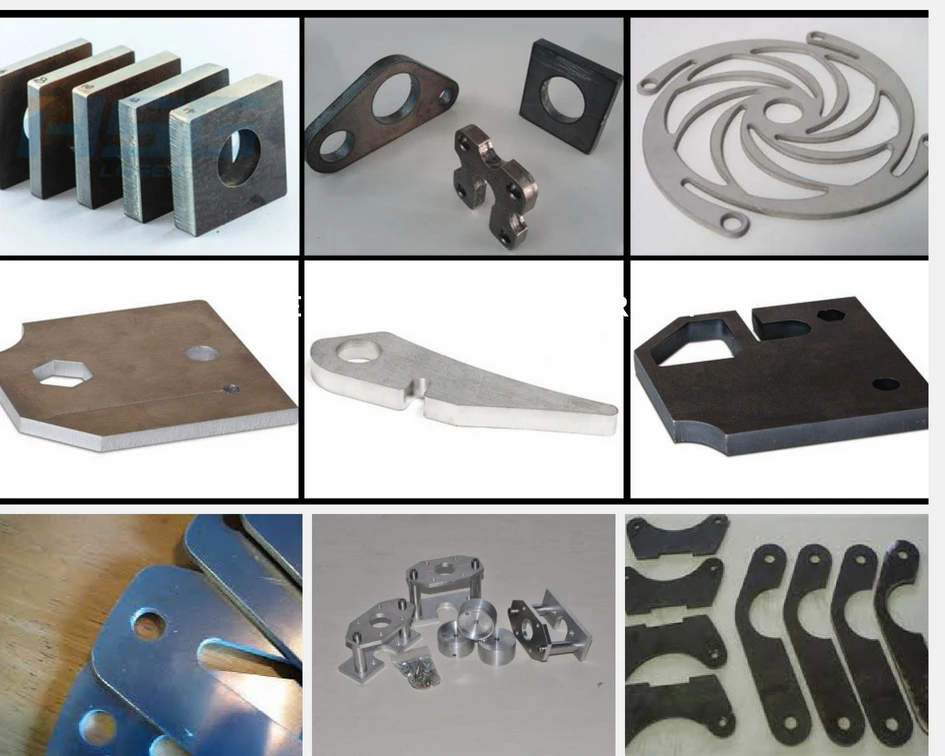

Cutting Sample

Related Products

Seanior CNC Systems

Seanior CNC Systems

Established in 2014, Seanior has enjoyed an expanding growth successfully and become a dynamic company focusing on building CNC cutting machines applied in different industries.

Seanior was first imagined as a brand in mind with a man named Sean working with our machine effortless and confidently .We aim to make great machines available to workshops strive for high efficiency and low cost.

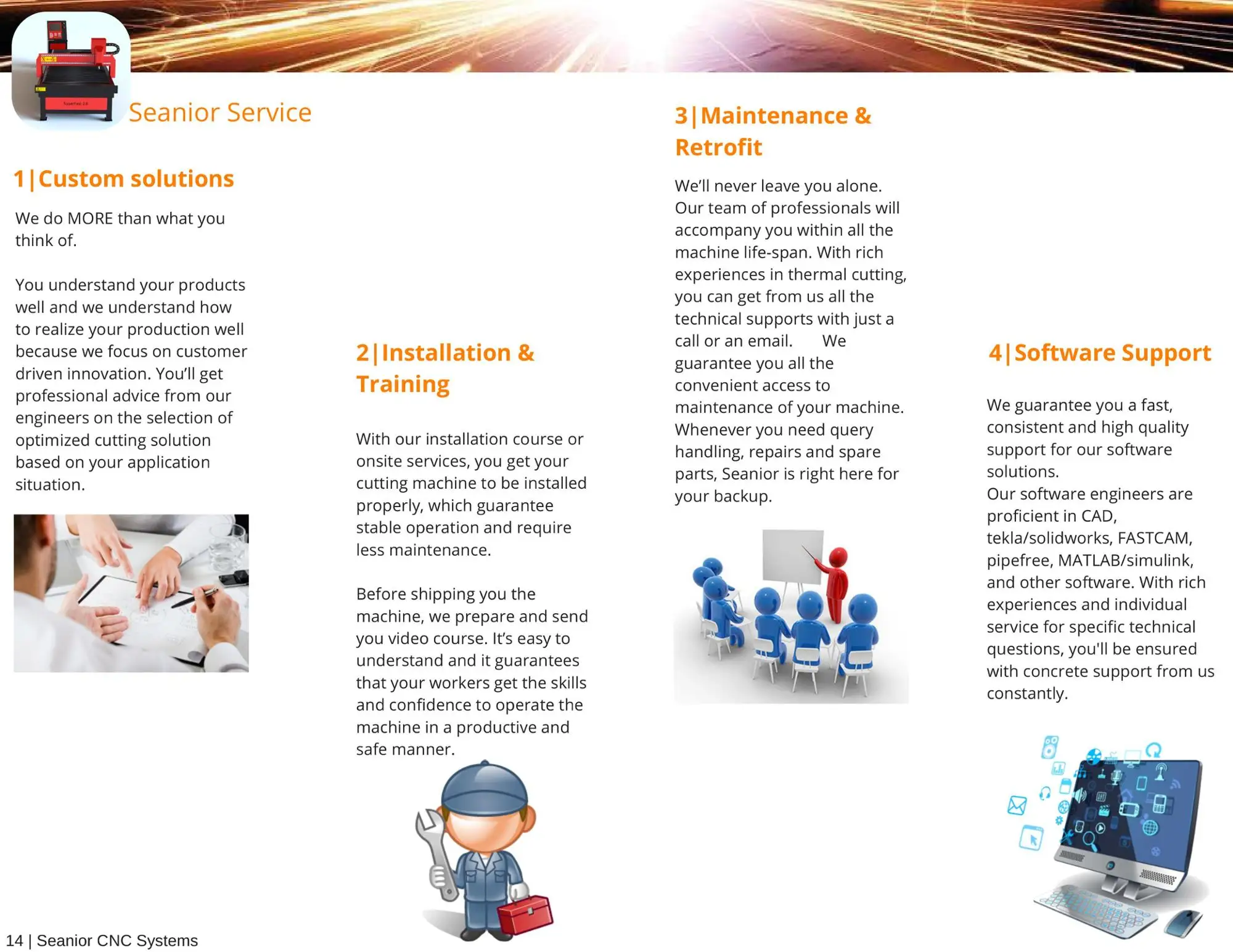

Our Service

Guarantee & after sale service

1. Guarantee for one year.
The plasma cutter One-year after-sales service includes:
(1). We will offer some of the parts for free in the first year. The buyer needs to pay for the shipping cost for the parts. The user needs to send us pictures of the broken one, then we will send out the part they need.
(2). In the first year, if the buyer needs our engineers to come to the local to fix some problems of the machine that they cannot fix by themselves; We will send our engineers for free. The buyer needs to pay the flights, housing and meals for the engineers in the local.
2.Free training to make sure you master the operating of plasma cutting machine (on internet or by telephone).
3.24hour technical support on Internet or by Telephone, free instructions and problem solving.
