Table Mounted ENT Surgical Operation Microscope/Portable Dental Microscope

Product Overview

Description



 YSX Series Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

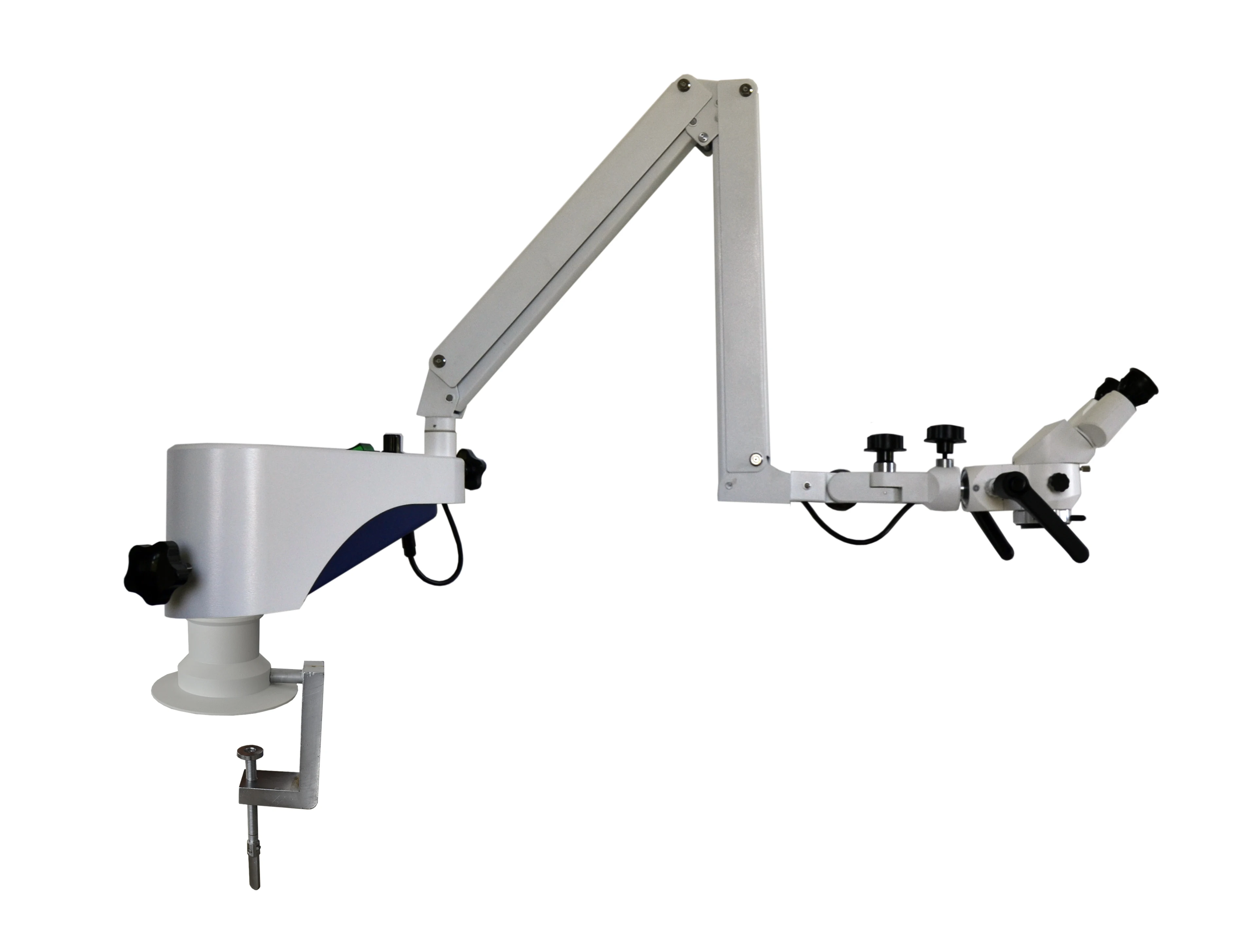

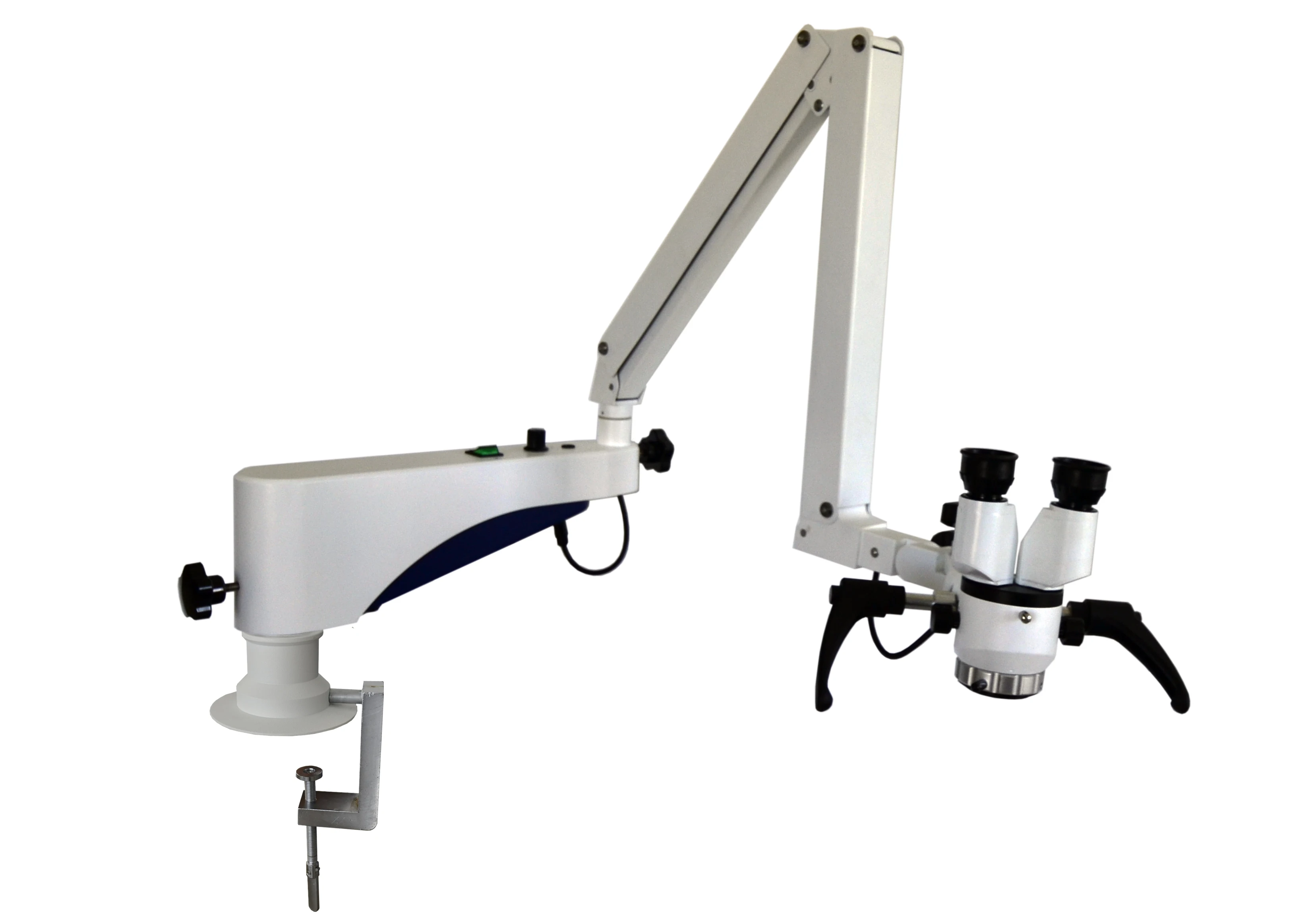

YSX-103 Table Mounted ENT Operation Microscope/Portable ENT Microscope

Observation angle: 45°tilted
Magnification of binocular: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total magnification: 3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear field: 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination > 30,000lx
Filter: Build-in green and yellow filters
Balancing arm: 2-part arm with universal joints. With table mount clamp
Power supply: AC100V-AC240V
Optional accessories:
Objective F=250mm & F=400mm;
Wall mount bracket
