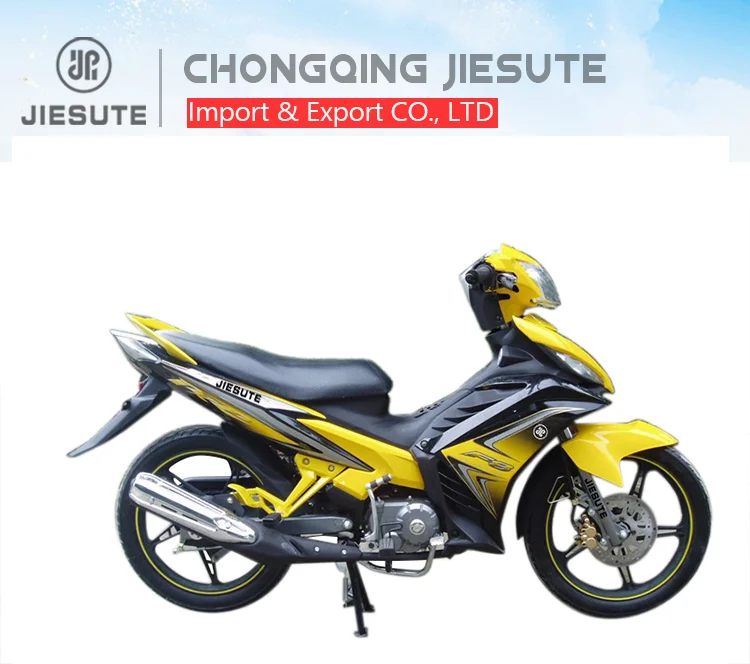

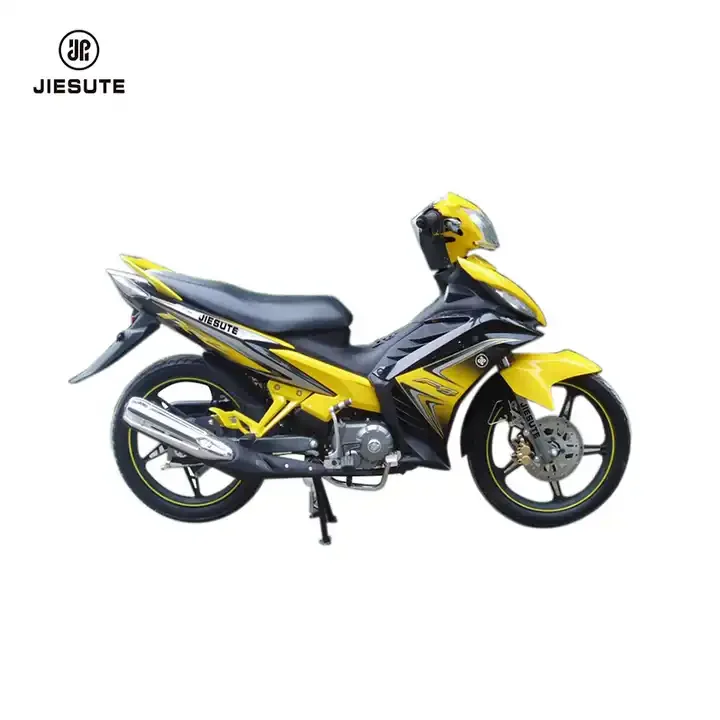

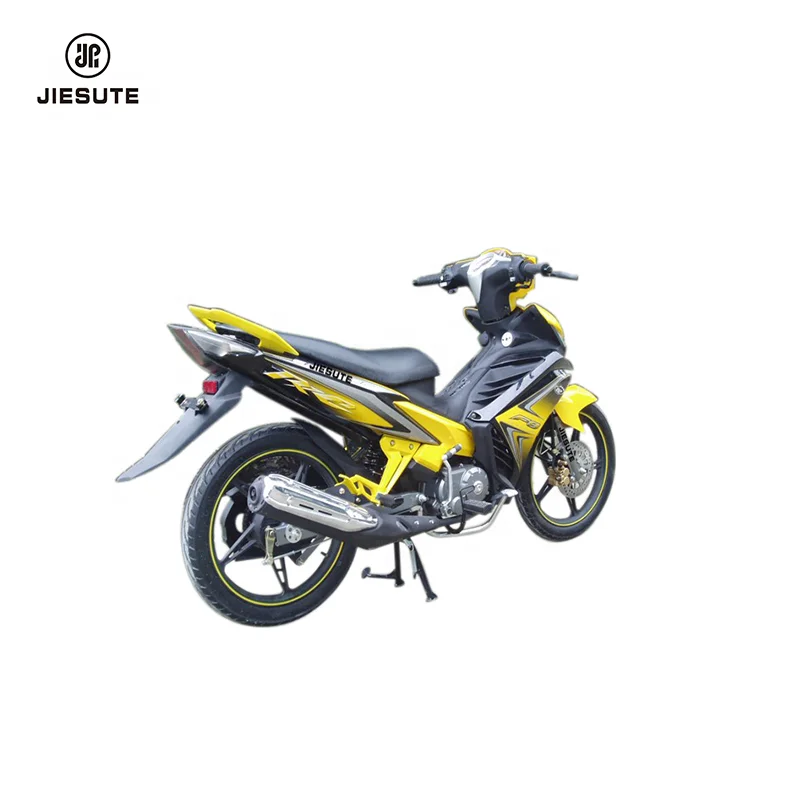

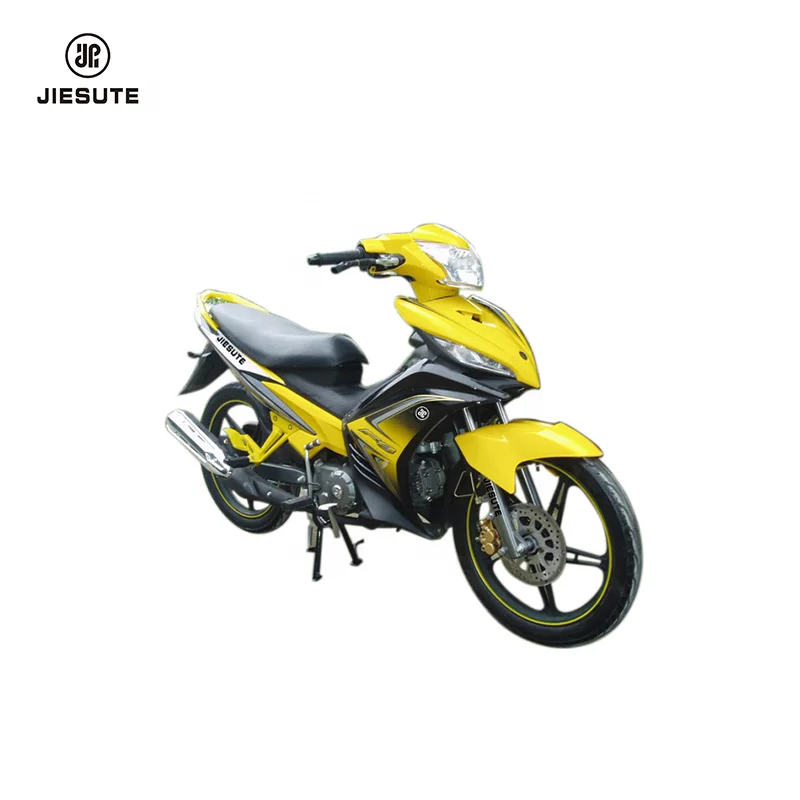

100cc cub motorcycle

MODEL

JST110-6A

Engine Type

110CC(As request),single clutch,4-stroke,air-cooled

Start Method

Electric/kick

Ignition Method

C.D.I

Bore x Stroke(mm)

52.4*49.5

Displacement(ml)

106.7

Compression Ratio

9.7:1

Max.Power

4.9Kw/(8000±500)r/min

Max.Torque

6.9 N.m/(6000±500)r/min

Lowest Fuel Consumption Ratio

≤367(g/kw.h)

Max. Speed(km/h)

≥110

Transmission

4-Gears

Brake Method(Fr./Rr.)

Disc/Drum

Rim Type(Fr./Rr.)

Alloy wheel(Specialized)

Tyre Size(Fr./Rr.)

Fr.:2.50-17  Rr.:2.75-17

Color

Any color

loading qty(kg)

125/40HQ
