Products Description
Ultrasonic transducer is to convert electrical energy into sound energy which also is called ultrasonic.it is composed of outer shell,matching tier,ring piezoelectric ceramic,backing material,outgoing cable and cymbal. The characteristics of transducers depend on material selection and manufacturing process. The performance and service life of transducers of the same size and shape are very different.
Main Features:
1: High mechanical Q value.
2: High transfer efficiency.
3: High quality piezoelectric ceramic material with good heat resistence.
4: Large range of working temperature.
5: Lower resonant Impedance.
6: Large amplitude,high vibration speed.
7: Clean and tidy appearance,without corrosion,deformation and scratch.
8: Frequency and static capacitance keep more consistency.
9: High output power.
10: ight with bolt ,be easy to install,reliable .
2: High transfer efficiency.
3: High quality piezoelectric ceramic material with good heat resistence.
4: Large range of working temperature.
5: Lower resonant Impedance.
6: Large amplitude,high vibration speed.
7: Clean and tidy appearance,without corrosion,deformation and scratch.
8: Frequency and static capacitance keep more consistency.
9: High output power.
10: ight with bolt ,be easy to install,reliable .
Application:
•Strong cavitations,powerful and effective, quick detergence.
•Automotive and aerospace industry,mechanical industry,plating industry etc.
•Automotive and aerospace industry,mechanical industry,plating industry etc.

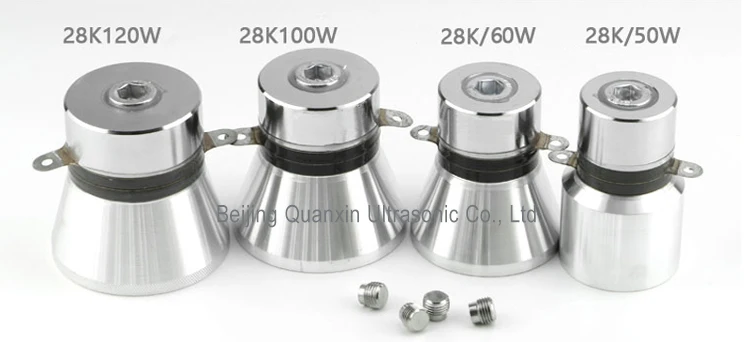

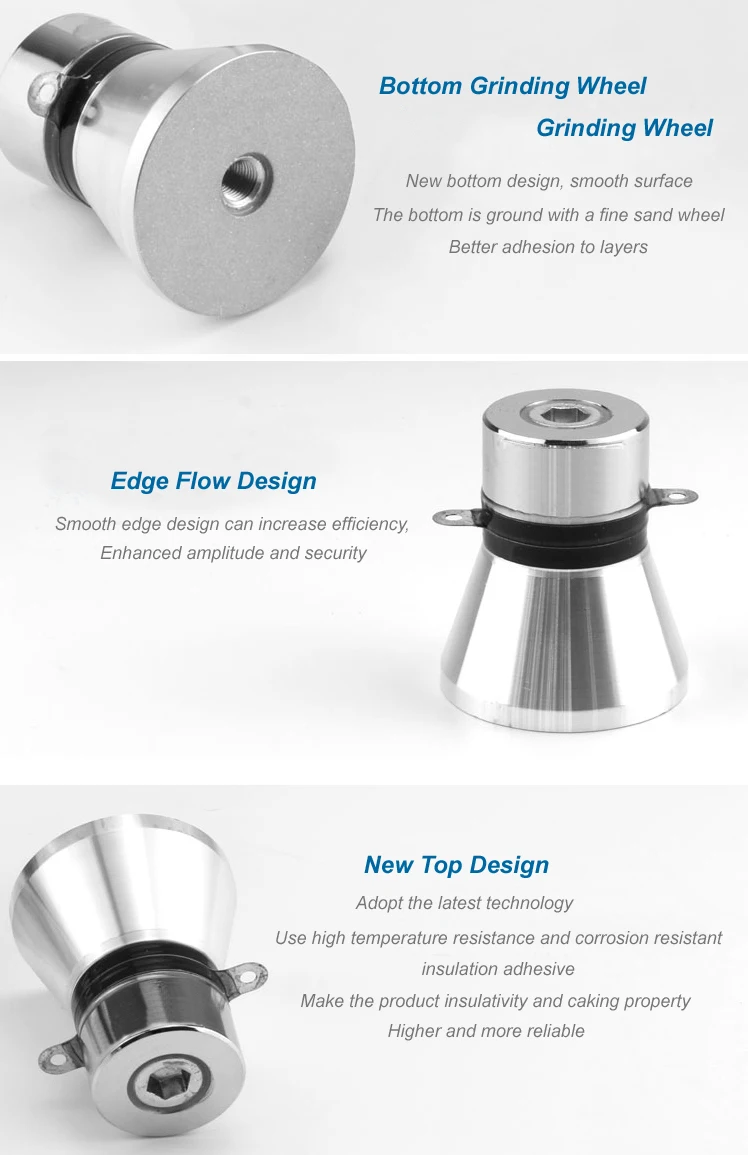

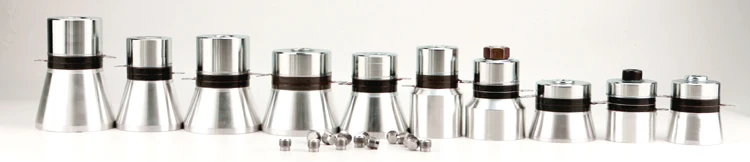

Product Picture
Product Paramenters
40K/60W P8 Ultrasonic Transducer
Type：QXCT-2560T-59HSP4
Static Capacity(pF)(±10%)：5400
Resonance Impedance(Ω)：10-20Ω
Length(mm)：77mm
Frequency(KHz)：25K
Input Power(W)：60W
Piezoceramics size：35*15*5(pzt4)
Radiating Diameter：59mm
Weight：530g/pcs
& If you are interested in our product,
& Pls just feel free to send us your inquiry.
& We wil try our best to quote the competitive price for you!----- Contact Us Now
& Pls just feel free to send us your inquiry.
& We wil try our best to quote the competitive price for you!----- Contact Us Now
Product Usage Scenarios
Get More Informations How to Bond Uitasonic transducer
Recommend Products
♥ More Informations How to Connect with Ultrasonic Transducer with Ultrasonic Generator to Build High Quality Ultrasonic Cleaner. Pls Contact Us Now
Packaging & Shipping
Company Profile
FAQ
1: Are you manufacturer or trading company?
We are professional manufacturer. All the core components (ultrasonic transducer,
ultrasonic generator) are made by ourselves.
2:Delivery time ?
Standard products can be delivered in 7 working days. Customized machines depend on the design.
3:Warranty ?
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we' ll provide free spare
parts or repairing service.
4:Do you provide trial cleaning service?
Yes, you're welcome to send the work pieces for trial cleaning. We'll send you video and report after testing It's free service.
5: Which ultrasonic frequency and ultrasonic power are suitable for our work piece?
Please contact us and provide details as specific as you can. Information includes:the size, material, weight and dirt of your work piece and cleaning tank dimension etc.
ultrasonic generator) are made by ourselves.
2:Delivery time ?
Standard products can be delivered in 7 working days. Customized machines depend on the design.
3:Warranty ?
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we' ll provide free spare
parts or repairing service.
4:Do you provide trial cleaning service?
Yes, you're welcome to send the work pieces for trial cleaning. We'll send you video and report after testing It's free service.
5: Which ultrasonic frequency and ultrasonic power are suitable for our work piece?
Please contact us and provide details as specific as you can. Information includes:the size, material, weight and dirt of your work piece and cleaning tank dimension etc.
