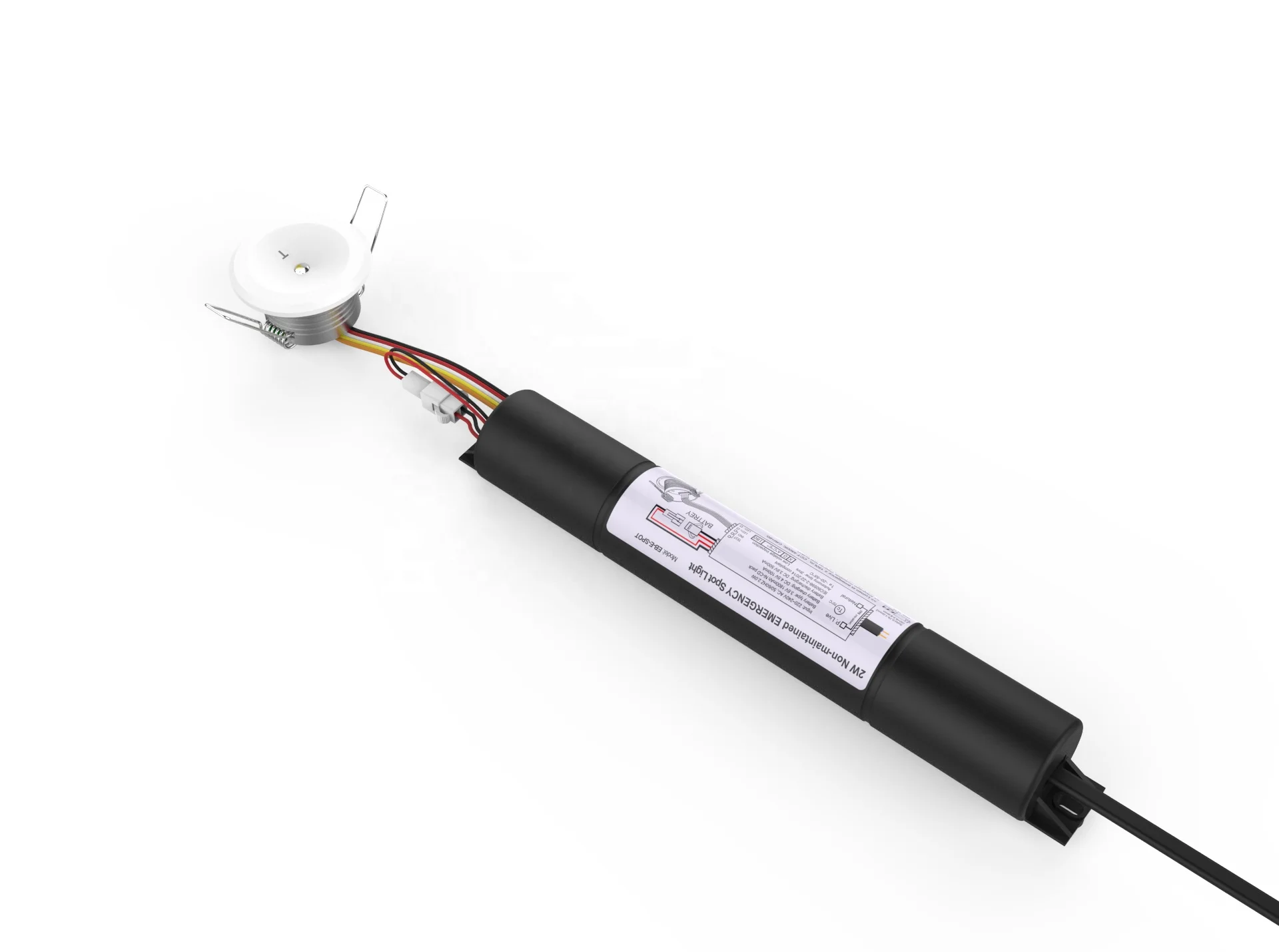

OT ESP 1N 1W non maintained emergency spot light
- Category: Emergency Lights >>>
- Supplier: OTC (Shaoxing) Electronic Co. Ltd.
Share on (60767590277):
Product Overview
Description
Bureau Certi
Details of 96 ED 20 W LED sensor round emergency bulkhead light
Product Description
 | Machinary data |
| Item:OT-ESP-1N | |

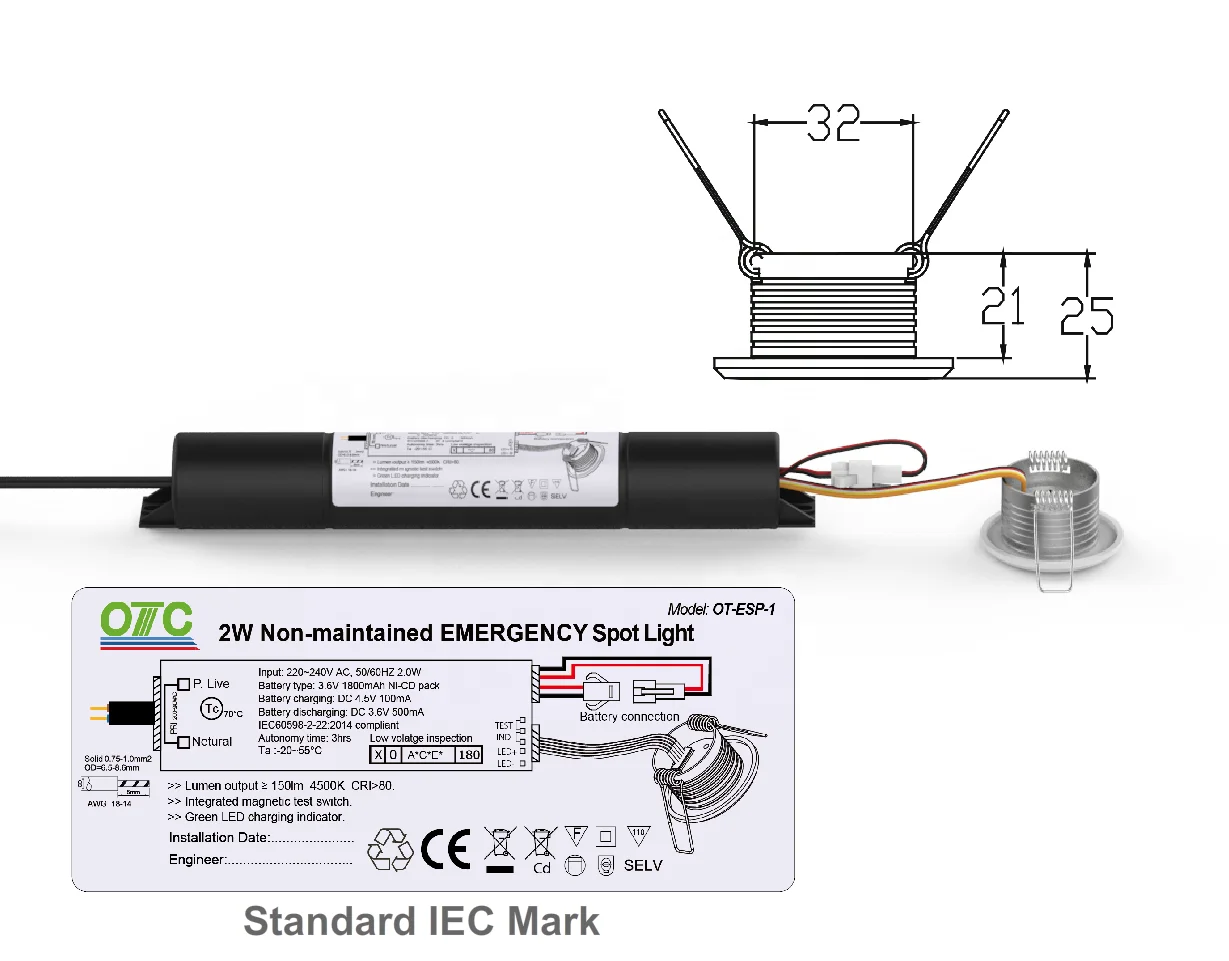

| Size: See Left | |
| Material: PC and aluminium | |
| Weight:260g | |
| Anbinate temperature: 0~55°C | |
| Guarantee: 4 Years | |
| IP/IK: IP20 / IK08 |
| Electric Data | Rate Supply voltage | 174~264V 50/60HZ |
| Main Power | 1.5W | |
| Typical λ(@230V 50HZ) | >0.8 | |
| Leak Current (PE) | 0 | |
| Over Voltage protection | 320V(1H) | |
| Max Permit forward voltage LED | 3.7V |

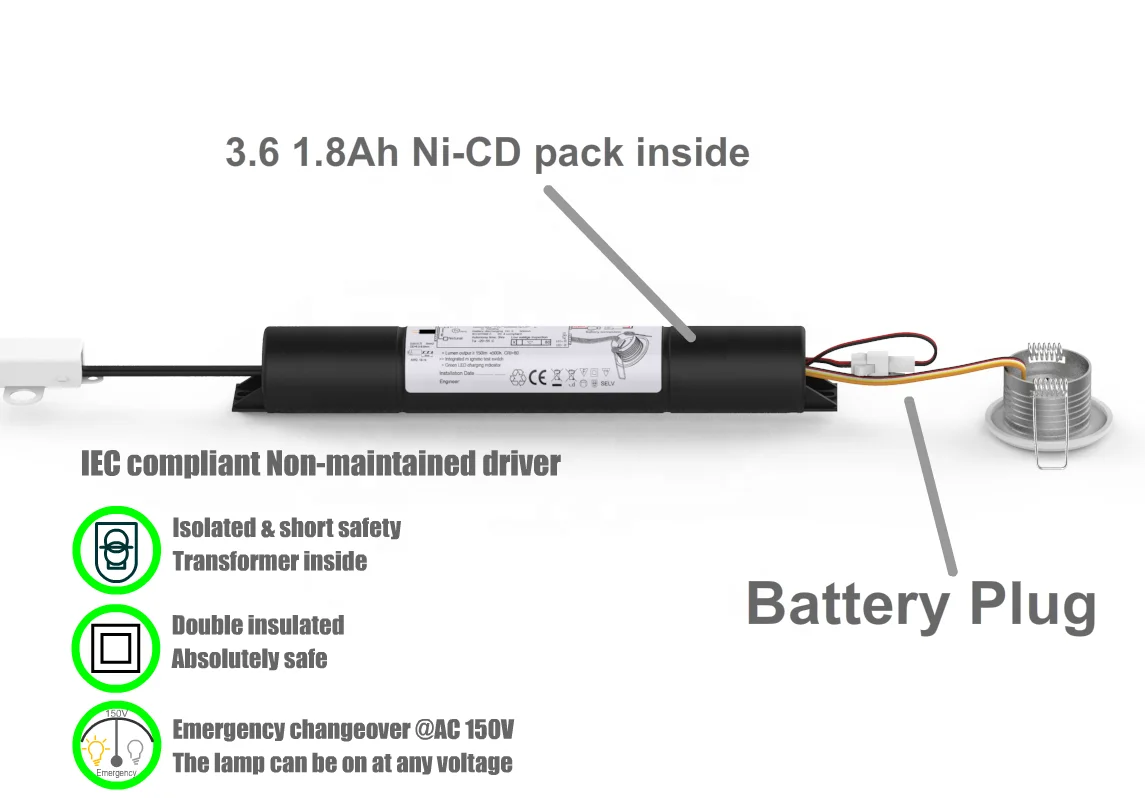

Electric Date Emergency | Battery pack type | 3 pcs NI-CD pack 3.6V 1.8Ah |
| Emergency mold | non-maintained | |
| Max forwawrd Emergency LED | 3.8V | |
| The Power consuption if only emergency | 1.5W | |
| Typical λ if only emergency circuit | 0.65 | |
| Charing current | 100mA / 24 hrs | |
| Discharging | 400mA / 3hrs | |
| Changeover | <0.1S @150V AC | |
| Battery protection | Max:4.2V / Min2.4V | |
| Indicate light | Green 2-in-1 LED bulb | |
| Test Button / rest mold / inhibit mold | Y / N / Y | |
| Emergency standard(full compliant) | IEC60598-2-22:2014 BS5266:2016 |
Optical Data
| efficacious LED chip | 2-in-1 LED bulb, 1W white + 0.2W Green |
| Lumen | 150 in emergency mode | |
| CCT | 2600~6500 Optional | |
| CRI | 82 |
 | |

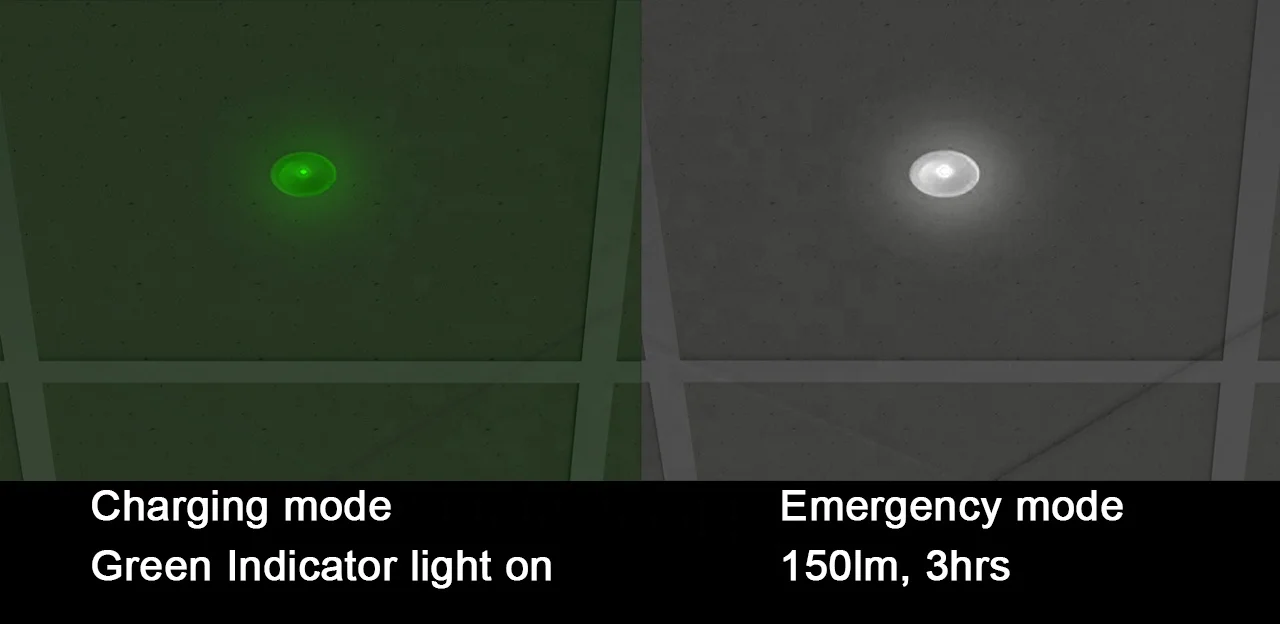

| The EM spot light under charging | The Spot light discharging/ emergency mode |

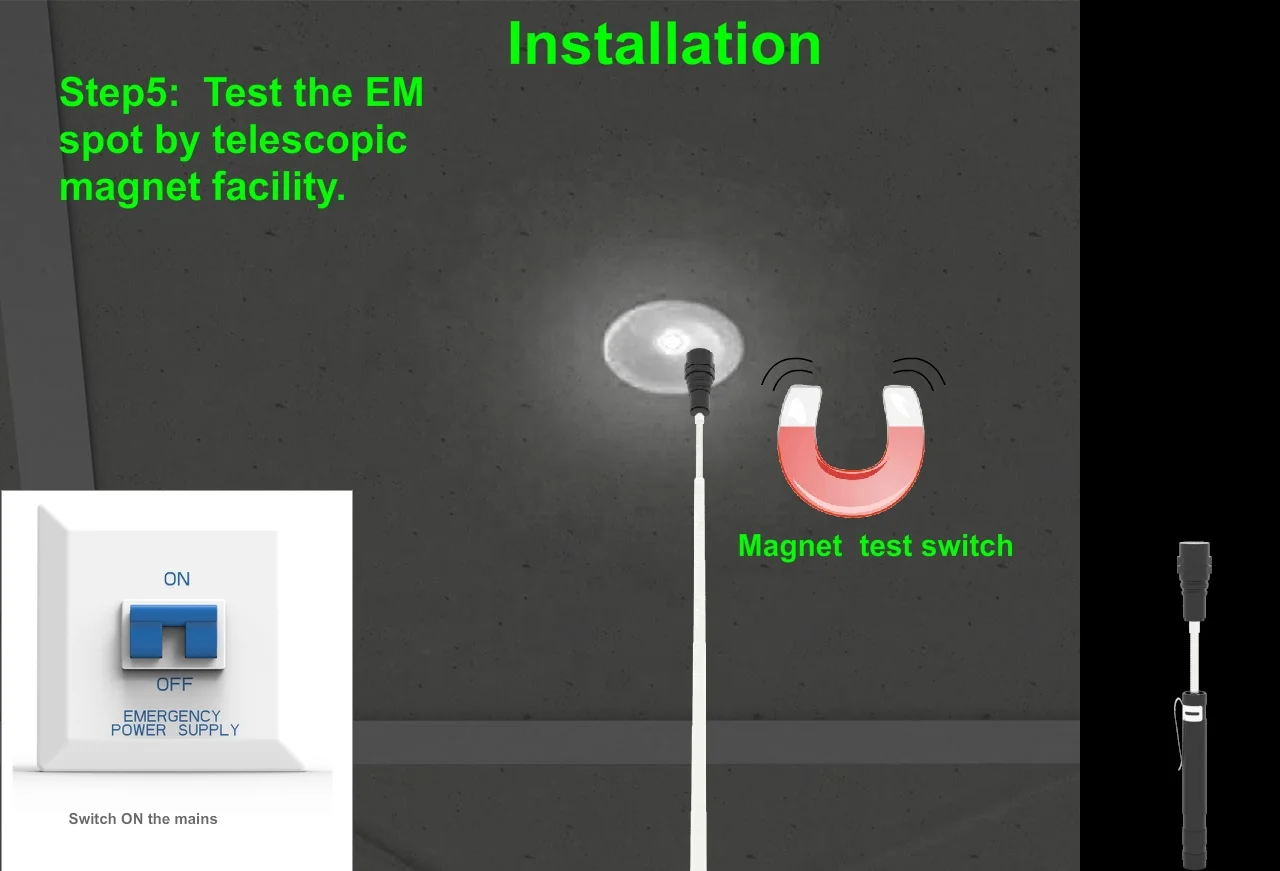

Easily test by megnet telescopic facility
Optional Function
| Optional Function | ||
| NI-MH battery pack backup | 3.6V 2.0Ah, Ni-MH pack | |
| Multi CCT | 2600/4000/6000K integrated in one | |
| Emergency mode | maintained/ non-maintained in one | |
| Cree Chip |
Packaging & Shipping
PACKING INFORMATION of this OT-ESP-1N 1W non-maintained emergency spot light
| Packing: | color box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 20pcS/CTN |
| Carton Size: | 50x28x23cm |
| G.W.: | 7.8KGS |
| N.W.: | 7.5KGS |
Our Services
1. Projects & Technology Creating
2. Professional Technology support of this LED sensor round emergency bulkhead light
3. OEM & Stratage service
Company Information
General instruction of OTC Electronic:
1. Ningbo OTC Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22:2014 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
FAQ
1. Q: What is the quality standard?
ALL rhe emergency light in From OTC is full IEC compliant. Please don't try to persuade OTC use Li-ion battery as battery system.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt. Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 4 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution cost will be refund.
3. Q: MOQ, main market
A: The MOQ is 200pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
