Best price winCE SANDING ARC7 station total wince geological survey instrument

Share on (60767604610):


Price:

Quantity:


Product Overview

Description



Product Description

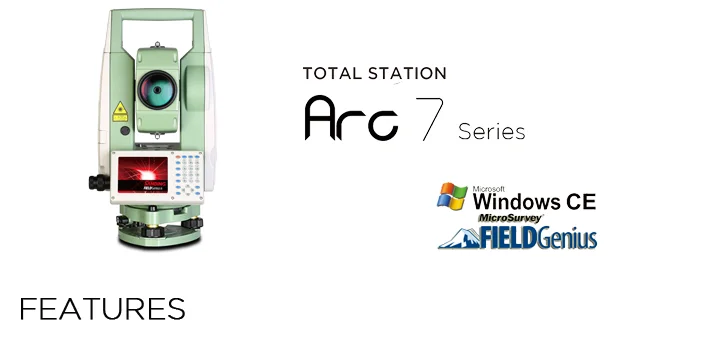

 Best price winCE SANDING ARC7 station total wince geological survey instrument

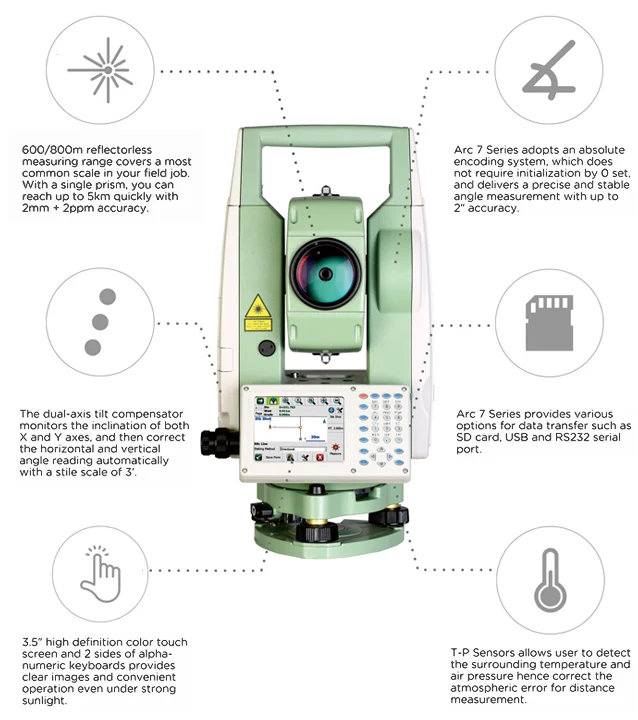

  • WinCE6.0 Operating System
     Reflectorless range up to 800m
     SD card & miniUSB cable
     Dual Axis Photoelectric Compensator

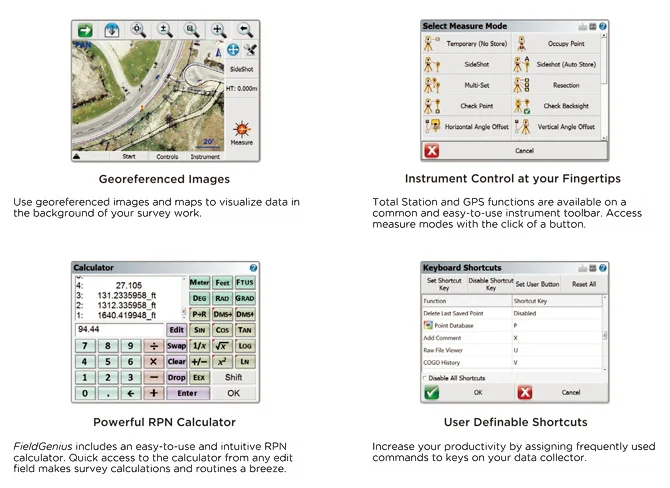

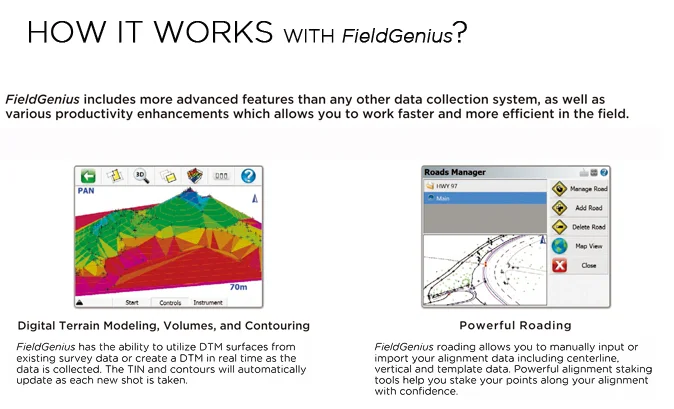

     Third Party Software Supportable
     Dustproof and waterproof : IP55


































































































































































































































 Arc 7             Arc 7L
DISTANCE MEASUREMENT(GOOD WEATHER)
single prism 5.0km
Mini prism 3.0km
reflectorless600m                                                 800m
accuracywith prism: 2mm+2ppm; without prism: 3mm+2ppm
readingmax: 99999999.999  min: 0.1mm
measuring timefine: 0.3s; tracking: 0.1s

atmospheric refraction &


earth curvation correction


T-P sensor, Auto Detect and Correct
prism constantmanual input, auto correction
ANGLE MEASUREMENT
measuring methodabsolute encoding
diameter of raster disk79mm
minimum reading0.1"/1”/5” selectable
accuracy2”
detection methodhorizontal: dual      vertical: dual
TELESCOPE
imageerect
tube length154mm
effective apertureTelescope: 45mm;  EDM: 50mm
magnification30X
field of view1°30’
resolviong power3”
min. focusing distance1m
AUTO VERTICAL COMPENSATOR
system2-axis liquid-electric
working range±3’
accuracy1”
LEVEL
plate vial30”/2mm
circular vial8’/2mm
OPTICAL PLUMMET
imageerect
magnification3X
focusing range0.5m ~ ∞
field of view
Laser plummetoptional
DISPLAY
type3.5 inches LCD, 640X480 touch screen
Windows CE6.0 operation system
ON-BOARD BATTERY
typerechargeable Lithium battery
voltageDC 7.4V, 3100mAh
charging time2 hours
operating time10 hours
DATA STORAGE
Internal memory128MB DDR, 512MB NAND Flash
SD cardMax. 32G
Communication portRS-232 port(6 pin), Mini USB, SD card,
DIMENSION & WEIGHT
dimension200 X 190 X 350mm
weight with battery6.0kg








ACCESSORIES








                      PRISM                                                           TRIPOD                                                  POLE
