9.0HP Petrol Engine

Product Overview

Description

PRODUCT DESCRIPTION

GASOLINE ENGINE

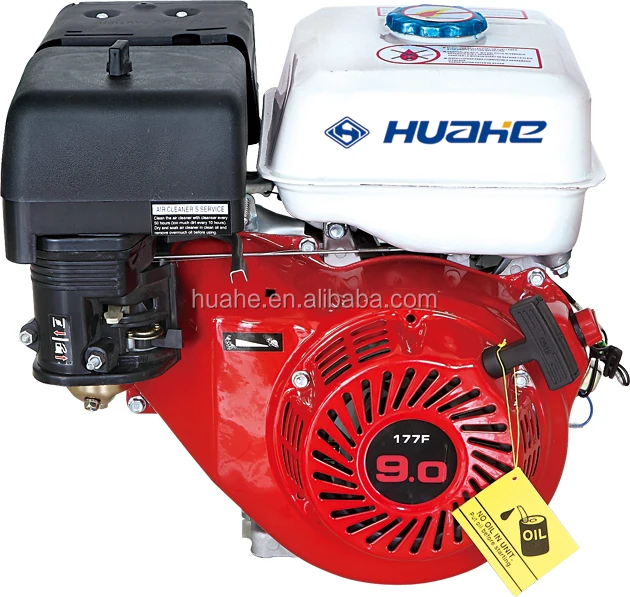

Model:HH177

Type:Air-cooled 4 stroke OHV single cylinder

Compression Ratio:8.2:1

Bore*Stroke:77*58mm

Displacement:270cc

Engine Speed:3600Rpm

Max,Output:9.0HP

Max Torque:16.7N.m/2500rpm

Ignition System:Non-contact transistorized ignition(TCI)

Start Mode:Recoil/Electric

Air Cleaner:Semi-dry,oil bath,dual,double silent and cyclone type

Fuel Tank Capacity:6L

Engine Oil Capacity:1.1L

Fule Consumption:290g/HP-hour

Net Weight:26.00KGS

Gross Weight:28.00 KGS

Dimension:510*420*475 MM



ADVANTAGES

1. Easier to start.

2.Overload protection for safe running.

3.Solid Muffler to reduce the noise.

4.Full protection for easy transportation and carry.

5.Compact, light and portable power source for Gasoline Generaotr or Boats  .

6.Economical, low fuel consumption for continuous stable running.

7.100% testing with loaded before packing.

8.With CE,GS,ROHS,ISO9001,TUV,SONCAP certification.

9.12 months warranty for long sevices life.

10.Reasonable price with higher quality.

COMPANY PROFILE

HUAHE HEAVY INDUSTRIES CO.,LTD. Is located in the land scope shore of east china sea.jinqing town,luqiao district,taizhou city,zhejiang province.which is a

key base in producing generator forklift in China presently.The company was founded in 1990,managerial philosophy of company is that”hold together and innovation,keep on aggressiveness ,pursue superiority”.It will make the company to explode constantly and it has passed GS.TUV.ROHS.EPA.ISO9001:2000 quality system certification CE.

We develop a new field,ZHEJIANG HUAHE FORKLIFT CO.,LTD.which located at Binhai industrical zone of Sanmen county,mainly focusing on forklifts.

Our company has 600 employees,over 200 manager ad technicians,90% of which graduated from college.The area of factory building 60000 square meter,annual output value more than USD 50,000,000 and our factory has more than ten modern production lines and advanced equipment and perfect monitor and measuring device such as puncher,driller,lathe,measuring truck,cutter,shielded welder and pipe bending machine.

Main products of company are forklift,all kinds of generators including gasoline

and diesel series,water pumps,tiller,high pressure washer,grass cutter,welding machine,Twith full range of specification,and stable quality and advanced technology,which have been selling very well in middle east,America,Europe,

Southeast Asia,Africa,and other countries etc.

President Mr HEPING SHI leads all staffs of company to welcome you visit and contact us at any time,Let us join hands to initiate bright future together.
