Automatic Gate Opener Electric Lock
US $110.00-$156.00
Factory price 24V DC 300kg Wifi automatic gate opener double swing solar auto electric gates automatic swing gate opener
- Category: Automatic Door Operators >>>
- Supplier: Shanghai Range International Enterprise Co. Ltd.
Share on (60767631012):
Product Overview
Description
Wholesale 24V DC Wifi Electro-mechanical Automated swing door opener automatic Double Arm mobile control Swing Gate Opener Motor
Main Features

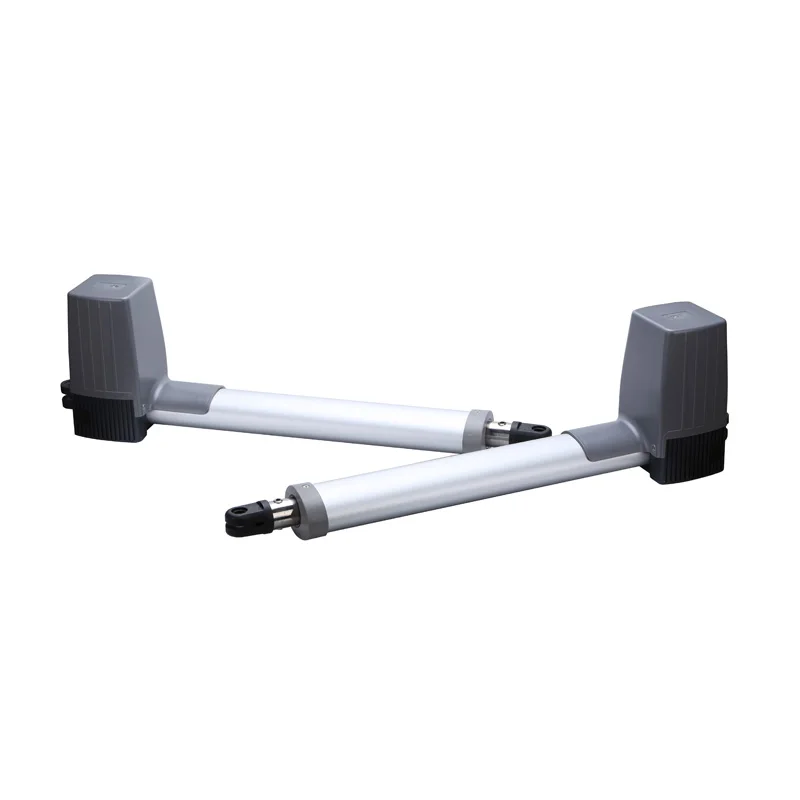

1) Push rod 24V DC swing gate opener
2) Soft start slow stop function
3) Obstacle detection in opening and closing
4) Automatic close function, time is adjustable
5) Over-current function meet European safety requirements
6) Safe design to prevent PCB burned for wrong wiring connection
7) Support GSM, solar system, photocell, alarm lamp, electronic lock
8) You can add up to 23 extra remotes that can control this system
9) In case of a power outage or an emergency you may also use manual release bar
Specifications
|
Model |
PK300DC |
|
Driving Method |
Screw driven piston type |
|
Motor Power |
DC 24V, 140W |
|
Operating Cycle |
20 second per 90(approx) |
|
Max. Single-leaf Weight |
300KG |
|
Max. Single-leaf Length |
2.5M |
|
Gear Box |
Worm gear |
|
Limit Switch |
Stop block |
|
Working Temperature |
-20℃~70℃ |
|
Work Duty |
S2 30min |
|
Power Supply |
AC 110V/220V, 60Hz/50Hz |
|
Protection Class |
IP 54 |
|
Weight |
16KG |
|

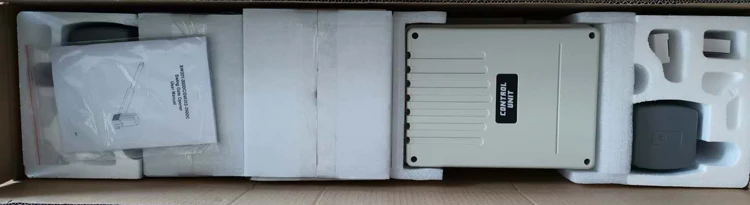

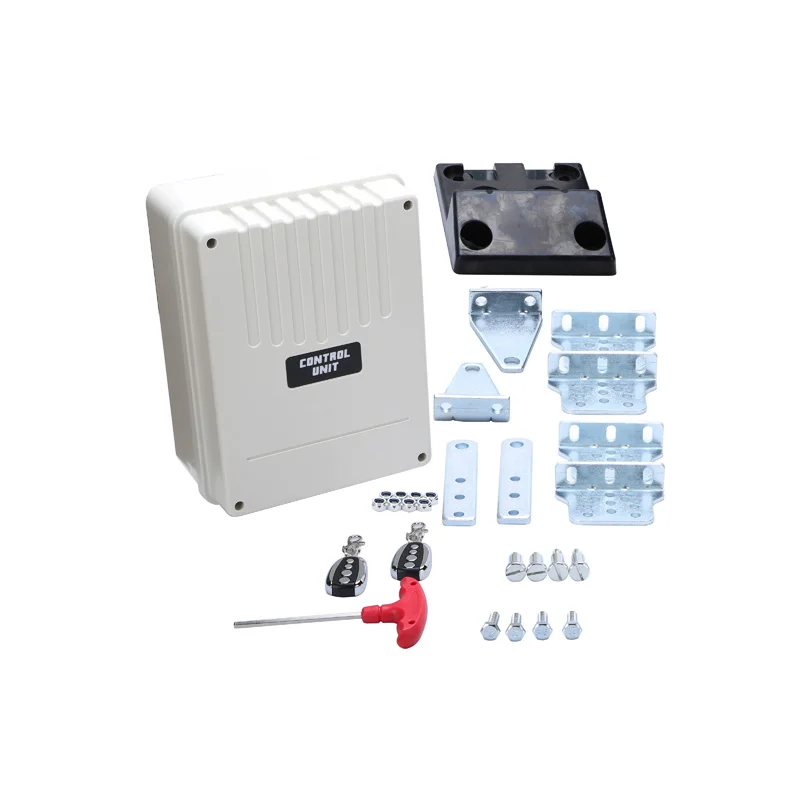

Standard Configuration |
2 motor, 1 control box with board, 2 remote transmitters, 1 release bar |
|
Optional Accessories |
Photocell, alarm wall lamp(20V/220V/110V), wireless keypad, wireless wall button, 20W solar panel, 9AH battery box with solar charger |
Detailed Images
Company Information
Packaging & Shipping
Our Services
