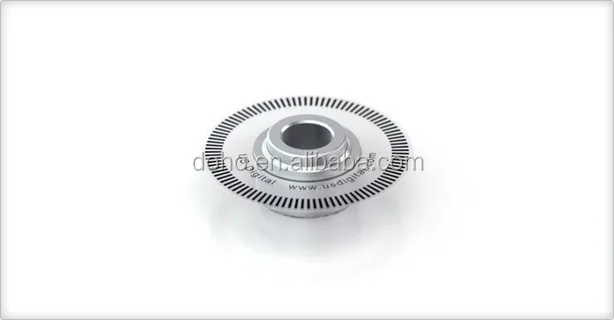

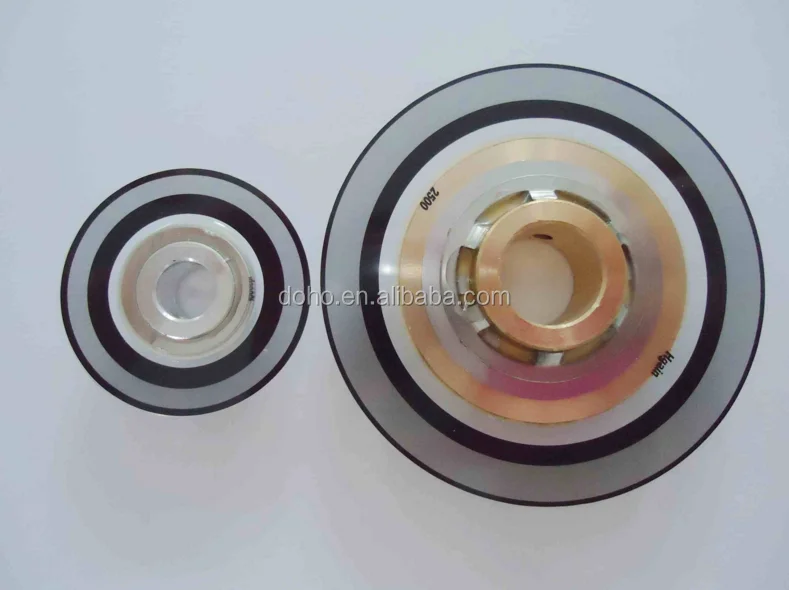

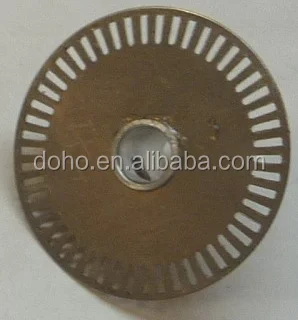

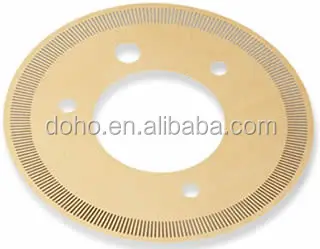

Customized Laser cutting incremental encoder disk etching code disc made in China

Product Overview

Description

Customized Laser cutting incremental encoder disk etching code disc made in China ---DH 30065 ;



FREE SAMPLES can be sent on request. Call me, let's talk more!

Technical Data :



Machining Type Photo chemical etching, Laser cutting, stamping and E-forming
1.Material Capabilities Stainless Steel, Brass, Bronze, Copper, Hardened Metals, Precious Metals and Aluminum alloy.
2.Product thickness: 0.001'' up to 0.045''

3.Product Max Dimension: 27*27 inch

4.Smallest opening hole D= 0.0039 inch when thickness below 0.002''

5.Centre to Centre for holes 1.5*Thickness
6.Smallest line width 0.03mm.
7.Product dimensional tolerance ± 0.01mm (depending on the thickness). It’s generally 20% of material thickness.
8.Secondary processing:Silver/Gold/Tin plated, Matt finish, paint, polishing or other surfaces treatment can be discussed when needed.

9.Two types of image files (DXF/DWG) enabled



Applications:



·         fine screens and meshes ·         anodes and cathodes ·         fuel cell plates ·         optical encoders ·         battery grids ·         heat sinks ·         thermal planes

·         EMI/RFI shields, ·         electrical contacts ·         microwave components ·         step and flat lids ·         medical apparatus ·         medical implants ·         lead frames ·         thin shims
