ELP 2.8mm Wide Angle Dual Lens USB Camera Module Aptina AR0330 1920x1080 mjpeg 30fps Camera usb for 3D Video Camera
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60767644688):
Product Overview
Description
ELP 2.8mm Wide Angle Dual Lens USB Camera Module Aptina AR0330 1920x1080 mjpeg 30fps Camera usb for 3D Video Camera
Application: 3D modeling, 3D ranging, VR resource recording, depth detection
Model: ELP-1080P2CAM-V90
Fetures
*2Megapixel HD 1080P Stereo USB2.0 Camera Module
*High quality 2.8mm M12 lens ( about 100degree view angle), High quality Full HD ture color image
*High speed USB 2.0 interface
*Low power consumption
*Small outline for embedded application
*UVC compliance for use in OS Windows, Linux, Android, Mac
*OTG support
*High frame rate 1920 X 1080 MJPEG@ 3 0fps
Product Description
| Model | ELP-1080P2CAM-L28 |
| Sensor | AR0330 |
| Lens Size | 1/3 inch |
| Pixel Size | 5.07um X 3.38um |
| Max. Resolution | (left)1920(H)X1080(V) (right)1920(H)X1080(V) together3840(H)X1080(V) |
| Compression format | MJPEG / YUV2(YUYV) |
| Resolution & frame | 1920X1080 MJPEG@ 30fps |
| 1904X1080 MJPEG@ 30fps | |
| 1280X720 MJPEG@ 30fps | |
| 640X480 MJPEG@ 30fps YUY2@10fps | |
| 320X240MJPEG@ 30fps YUY2@30fps | |
| S/N Ratio | 39dB |
| Dynamic Range | 72.4dB |
| Sensitivity | 2.0V/lux-sec@550nm |
| Mini illumination | 0. 1lux |
| Shutter Type | Electronic rolling shutter / Frame exposure |
| Connecting Port type | USB2.0 High Speed |
| Free Drive Protocol | USB Video Class(UVC) |
| Support OTG Protocol | USB2.0 OTG |
| AEC | Support |
| AEB | Support |
| Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
| Lens Parameter | M9 Lens HOV 90 degree |
| Power supply | USB BUS POWER Micro USB |
| Power supply | DC5V |
| Operating Voltage | 220mA~280mA |
| Working current | -10~70℃ |
| Working temperature | -20~85℃ |
| Board size /Weight | 86X23 |
| Cable | Standard 1M |
| Operating system request | Win XP/Vista/Win7/Win8 |
| Linux with UVC(above linux-2.6.26) | |
| MAC-OS X 10.4.8 or later | |
| Android 4.0 or above with UVC |

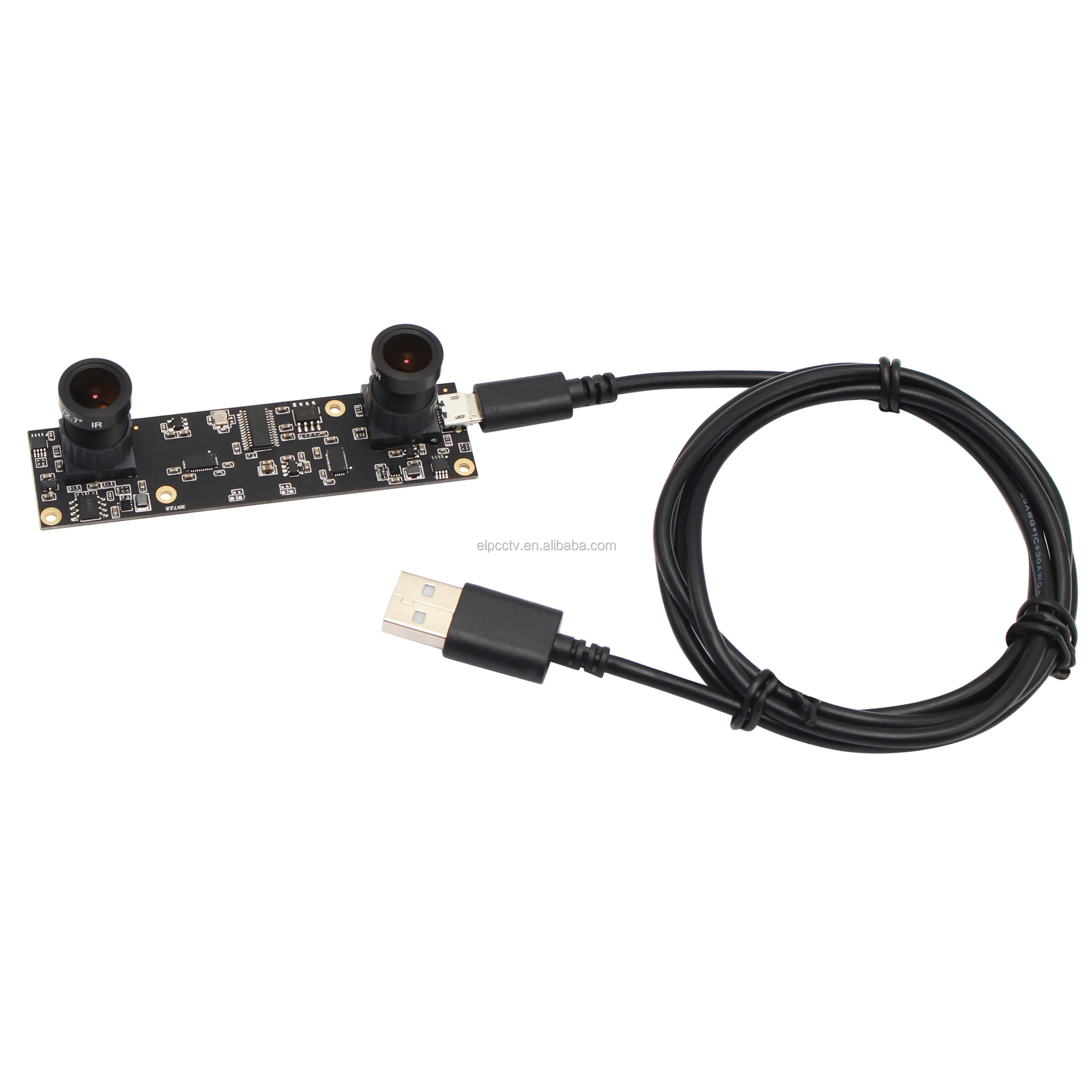

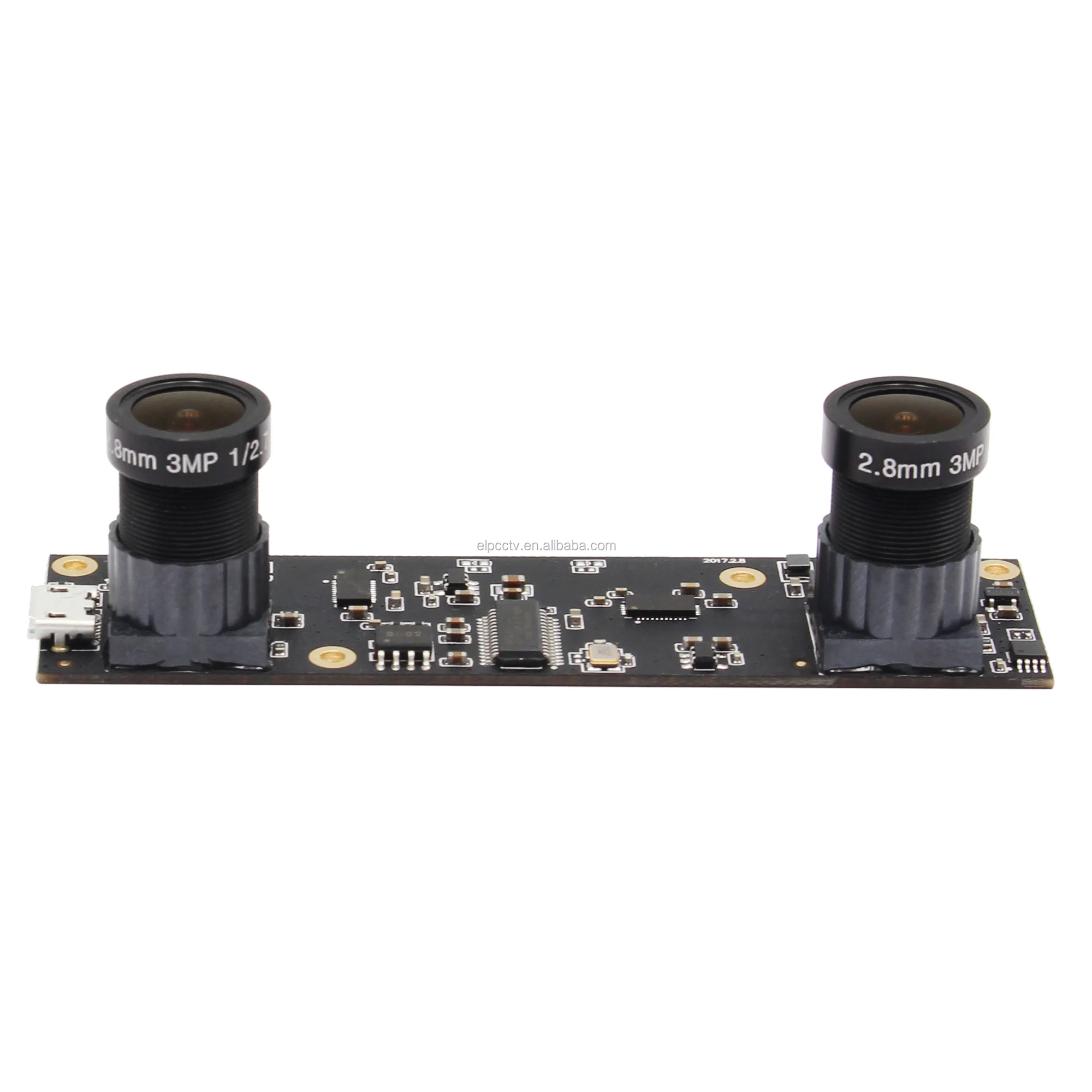

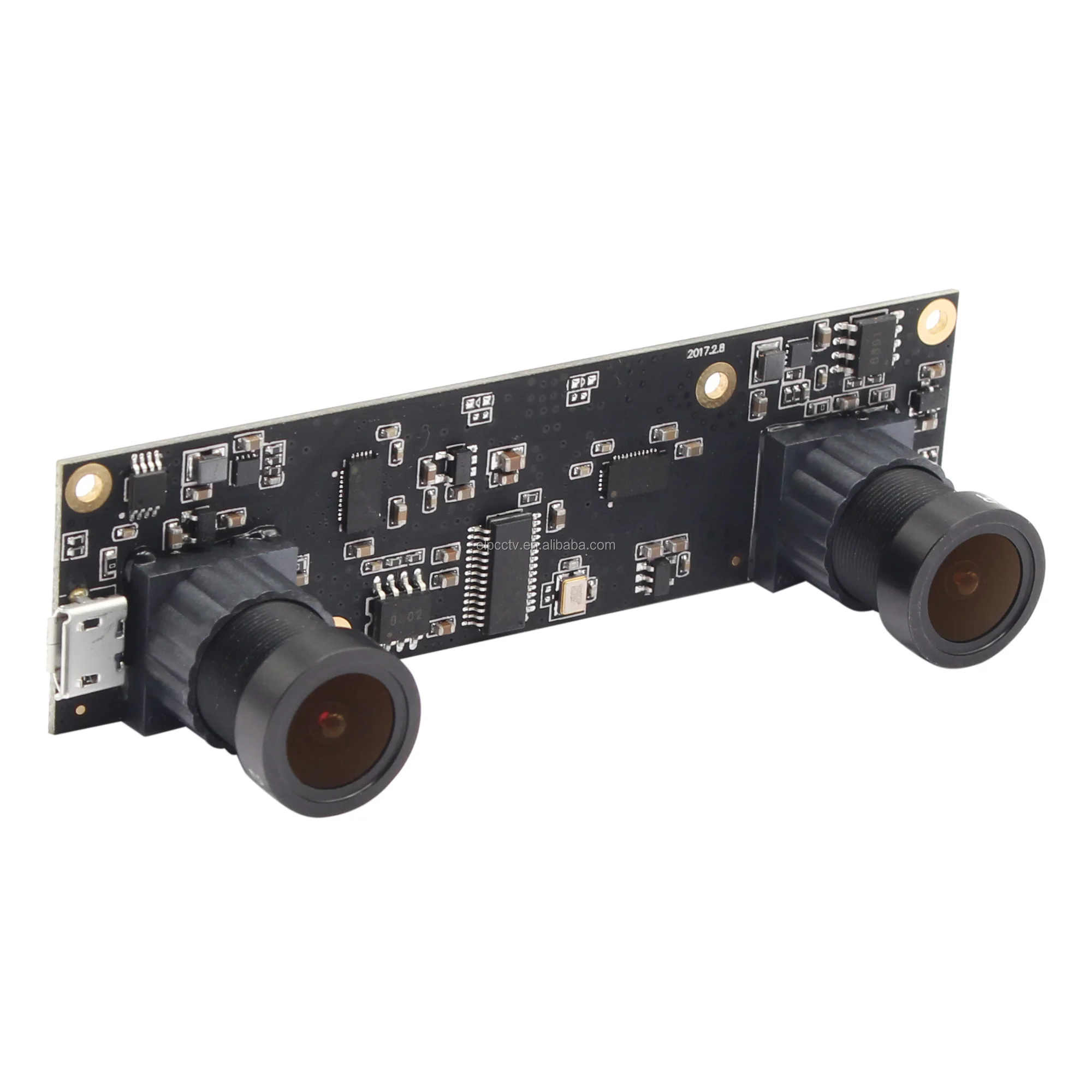

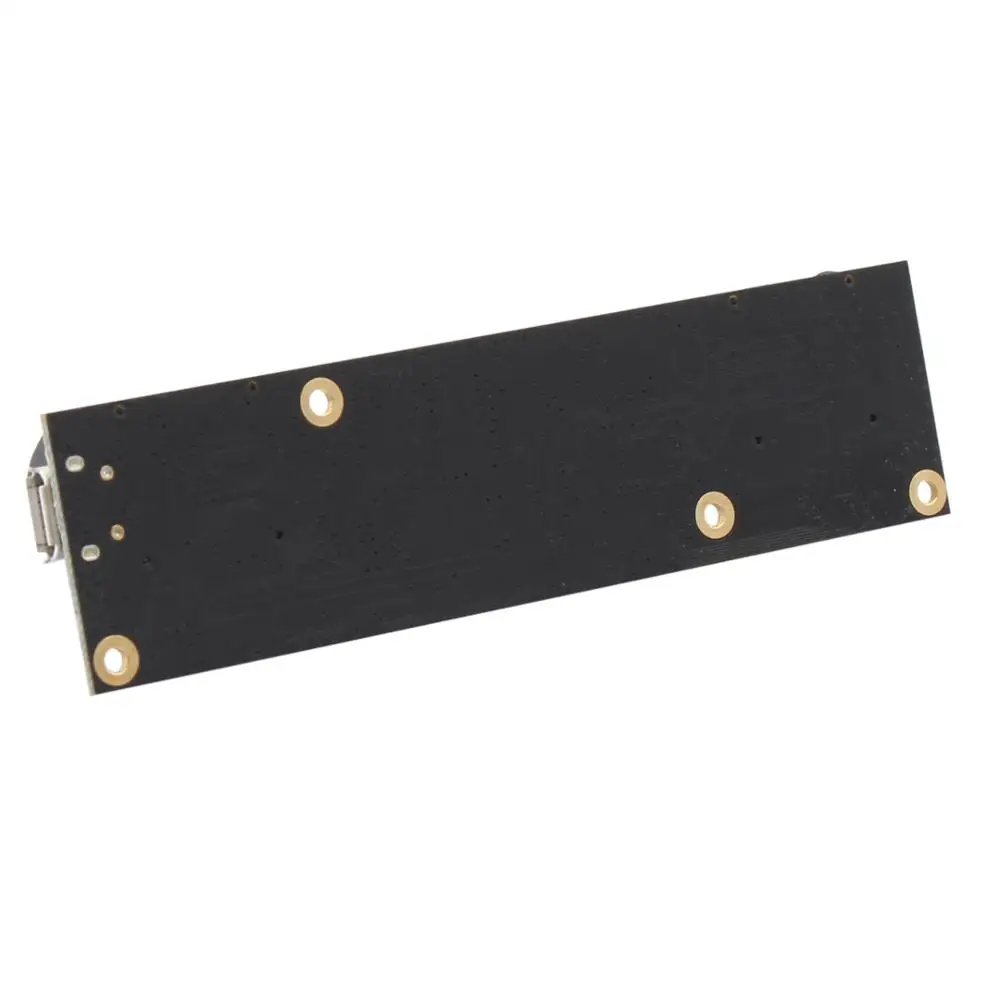

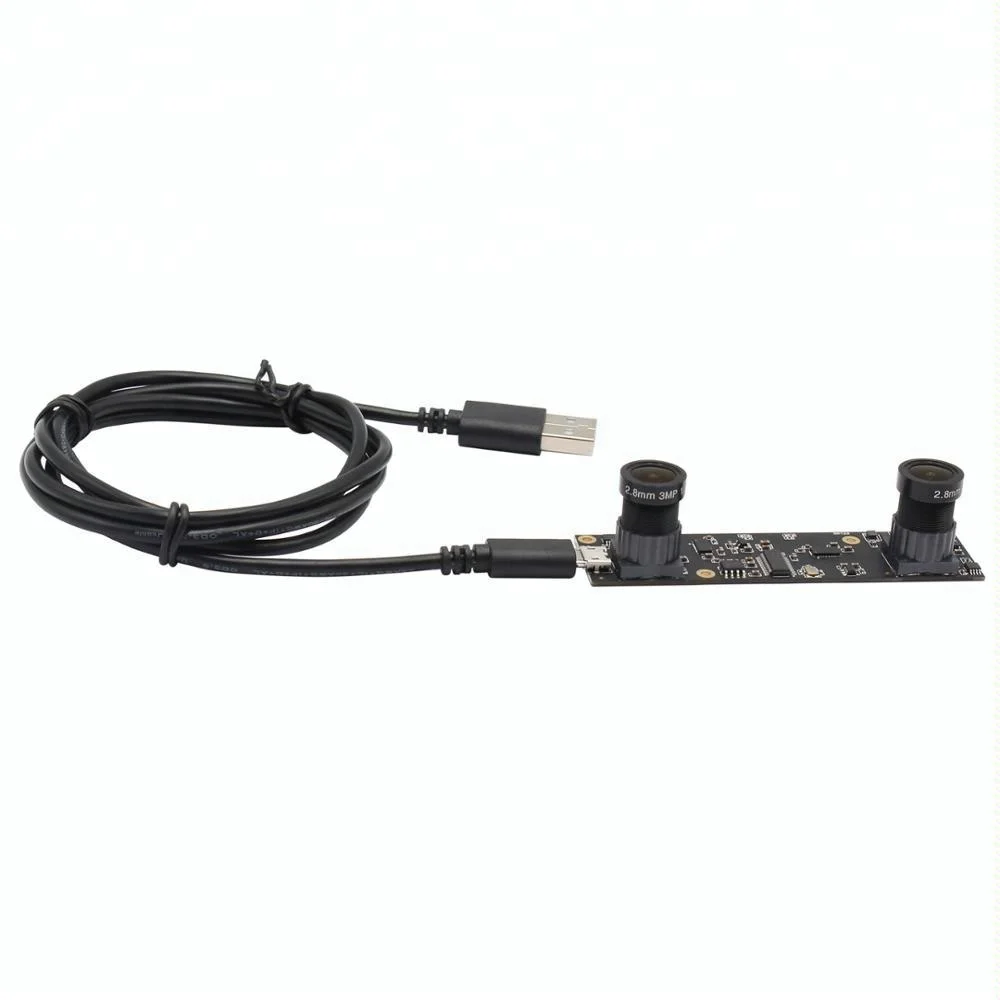

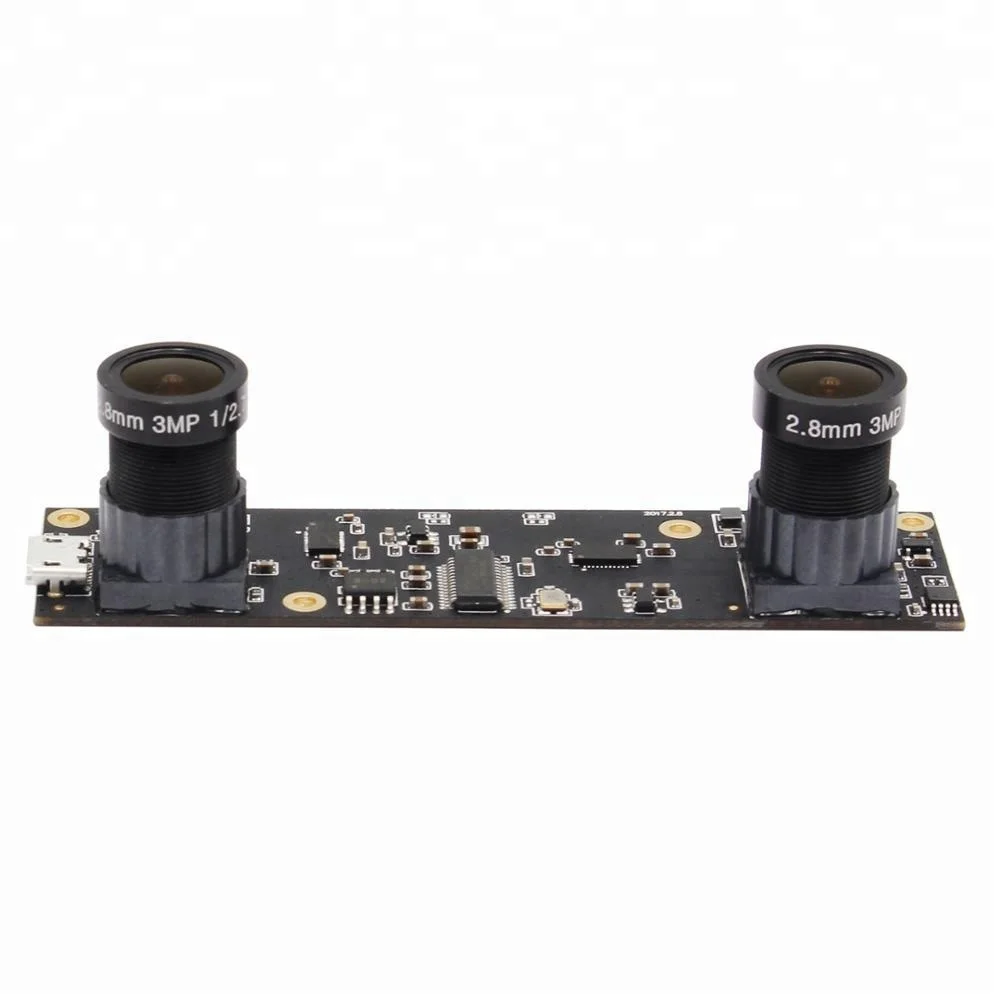

Product Show
Company Information
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
