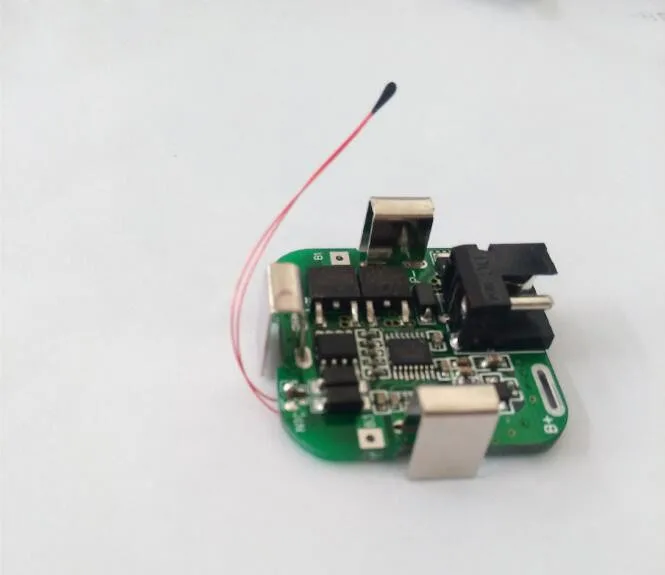

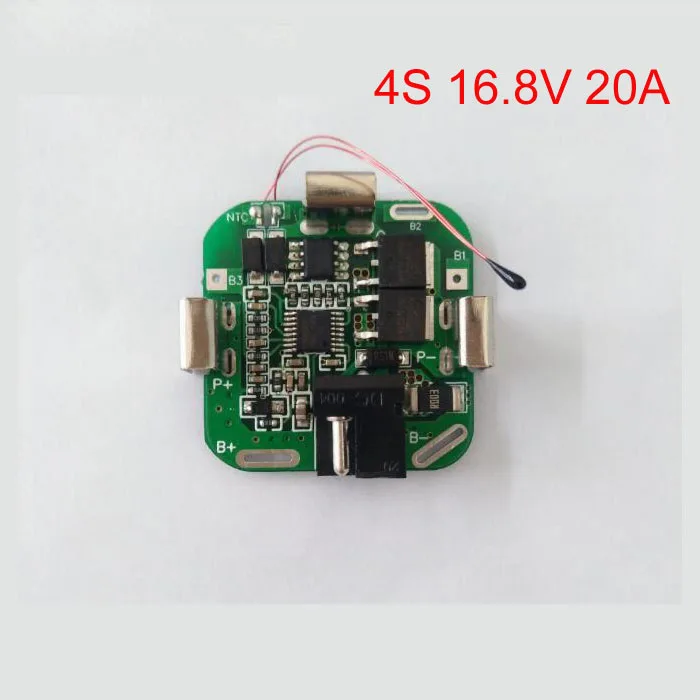

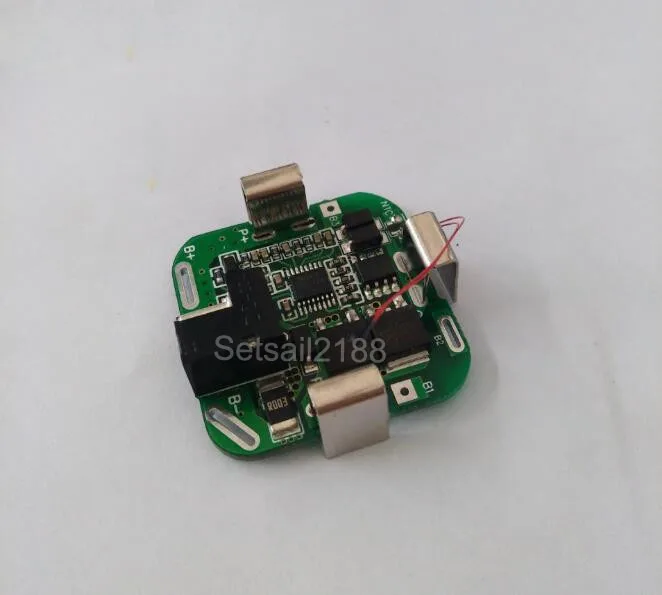

4S 14.8V 16.8V 20A BMS PCM li ion battery protection board for lithium LicoO2 Limn2O4 18650 li battery
- Category: >>>
- Supplier: Shenzhen Setsail Business Co. Ltd.
Share on (60767652615):
Product Overview
Description
4S 14.8V 16.8V 20A BMS PCM li-ion battery protection board for lithium LicoO2 Limn2O4 18650 li battery
Specifications:
1 voltage charging voltage 16.8V
Single charge voltage 4.2V
2 Current Continuous discharge current 0-20A
3 Overcharge protection Overcharge detection voltage 4.2±0.05V
Overcharge protection delay 1S
Overcharge single cell recovery voltage 4.13±0.05V
Overcharge protection release delay 20mS
4. Over-discharge protection Over-discharge single-cell detection voltage 2.8V
Over-discharge protection delay 1S
Over-discharge single-cell recovery voltage 3.0V
Over-discharge protection release delay 20mS
5 Over current protection Over current detection voltage 0.1V
Overcurrent detection current 32±3A
Over current detection delay 300mS±100mS
Recovery status Automatic recovery
6 Short-circuit protection Short-circuit protection Short-circuit protection
Short-circuit detection delay 20mS
Short-circuit detection voltage 0.8V
Recovery status Automatic recovery after disconnected load
7.Temperature protection Over temperature protection temperature 70±5°C
Over temperature recovery temperature 60±5°C
8. Power consumption Operating status 30±5uA (25°C)
Sleep state 6±2uA(25°C)
9 Internal Resistance Discharge Circuit Internal Resistance ≤30±5mΩ
10 Dimensions Length*Width 34mm*34mm
