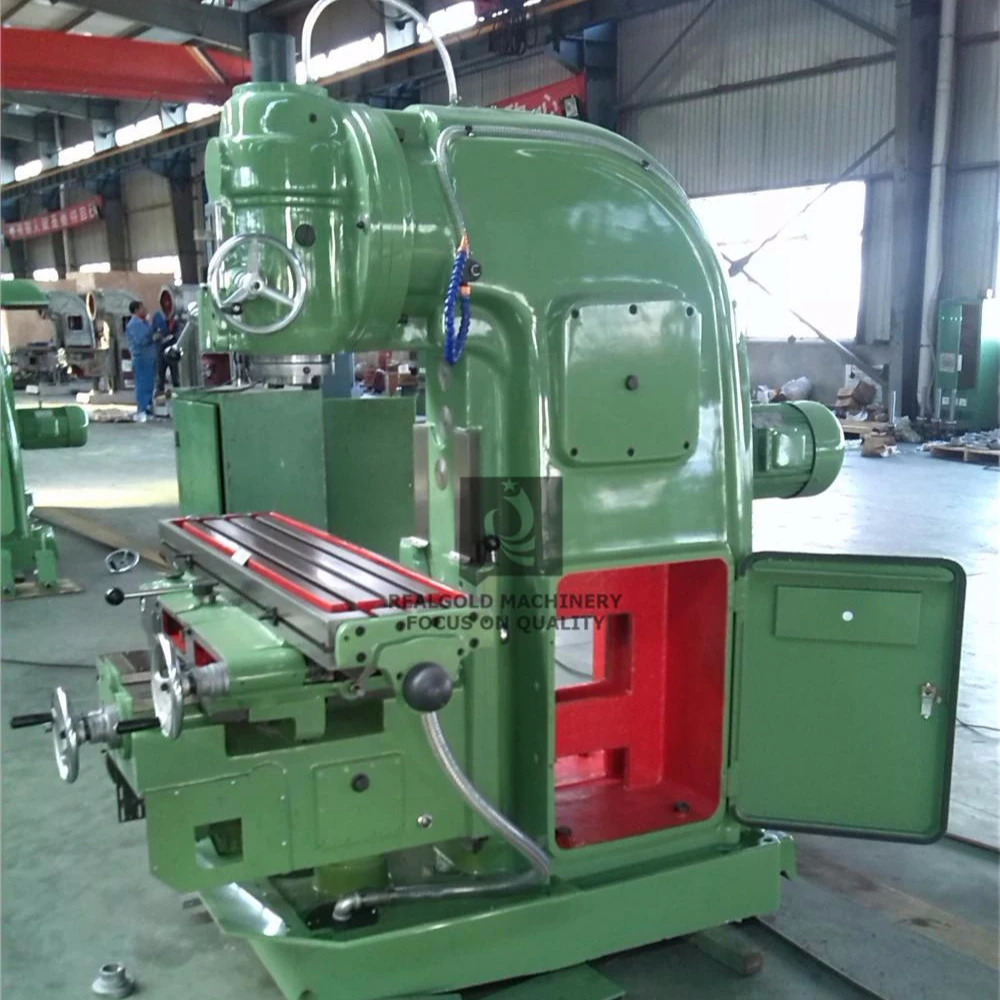

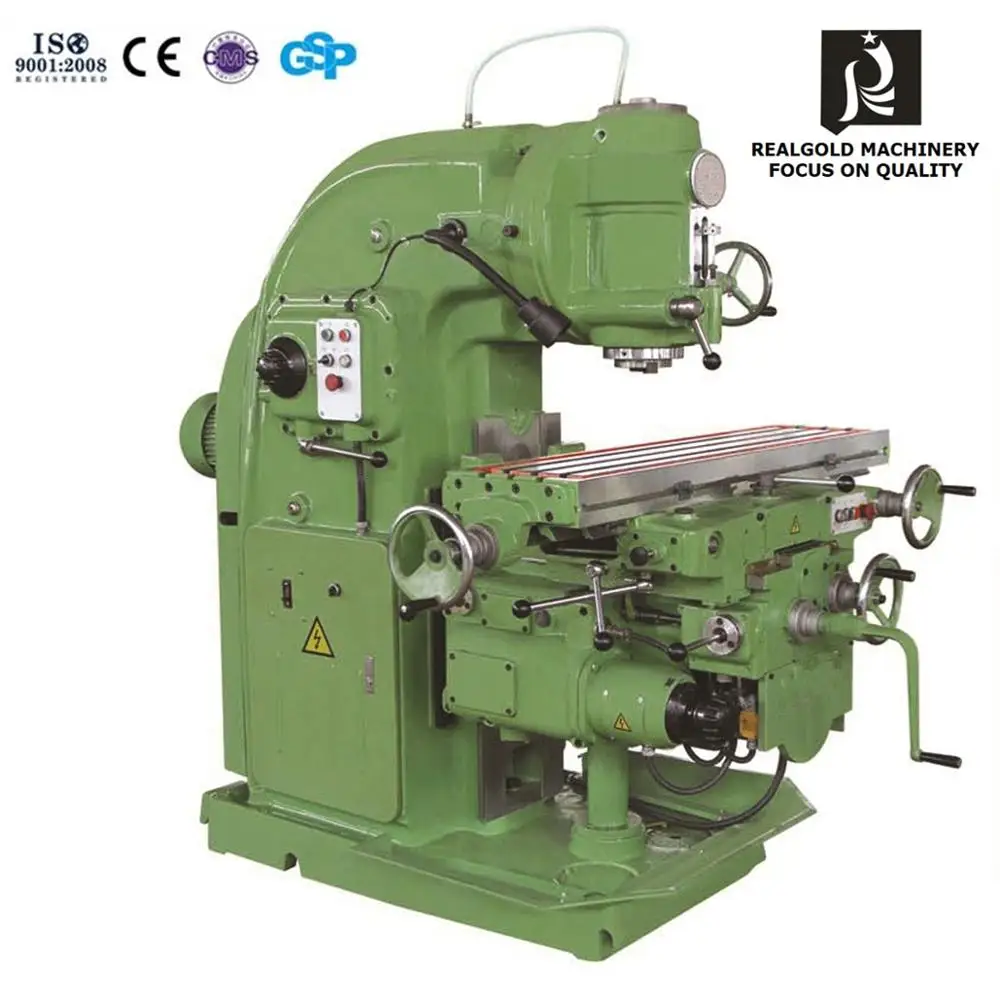

X5032 X5040 Heavy Duty vertical milling machine
- Category: >>>
- Supplier: Tengzhou Realgold Machinery Co. Ltd.
Share on (60767659161):
Product Overview
Description
Product Description
Heavy duty vertical knee-type milling machine X5032/X5040
1.One more powerful metal cutting machine
2. High rigidity
3. Wide range of spindle feed
4.The spindle taper hole can install many kinds of cylindrical cutter, disc cutter, form cutter, end milling cutter and so on
Main Usage:
1.Suitable for machining all parts plane, inclined plane, groove, hole,key way, etc
2.For machinery manufacturing, mould, apparatus, instrument, car and son
Advantage :
Rectangular guide ways
Hardened and ground table surface
Spindle swivels +/-45 degrees
Quill moves up and down
Main specification | X5032 | X5040 |
Table size | 320 x 1325 mm | 400 x 1700 mm |
Spindle taper | 7:24 ISO 50 | 7:24 ISO 50 |
Spindle bore | 29 mm | 29 mm |
Distance from spindle nose to table surface | 60-410 mm | 30-500 mm |
Distance from spindle axis to bed vertical guide way surface | 350 mm | 450 mm |
T-slot(number/width/spacing) | 3/18/70 | 3/18/90 |
Max. longitudinal travel manual/automatic | 700/680 mm | 900/880 mm |
Max. cross travel manual/automatic | 255/240 mm | 315/300 mm |
Max. vertical travel manual/automatic | 350/330 mm | 385/365 mm |
Rapid speed longitudinal/cross/vertical | 2300/1540/770 mm/min | 2300/1540/770 mm/min |
Max. turning angle of vertical milling head | ±45° | ±45° |
Spindle travel | 70 mm | 85 mm |
Number of spindle speed | 18(steps) | 18(steps) |
Spindle speed range | 30~1500 r.p.m | 30~1500 r.p.m |
Number of table feed | 18(steps) | 18(steps) |
Main motor power | 7.5 KW | 11 KW |
Feed motor power | 2.2 KW | 3 KW |
Overall dimension | 2294X1770X 1904 | 2556X2159X2258 |
Net weight/Gross weight | 2900 /3200 | 4250/4350 |
Our Services
Within 18 Hours Feedback is Our Promise
REALGOLD Fast Facts:
♦ 97% Client Retention Rate
♦ 10,000+ Cooperate Clients
♦ 25 Years of Brand Operating, 15 Years of Machine Tools Building
♦ 100% Focus on Our Clients Best interests
18 months warranty,
our quality confidence and customers’ peace of mind.
We will supply parts or service for repairs at no cost for a period of 18 months after bill of lading date. Extended warranty is available at the time of purchasing.
