Enclosed 20w 30w 50w Jewelry Fiber Laser Marking Machine for Sale
- Category: >>>
- Supplier: Shenzhen Jiefengtai Technology Co. Ltd.
Share on (60767705718):
Product Overview
Description
Product Description
Enclosed 20w 30w 50w Jewelry Fiber Laser Marking Machine for Sale
Main Features--Enclosed Fiber Laser Engraving Machine
♠ Enclosed type, with protective cover, have the protective function for marking materials and operating personnel, and with electric lift, make the operation is easier
♠ Air cooling with beautiful holes design in the host, long time working will not affect machine quality
♠ Sino high-speed galvanometer scanner, with double red light pointers for focusing
♠ Brand F-Theta field lens, 110*110/150*150mm working area
♠ Brand laser source, full power and stable quality, Max, Raycus brand are optional
Parameters | ||
Machine name | Enclosed Fiber Laser Engraving Machine | |
Machine model | JFT-LME | |
Laser source | Max/Raycus | |
Laser power | 20W/30W/50W | |
Working area | 110*110/150*150mm | |
Working speed | ≤7000mm/s | |
Wavelength | 1064nm | |
Min line width | 0.03mm | |
Min character | 0.1mm | |
Repeat precision | ±0.01mm | |
Marking frequency | 0-30KHz | |
Marking depth | ≤0.3mm (depend on material) | |
Cooling type | Air cooling | |
Applicable materials | Metal and part of non-metal materials | |
Work temperature | 0℃-40℃ | |
Input voltage | 110V/220V | |
Warranty | 3 years | |

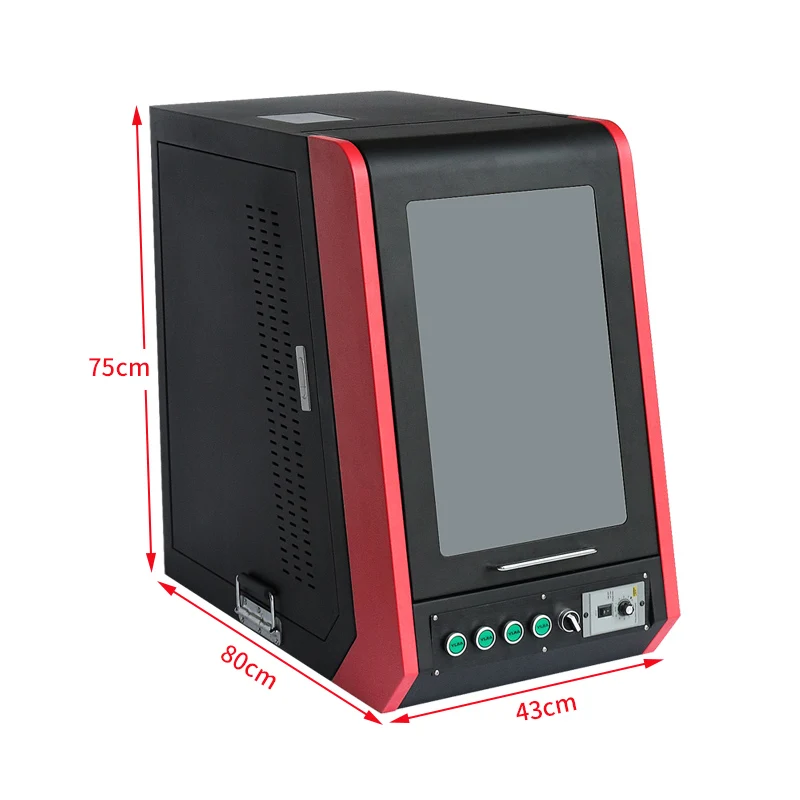

Outer size | 75*80*43cm | |
Packing size | 78*83*46cm | |
Packing weight | 70kgs | |
Samples Show
Detailed Images

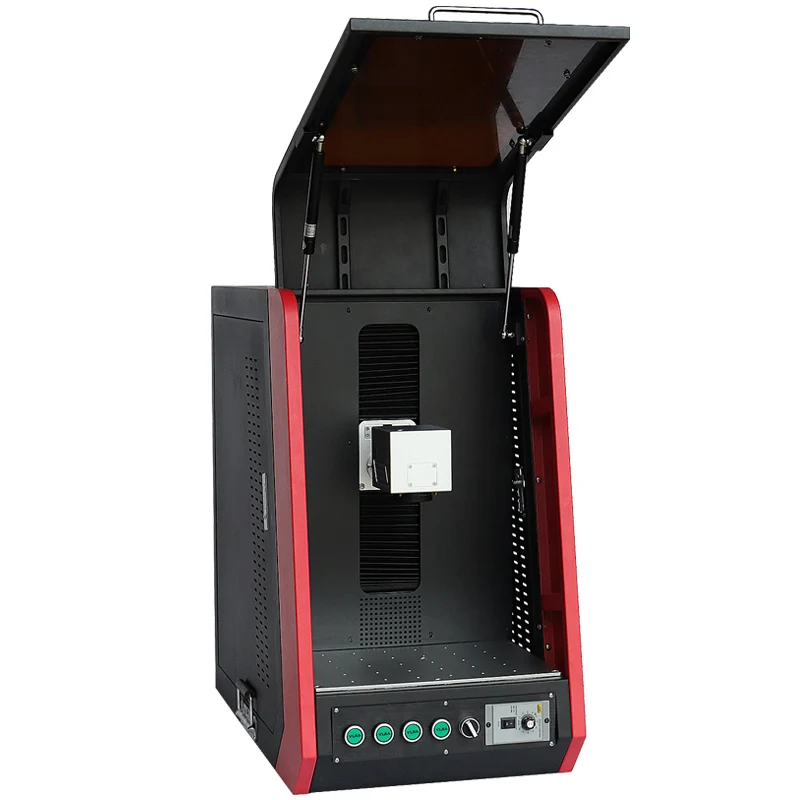

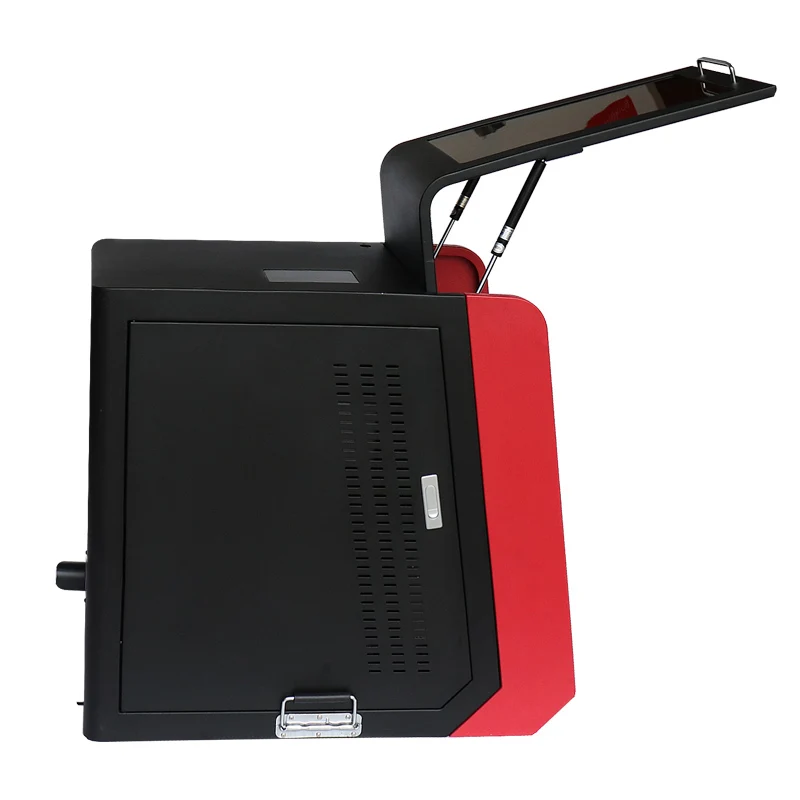

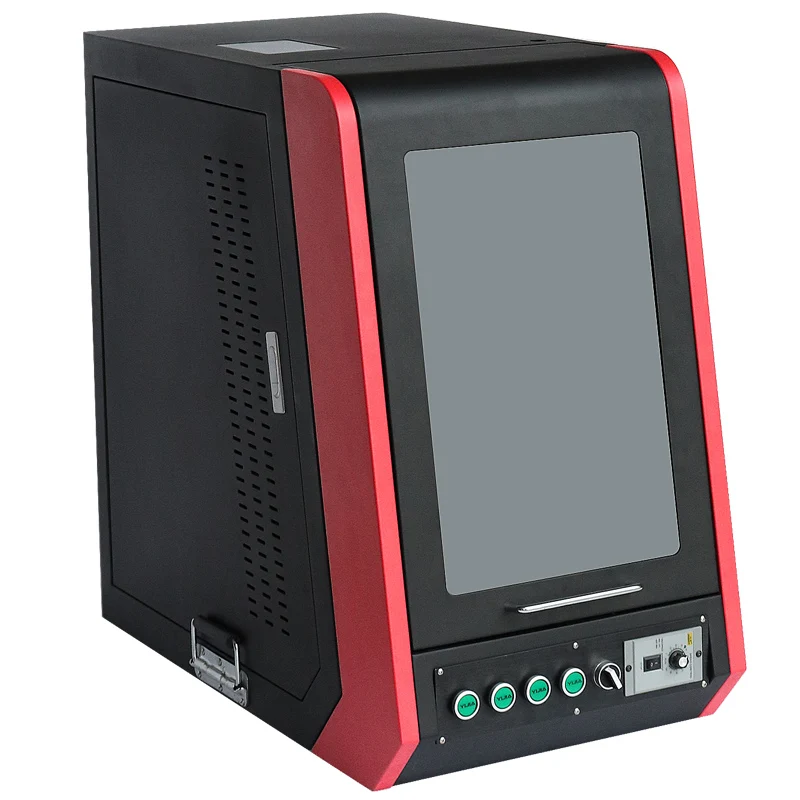

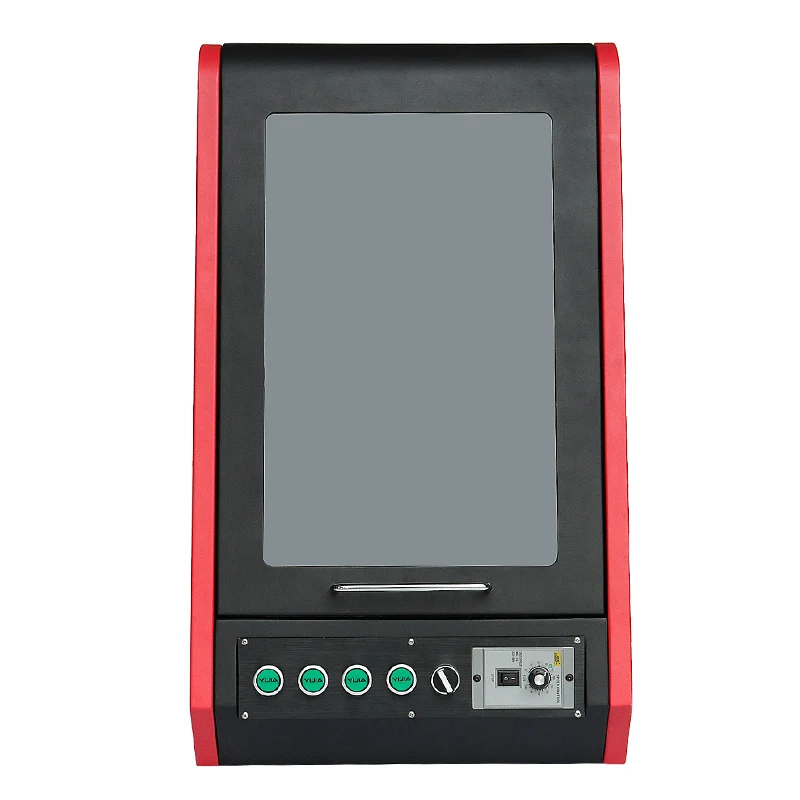

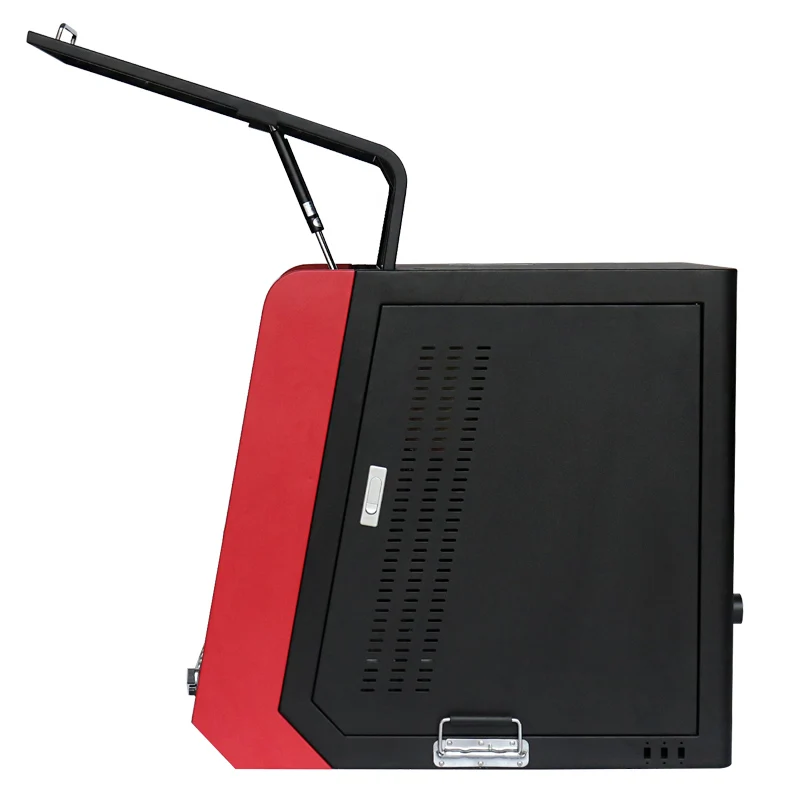

Enclosed type, with protective cover, have the protective function for marking materials and operating personnel

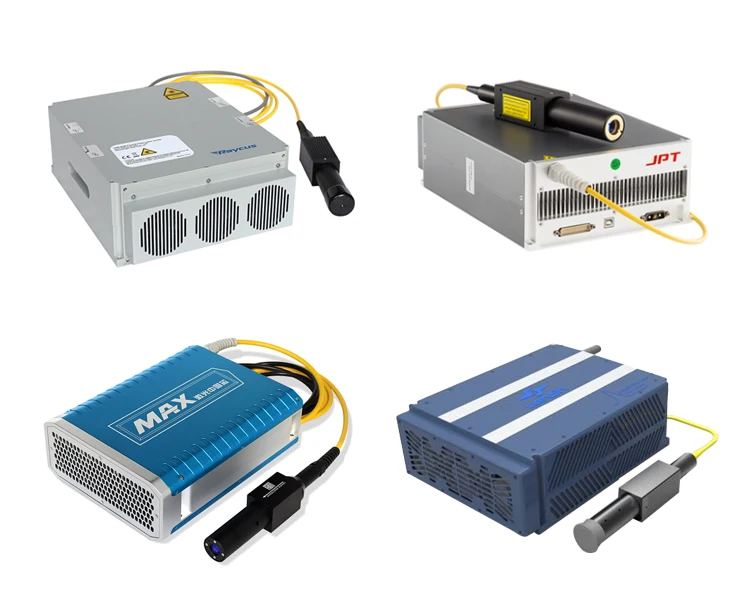

Built-in brand high quality fiber laser source,with fine, full and stable laser source. Max, Raycus brand are optional, the work life is 100,000.00 hours

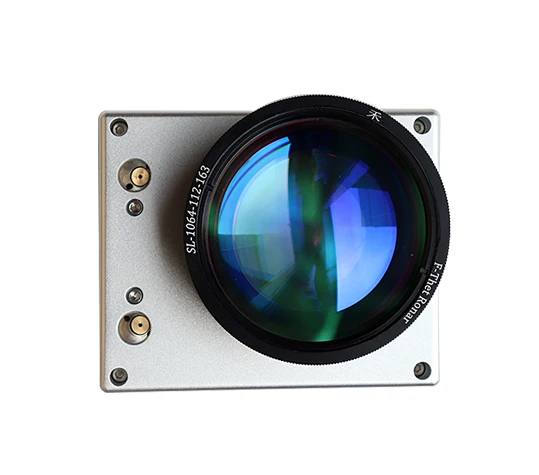

Sino high-speed galvanometer scanner, can get fast, stable, and clear scanning effect
Brand F-Theta field lens, can get accurate working size, 110*110mm, 150*150mm working area are optional
5.Double red light pointers
Applied with double red light pointers for focusing, three points converge into a single point, which is the focus, make the operation is easier
6. Electric lift
Applied with electric lift, you just need press the button to control the laser head to move up and down to find the right focus, make the operation is easier
7. Holes design
All sides of the machine host are with beautifully holes design, it is good for air cooling to heat dissipation, long time working does not affect machine quality and work life
Optional parts
Rotary axis
When annulusly engraving on cylindric materials, like engraving on finger ring, bracelet, wine glass etc, rotary axis is required
Our Service
Pre-sale service
1. 24 hours online inquiry and consulting supporting.
2. Providing the most professional advice for choosing the most suitable and economic machines
2. Providing the most professional advice for choosing the most suitable and economic machines
3.Free proofing
After-sales service
1. Providing instructional videos and English user manual for guiding to install and operate the machines
2. Engineers guide to operate the mahcines by remote service
3. 2-3 years free warranty for machine quality and technical service
2. Engineers guide to operate the mahcines by remote service
3. 2-3 years free warranty for machine quality and technical service
FAQ
1. What if you don't know how to use the machine?
We have a whole set of teaching videos, start with a zero basis, also can provide training
through remote system, WeChat video, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn
through remote system, WeChat video, telephone after the machine received. As long as you are willing to learn, Nothing is impossible to learn
2. How about the warranty?
The machine is directly produced from our factory, you can enjoy the quality of the original
factory, and lifelong maintenance, free warranty is 2-3 years, each machine is equipped with an unique code, enjoying the after sale service by this machine unique code
3. How to repair?
Please contact the salesman or after-sales engineer first if there is any problem when using
the machine. The after-sales engineer will do some simple tests for your machine and find out which part have the problem. Then engineer will teach you how to solve the problem, if the part can not be repaired, we will arrange to ship a new one
Related Products
Packing&Shipping
1. 1 Laser machine
2. 1 U-disk ( software in U disk)
3. 1 Power cable
4. 4 Hexagon socketcap screws
5. 2 Postion bar
6. 1 Socket wrenches
7. Foot switch
8. 1 Protective glasses
3. 1 Power cable
4. 4 Hexagon socketcap screws
5. 2 Postion bar
6. 1 Socket wrenches
7. Foot switch
8. 1 Protective glasses
Packing by wooden case
Machines will be packing by high quality non-log wooden case, with foam inside for protectiving. Long distance transportation will not be damaged.
Shipping channel
Shipping via sea or air, depend on clients' requirements
Company Introduction
Shenzhen Jiefengtai Corporation is specialized in research and development, production, sales of various types of CNC engraving machine, laser engraving machine, laser Marking machine, laser welding machine and other CNC series equipment. And also accept various manipulator, non-standard automation equipment customization. We continue to research and develop, to provide quality, cost-effective CNC machine and laser machine, to create value for the majority of customers.
All machines are approved by CE certificate. We have exported our machines to more than 50 countries, Major foreign customers groups are from Korea, Russia, United States, Mexico, India, Pakistan, Japan, Canada, Thailand, Malaysia, Indonesia, Turkey, Poland, Hungary etc
Anyone is interested in our product, welcome to be the partner of us.
Agent and distributor wanted all over the world!
Anyone is interested in our product, welcome to be the partner of us.
Agent and distributor wanted all over the world!
