Cheap Price Auto Car Baking Room
- Category: Spray Booths >>>
- Supplier: Yantai Lide Automotive Equipment Manufacturing Co. Ltd. [Shandong China]Yantai
Share on (60767779550):
Product Overview
Description

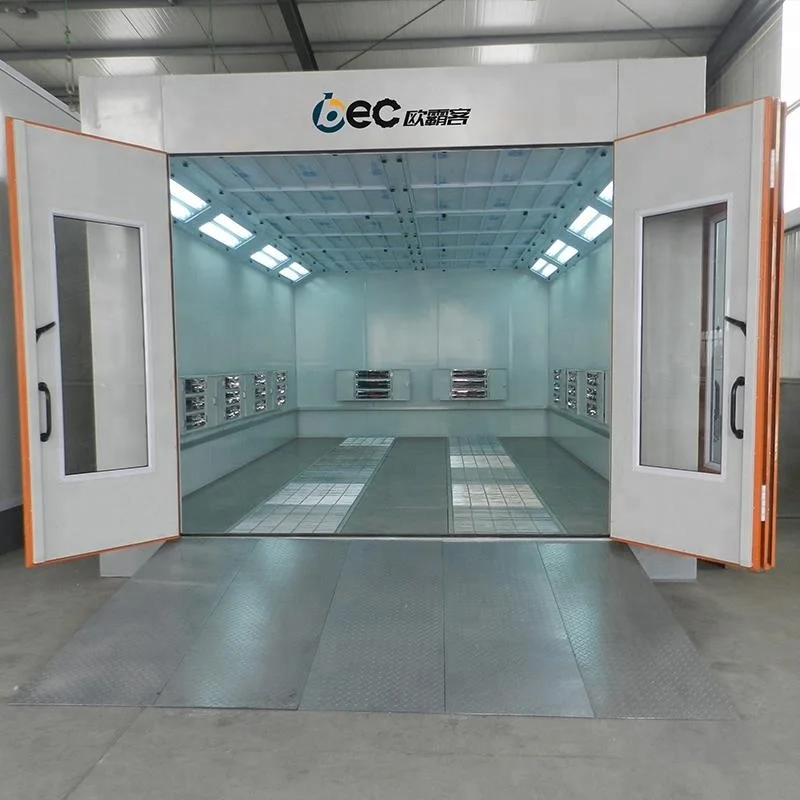

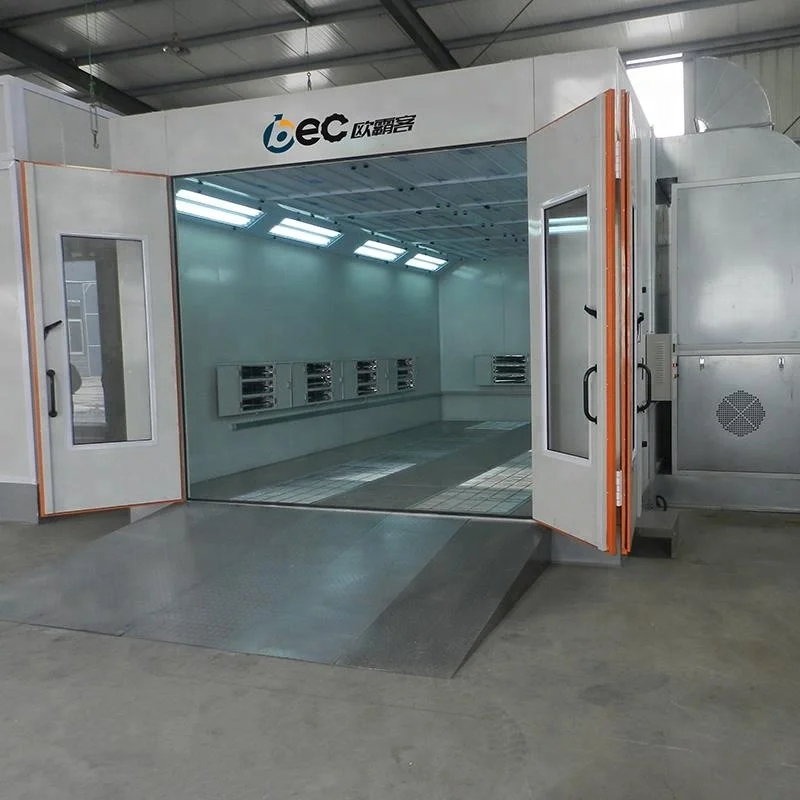

Cheap Price Auto Car Baking Room
Product Description
1.Configuration for OBC-E4 paint booth:
Model: OBC-E4 | ||
Outside size | 7000×5350×3300mm(L×W×H) | |
Inside size | 6900×3900×2600mm(L×W×H) | |
Entrance door | 3 folds door , 3000×2500mm ,main doors with galvanized covered frame. equipped with Handle & Lock. | |
Emergency door | 1fold ,650×2000mm(W×H). Equipped with Handle & Anti-Explosion Lock . | |
Main System | ||
Cabin System | Wall Panel | -High quality double construction insulation EPS panel, thickness: 50mm. The thickness of steel is 0.35mm. -Galvanized steel roof panel . |
Basement | - Plate type pressing convex platform , height is 280mm . - Five rows flat steel Grilles (galvanized) - 2 pieces of Ramps, each size 620×2000mm (W×L),diamond plate construction. | |
Ventilation System | Inlet fan | 2×4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h. |
Outlet fan | 1×5.5KW YDW outtake centrifugal fans, total air capacity: 12500m³/h. | |
Cabinet setting type | Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful. Air duct*2m long*1 unit, Elbow: 90º *1unit | |
Airflow speed | 0.4m/s, ventilation rate: 320times/h | |

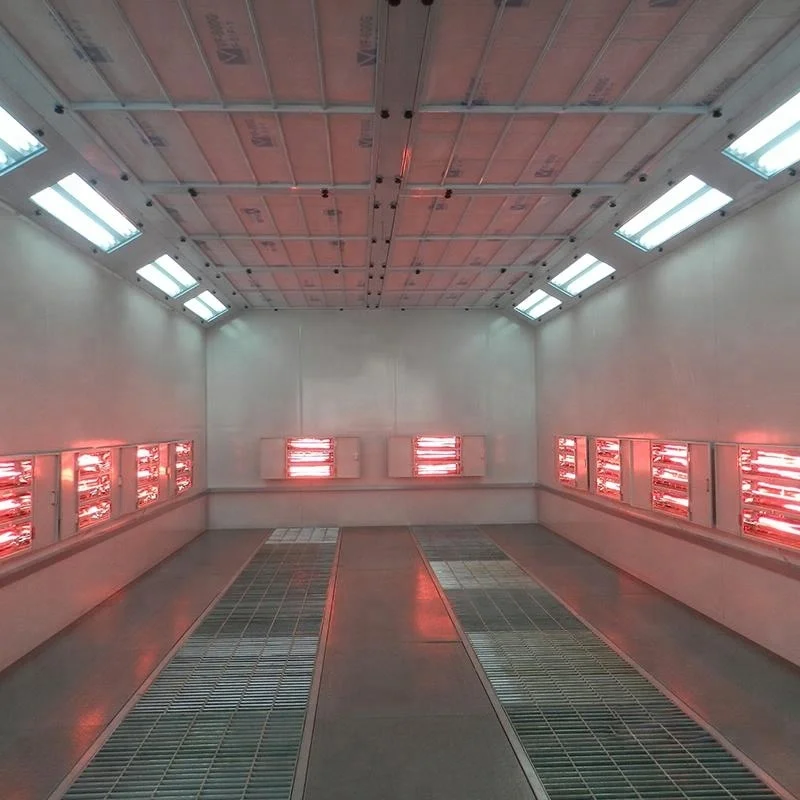

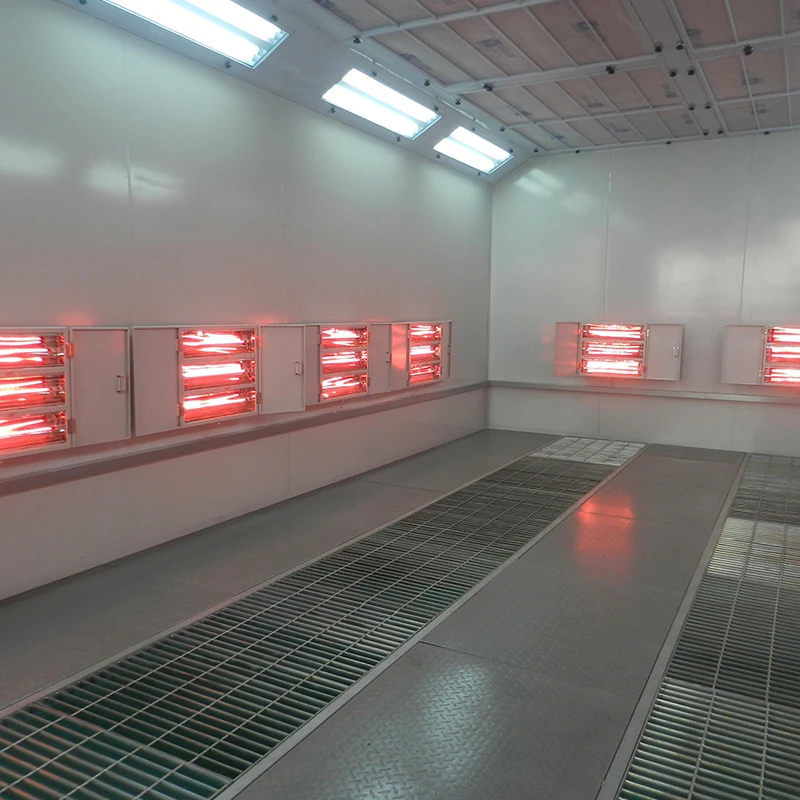

Heating System
| -10 units infrared lamps for heating, 3 lamps/unit, each lamp 1KW. -Total power is 30KW. - Option: Baking power regulator. | |

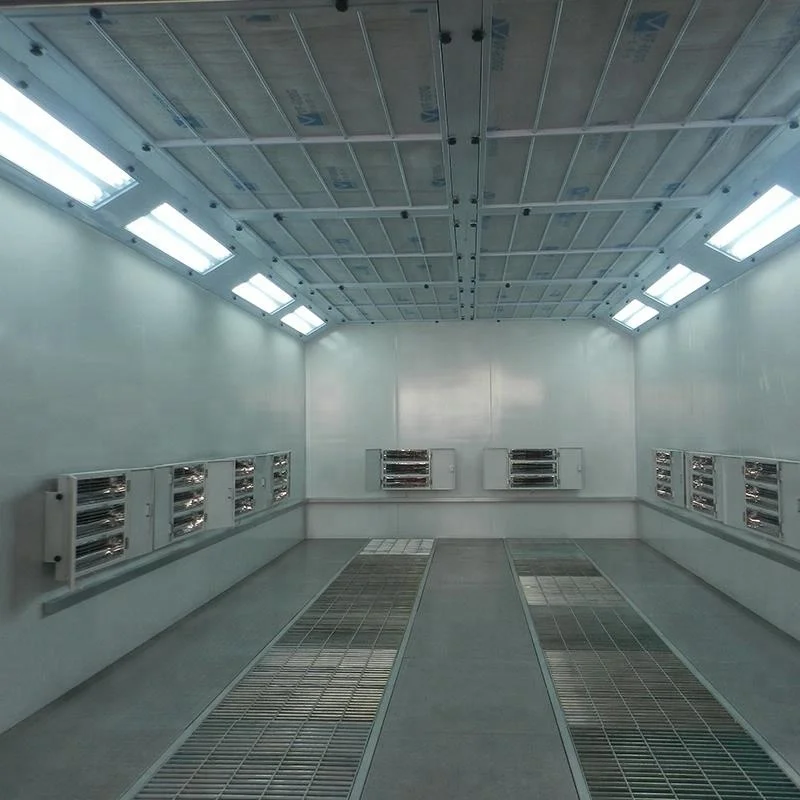

Lightening System | Ceiling lights | -LED Ceiling lights:8 units×3pieces =24pieces ×16W. |
Side lights | -LED Side lights: 6 units × 2 pieces =12pieces ×16W. | |
Filtering System | Primary filter | -The primary filter can capture granules larger than 10μm , filtering rate > 83%. |
Ceiling filter | -Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%. | |
Floor filter | - Floor filter (fiberglass paint-stop filter), filter rate>70% | |
Control System
| Control Panel |
Intelligent control system. |
Function | Lighting switch, spraying , heat spraying , baking , temperature controller, time setting, emergency stop. | |
Voltage/Frequency | 380V/220V, 50Hz/60Hz, 3 phase | |
Total Power | 45KW | |
Want to add or reduce configuration for paint booth? Chat with me now
2. Advantages of ( To know more, please click here ):
- High paint quality
- Energy-saving
- Strength is suitable for any type of vehicle
- Multi-purpose movable hanger made of galvanized iron frame.
- The machine bear the weight of car door, leaf plate, hood, trunk lid.
- Rotate at any Angle through the adjustable stepless rotating handle.
- It can effectively improve the working efficiency of the workers, which is more than 1 to 2 times more than the normal working efficiency.
- Speed, positive and negative can be sprayed at the same time, save time, vertical spray paint can reflect the mirror effect of the paint, save the baking time and reduce the energy consumption of the baking room.

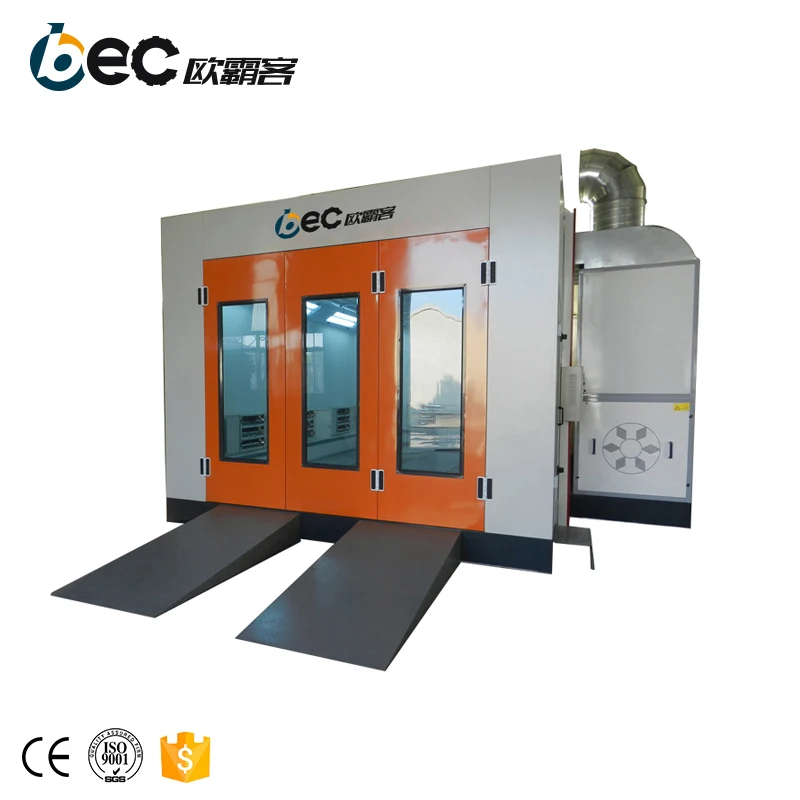

3. Display of E3 spray booth:
Company Information
YANTAI LIDE AUTOMOBILE SERVICES CO., LTD is one of China's leading manufacturers of top quality car body repair tool and equipment, including:
-- high quality auto body repair system machine;
-- auto paint booth;
-- hydraulic two post car lift;
-- car alignment machine;
-- wheel balancer;
-- tire changer;
-- car changer;
-- dent puller;
and other auto repair and maintenance equipment.
With high quality supplier, advanced design idea, and competitive price, our products are extensively used in automobile maintenance and repair industry.
Packaging & Shipping
FAQ
Q:Who are you?Trade company or manufacturer?
A:We are manufacturer and we have our own trade company.
Q: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit Yantai Lide. Our factories locates in Shandong province.
Q: What is your payment terms?
A:T/T ,L/C,paypal,Other ways,pls contact with us.
Q: How long is the warranty?
A: Our warranty is 12 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
Q:How many days of delivery time?
A:Within 7-15 working days after we receive the order.
