 BEST PRICE 350m reflectorless total station sokkia cx52  topographic equipment for sale












The CX-50 Series Total Station is a builder class instrument with an IP66 waterproof casing and reflectorless EDM technology. In addition, the CX-50 features other key specifications such as dual axis compensation, 15-hour battery life and on-board survey software capable of storing 5,000 points. These features combined with the affordable price, makes it the perfect entry-level solution for site layout or as-built survey.


Features:

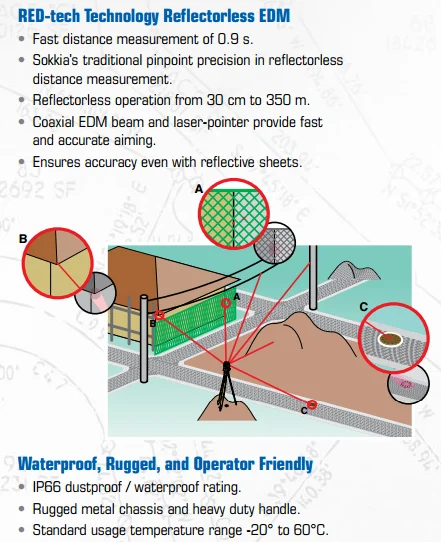

  • RED-tech technology reflectorless EDM

  • Reflectorless up to 350 m

  • Up to 15 hours battery life

  • On-board software

  • Red laser pointer

  • Waterproof IP66










SPECIFICATION



























































































































































































Telescope
Magnification / Resolving power30x / 2.5"
OthersLength:171mm,
Objective aperture:45mm (48mm for EDM),
Image:Erect,Field of view:1°30'(26m/1,000m),
Minimum focus:1.3m,
Reticle illumination:5 brightness levels

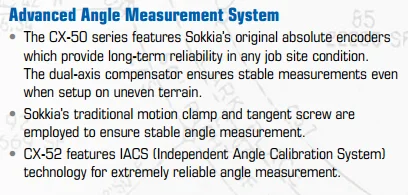

Angle measurement
Display Resolution 1"/5"
Accuracy (ISO 17123-3:2001)2"
Dual-axis compensator / Collimation compensationDual-axis liquid tilt sensor,
working range: ±6' / Collimation compensation available
Distance measurement
Laser outputReflectorless mode: Class 3R / Prism / sheet mode: Class 1
Measuring range (under average conditions)
           Reflectorless0.3 to350m
       Reflective sheet1.3 to 500m
           Mini prisms2500m
   One AP prism1.3 to 5000m
     Three AP prismsto 6000m
Display resolution0.001m / 0.01ft
Accuracy (ISO 17123-4:2001)(D=measuring distance in mm)
           Reflectorless(3 + 2ppm x D) mm
       Reflective sheet(3 + 2ppm x D) mm
           AP/CP prism(2 + 2ppm x D) mm
Measuring timeFine: 0.9s, Rapid: 0.7s, Tracking: 0.3s
Interface and Data management
Display / KeyboardGraphic LCD, 192 x 80 dots, backlight,
contrast adjustment / Alphanumeric keyboard /
25 keys with backlight
Control panel locationOn both faces
Data storage
 Internal memoryApprox. 5,000 points
InterfaceSerial RS232C
General
Laser-pointerCoaxial red laser using EDM beam
Levels
           Graphic6’ (inner circle)
           Circular level10' / 2mm
Optical plummetMagnification: 3x, Minimum focus: 0.3m from tribrach bottom
Laser plummet (optional)Red Laser Diode(635nm+/-10nm)
Beam accuracy:1.0mm at 1.3m
laser class :II
Dust and water protectionIP66 (IEC 60529:2001)
Operating temperature-20 to +60℃
Size with handleW191 x D181 x H348mm
Weight with handle and batteryApprox. 5.6kg (12.3 lb.)
Power supply
BatteryBDC46C detachable battery
Operating time (20℃)Approx. 15hours

















ACCESSORIES





                      PRISM                                                           TRIPOD                                                  POLE





Packaging & Shipping


ENGINEERING CASE +DOUBLE CARTON
