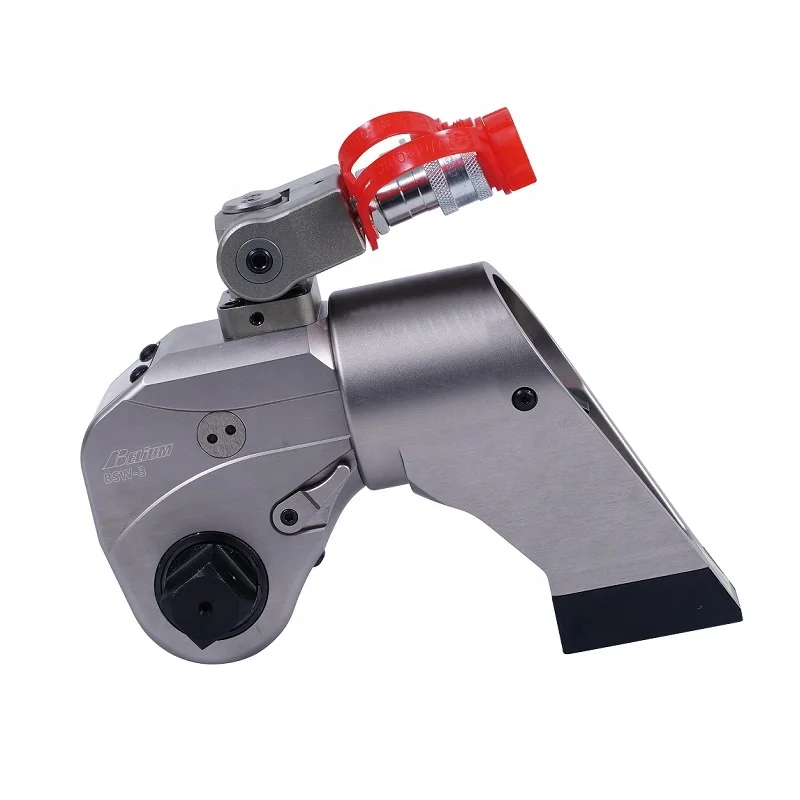

BSW 3 700 Bar/ 10000 Psi 1" Square Drive Hydraulic Torque Wrench
- Category: Hydraulic Tools >>>
- Supplier: Hangzhou Fuyang Tengmin Machinery Co. Ltd.
Share on (60767786380):
Product Overview
Description
BSW Series Square Drive Hydraulic Torque Wrench
The BSW-series square drive hydraulic torque wrenches are compact, easy to use and versatile. The titanium-aluminium alloy and super high strength steel alloy construction means increased strength and durability while minimising weight. BSW-Series torque wrenches are available in 3/4'' to 2'' square drive models, with a torque range from 112 to 72,000 Newton Metres (82 to 53,280 ft/lbs). All models are fitted with a 360° swivel coupler and screw couplings.
FEATURES
- Using High-tech aerospace mateiral , integrally molded body. Strengthen the body for using durability.
- Designing using 3D CAD modeling software, provide torque precision within ±3%.
- Swiveling inlet port rotates 360 degrees
- 360° fine-tune type reaction arm
- Quick release square drive allows you to switch from tightening and loosening without any other special tools.
SPECIFICATIONS
| MODEL | BSW-1 | BSW-3 | BSW-5 | BSW-8 | BSW-10 | BSW-20 | BSW-25 | BSW-35 |
| SQUARE DRIVE SIZE | 3/4″ | 1″ | 1-1/2″ | 1-1/2″ | 1-1/2″ | 2-1/2″ | 2-1/2″ | 2-1/2″ |
| Torque Range(N.m) | 183-1837 | 451-4512 | 752-7528 | 1078-10780 | 1551-15516 | 2666-26664 | 3572-34725 | 4866-48666 |
| Bolt Size(M) | 16-36 | 22-48 | 27-56 | 30-64 | 36-72 | 42-90 | 48-100 | 64-120 |
| Weight(KGS) | 2.00 | 4.00 | 7.00 | 9.10 | 13.10 | 25.00 | 31.00 | 45.00 |

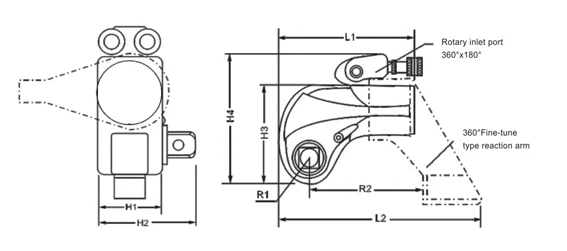

| L1(mm) | 130.00 | 166.00 | 198.00 | 213.00 | 231.00 | 295.00 | 314.00 | 355.00 |
| L2(mm) | 182.00 | 241.00 | 281.00 | 308.00 | 336.00 | 443.00 | 464.00 | 489.00 |
| H1(mm) | 50.00 | 68.00 | 80.00 | 90.00 | 100.00 | 120.00 | 137.00 | 153.00 |
| H2(mm) | 72.00 | 95.00 | 123.00 | 130.00 | 141.00 | 182.00 | 200.00 | 217.00 |
| H3(mm) | 99.00 | 130.00 | 155.00 | 171.00 | 187.00 | 228.00 | 255.00 | 290.00 |
| H4(mm) | 144.00 | 176.00 | 198.00 | 216.00 | 230.00 | 268.00 | 295.00 | 330.00 |
| R1(mm) | 26.00 | 34.00 | 39.00 | 47.00 | 51.00 | 59.00 | 67.00 | 79.00 |
| R2(mm) | 99.00 | 134.00 | 152.00 | 171.00 | 174.00 | 250.00 | 251.00 | 271.00 |
