Product Overview

Description

TrueX gold handheld analyzer or xrf gold analyzer or xrf analyzer



Product Application

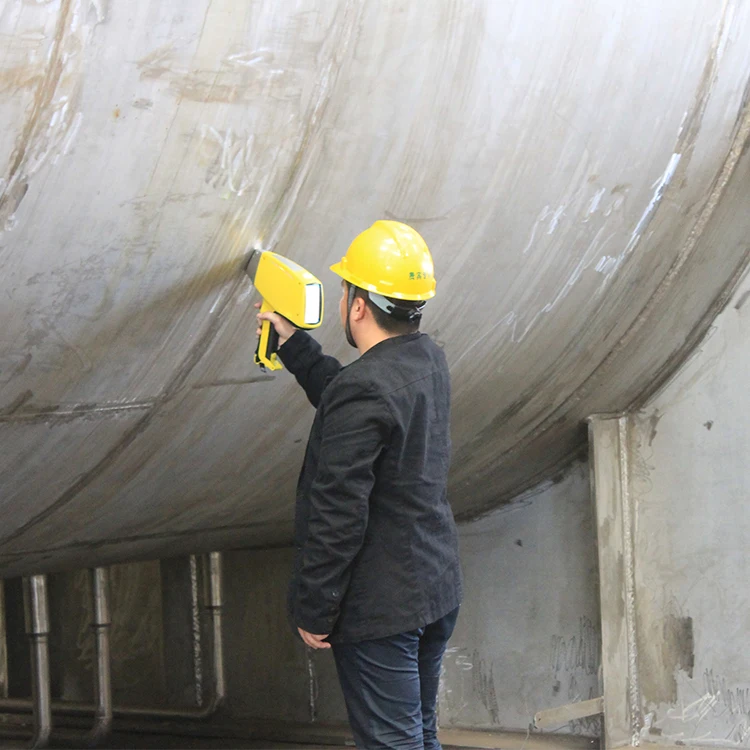

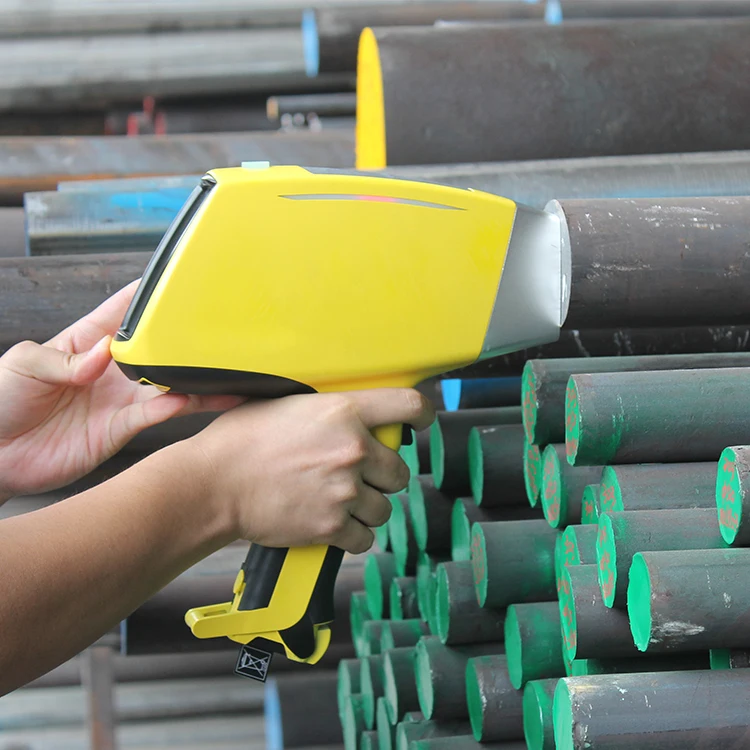

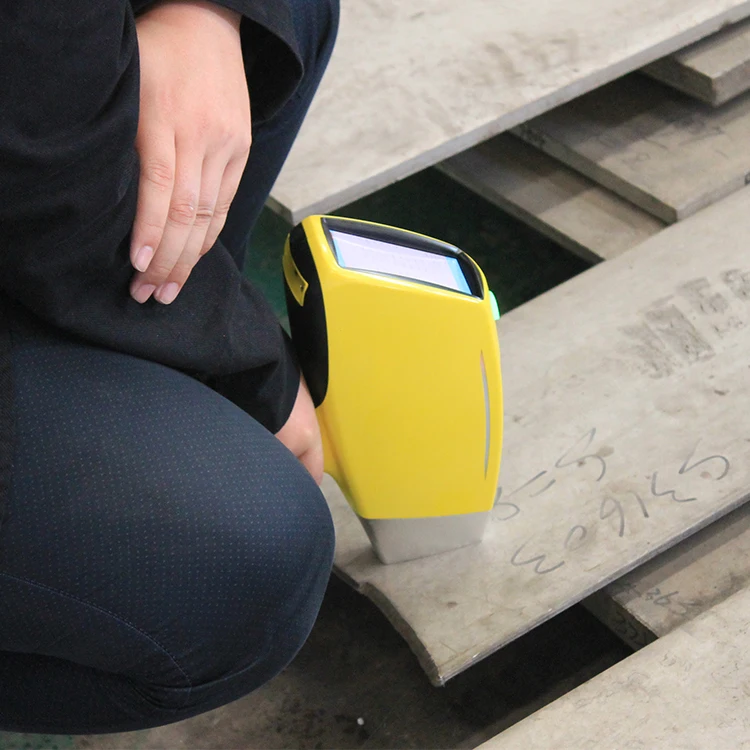

XRF Handheld analyzer is applicable to any fields that elements or compounds from Na to U are to be analyzed. It is suitable for analysis in building materials (cement, glass, ceramics), metallurgy(steel, and non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemistry, geological mining, to commodity inspection, quality inspection and trace elements analysis of human body.



Element analyze

Fe,Co,Ni,Cu,Zn,Se,Ru,Rh,Pd,Ag,Cd,In,Ir,Pt,Au,Pb



Specification

Weight: 1.6Kg(with battery)
Dimensions: 254 x 79 x 280mm
Detector :BOOST Si-pin detector
The ARM architecture Cortex-A8 1 GHZ
System Processor:The Android 4.2 operating system/80MHZ ADC digital
pulse processor/4096 MCA channel , 32GB memory
Display: Industrial resistive touch screen with screen size of 4.3"
Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum
can be stored
Operating Temperature: -20℃~+50℃
Operating Humidity: ≤90%
Limit of Detection: PPM



Product List

No.	Item	Specification
1	TrueX 800 For alloy Handheld analyzer	Weight: 1.6Kg(with battery) Dimensions: 254 x 79 x 280mm Detector :BOOST Si-pin detector The ARM architecture Cortex-A8 1 GHZ System Processor:The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory Display: Industrial resistive touch screen with screen size of 4.3" Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored Operating Temperature: -20℃~+50℃ Operating Humidity: ≤90% Limit of Detection: PPM
2	TrueX 860 For alloy Handheld analyzer	Weight: 1.6Kg(with battery) Dimensions: 254 x 79 x 280mm Detector :SDD detector The ARM architecture Cortex-A8 1 GHZ System Processor:The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory Display: Industrial resistive touch screen with screen size of 4.3" Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored Operating Temperature: -20℃~+50℃ Operating Humidity: ≤90% Limit of Detection: PPM
3	TrueX 900 Handheld mining analyzer	Weight: 1.6Kg(with battery) Dimensions: 254 x 79 x 280mm Detector :BOOST Si-pin detector The ARM architecture Cortex-A8 1 GHZ System Processor:The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory Display: Industrial resistive touch screen with screen size of 4.3" Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored Operating Temperature: -20℃~+50℃ Operating Humidity: ≤90% Limit of Detection: PPM
4	TrueX 960 Handheld mining analyzer	Weight: 1.6Kg(with battery) Dimensions: 254 x 79 x 280mm Detector :SDD detector The ARM architecture Cortex-A8 1 GHZ System Processor:The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory Display: Industrial resistive touch screen with screen size of 4.3" Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored Operating Temperature: -20℃~+50℃ Operating Humidity: ≤90% Limit of Detection: PPM
5	TrueX ROHS Handheld analyzer	Weight: 1.6Kg(with battery) Dimensions: 254 x 79 x 280mm Detector :BOOST Si-pin detector The ARM architecture Cortex-A8 1 GHZ System Processor:The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory Display: Industrial resistive touch screen with screen size of 4.3" Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored Operating Temperature: -20℃~+50℃ Operating Humidity: ≤90% Limit of Detection: PPM
6	TrueX Gold Handheld analyzer	Weight: 1.6Kg(with battery) Dimensions: 254 x 79 x 280mm Detector :BOOST Si-pin detector The ARM architecture Cortex-A8 1 GHZ System Processor:The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory Display: Industrial resistive touch screen with screen size of 4.3" Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored Operating Temperature: -20℃~+50℃ Operating Humidity: ≤90% Limit of Detection: PPM
7	TrueX 700 Handheld analyzer	Weight: 1.6Kg(with battery) Dimensions: 254 x 79 x 280mm Detector :BOOST Si-pin detector The ARM architecture Cortex-A8 1 GHZ System Processor:The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory Display: Industrial resistive touch screen with screen size of 4.3" Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored Operating Temperature: -20℃~+50℃ Operating Humidity: ≤90% Limit of Detection: PPM
8	TrueX 760 Handheld analyzer	Weight: 1.6Kg(with battery) Dimensions: 254 x 79 x 280mm Detector :SDD detector The ARM architecture Cortex-A8 1 GHZ System Processor:The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory Display: Industrial resistive touch screen with screen size of 4.3" Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored Operating Temperature: -20℃~+50℃ Operating Humidity: ≤90% Limit of Detection: PPM





Reading	Mode	V%	Cr%	Mn%	Fe%	Ni%	Cu%	Mo%
NO1	ALLOYS	0.13	16.56	1.22	69.558	10.18	0.322	2.03
NO2	ALLOYS	0.132	16.66	1.29	69.438	10.15	0.32	2.01
NO3	ALLOYS	0.13	16.61	1.2	69.645	10.05	0.315	2.05
NO4	ALLOYS	0.128	16.62	1.19	69.701	10.03	0.331	2
NO5	ALLOYS	0.126	16.68	1.18	69.489	10.15	0.325	2.05
NO6	ALLOYS	0.132	16.67	1.22	69.57	10.1	0.318	1.99
NO7	ALLOYS	0.134	16.62	1.25	69.474	10.16	0.322	2.04
NO8	ALLOYS	0.14	16.5	1.16	69.655	10.2	0.315	2.03
NO9	ALLOYS	0.132	16.7	1.19	69.472	10.17	0.326	2.01
NO10	ALLOYS	0.128	16.63	1.2	69.611	10.08	0.321	2.03
average value		0.131	16.625	1.210	69.561	10.127	0.322	2.024
standard value		0.128	16.68	1.22	69.5	10.11	0.32	2.03
standard deviation		0.004	0.057	0.035	0.086	0.055	0.005	0.020
RSD/%		2.83	0.34	2.93	0.12	0.54	1.47	0.97





Radiation Safety Guarantee
Low power (4W) X-ray tube, mini collimator reduce radiation quantity effectively.
X-ray tube radiation protection shield avoids X-ray escape.
The structure producing radiation is all in equipment interior, you don't need to align or calibrate X ray, then ensure not detect any
measurable radiation in equipment operation process.
X ray indicator light alarms user the radiation produciton.
Independent safe circuit and DoubleBeam interlock tool can protect user safety effectively.
Conform to dosage limit requirement in <Radiation protection standards for X-ray diffraction
and fluorescence analysis equipment> (GBZ115-2002).
Conform to valid annual dosage limit requirement for workers and public in<Ionizing
Radiation Protection and Safety of Radiation Sources basic standards> (GB18871-2002).



Monitoring results

Point No.	Point Discription	Testing Results (μSv/h)						Device State
		1	2	3	4	5	Average
1	5cm above the surface of the device	0.10	0.11	0.12	0.10	0.09	0.10	Turn on
2	5cm the surface left of the device	0.10	0.12	0.10	0.11	0.12	0.11	Turn on
3	5cm the surface right of the device	0.10	0.12	0.10	0.11	0.13	0.11	Turn on
4	5cm below the surface of the device (holding place)	0.12	0.10	0.10	0.11	0.12	0.11	Turn on
5	5cm back the surface of the device	0.09	0.08	0.10	0.12	0.08	0.09	Turn on
6	Operation place	0.10	0.09	0.11	0.08	0.09	0.09	Turn on
7	Public Distance Zone	0.09	0.05	0.07	0.08	0.06	0.07	Turn off
Note: the testing result doesn’t deduct radiation background value.

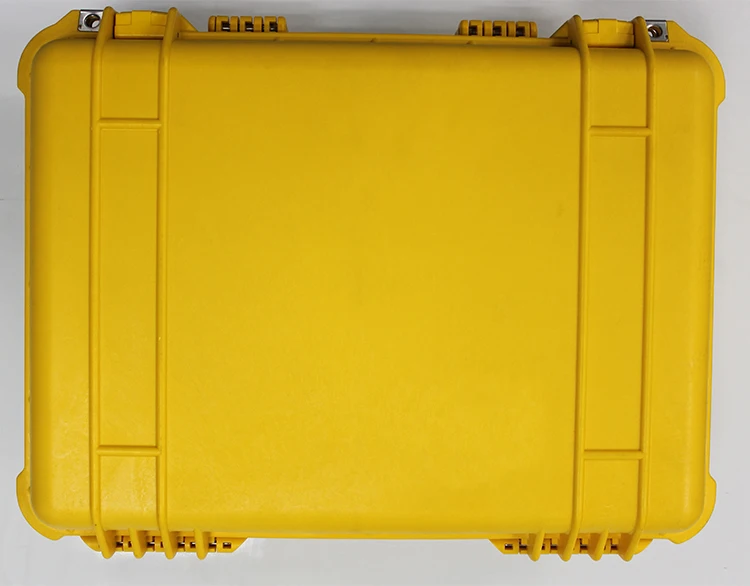

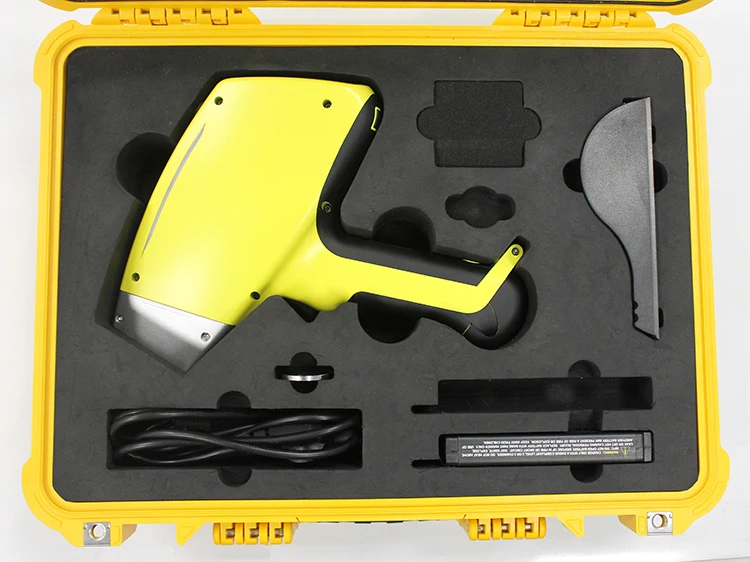

Package



Service
1. Pre-sale service
Freely provide project designing, process designing, choosing suitable equipment for you
2. Medium-sale service
Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed process, and complete process of export
3. After-sale service
The quality guarantee period of our machine is 12 months.
We will provide necessary information for your purchasing equipment and be very willing to answer all the problems you have concerned about the device
With the development of technology in our company, we will provide improved working state and information for you at any time.
Within the quality guarantee period, free parts replacement and corresponding service are available.
Beyond the quality guarantee period, we still provide widely and favorable technical support and spare parts supply.
