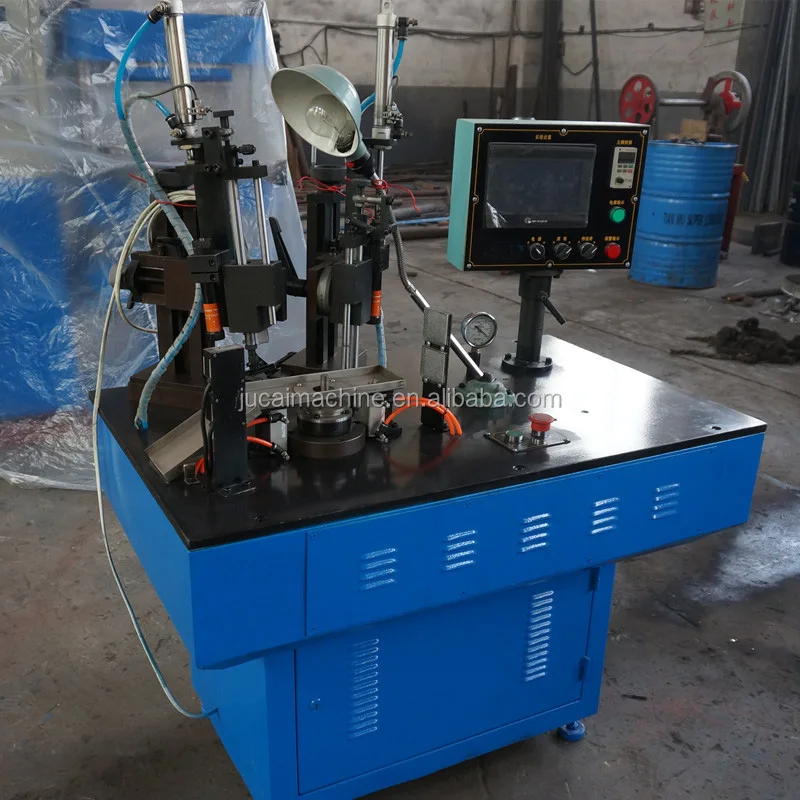

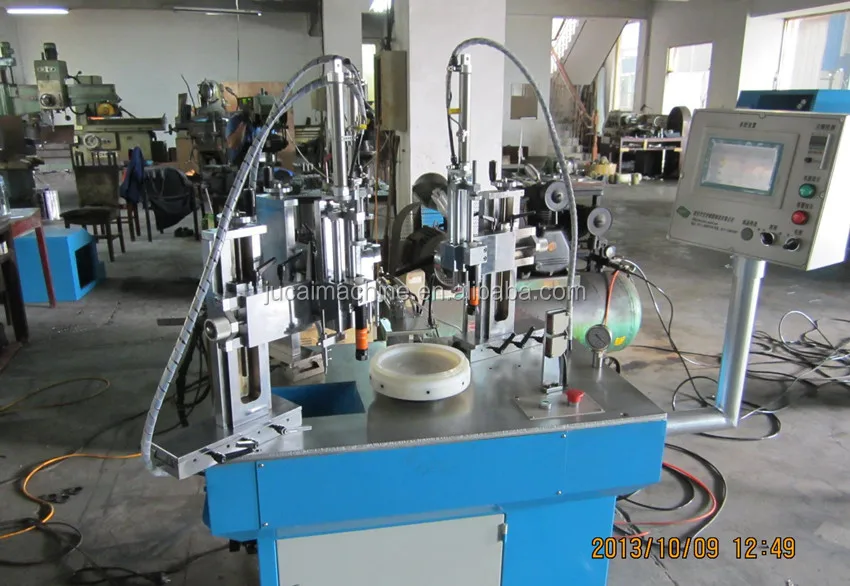

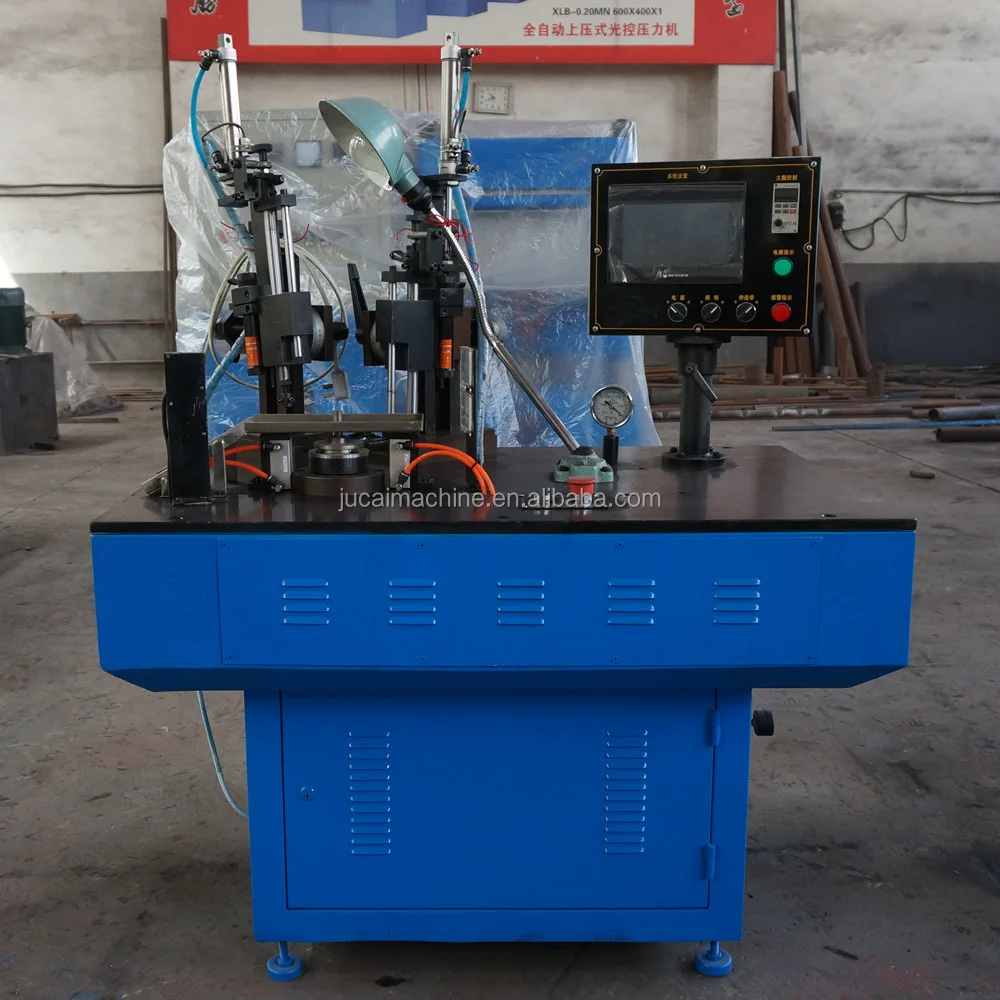

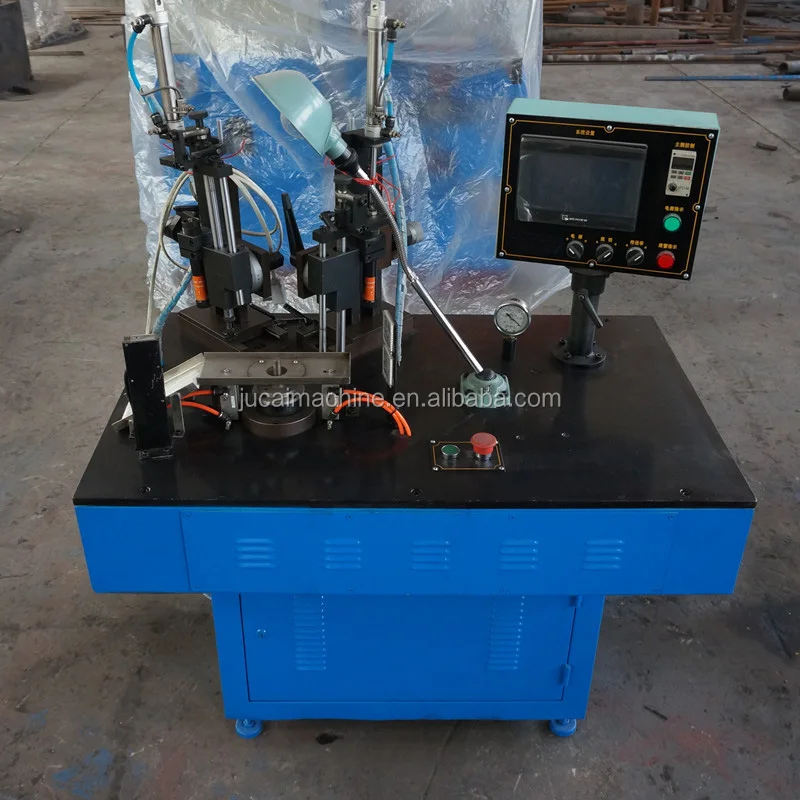

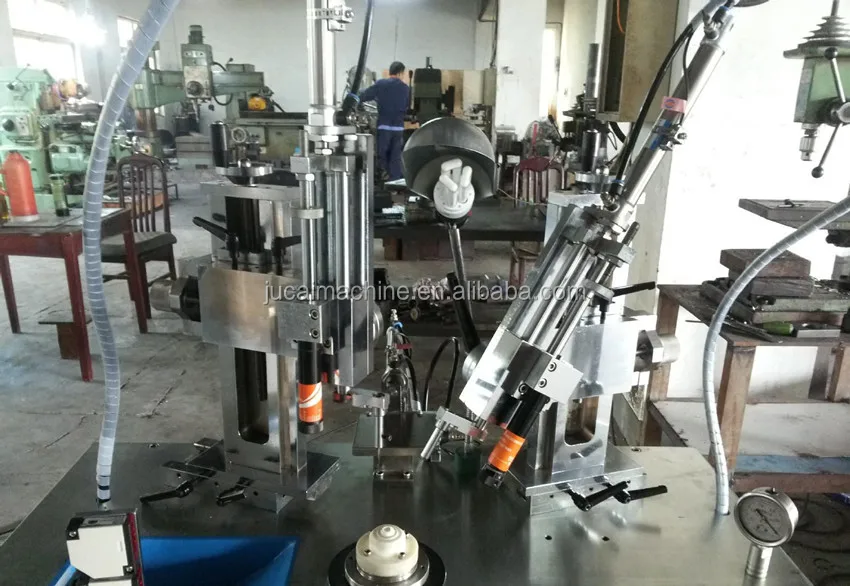

Rubber Oil Seal Trimming Machine

1.Vacuum≤-0.035Mpa circular run out of main spindle≤0.01mmplane run out≤0.02mmSpeed of spindle:0-3000r/mincut degree:packing leather

2.:0°~90°; oil seal:-10°~100°

3.cut range :10mm-200mm (adjustable)

4.Blade specification(ThickxWidexLength):3x3x60mmProduction capacity≥20 pcs/minMotor:0.37 kwVoltage: 220vWeight: 280kgDimension:850mm×850mm×1800mm

Model	Vertical	Horizontal
Vacuum Degree	≤-0.035Mpa	≤-0.035Mpa
Spindle Precision	Radial run-out≤0.01mm; End face run-out≤0.02mm	Radial run-out≤0.01mm; End face run-out≤0.02mm
Shaft Speed	0-3000r/min	0-3000r/min
Cut Degree	Oil seal:20°~70°; Seal cup:0°~90°	Oil seal:20°~70°; Seal cup:0°~90°
Cut Range	φ5mm- φ200mm (adjustable)	φ5mm- φ200mm (adjustable)
Blade Size (ThickxWxLength)	3x3x60mm	3x3x60mm
Production Capacity	≥20 pcs/min	≥20 pcs/min
Motor	0.37KW	0.37KW
Weight	210 kg	210 kg

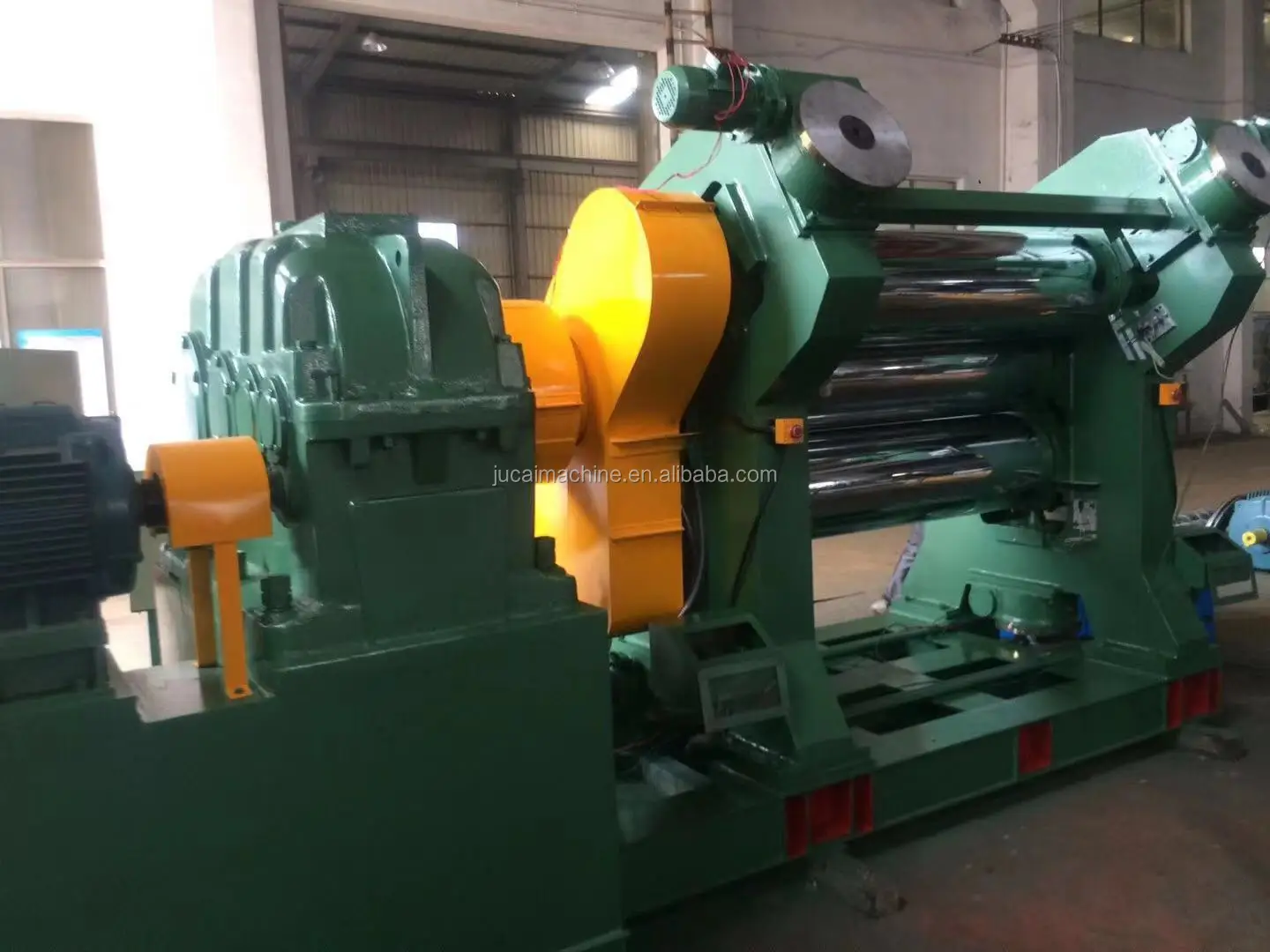

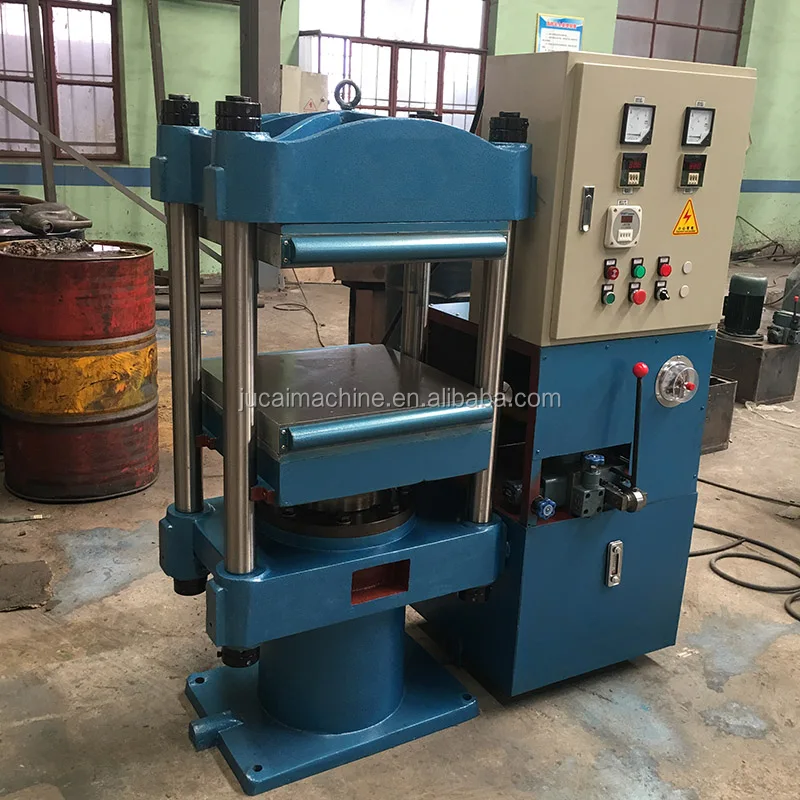

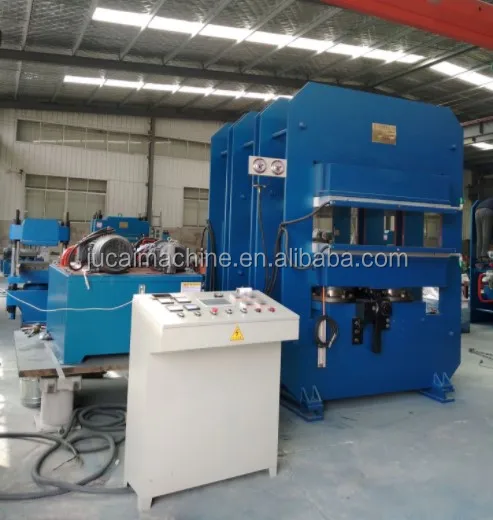

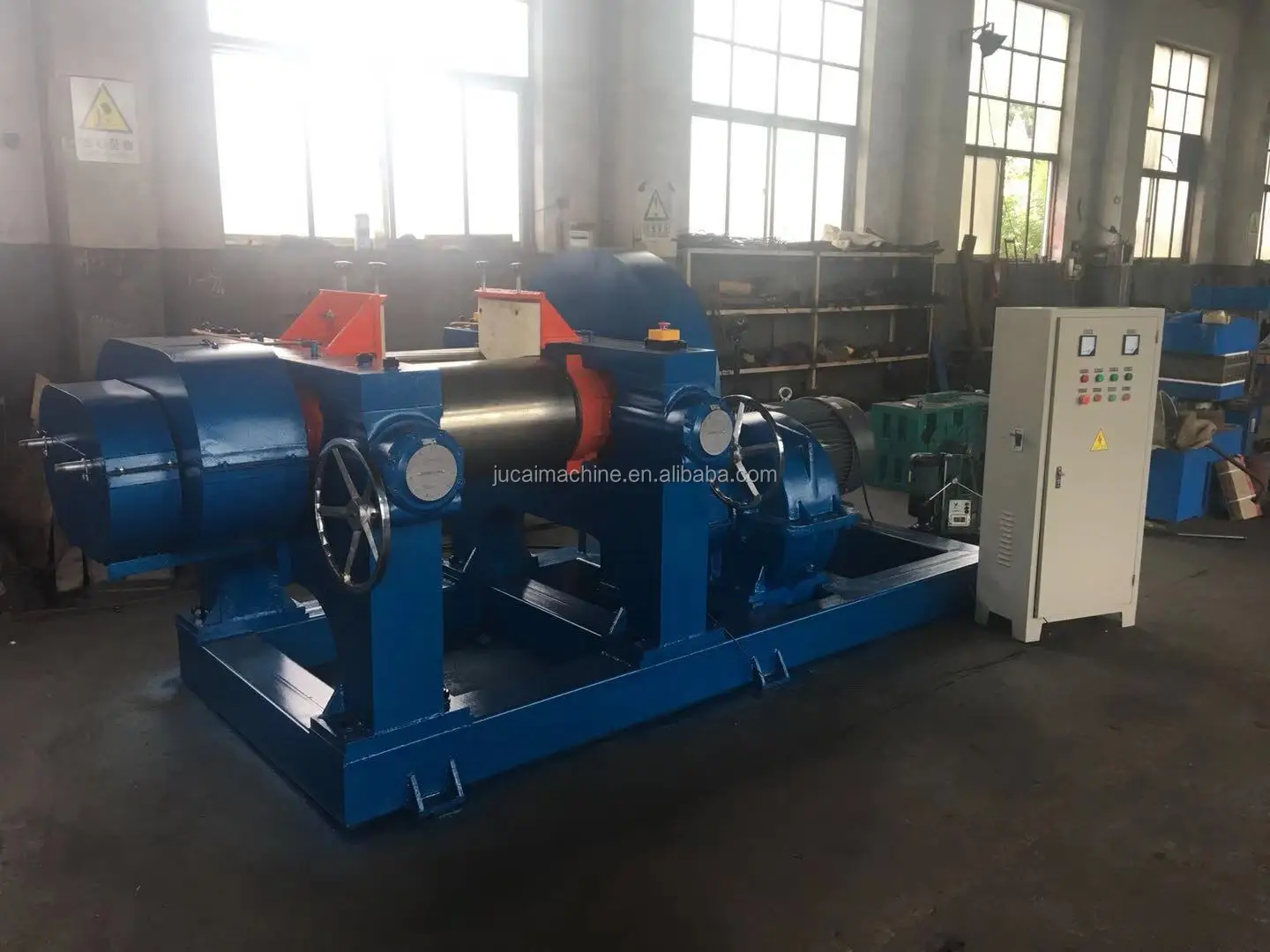

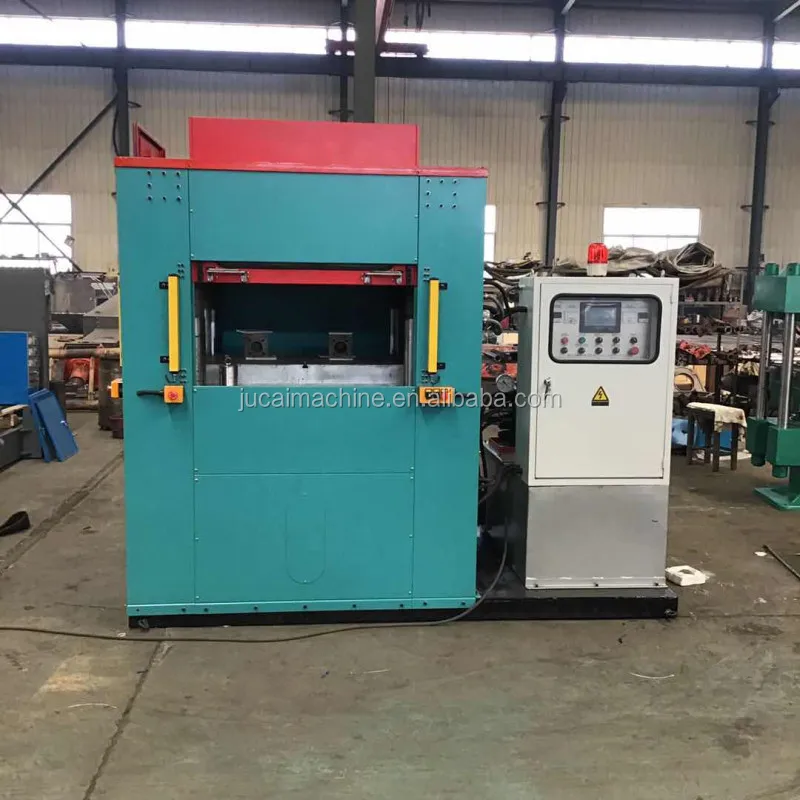

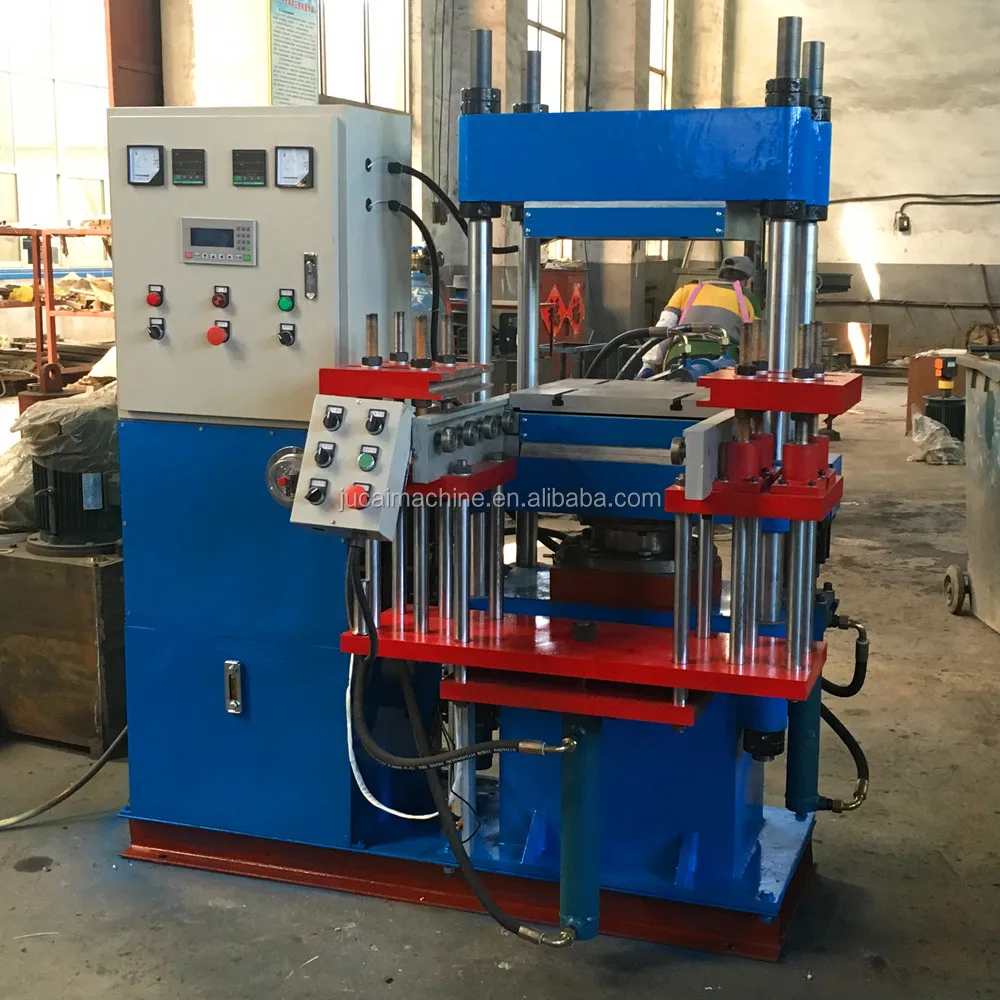

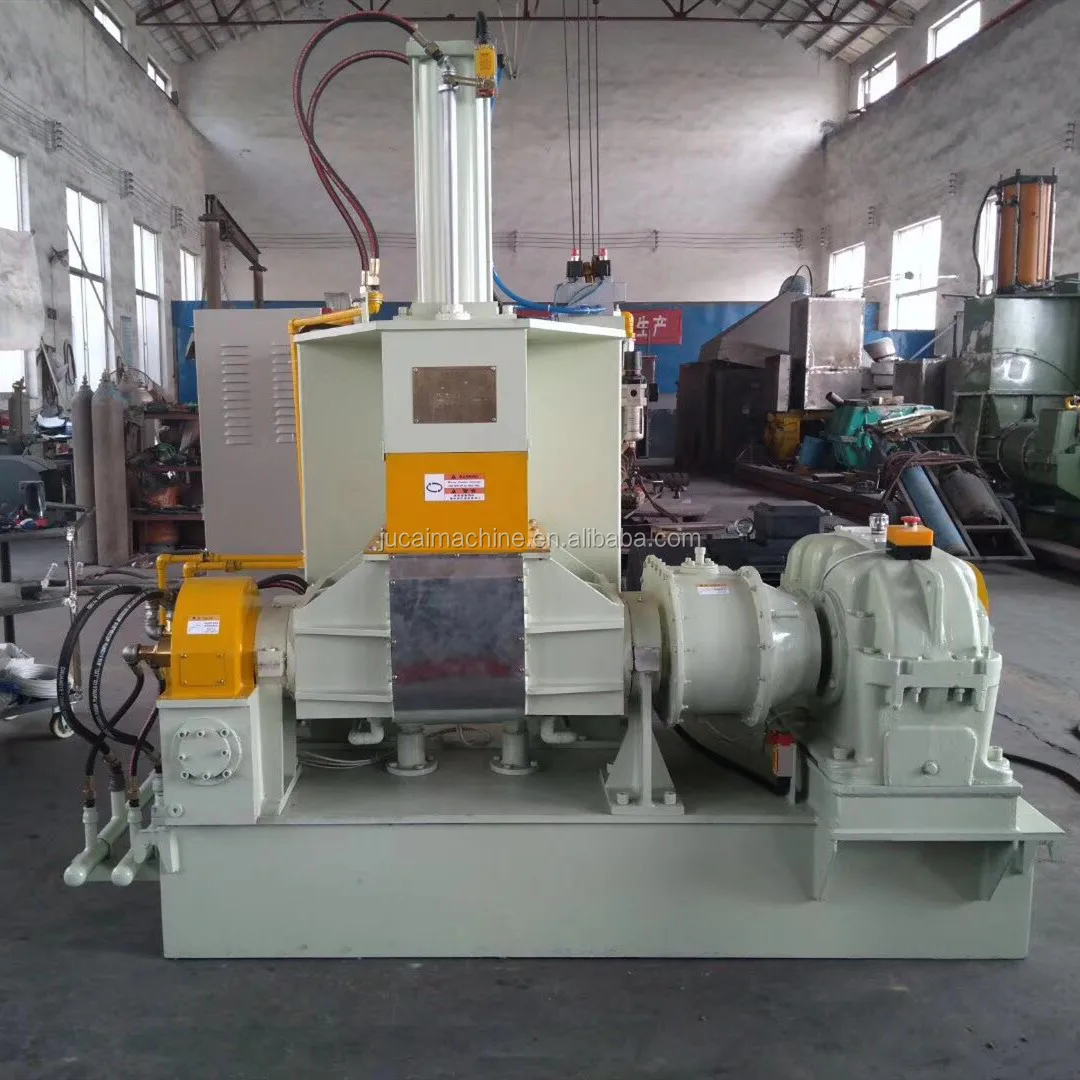

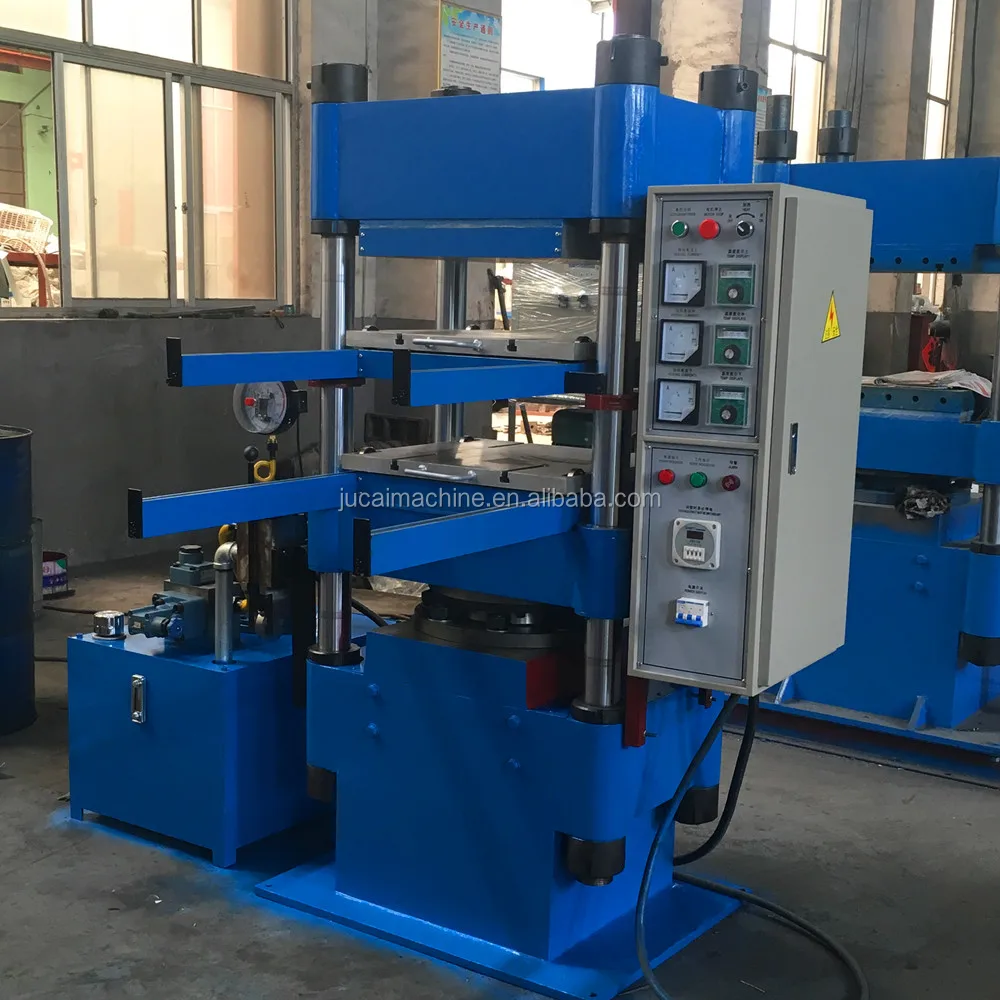

Related Products

Certifications

Our Service

1.we will one year guarantee for the machine . During this period if there is anything wrong with machine , supplier are responsible for it and should offer the best spare part freely for buyer

2.supplier should send professional if required by customer

3.we will offer service for whole life of machine
