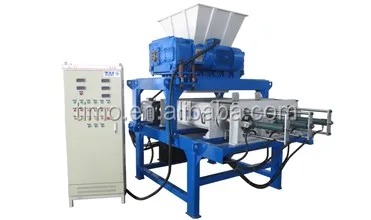

Wet RDF Industrial Shredder Shredding And Dewatering Squeezer Drying

Wet RDF industrial shredder shredding and dewatering squeezer drying is the machine that integrate industrial shredders with dewatering squeezer. The all-in-one design for combining size reduction and solid-liquid separation in one step. The RDF industrial shredder and dewatering squeezer can be used in the waste-to-energy application such as refuse-derived fuel (RDF) processing, the waste-to-green application such as biodegradable organic waste composting, etc.

Automatic Feeding System

For RDF waste and other fluid state material waste, we are equipped with automatic feeding system, and add the protective cover at the hopper to prevent waste to splash during automatic feeding.

Customized Dewatering Squeezer

For the case of processing large capacity, we use several dewatering squeezer in parallel arrangement , each dewatering squeezer can be individually controlled without mutually interfere, they can wrok at the same time to increase the capacity,to reduce the power cosumption, they can wrok only one or two when small capacity you required.

Product Feature

Model	HM500	HM800	HM1000
Machine Power KW	11+7.5+0.75	22+11+0.75	44+22.5+1.5
Cutting Shaft Type	Twin Shaft	Twin Shaft	Twin Shaft
Shaft Diameter mm	Φ240	Φ320	Φ240
Shaft Speed rpm	16~25	16~25	10~20
Cutting Chamber mm	500x320	800x500	1000x600
Knives Diameter mm	Φ180	Φ280	Φ340
Dewatering Type	Screw Press	Screw Press	Screw Press
Capacity Kg/Hr	1000~2000	2000~4000	4000~6000
Machine Size mm	3100x1000x2450	3800x1200x2500	3400x2000x2700

Wet RDF Industrial Shredder Shredding And Dewatering Squeezer Drying Features:

♦ Low-speed shredding, whether hard or soft materials can be shredded, high efficiency, strong processing capability.
♦ Shredding and dewatering integration design, greatly saves working space, reduce operating costs.
♦ Compact, robust, shredder and dewatering screw press can be independently disassembled, easily maintenance.
♦ The cutting blades uses high quality alloy from Europe, high hardness and toughness, with strong wear resistance and impact resistance.
♦ Intelligent, automatic reverse to jammed hard foreign matter.
♦ Stainless Steel Wetted parts.
♦ Spring or Pneumatic Back Pressure Devise.
♦ Multiple Sizes for Any Capacity.
♦ Easy to Install and Operate.

Wet RDF Industrial Shredder Shredding And Dewatering Squeezer Drying Working Principle:

The working principle is as follow: The industrial shredder on the top of the combo machine will cut the RDF wet waste down to size first, about 43*12mm, then the shaft of dewatering squeezer push the shredded RDF waste against the SUS304 screen and the backpressure cone, the water will pass throught the screen but the RDF cannot, then the RDF will go along with the shaft and discharge from the end port, finally, the water and RDF be separate. after processing, the size of shredded and dewatered RDF waste is about 10-40 mm. The dewatering squeezer can remove 80-98% water out from the RDF waste
