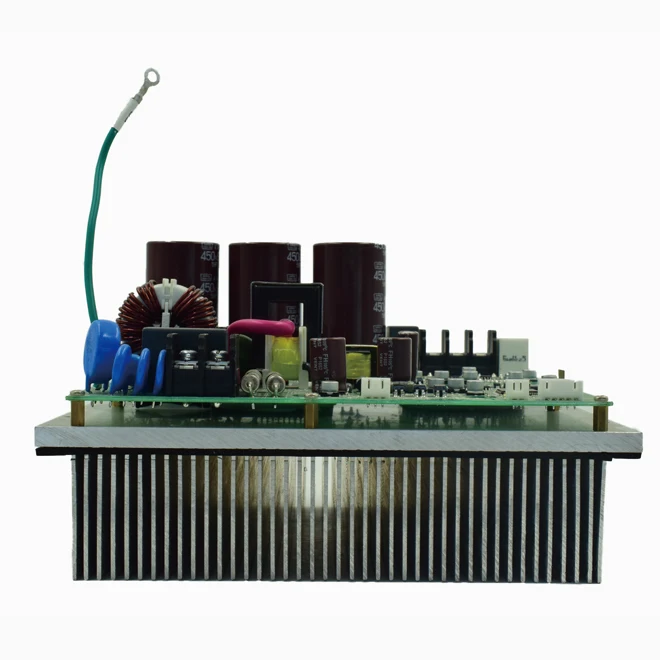

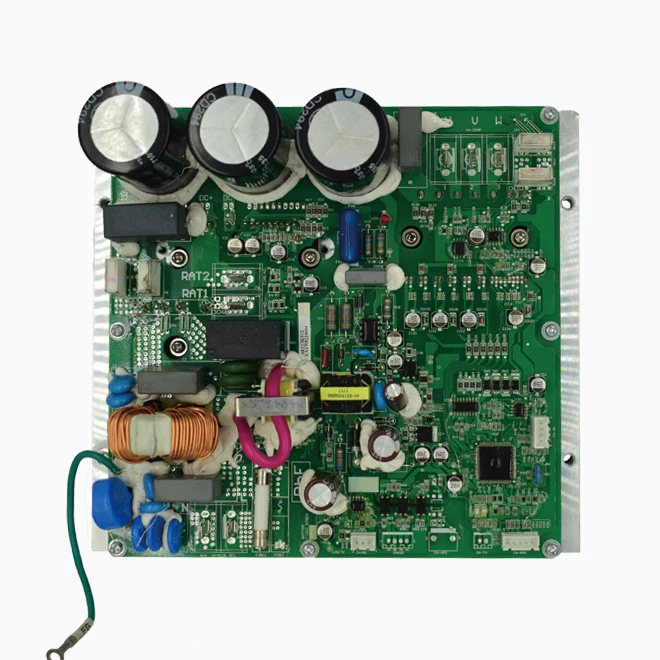

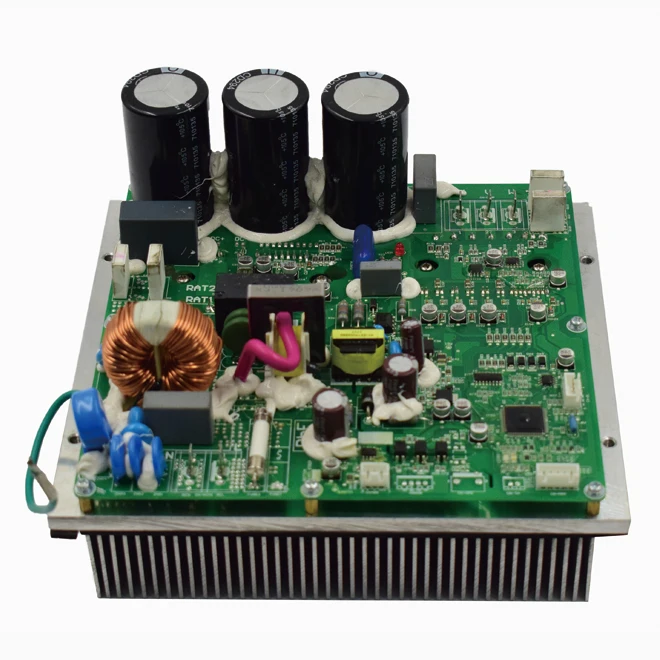

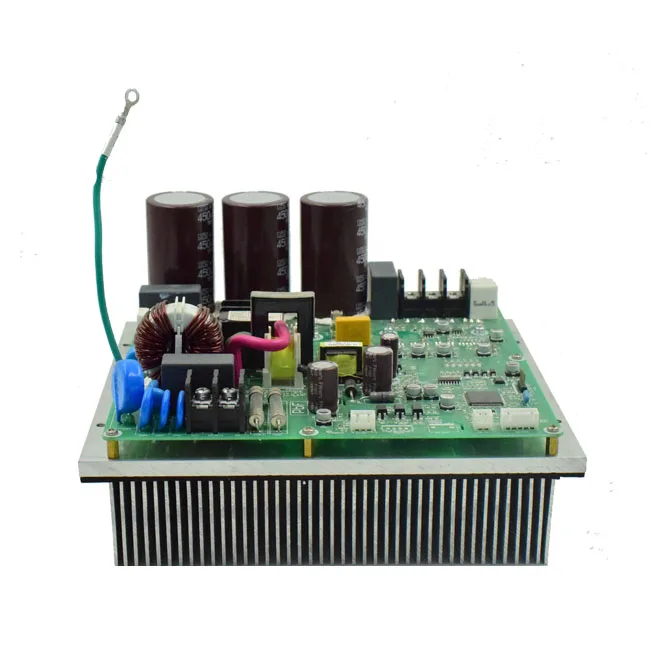

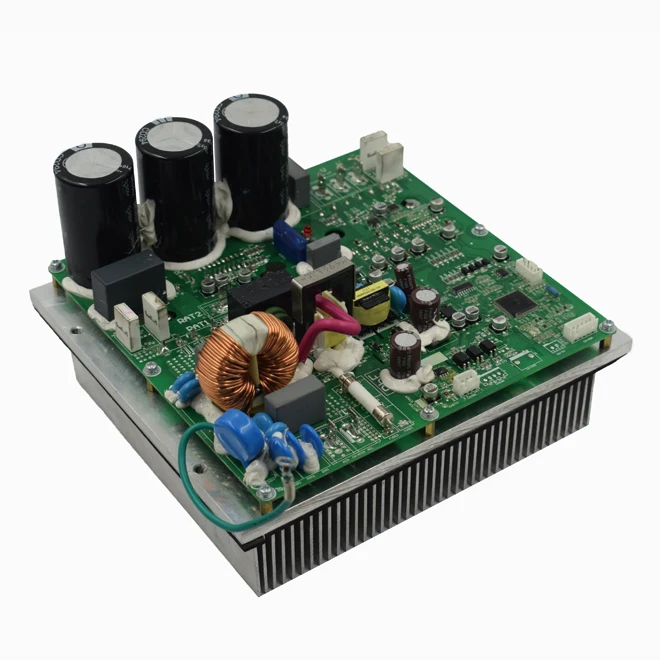

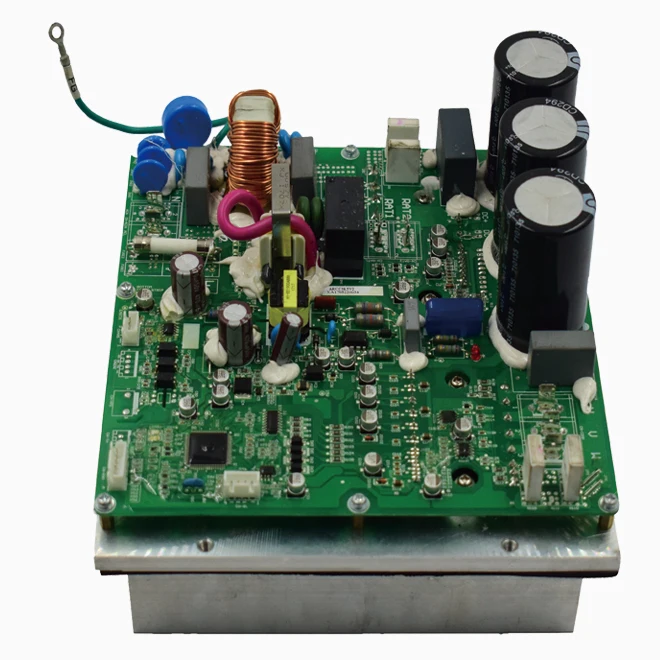

Inverter, dc compressor controller
- Category: Inverters & Converters >>>
- Supplier: Guangdong Chico Electronic Inc.
Share on (60767886779):
Product Overview
Description
Designed for : Inverter dc compressor controller
Suitable for: air source cycle DC inverter heating water heat pump
Product Description
Description and Function:
| S16A00(3.5kw) | 180 °sinusoidal DC INVERTER DRIVER | IPM temperature protection |
| Input maximum power :3.5kw 220V AC | Over current protection of compressor | |
| Input maximum current: 16.0A | Compressor drive protection | |
| Input voltage: Single phase standard voltage 220 V 50 / 60 Hz, operable voltage 170-265 V | Communication failures | |
| Output Hz: 15-120Hz (ultimately according to the specification of the compressor) | DC bus voltage protection | |
| Carrier frequency: 5.0kHz (adjustable according to compressor noise) | DC bus over voltage protection | |
| PFC: PF value (0.90-0.99) | AC over current protection | |
| Communication: Standard RS485 isolation design, baud rate 1200bps | Over power protection of compressor |
Technical parameters:
|
Operating temperature range |
-20 - 60℃ |
|
Humidity |
< 95% and non-condensed state |
|
Class of pollution |
Max 2 |
|
Input maximum current |
16.0A |
|
Input maximum power |
3.5kw @220V AC |
|
Input voltage |
Single phase standard voltage 220 V 50 / 60 Hz, operable voltage 170-265 V |
|
Output Hz |
15-120Hz (ultimately according to the specification of the compressor) |
|
Carrier frequency |
5.0kHz (adjustable according to compressor noise) |
|
PFC |
PF value (0.90-0.99) |
|
Communication |
Standard RS485 isolation design, baud rate 1200bps |
|
LED green (one) |
5V power indicator |
|
High-pressure(Spare) |
Access to isolated high voltage switch signal, first time off compressor |
|
Program update terminal (Spare) |
Program update using |
|
Temperature sensor (Spare) |
Reserved a port of temperature sensor for venting temperature protection of the compressor |
1.Protect product with polyfoam and multi layer paper board.
2.Special protect carton for exporting product,
3.Per customer requirement.
Company Information
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or as your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEX to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
