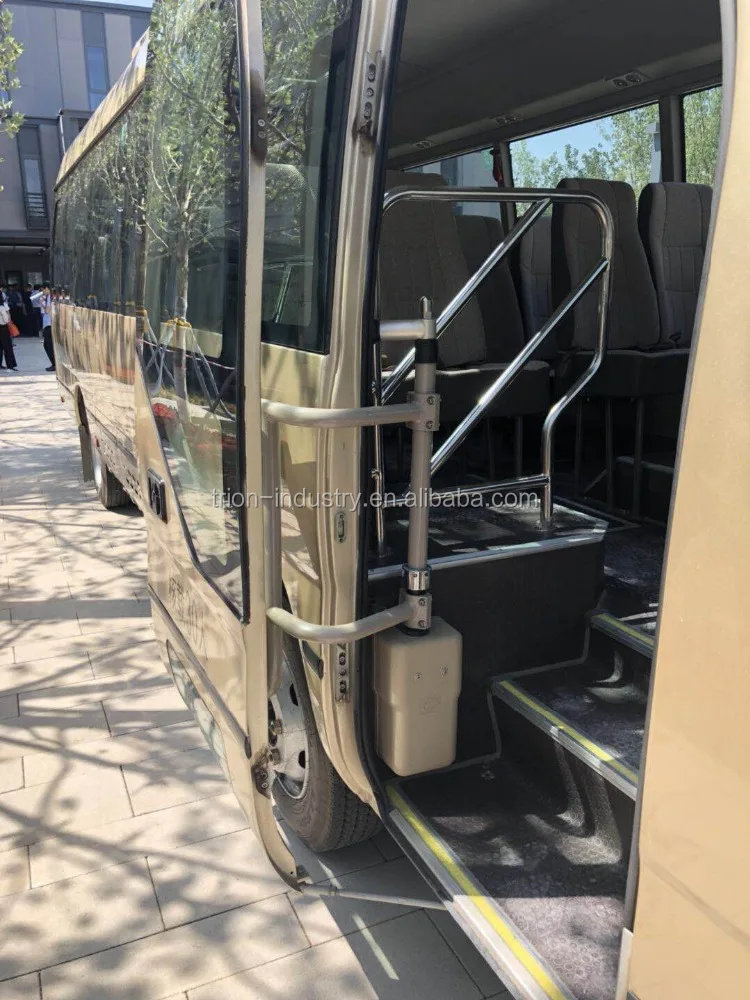

Lift Lock Out sliding Pneumatic bus door opener for Yutong Bus
- Category: Bus Body Kits >>>
- Supplier: Shanghai Trion Industrial Co. Ltd.
Share on (60767896491):
Product Overview
Description
Product Name :Lift Lock Out Sliding Pneumatic door opener for Yutong Bus
1. Introduction:
Application: tour bus,intercity bus,coach.

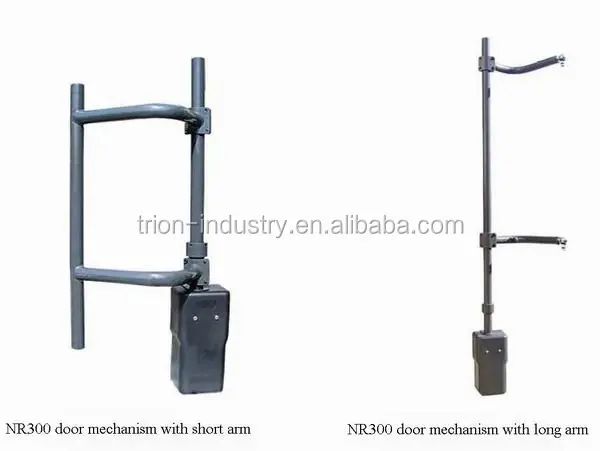

System Component: Rotary actuator, Shaft assembly ,solenoid valve
1) The actuator provides rotary motion and “Lift-to-latch” feature.
2) The shaft assembly is designed for easy installation and maintenance.
2. Operating principle:
1)Auto operation
2)Emergency release
3)Sensitive edge
3. Main Parameter:
Maximum torque in locked position | (@90 psi) 122 ft-lbs |
Recommended door shaft rotation | 90 degree |
Operating temperature | -30°C to 80°C |
Envelope size | 5.51”w x 12.50”d x 4.53”h |
Operating pressure | 90-125 psi |
Minimum Life cycle | 500,000 |
Locking mechanism | Local wedge lock |
Door opening/closing time | 3-5 seconds |
