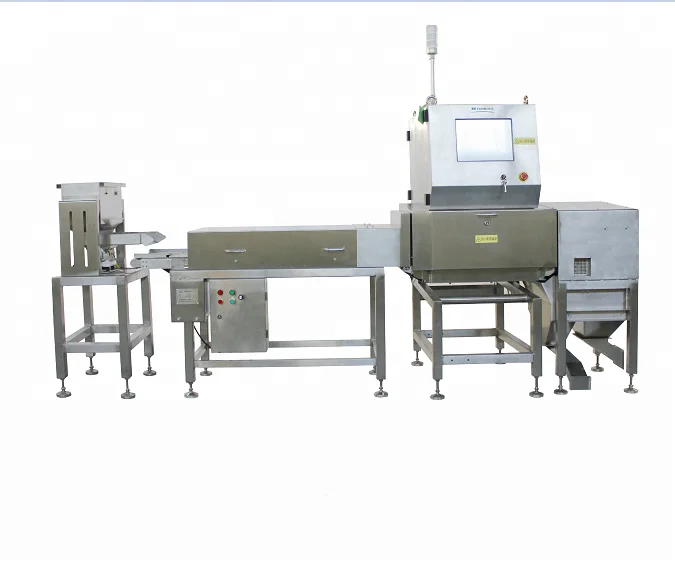

Touch screen X ray foreign objects food detector

Product Overview

Description





1. X-ray inspection systems can detect and sort the bulk materials and packing materials mixed with the impurities, and is especially applied to the packed materials detection, which is a brand new detection equipment different from color sorters.



2. With wide range algorithm,the X-ray inspection systems can recognize the impurities, missing parts and weight detection, and various mask function.



3. X-ray inspection systems are applicable to the material detection with large density differences, and is especially applicable to the detection of stone, metal, glass and dense plastics.



4. Friendly human-machine interface is easy for operation,superior image management system is convenient for later data analysis.



5. The latest DTC5 detector has good imaging consistency, and the signal to noise ratio of normalization image is high. The physical resolution is 0.4 mm, and can realize the detection of 0.3 mm stainless steel ball. The scanning speed can be up to 1m/s.



6. The transmission parts adopt the mobile structure, and are easy to remove and wash. The protection grade is up to IP66.



7. Multiple safety devices to ensure human safety, the leakage rate is less than 1μsν/h.



8. 15-inch touch display screen is easy for operation.










Model	THX-SS210SL
X ray output	Maximum voltage 60kV, Maximum current 5mA,Rated power210W
Safety	X-ray leakage rate : below 1μsv/h, Interlocked safety device
Detection Sensitivity	metal ball:Φ0.3mm/ metal wire:Φ0.2mm x 2mm
Screen	15 inches touch screen
Size of Detected Object	Maximum width: 400mm, Maximum height : 220mm
Belt Width	420mm
Detection Function	Margin mask/Clips mask/Deoxidiser mask Missing products detection/Weighting
Conveyor Speed	10~100cm/s
Power input	220V, 50Hz, AC
Total power	2000 W
Total weight	600KG
Dimension	2400mmX1270mmX2390mm
Environmental Temperature	0~35℃
Machine Casing	SUS304





































1. The company persists in the “customer-focused” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.



2. At present, the company has more than 90 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 24 hours.



3, Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, timely maintenance and tracking coordination fully.



4, You can to call +86 137 3923 9757 or leave a message to us,

No matter where you are, you can visit our

Website





Please provide the following needed information when sending the inquiries:



  1. What kinds of material do you want to inspect?

  2. How about the throughput of this material per hour/day?
