1km golf and hunting laser range distance meter 1000m handheld outdoor laser rangefinder
- Category: >>>
- Supplier: Chongqing Diaoran Photoelectric S&T Co. Ltd.
Share on (60767912205):
Product Overview
Description
Products Description
Products Description

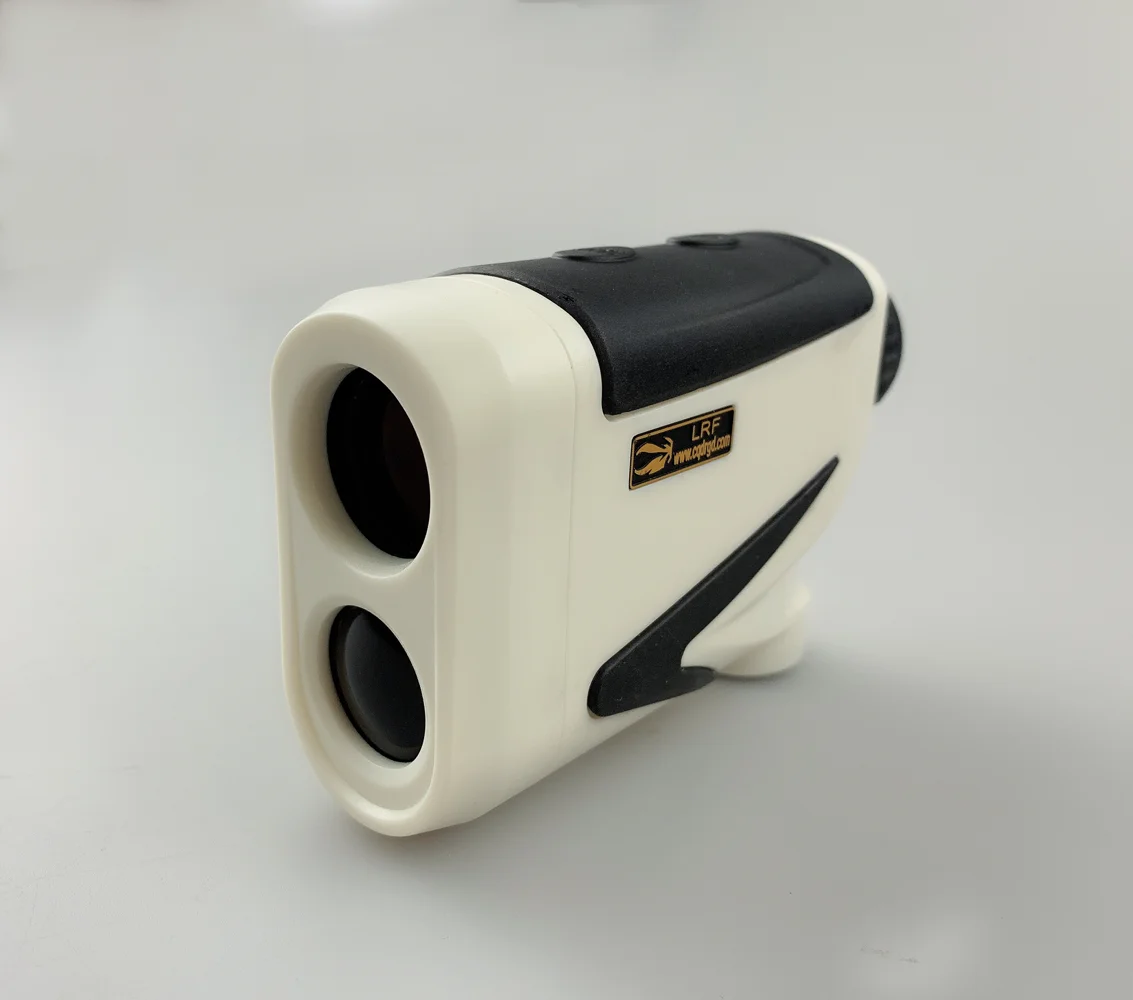

| Front | Back |
 |  |
| Optical Lens | |
 |  |
Specifics
| The main technical index: | Details: |
| Wavelength: | 905nm |
| Max Ranging Distance: | 1000m |
| Ranging method | Semiconductor laser ranging (no harm to the human eye) |
| Ranging Error | ±0.3m±0.1% |
| Ranging display mode | LCD display in the field of view/Eyepiece |
| effective objective lens diameter | 20mm |
| Magnification | 5.8 (6.8) x |
| Field of view | 5.6 (4.95) x |
| Focus way | eyepiece focus in manually |
| Measuring height and Angle | ±90 ° |
| Objective diameter | 25mm |
| Outlet diameter | 3.8mm (4.1) |
| exit distance | 12mm |
| Focus mode | Eyepiece focusing |
| Ranging of vision | 122m/1000m |
| Lens coating | multi-layer coating |
| Ranging mode | RAIN; RELF; >150; no display is standard mode. |
| Min Ranging Distance | 1m |
| Distance Resolution | 1m |
| Power supply | 3V |
| Working Temperature: | -10℃~+50℃ |
| Dimensions | 38X74X104mm |
| Weight | 130g (not including battery) |
| Function | 7 Mode: Ranging, Speed, Angle, Parabola, Horizontal, Vertical, Slope. |
Products Integrated
Products Integrated

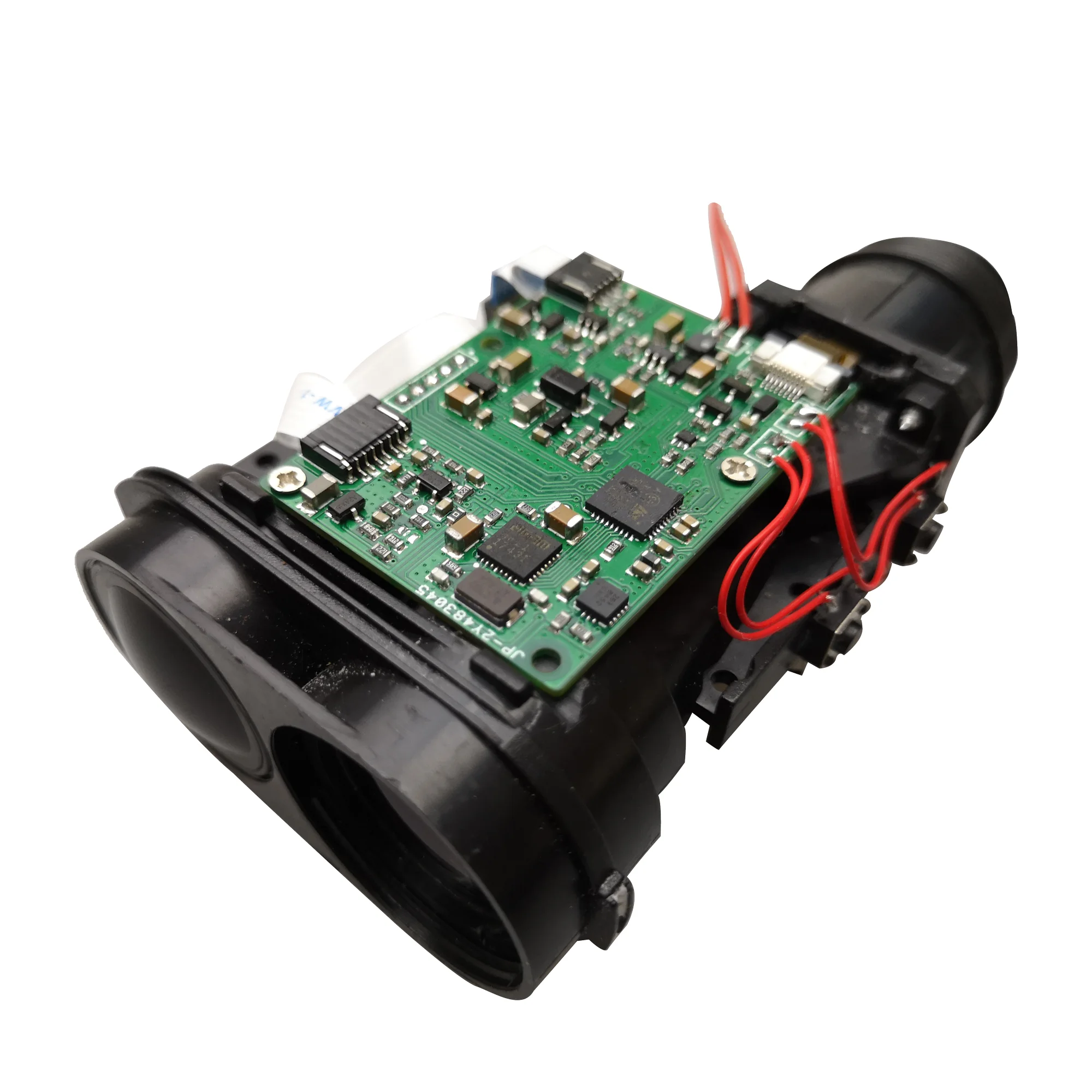

| Module | Shell |
 |  |

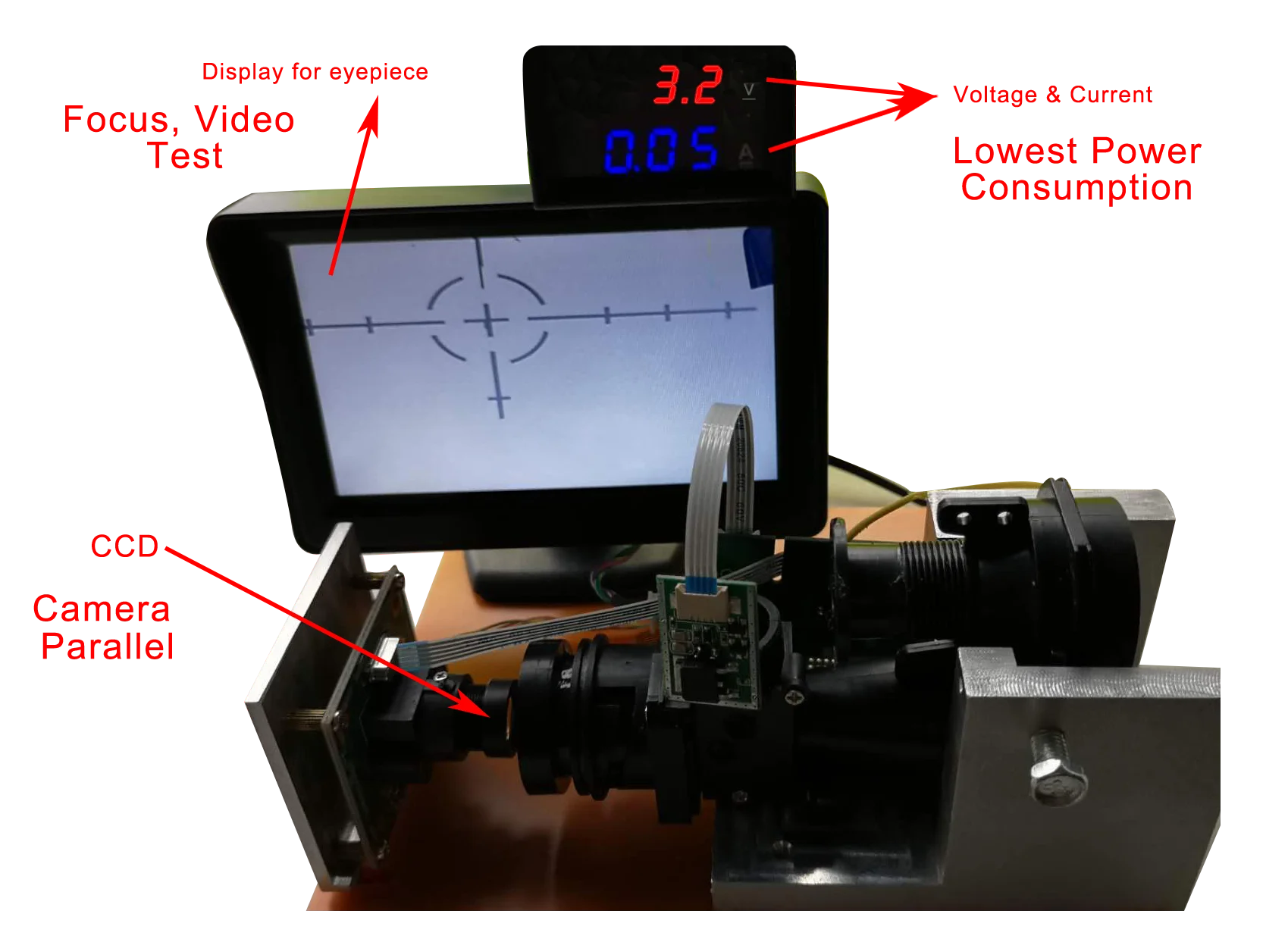

Products Adjust & Tests
Module Adjust & Tests
Products Application
Products Application
Company Introduce
Company Introduce
Established in 2008, Chongqing Diaoran Photoelectric S & T Co., Ltd.is a company specializing in professional optical design and production of various lasers and laser range finder (instrument) development. Our company and domestic large and medium-sized military enterprise, military research institutes, military colleges, local colleges and universities, Europe and the United States have good cooperation relationship.
Our company now has seven development personnel,including one optical designer (senior research level, do laser rangefinder optical design has more than 40 years),one laser design worker (high level),four electronic researchers (one of them is senior research level, do laser rangefinder design has over 40 years),one structure designer.
Our Company adheres to the "integrity, efficiency excellence and innovation" to win the trust of customers. Currently, we are continuing to provide customers with high-quality products and services to “integrate channel resources and to promote the development of the industry “as the guiding ideology”, with customers and industry colleagues to have long-lasting good cooperation at business.
