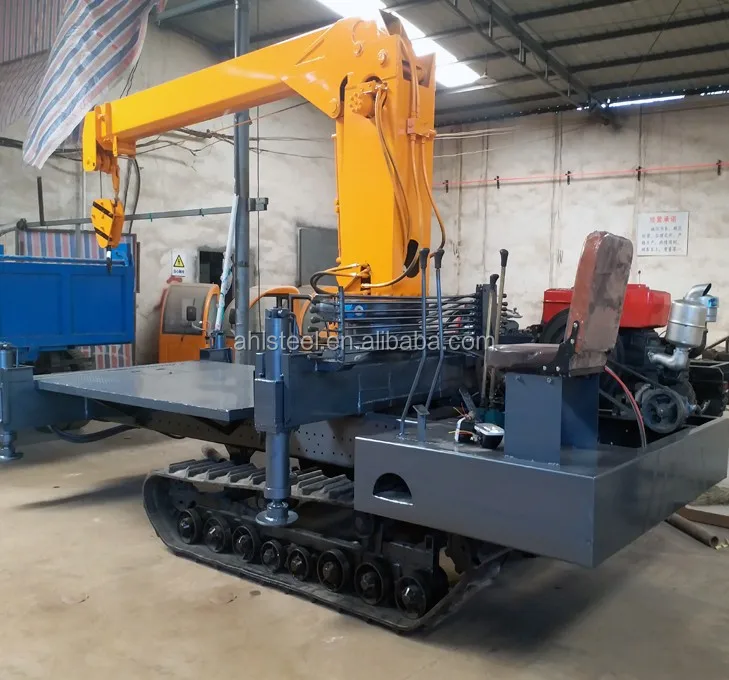

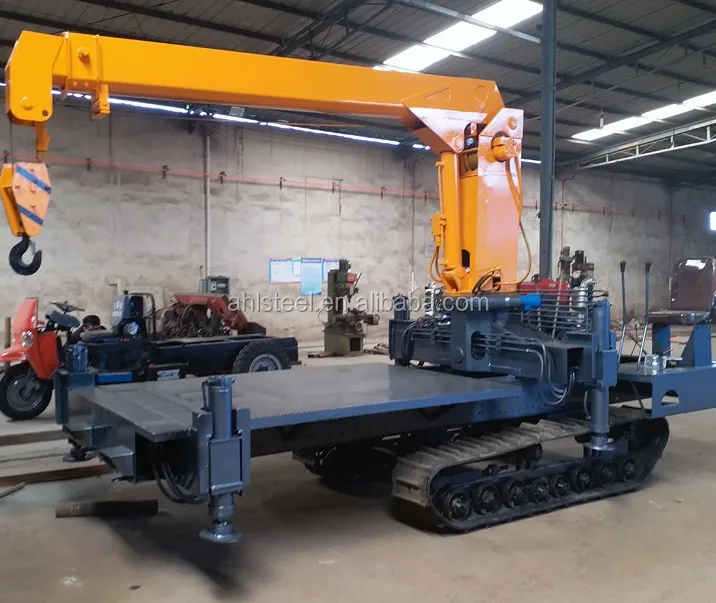

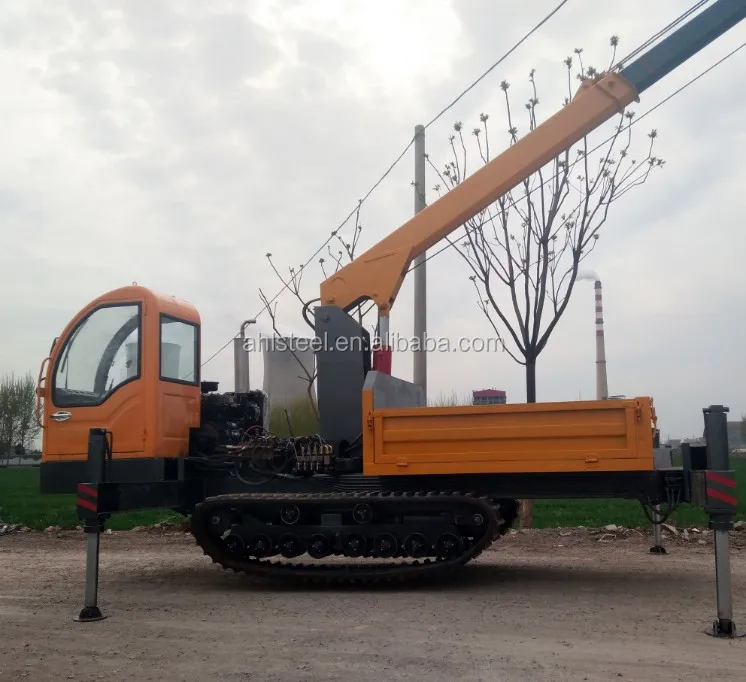

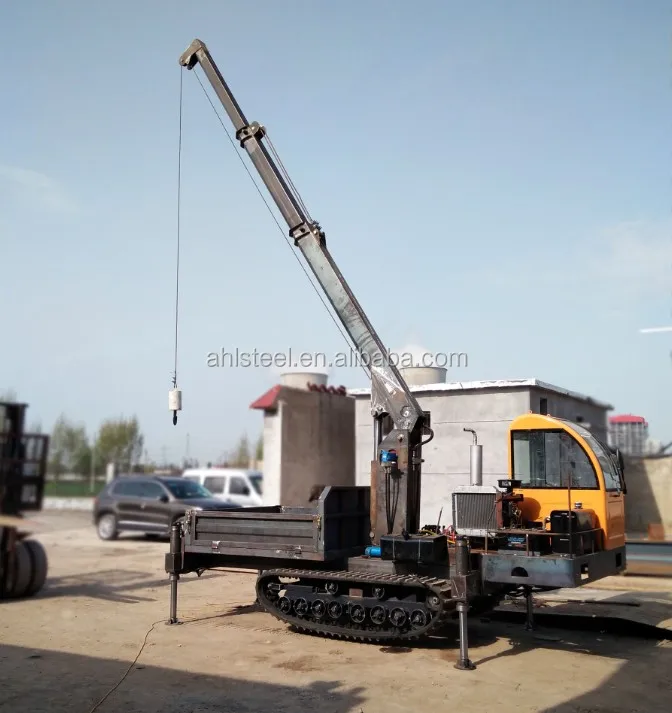

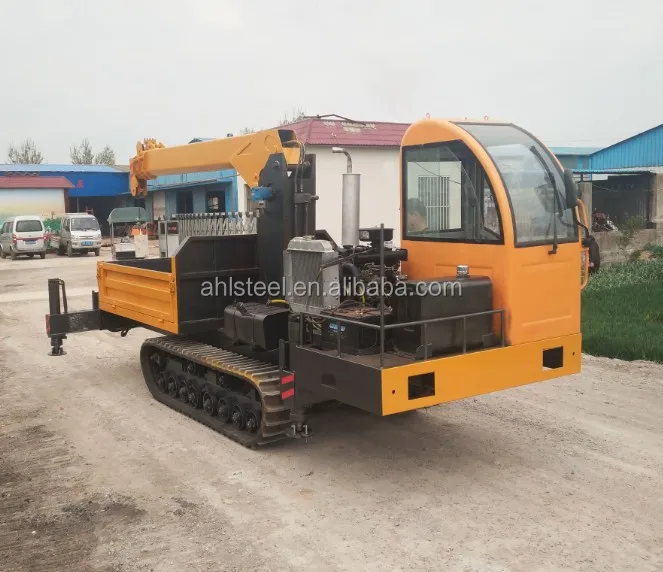

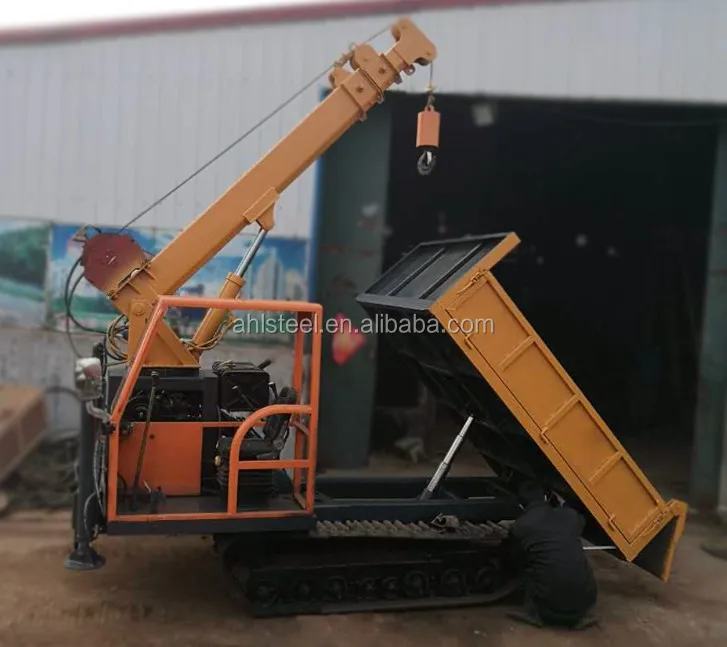

Hot sale used 3 5ton mini track crane

Model

 HXB

Crane capacity

3.0t×1.3m

Maximum working radius

7.7m

Maximum lifting height

9.5m

Winch

Hook up speed

2.8m/min(4 times)

Diameter and length of wire rope

Ø8mm×50m

Telescopic

Boom form

4 (4 Automatic)

Boom length

8.2 m

Derrick

Derricking angle

0-75°

Slewing

Slewing angle

360-degree continuous

Outrigger

Form of outrigger

First phase--automatic Second phase--manual

Maximum extend range

5.3m

Traction system

Travel

Hydraulic

Travel speed

0-3.0km/h

Track

Synthetic rubber

Gradeability

30°

Track ground pressure

50kpa
