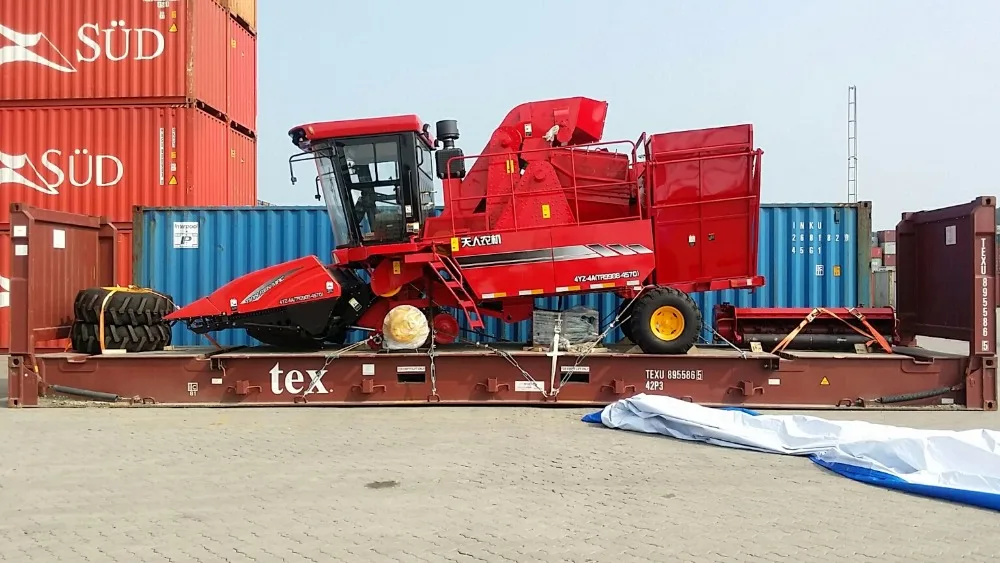

TIANREN 3 Row mini corn harvester 4YZ 3 (Small Size)

● 4.5 L / 4 Cylinder / 113KW / 154HP

● Sweet Corn Harvest

● Seed Corn Harvest

● Function Picking, Peeling, Cutting Stalk, Unload

● Row Spacing(mm): 450, 500, 530, 560, 600, 650 or requested

● Row Spacing(inch): 17, 19, 20, 22, 24, 26 or requested

● Workable row spacing Range ± 50mm
● Grain Tank Volume 2.5 m³

● Max unloading Height: 2380mm

● Total Loss Rate ≤ 3%
● Peeling Rate ≥ 85%
● Harvesting Efficiency 0.8-1.6 Acre/Hour
● Minimum Harvesting Height 200mm
● Stubble Height After work ≤ 120mm
● Flail Blade Optional
● Stalk Chopper Optional
● Air Conditioner Optional

Combine Key Feature

● Trustworthy High Pressure Common Rail Diesel Engine from Weichai
● Engine with fireproof containment protection, Keep corn whisker away
● Aluminum alloy gear box
● Clutch comes with Two friction plate for extended service life
● Sheller concave with Hydraulic adjustment
● Upgraded driving cab with more comfortability
● Real time operation monitor system with LCD Panel
● Rustproof: Protection for Operation & Overseas Shipping

● Stalk will be cut into pieces smaller than 10cm with Stalk Shredder

● CE Certificate & ISO 9001 2008

Corn Head Feature

● Residue Treatment System: Snapping Roll, Chopping Blade Unit, Stalk Chopper
● Aluminum Alloy Gearboxes
● Standard Auger
● Durable high wear-resistence, high-intensity Glass Fiber / Engineering Plastic hoods divider cover (used in aerospace technology)
● Variable Row Spacing Design Available
● Advanced Stripper Plates
● Best way to Harvest down or lean Crop

Tsing Hua University and us co-designed the TR series corn heads. Our TR1688 series corn heads and TR9988 series Self-Propelled corn harvesters have been making more and more crop growers happy!

All products come with 1 year Warranty & Tech Support.

certificates

Combine Showcase

3 ROW CORN COMBINE

4 ROW CORN COMBINE (Small Size)

4 ROW CORN COMBINE (Regular Size)

5 ROW CORN COMBINE (Small Size)

5 ROW CORN COMBINE (Regular Size)

6 ROW CORN COMBINE (Small Size)

6 ROW CORN COMBINE (Regular Size)

7 ROW CORN COMBINE

Company Intro

Tianren Agricultural Machinery Equipment Co.,Ltd

Tianren is located in Shijiazhuang City, Hebei Province with two branches.

We have been specialized in research and development of corn harvesters since 2004.
