Подвесной зажим из нержавеющей стали
- Category: Hose Clamps >>>
- Supplier: Qingdao Perpetual Hose Clamp Co. Ltd.
Share on (60767984830):
Product Overview
Description
About Us
Product Description

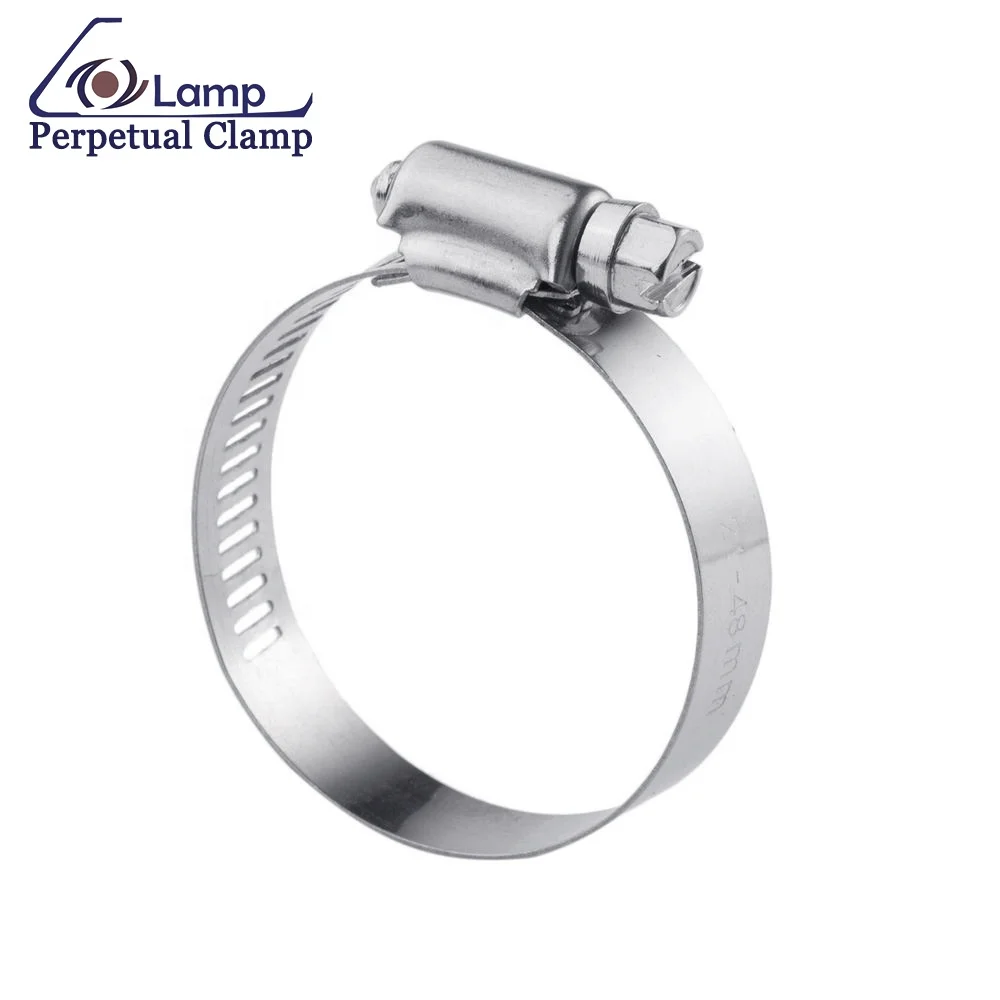

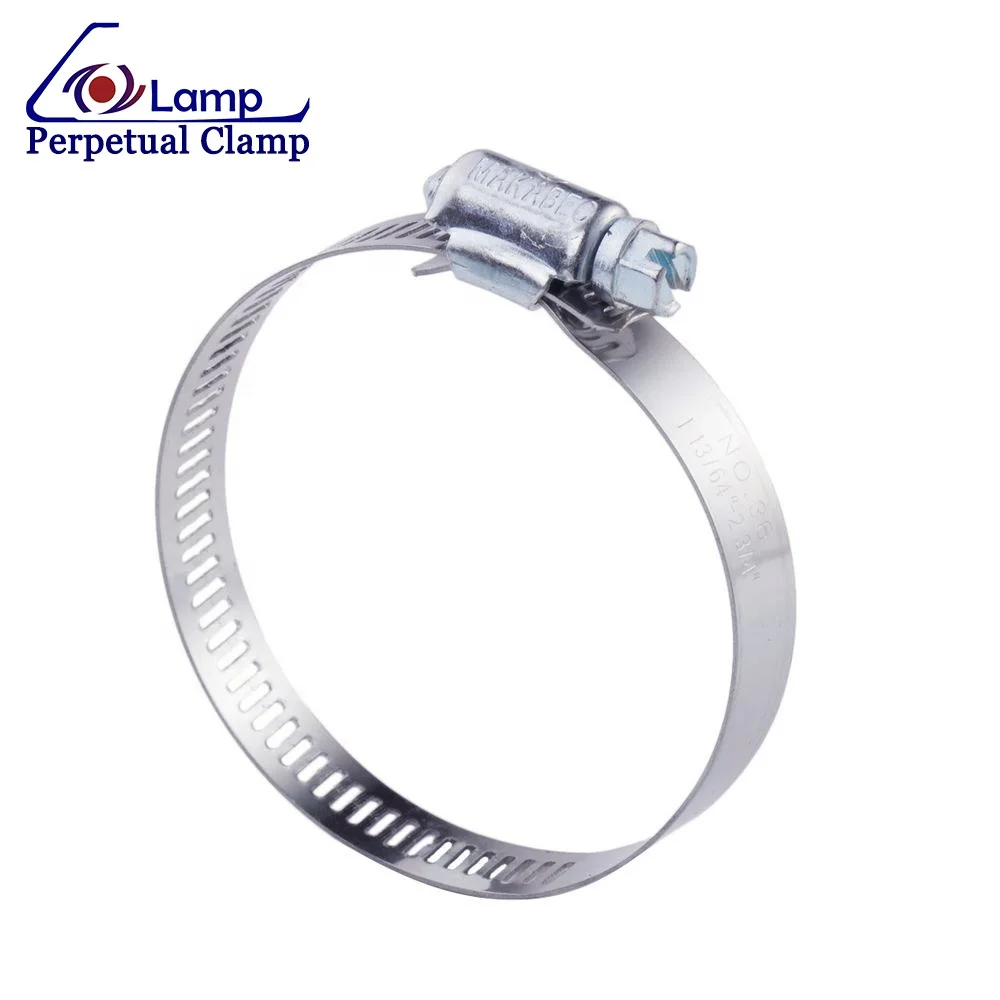

Stainless Steel Suspension Clamp:
| Band Width | 12.7mm(1/2") |
| Sizes | 11-20mm to all |
| Band Thickness | 0.6mm/0.7mm |
| Materials | 201, 301, 304, 316 Stainless steel |
| High Quality | Free Torque ≤ 0.8Nm; Break Torque ≥6Nm |
| Best Service | Quick feedback, on time delivery, refund or replacement for any product faulty |
| Material | Band | Housing | Screw |
| W1 | Galvanized steel | Galvanized steel | Galvanized steel |
| W2 | Stainless steel | Galvanized steel | Galvanized steel |
| W4 | Stainless steel | Stainless steel | Stainless steel |
| SAE | Using Range(inch) | Using Range(mm) | CTN | Pack Size | ||
| No. | Min. | Max. | Min. | Max. | pcs | cm |
| 6 | 7/16. | 3/4. | 11 | 20 | 1000 | 50x30x16 |
| 8 | 1/2. | 7/8. | 13 | 23 | 1000 | 50x30x18 |
| 10 | 9/16. | 1 1/16 | 14 | 27 | 1000 | 50x32x21 |
| 12 | 11/16. | 1 1/4 | 18 | 32 | 1000 | 50x30x24 |
| 16 | 13/16. | 1 1/2 | 21 | 38 | 500 | 50x30x17 |
| 20 | 13/16. | 1 3/4 | 21 | 44 | 500 | 50x30x21 |
| 24 | 1 1/16 | 2 | 27 | 51 | 500 | 50x30x24 |
| 28 | 1 1/4 | 2 1/4 | 33 | 57 | 500 | 50x30x27 |
| 32 | 1 9/16 | 2 1/2 | 40 | 64 | 500 | 50x30x31 |
| 36 | 1 3/4 | 2 3/4 | 46 | 70 | 500 | 50x30x34 |
| 40 | 2 | 3 | 50 | 76 | 500 | 50x30x37 |
| 44 | 2 1/4 | 3 1/4 | 59 | 83 | 500 | 50x30x41 |
| 48 | 2 1/2 | 3 1/2 | 65 | 89 | 500 | 50x30x44 |
| 52 | 2 3/4 | 3 3/4 | 72 | 95 | 500 | 50x30x47 |
| 56 | 3 | 4 | 78 | 102 | 500 | 50x30x50 |
| 60 | 3 1/4 | 4 1/4 | 83 | 108 | 250 | 50x30x26 |
| 64 | 3 9/16 | 4 1/2 | 91 | 114 | 250 | 50x30x30 |
| 72 | 4 | 5 | 103 | 127 | 250 | 50x30x34 |
| 80 | 4 5/8 | 5 1/2 | 117 | 140 | 250 | 50x30x40 |
| 88 | 5 1/8 | 6 | 130 | 152 | 250 | 50x30x46 |
| 96 | 5 1/2 | 6 1/2 | 141 | 165 | 250 | 50x30x50 |
| 104 | 6 3/16 | 7 | 157 | 178 | 250 | 50x30x50 |
Hot Products
Contact Us
Company Information
Packaging & Shipping
FAQ
1. Question: What does your company doing?
Answers: Many factories main doing assembly by purchasing parts, we manufacture all the parts by ourselves except standard screw. The quality of our products can be guaranteed.
2. Question: Can you put our company's logo on the band of the hose clamps?
Answers:Yes. we can put your logo if you can provide us with copyright and letter of authority. OEM order is welcome.
3. Question: Can you provide sample?
Answers: Yes, we can provide samples which cost is under USD 30.00 and weight less than 0.5 kgs.
