Price:$230.00 - $250.00

Quantity:


Product Overview

Description


1hp 0.75KW electric motor vibrator for vibrating table

Product Description



Introduction:

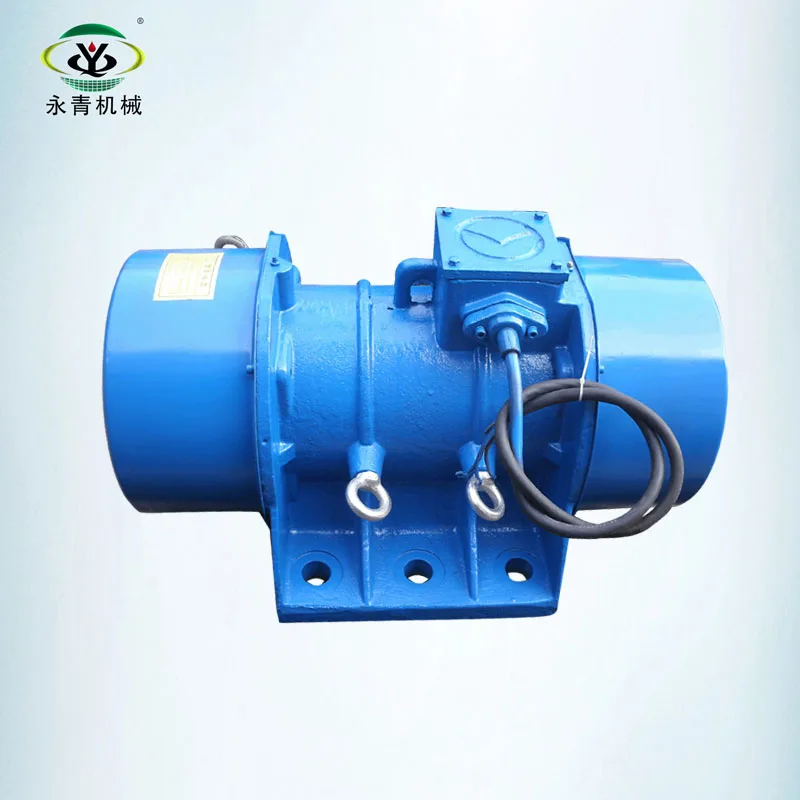

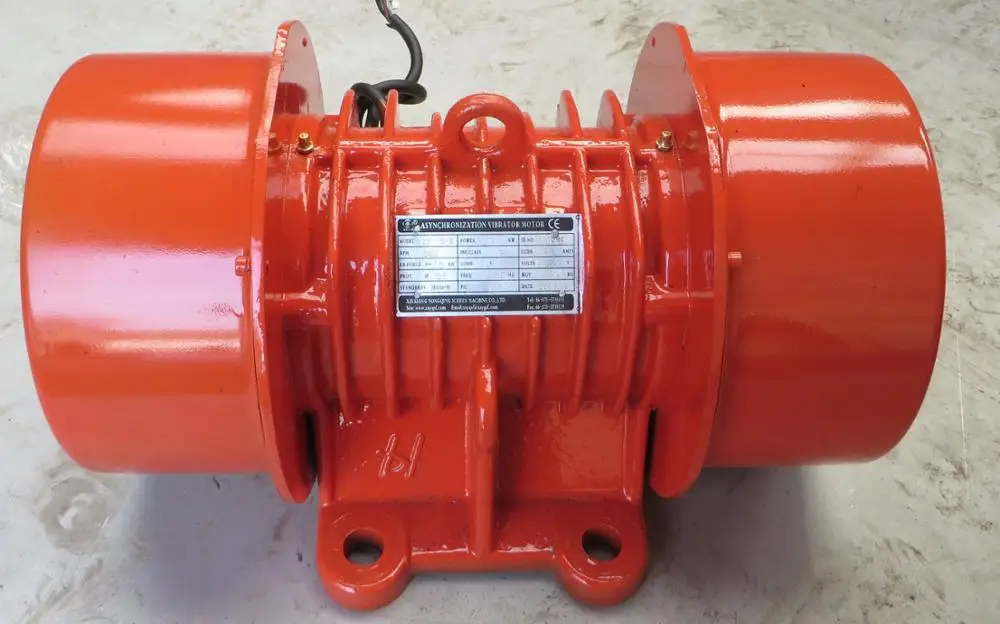

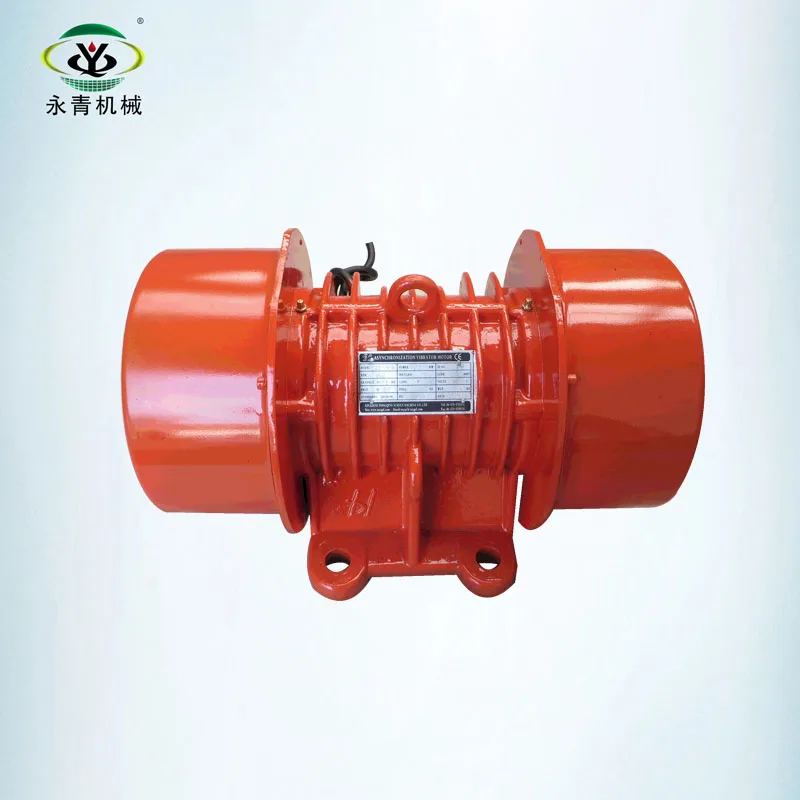

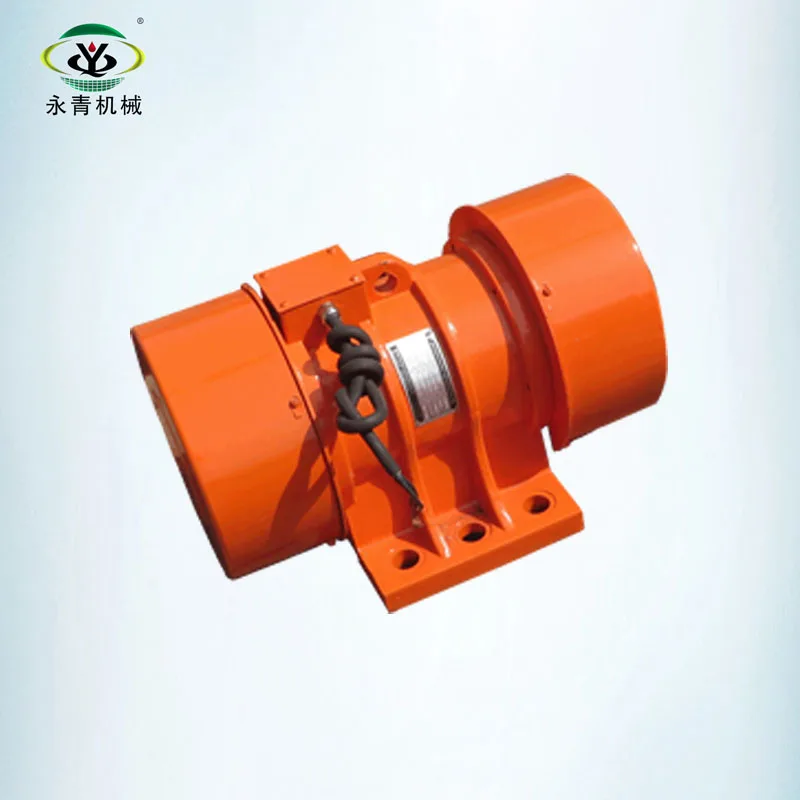

  YZS series vibration motor (motor vibrator) is designed as a high-end vibrating motor.It is available in several types with different specifications, while the most powerful one comes with an exciting force of 300 KN, and is driven by 30kw power.The rotor and stator are made of excellent silicon steel sheet.The heat dissipation is limited.High purity copper wire is used for better performance of the motor.The design of electromagnetic spec is suitable for vertical motor's operating characteristics. Be swift starting and stable operating.



1hp 0.75KW electric motor vibrator for vibrating table

                             Features:

  • Model: YZS electric vibrating motor
  • Excitation Force: 0.7KN-200KN
  • Poles: 2 pole/ 4 pole/ 6 pole/ 8 pole
  • Rotation speed:
  • 3000RPM/1500rpm/1000rpm/750rpm
  • Power: 0.15KW-20KW
  • Workable temperature: -20~ -40°C
  • Working Height: Below 1000m
  • Voltage: 220/240/380/415/450V are all available
  • Frequency: 50HZ or 60HZ
  • Protective grade: IP55 or IP65
  • Phase: 3
  • Way of connection: Y
  • Insulating grade: B or F
  • Way of working: ContinuousType: AC



        YZS10-6 horizonal Vibrating motor

  1. Exciting force: 10KN
  2. Rotation speed: 2 pole 1000rpm
  3. Power: 0.75KW
  4. Votage: 110/220/240/380/415/450V
  5. Frequency: 50HZ or 60HZ





Explosion-proof vibrating motor introduction:

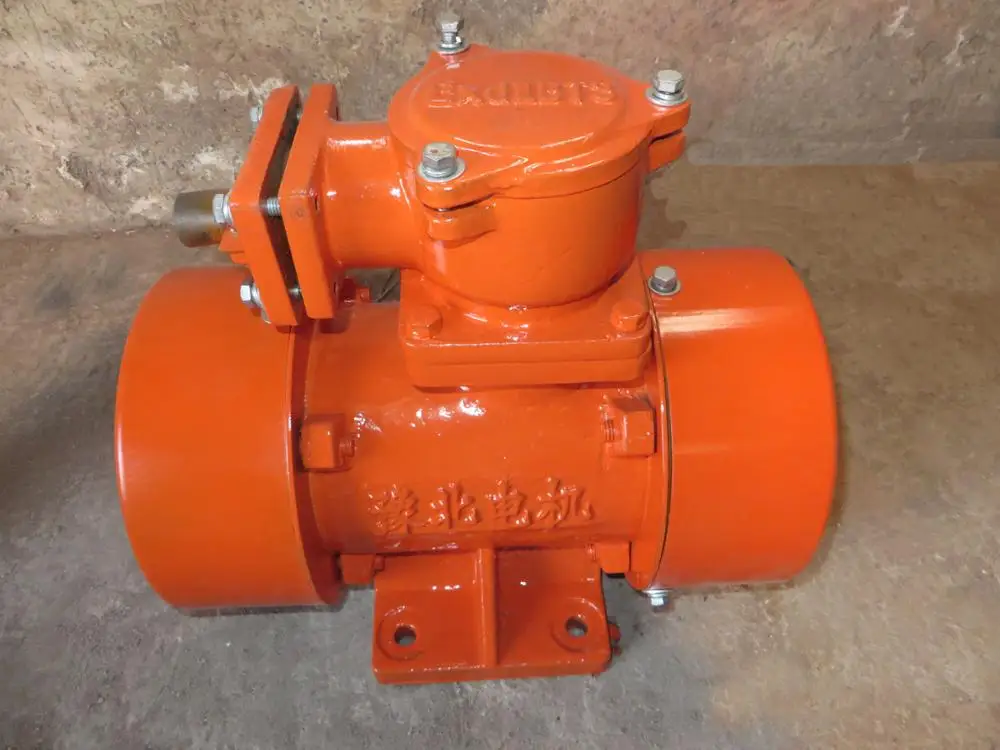

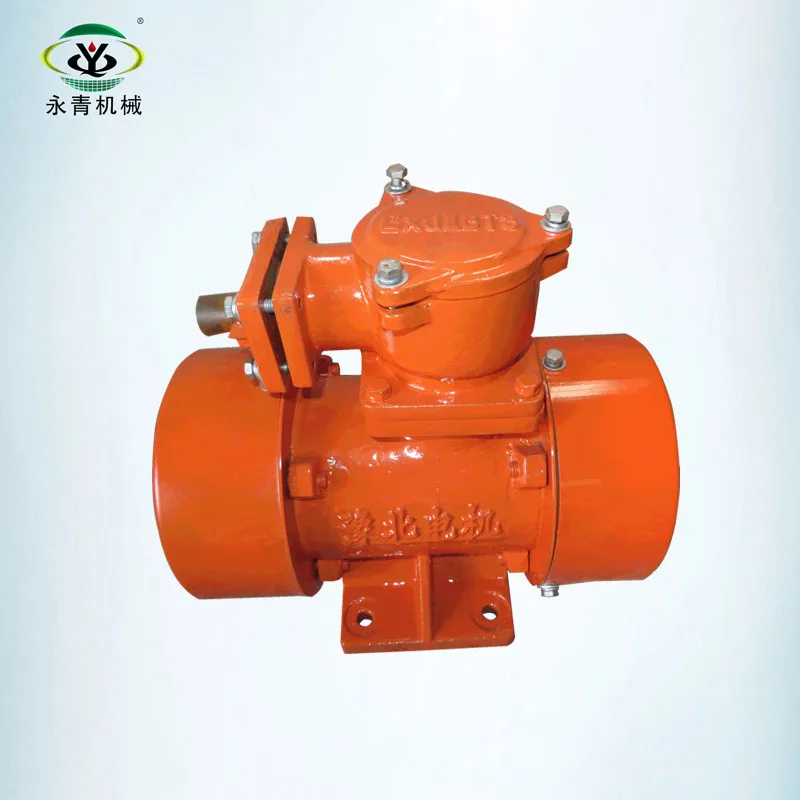

Explosion-proof type three-phase asynchronous vibration motor is a vibration motor that can be used in an explosive gas environment. It uses a flameproof enclosure to tightly isolate the electrical parts that may produce sparks, arcs and high temperatures from the surrounding explosive gases. It can be widely used in dangerous places with flammable and explosive gases.



1hp 0.75KW electric motor vibrator for vibrating table









                                Features

  • Model: YZS electric vibrating motor
  • Excitation Force: 0.7KN-200KN
  • Poles: 2 pole/ 4 pole/ 6 pole/ 8 pole
  • Rotation speed:
  • 3000RPM/1500rpm/1000rpm/750rpm
  • Power: 0.15KW-20KW
  • Workable temperature: -20~ -40°C
  • Working Height: Below 1000m
  • Voltage: 220/240/380/415/450V are all available
  • Frequency: 50HZ or 60HZ
  • Protective grade: IP55 or IP65
  • Phase: 3
  • Way of connection: Y
  • Insulating grade: B or F
  • Way of working: ContinuousType: AC



        YZS20-6 horizonal Vibrating motor

  1. Exciting force: 20KN
  2. Rotation speed: 6 pole 1000rpm
  3. Power: 1.5KW
  4. Votage: 110/220/240/380/415/450V
  5. Frequency: 50HZ or 60HZ







Packaging & Shipping



Packing Details : The Fumigation-free plywood case for motor vibrator.
Delivery Details : 5 working day upon receipt of 50% deposit by T/T

 1hp 0.75KW electric motor vibrator for vibrating table





YZS series vibration motor Specifications sheet:


ModelPowerForceCurrentRPMWeight
KW  N  AKg
YZS 1.5-2 0.1215000.5290013
YZS 2.5-2 0.202500 0.552900 15
YZS 3-2 0.25 3000 0.62900 18
 YZS 5-2 0.37 5000 0.92900 20
YZS 10-2 0.75 10000 1.752900 30
YZS 15-2 1. 1 15000 2.32900 47
YZS 20-2 1. 5 20000 3.12900 80
YZS 30-2 2.2 30000 5.02900 120
YZS 1.5-4 0.12 1500 0.5145016
YZS 3-4 0.18 3000 0.61450 22
YZS 5-4 0.25 5000 0.751450 38
YZS 10-4 0.55 10000 1.51450 58
YZS 15-4 0.75 15000 1.91450 92
YZS 20-4 1.1 20000 2.61450 95
YZS 30-4 1.5 30000 3.61450 126
YZS 50-4 2.2 50000 5.11450 230
YZS 75-4 3.7 75000 7.91450 340
YZS 100-4 6.63100000 14.51450 500
YZS 3-6 0.25 3000 0.84960 38
YZS 5-6 0.37 5000 1.2960 60
YZS 10-6 0.75 10000 2.2960 75
YZS 15-6 1.1 15000 3.1960 130
YZS 20-6 1.5 20000 4.0960 135
YZS 30-6 2.2 30000 5.6960 220
YZS 40-6 3.0 40000 6.8960 240
YZS 50-6 3.7 50000 8.5960 305
YZS 75-6 5.575000 12.5960 450
YZS 100-6 7.5100000 17.8960 500
YZS 135-6 10.0135000 24960 780
YZS 165-6 11.0165000 28960 900
YZS 185-6 13.0185000 32960 1000
YZS 210-6 15.0210000 36960 1150
YZS 10-8 0.7510000 2,5720 126
YZS 20-8 1,5 20000 4,5720 210
YZS 30-8 2,230000 6,0720 316
YZS 50-8 3,7 500009,1720 456
YZS 75-8 5,575000011,8720 620


YZS series vibration motor Application

1hp 0.75KW electric motor vibrator for vibrating table

Application:



1. Sieving equipment : linear vibrating sieve, sieve mining coal washing sieve ,sieve abrasives, chemic sieve.


2. Conveying equipment: vibration conveyor, conveyor drying vibration, vibration vertical lifting machine.

3. Feeding equipment : vibratory feeder, vibrating hopper machine, vibration mining machine, vibration filling machine .

4. Other equipment:vibration fluidized bed, vibration platform
