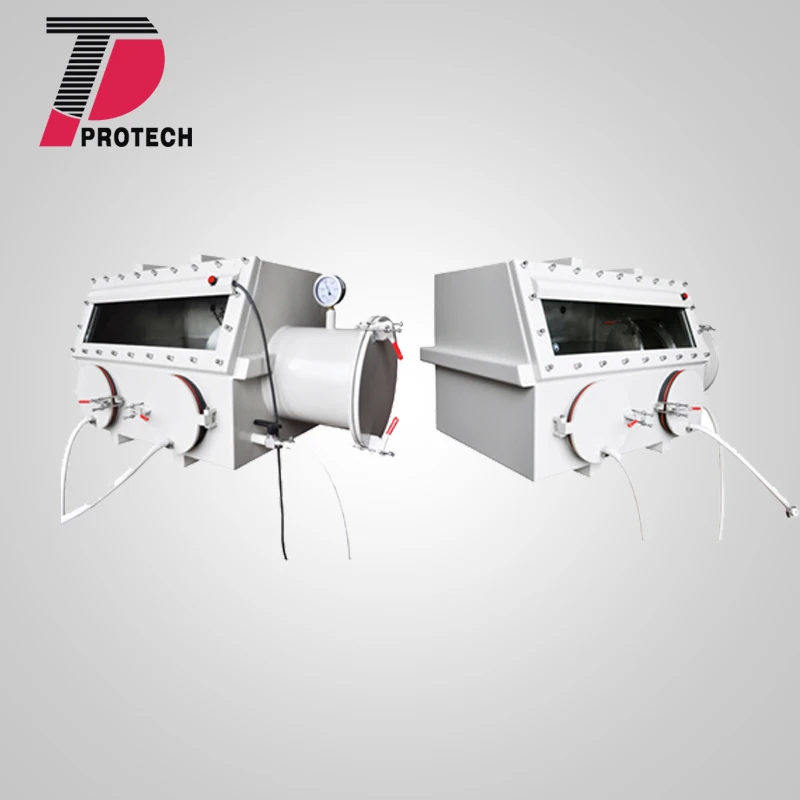

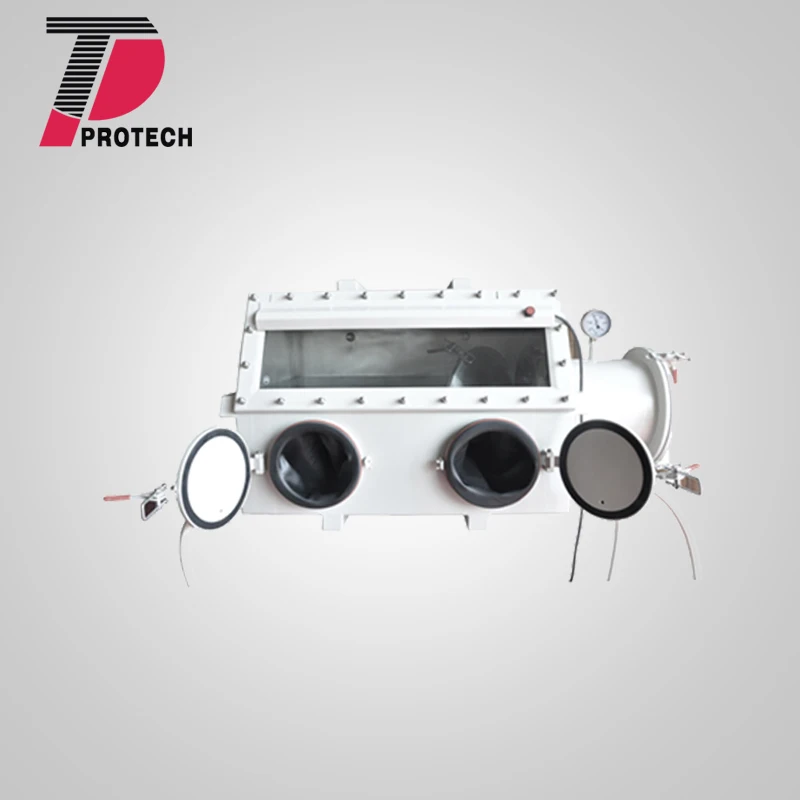

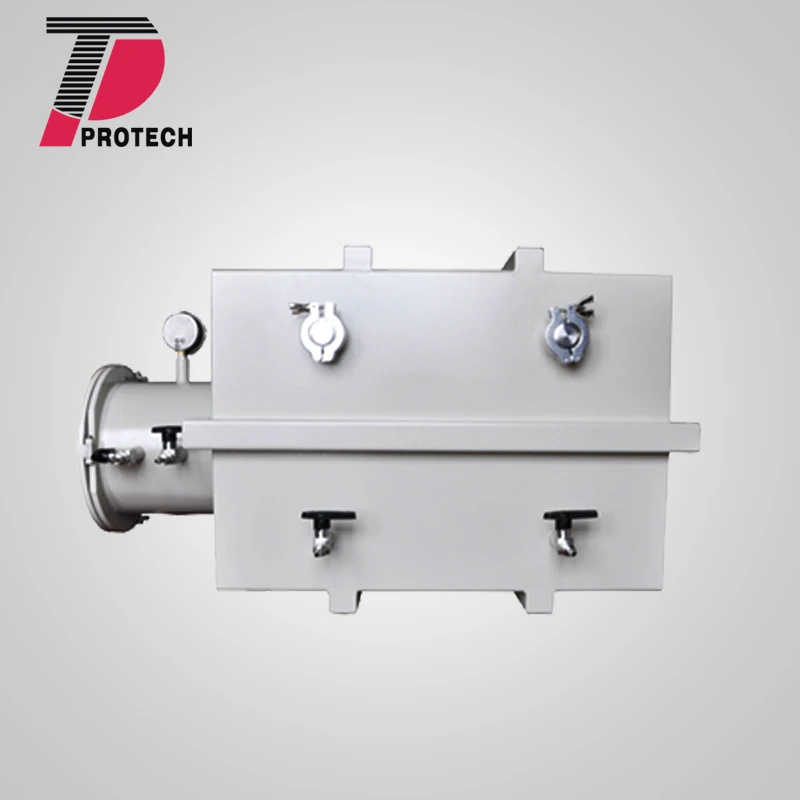

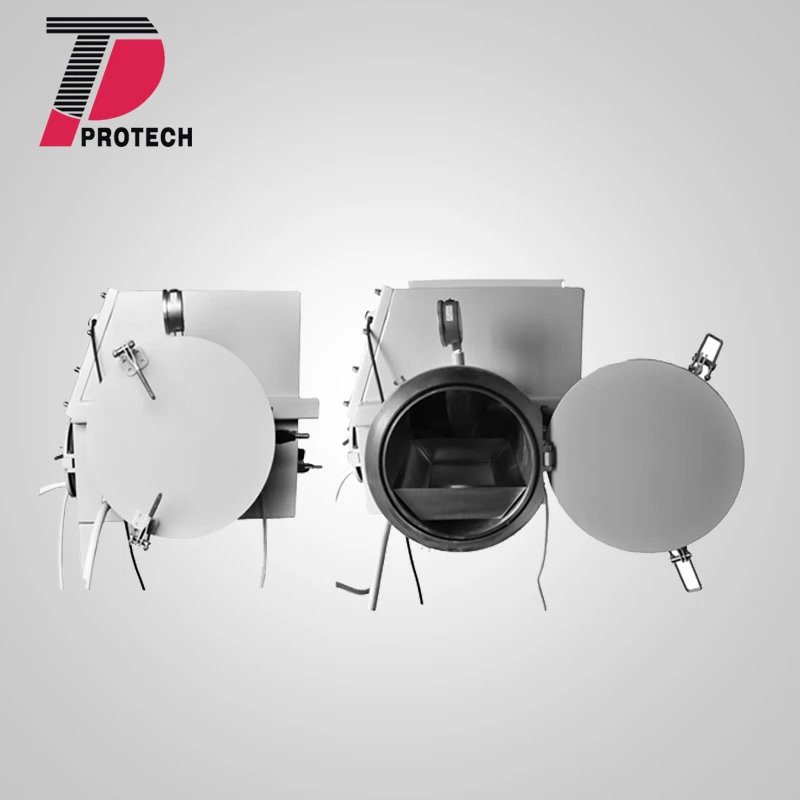

laboratory vacuum glove box
- Category: >>>
- Supplier: Zhengzhou Protech Technology Co. Ltd.
Share on (60768045614):
Product Overview
Description

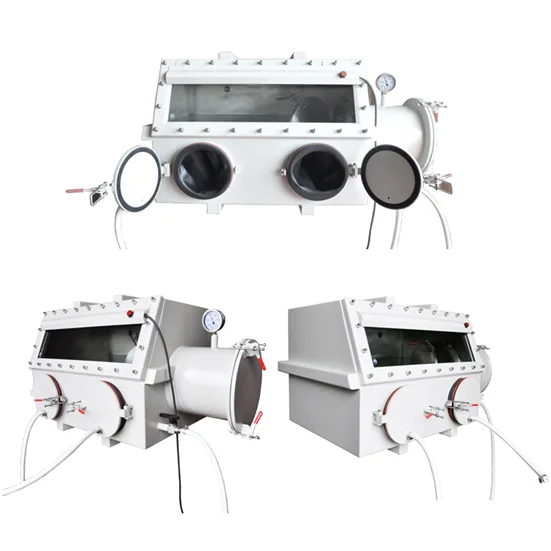

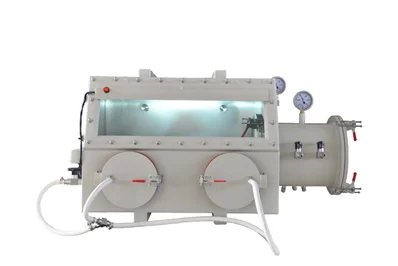

VGB-1is a stainless steel glove box with full view front panel, antechambers, gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging. The manual isolation, antechamber, and purge valves provide easy one hand reliable operation.
Model Number |
| VGB-1 |
Material |
| Stainless SUS304, 3MM |
Main Chamber Dimension |
| 600mm(L)×450mm(W)×420mm(H) |
Main Chamber Pressure |
| Max. Positive Pressure: 0.1MPa Max. Vacuum Level: -0.1MPa |

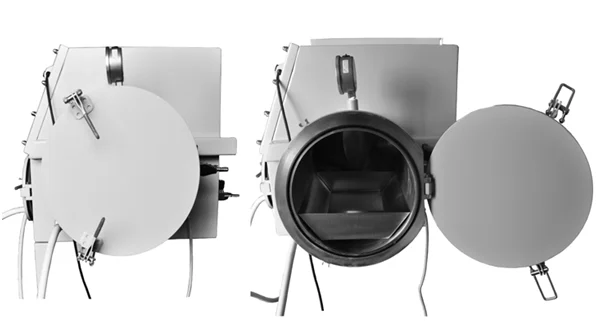

Antechamber Dimension |
| made of 304 stainless steel ø210mm, length =260mm, right side, with slidable tray inside |
Antechamber Pressure |
| Max. Positive Pressure: 0.1MPa Max. Vacuum Level: -0.1MPa(Absolute Vacuum situation) |
Window Panel |
| 1 Transparent Front Panel Removable tempered window with 2 glove ports (12mm) |
Gloves |
| 1pair ofLatex glove |
Lighting System |
| 1 Lighting System (110V, 60Hz) |
Pressure Gauge |
| 1 Pressure Gauge on Antechamber, Germany WIKA brand |
KF Connectors |
| Standard KF-25 connectors and needle valves |
Option |
| 1.Oxygen monitoring unit (0 -1000 PPM ) 2.Moisture monitoring unit(0-1000 PPM) 3.Automatic Pressure Controller 4.Automatic Humidity Controller (1-99%RH) 5.Solvent removal system 6.Open loop / Closed-loop HEPA Filters 7.High speed vacuum pump (1.5L/S High speed vacuum pump) 8.Purification System |
Our Services
1.We have a professional foreign trade staff to provide you with the explanation.
2.24 hours to provide you with services, ready to communicate with you
3.We have a service center, mainly responsible for after-sales service work, technical advice and so on. To ensure that engineers at all times to provide a variety of technical services.
4.Vulnerable accessories: the company spare a variety of commonly used parts of the spot, to ensure that the shortest possible time to solve the problem
Packaging & Shipping
Our products undergo three layers of testing, to ensure that each product is no problem then packaged by the professional packaging master product. Then by the senior freight forwarding company pick-up, there will be someone on the way to track the situation until the safe arrival of your designated location
Zhengzhou protech Co., Ltd. is a professional engaged in electric furnace product development, production and sales of high-tech enterprises. Our products have fast heating, energy saving, high temperature control, high insulation performance, programmable automatic heating and cooling. Product models up to hundreds of species, it is widely used in ceramics, refractories, building materials, special materials and other fields of experimental and production.
The main products are box-type muffle furnace, tube resistance furnace, vacuum furnace, atmosphere furnace, crucible furnace, CVD system, dental furnace, lifting furnace, track furnace, trolley furnace, annealing furnace, lifting furnace, microwave sintering furnace Porcelain furnace and other standard and non-standard experimental electric furnace and industrial furnace, and provide all kinds of electric furnace accessories, heating elements and refractories
