Product Overview

Description

Production Description

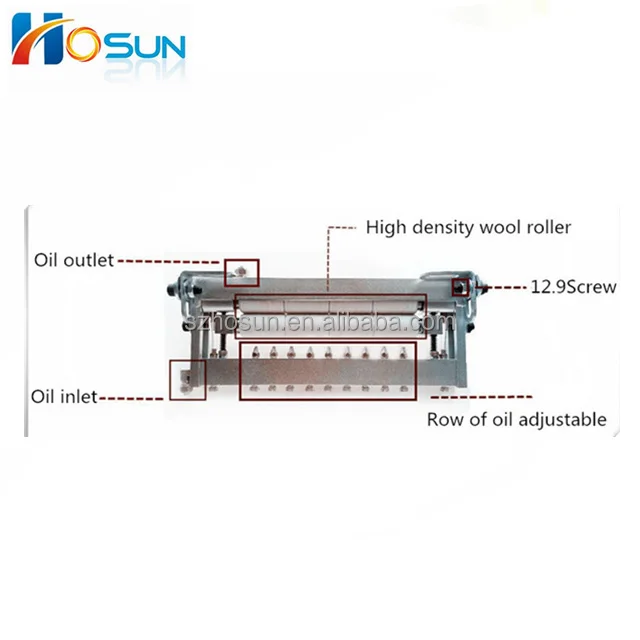

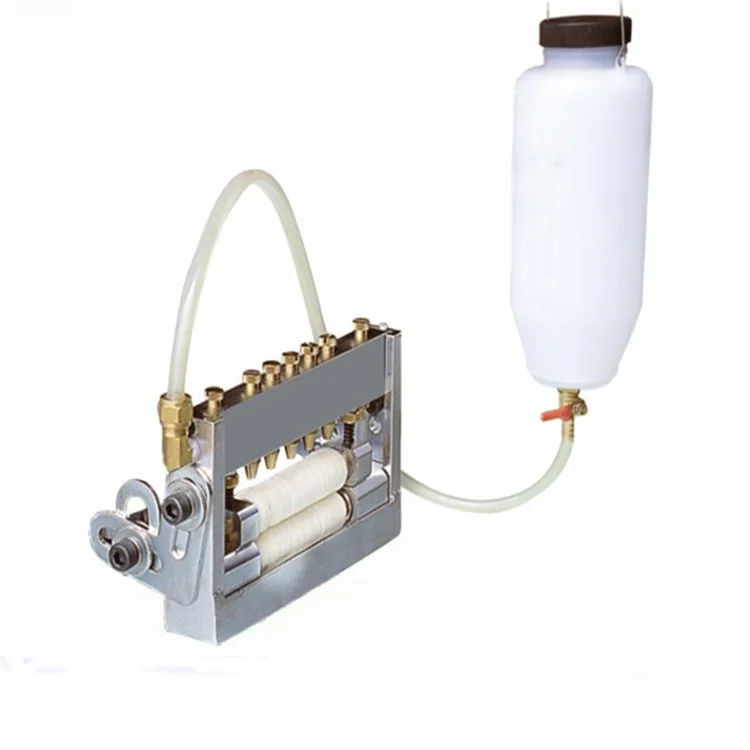

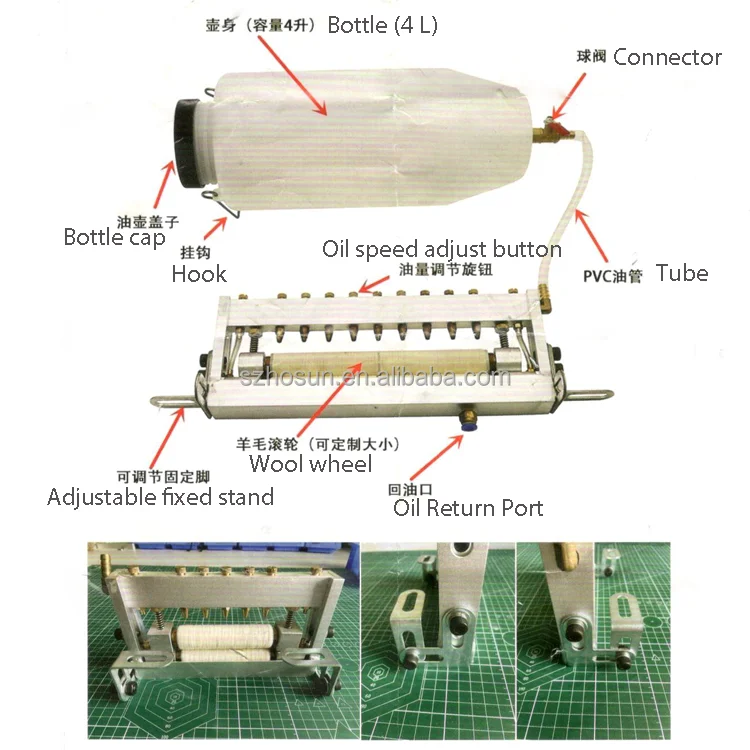

     Double-side Lubricator  is also called oil feeder ,  It main used for punch machine ,  let punch material is easy to feed





Features:



1. The material is aluminum alloy, which is treated by anode surface, easy to install and easy to adjust

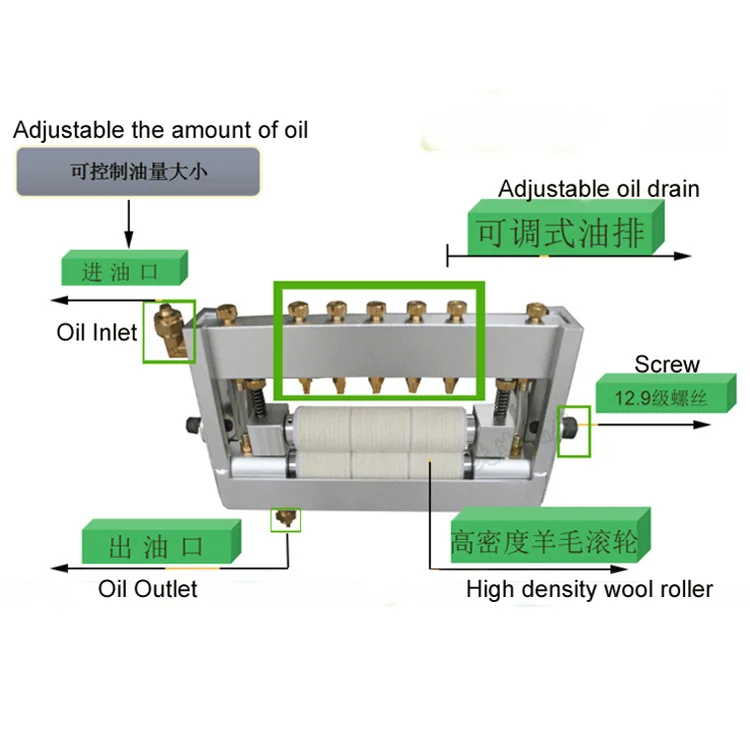

2. Adjustable oil supply design, which can control the amount and position of oil, and increase the convenience of work



3. Made of high-density wool imported from Japan, good wear resistance and good oil content



4. Suitable for stamping materials, double-sided uniform coating,   improve the life of stamping die



5. The standard diameter of roller is 22mm (model : CT-65 to CT-550) , The diameter of roller is 34mm (Model : CT600 to CT-1000) , welcome customized size from your request





Model Specification :



Model	Max feed material width	Feed material thickness	Match air feeder
CT-65	65	0.1 to 3.0 mm	AF-2C
CT-80	80		AF-3C
CT-100	100		AF-4C
CT-150	150		AF-5C
CT-200	200		AF-6C
CT-250	250		AF-7C
CT-300	300		AF-8C
CT-350	350		AF-10C
CT-400	400		AF-14C
CT-450	450	0.2 to 5.0 mm
CT-500	500
CT-550	550
CT-600	600
CT-650	650

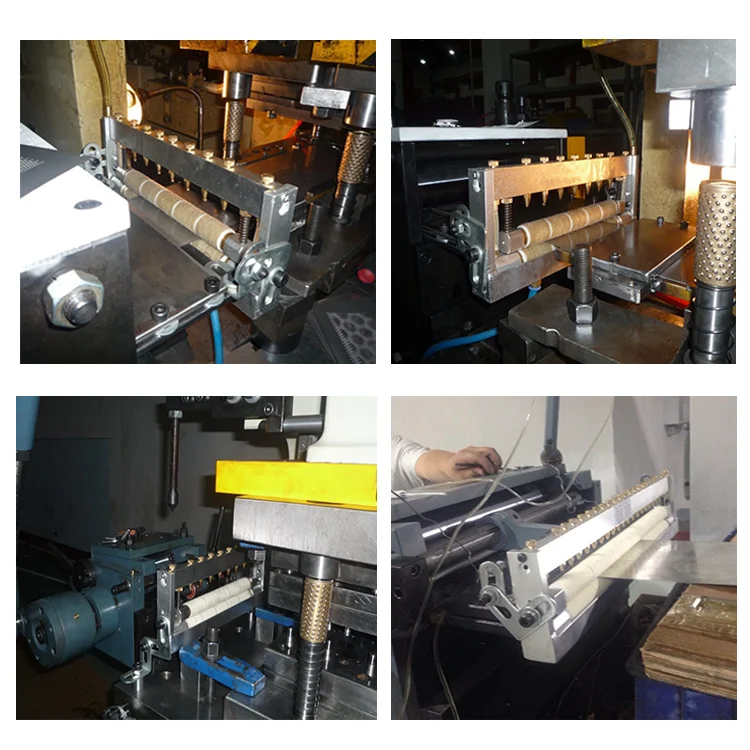

Customer's Application









 Related Products







Delivery and package :
