For connection of Cable to Switchgear Terminal, Transformer Terminal, Poles etc., termination kits are required. The Heat Shrinkable Termination kits can be Indoor or Outdoor based on actual application. It can also be single core or 3 core / 3.5 core based on cable configuration.

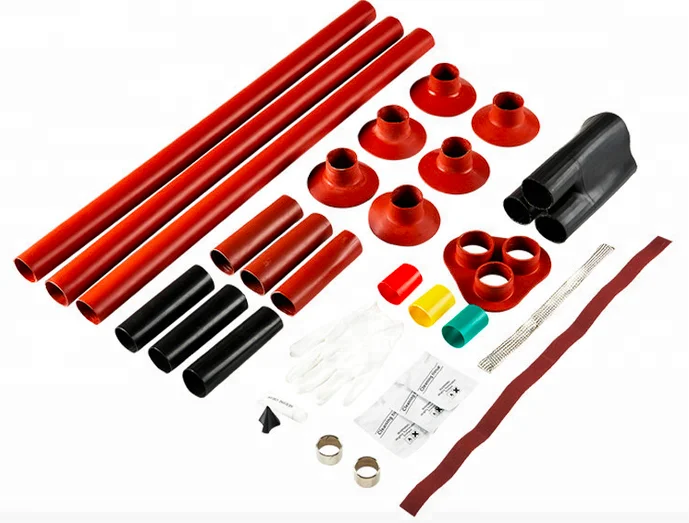

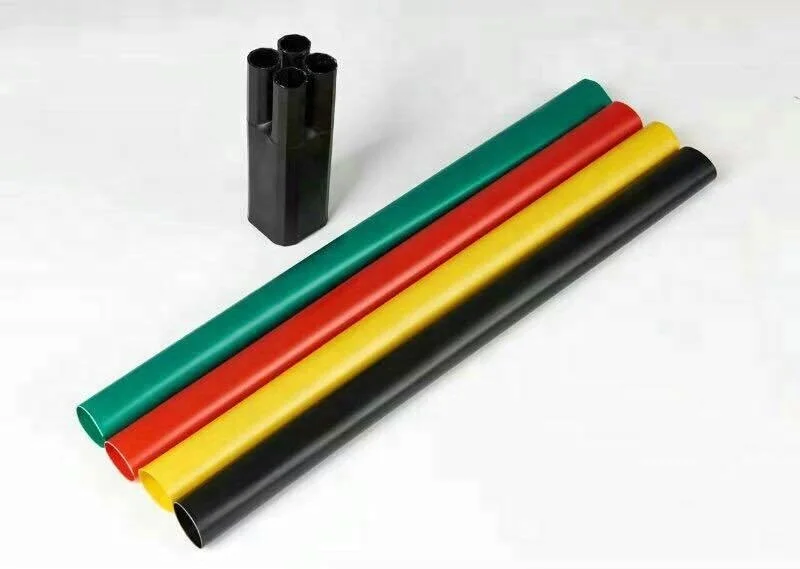

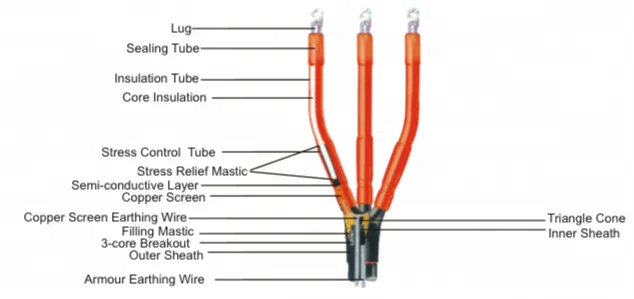

The kits consist of heat shrinkable tubing, moulded parts, mastic and other accessories for making a complete terminal.
- Covers all types of conductors and connection shapes.
- Flexible kits sizes, reduces inventory. - Compact, hence multiple terminations possible. - Effective and reliable stress control. - Unlimited shelf life. - Accommodating a wide range of cable sizes: 10~400 sqmm.
Voltage Grades
Heat shrink technology offers complete range of cable terminal kits for XLPE, PILC, PVC and EPR cables from 1KV to 36KV voltage grades.
Nominal voltage
Allowable highest continuous
operating voltage
0.6/1 KV
1.2KV
6/10 KV
12KV
8.7/15 KV
17.5KV
12/20 KV
24KV
26/35KV
36KV
Technical Data
Minimum performance of indoor and outdoor terminals for multi-core cables up to 36KV
Test
Parameters
Test voltage in KV
Observations
1.2KV
17.5KV
36KV
Indoor
Outdoor
Wet power frequency test
1 min
4
45
105
NA
No breakdown or flashover
Partial discharge
Test voltage
….
13
39
Less than 20 Pc
Do
Impulse withstand test
10+VE &10-VE
….
105
250
No breakdown or flashover
Do
Load cycling test
3 cycles, 5h heating, 3h cooling. Conductor is heated to 90~95℃
