Офтальмология, Микрохирургия, офтальмологический хирургический микроскоп высокого качества, 20x микроскоп для глазной хирургии
- Category: Optical Instruments >>>
- Supplier: Chengdu Corder Optics & Electronics Co. Ltd.
Share on (60768085582):
Product Overview
Description
Recommend Products
Products Description
Superb optical performance
Apochromatic optics, less stress, independent assistant's microscope, brilliant view of the retina.
Brightness of the red reflex is adaptable to your individual needs，allowing Surgeons to perform cataract surgery with ease.
With outstanding light transmission, the CORDER results in significantly reduced light exposure for your patients, leading to less stress on the eye.
Brightness of the red reflex is adaptable to your individual needs，allowing Surgeons to perform cataract surgery with ease.
With outstanding light transmission, the CORDER results in significantly reduced light exposure for your patients, leading to less stress on the eye.

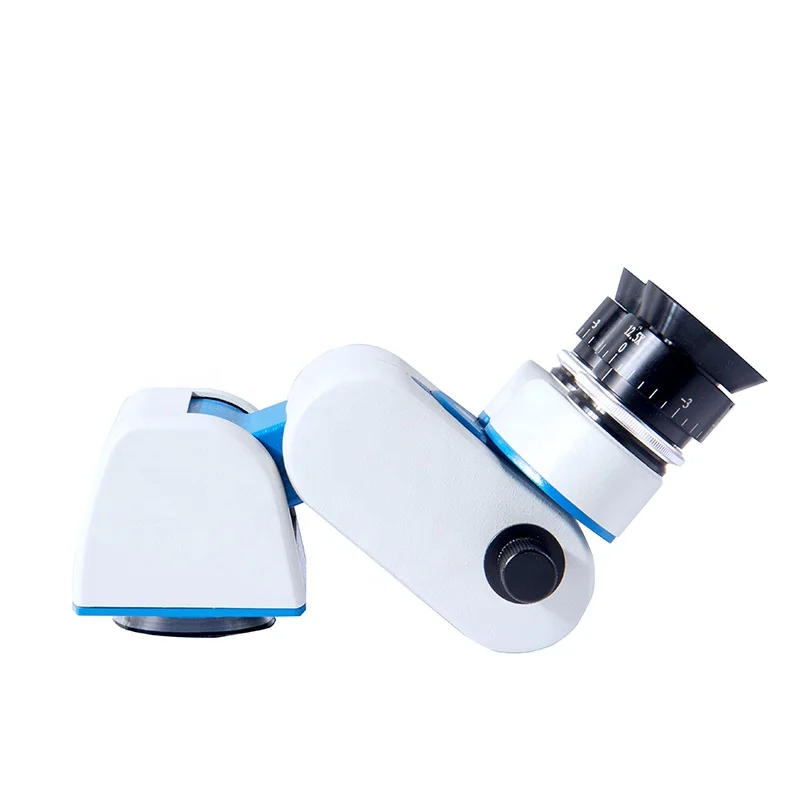

Tiltable binocular tubes available, which can incline more than 60° depending on the posture and physique of the operating
surgeon.
surgeon.
Movable range: 30° (straight) to 90° (inclined)

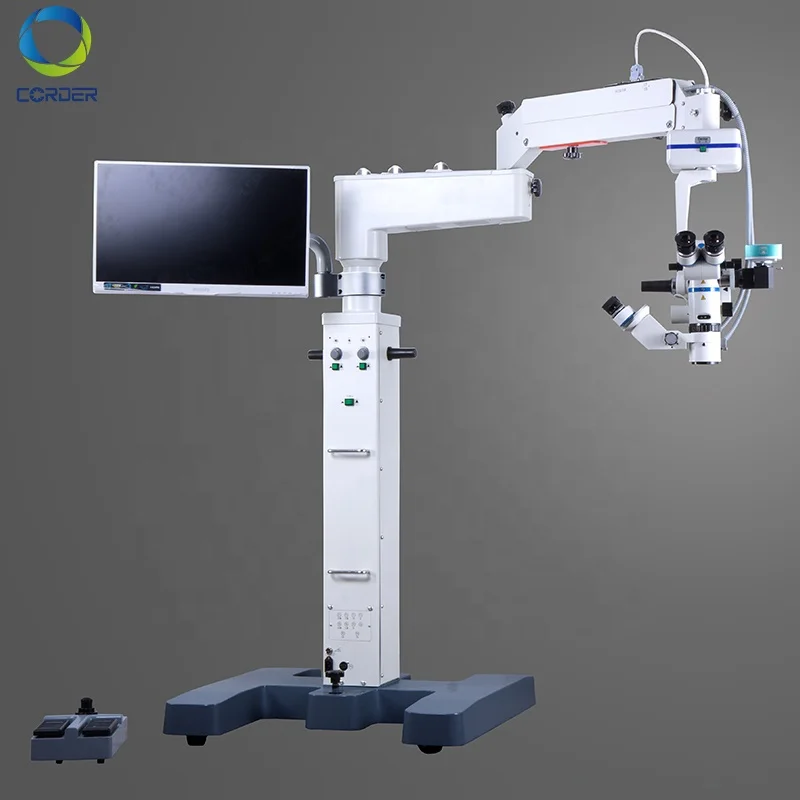

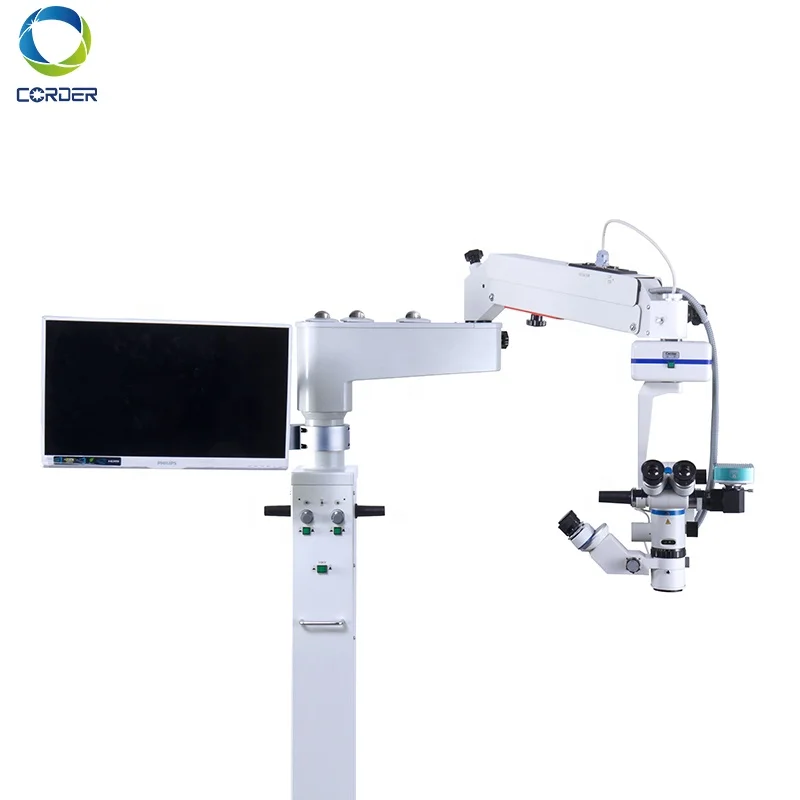

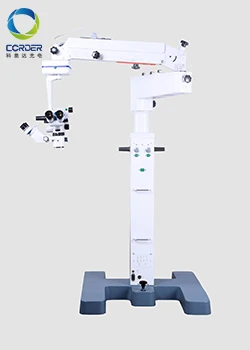

Corder microscope configured with XYZ motorized movement operated through a comfortable foot control, a very effective red-reflex co-axial illumination and c 50W halogen light source makes it ideal for cataract and retinal surgeries.
Doctor-patient communication is easier
To address digital documentation needs, a host of digital SLR, video camera, and CCD adapters are made available with the ProLine in addition to Corder's proprietary iVu multi-functional imaging solution.
all parts and accessories are fully integrated, regardless of the configuration.Plus by using the convenient, ergonomic foot
panel, you can concentrate on your surgery without distraction or interruptions.
panel, you can concentrate on your surgery without distraction or interruptions.
fully independent assistant’s microscope that requires no light from the main microscope.
Product Paramenters
Model | ASOM-3 | |
Function | Ophthalmic | |
Surgical microscope | ||
Magnification | motorized zoom system, 1:6 zoom ratio, magnification 4.5x~27x | |
Focusing range | 50mm | |
Binocular tube | 30°~90° tiltable tube (0°~200° optional) | |
Eyepiece | 12.5x / 10x | |
Objective lens | F 200mm(175mm, 250mm, 300mm optional) | |
pupil distance | 55mm~75mm | |
diopter adjustment | +6D ~ -6D | |
Feild of veiw | Φ44~Φ7.7mm | |
X-Y translator | Motorized by foot switch, ±30mm | |
Deep View | depth of field incresing system | |
Assistant tube | Integrated with independent steps changer and same depth of veiw as main tube | |
Reset functions | YES | |
Illumination | ||
System | Coaxial illumination | |
Light source | Halogen lamp | |
Light intensity adjustment | Continuous brightness adjustment 0-100000lux | |
Retinal protection device | Built-in | |
Fiber optic illumination | Dual fiber | |
Field of illumination | Φ50mm | |
Red reflex | Adjustable | |
Arm & Base | ||
Mount | Floor stand | |
Maximum arm extension | 1200mm | |
Height from objective to floor | 800mm | |
Base size | 800*800mm | |
Brake system | Four-wheel brake | |

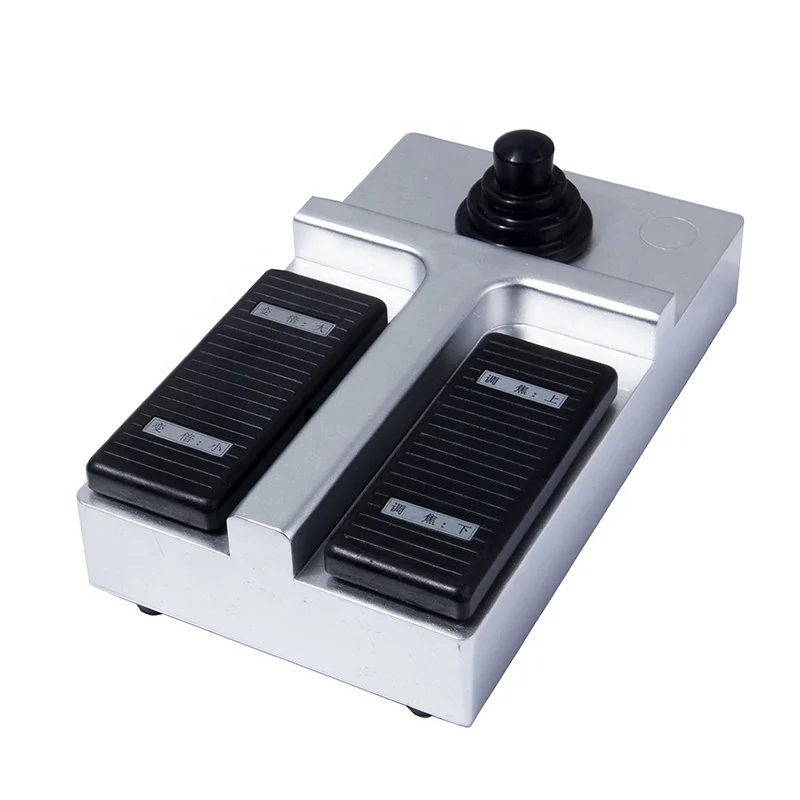

Foot switch | Waterproof, 8 function steps | |
Others | ||
Weight | 169KG | |
Power socket | 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ | |
Power consumption | 300W | |
Safety class | class I | |
Accessories | ||
CCD Camera system | Beam splitter, CCD adapter, CCD, Display | |
BIOM system | Invertor, Holder, 90D lens, 130D lens | |
Integrated Video Adapter | SONY / CANON Camera | |
Ambient conditions | ||
Use | +10°C to +40°C | |
+50°F to +104°F | ||
30% to 75% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Storage | –30°C to +70°C | |
–22°F to +158°F | ||
10% to 100% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Limitations on use | ||
The Corder ASOM-3 surgical microscope may be used in enclosed rooms and on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill Leica Microsystems' specifications (see installation manual) | ||
