Signal suppressor RS485 lightning protection 24V surge protector
- Category: >>>
- Supplier: Zhejiang THOR Electric Co. Ltd.
Share on (60768094550):
Product Overview
Description
Product Description
This product is suitable for analog signal system lightning protection, from damage by lightning over-voltage, induced over-voltage, electrostatic discharge.
The standard module can protect two lines. multiple standard modules can protect more lines at one place,It can be used to superimpose, and make up protect the array to protect the sensitive electronic equipment.
This product use front and back of two levels to protect, the first level is rough protection for energy dissipation; the second level is meticulous protection for clamping. The coupling go through the Front and back levels makes the surge protector really achieve the perfect lightning protection effect.
The standard module can protect two lines. multiple standard modules can protect more lines at one place,It can be used to superimpose, and make up protect the array to protect the sensitive electronic equipment.
This product use front and back of two levels to protect, the first level is rough protection for energy dissipation; the second level is meticulous protection for clamping. The coupling go through the Front and back levels makes the surge protector really achieve the perfect lightning protection effect.

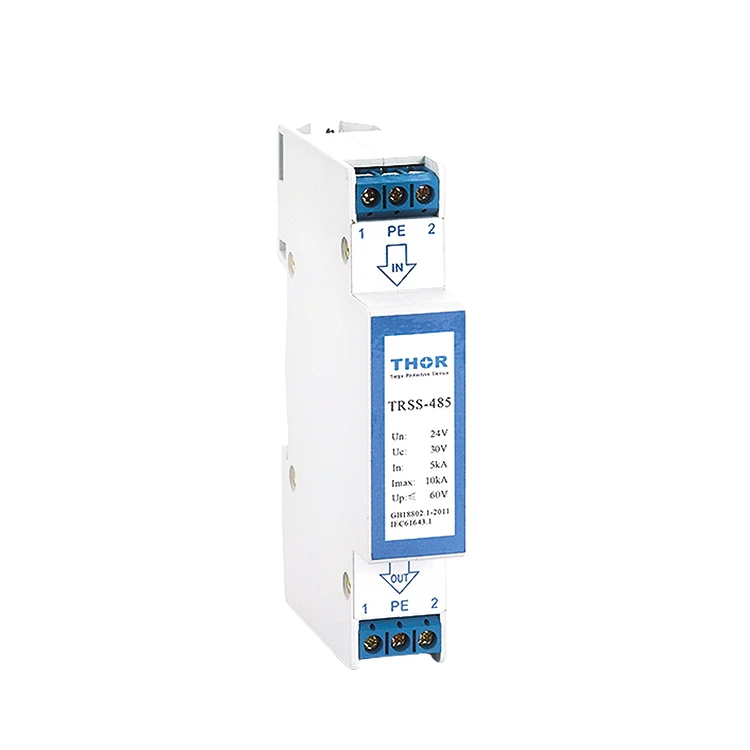

Signal Surge protector
Main technical parameters
Main technical parameters | TRSS-485 | ||||
Max continuous operating voltage Uc(VAC) | 6 | 12 | 24 | 48 | 120 |
Voltage protection level Up(V)≤ | 10 | 20 | 60 | 80 | 200 |
Insertion loss (dB) | <0.5dB | ||||
Max discharge current (8/20μS) lmax(kA) | 10 | ||||
Nominal discharge current (8/20μS) ln(kA) | 5 | ||||
Response time ns | <1ns | ||||
Degree of protection | IP20 | ||||
Application | Primary protection for in line | ||||
Remarks | Other Uc can be customized | ||||
Company Information
Packaging & Shipping
FAQ
Q: What advantages do you have?
A: We have been manufacturing and exporting SPD for more than 10 years !
We have CE and TUV certification
Q: Can I get some samples?
A: We support small quantity samples order ! please contact with our staff and leave your detail contact information , we will answer you within 24 hours
Q: How long does it take to deliver?
A: Fast delivery : 3~7days after payment
Q: Could you do OEM for us?
A: We have good experience on OEM service
Q: How long is your products warranty ?
A: 3 years warranty
Q: How to pay?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance
