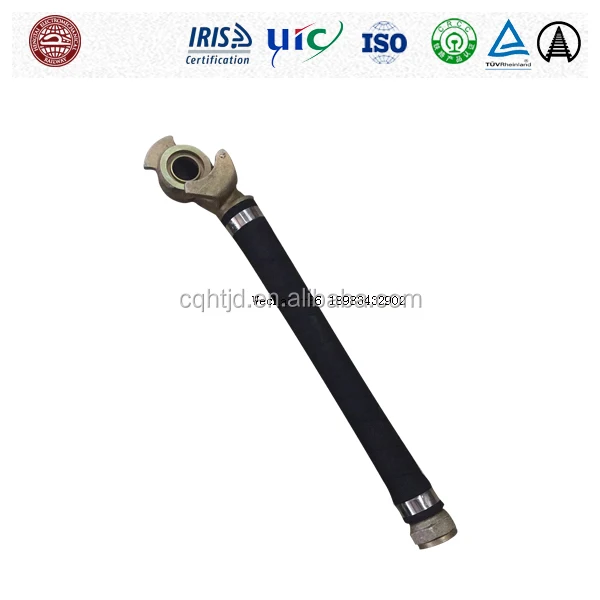

Rubber Air Brake Hose for Train

Category: Train Parts & Accessories >>>
Supplier: Chongqing Hengtai Electromechanical Equipment Co. Ltd.

Price:

Quantity:

Product Overview

Description

Train/Railway air brake rubber hose with connectors

Application of rubber hose:

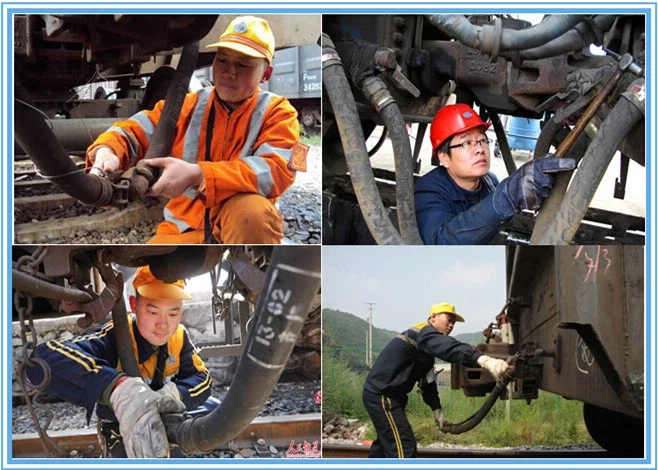

Flexible connection in air brake system on rail carriages and locomotive.

the AAR air brake hose coupling are provided to connect brake pipeline and feed pipeline/MR MR pipeline throughout the train.the coupling heads the feed pipe/MR coupling hose are of opposite design to those of the brake pipe coupling hoses.For installation of the air brake hose coupling ,they are provided with threaded nipples on one end of the hoses,these nipples are screwed on /into the angle cock at the both ends for the wagons.

Main Technical Pameter:

Material: Malleable Iron or Ductile iron
Certificate: CRCC,ISO certificate
Working temperature:-50℃ to +70℃

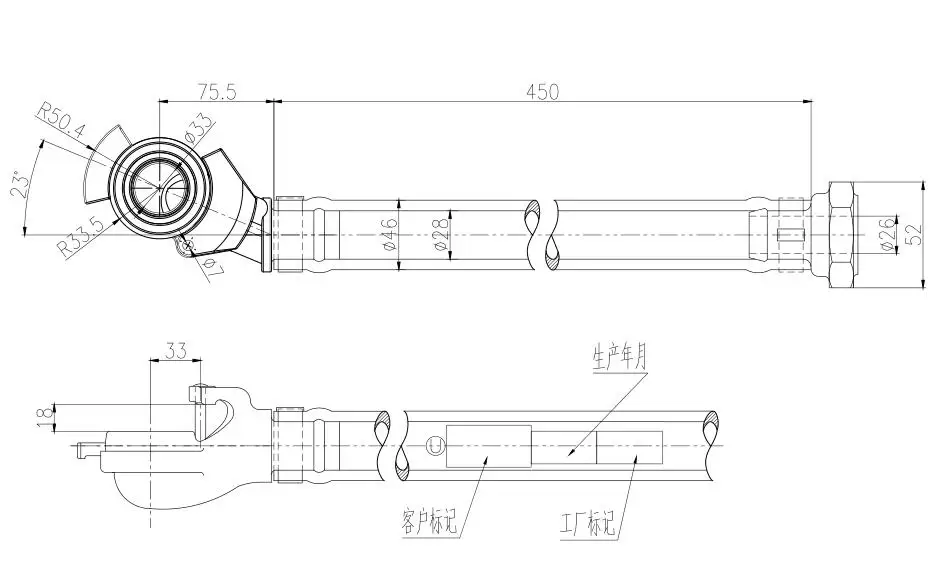

Size : as drawing
Working pressure:0-7MPA
Manufacturing Process:Casting

Surface treatment: black coating or galvanization

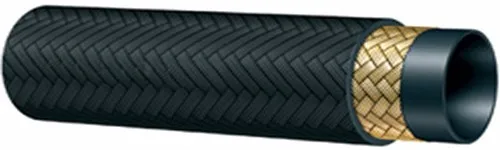

Structure of rubber hose:

Delivery medium: compressed air (oil resistance)

Temperature available: -48deg. to 80 deg.

Tube: black, synthetic rubber.

Reinforcement: high strength synthetic cord.

Joints/Connectors material: Nodular cast iron

Feature of rubber hose:
Be excellent in oil resistance and long life in impulse resistance

Easy to install

Can be equipped with metal joints and combined into assemblies of various types

Weather-resistant and fatigue durable

Application of rubber hose:
