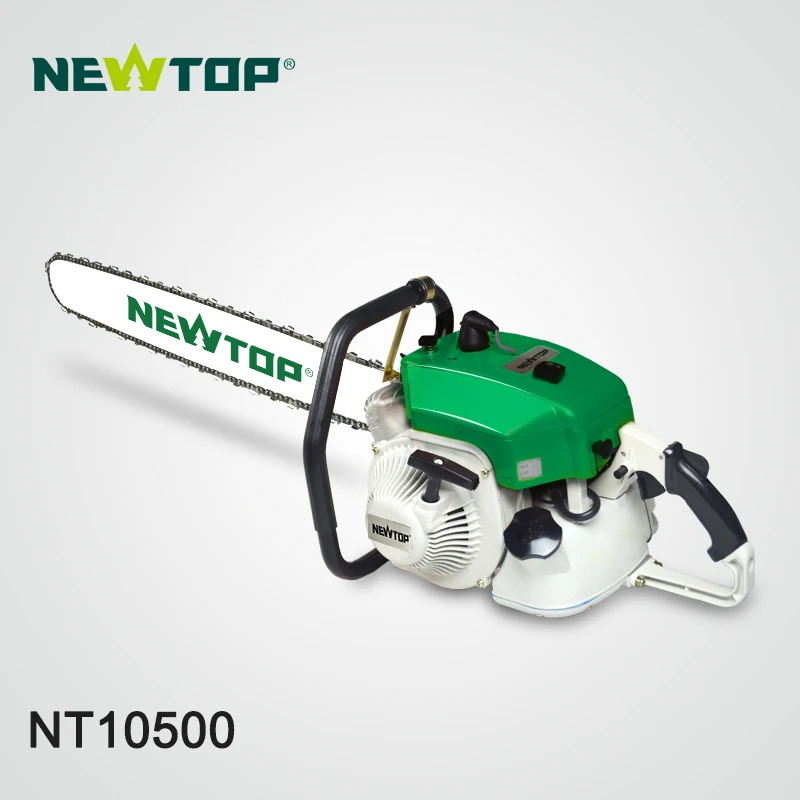

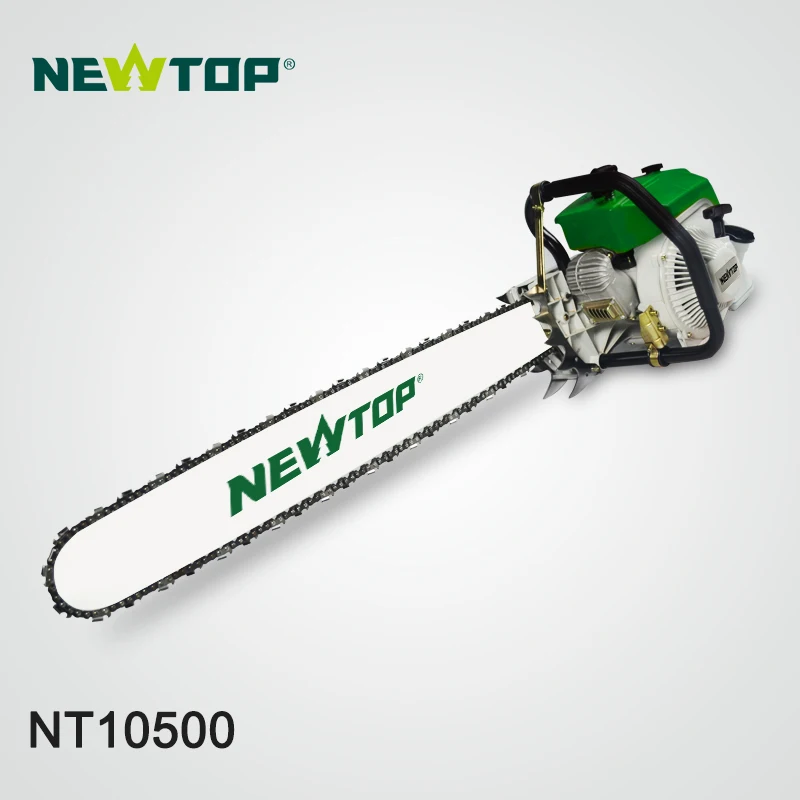

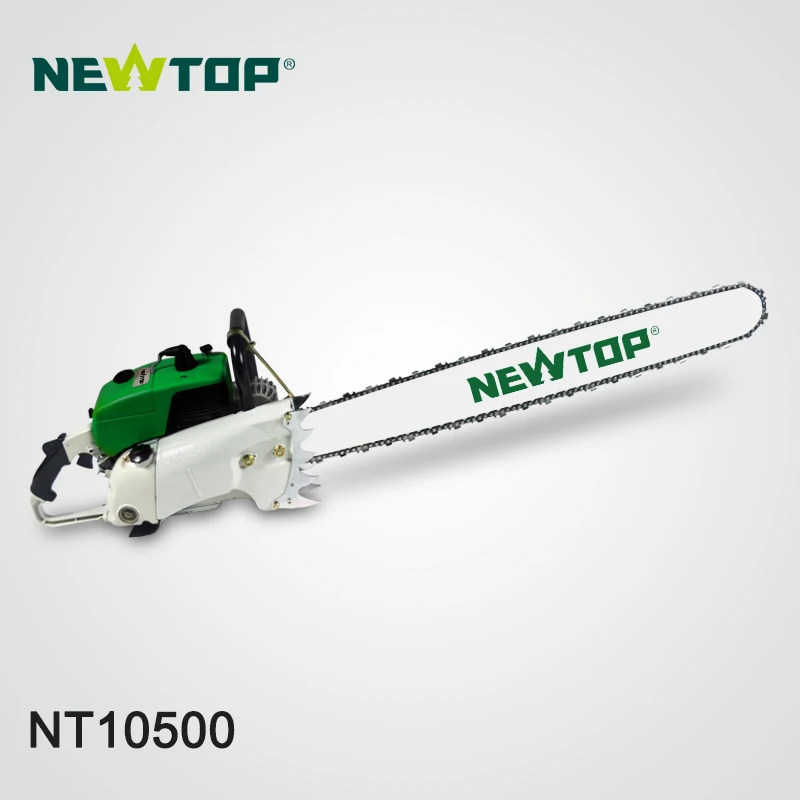

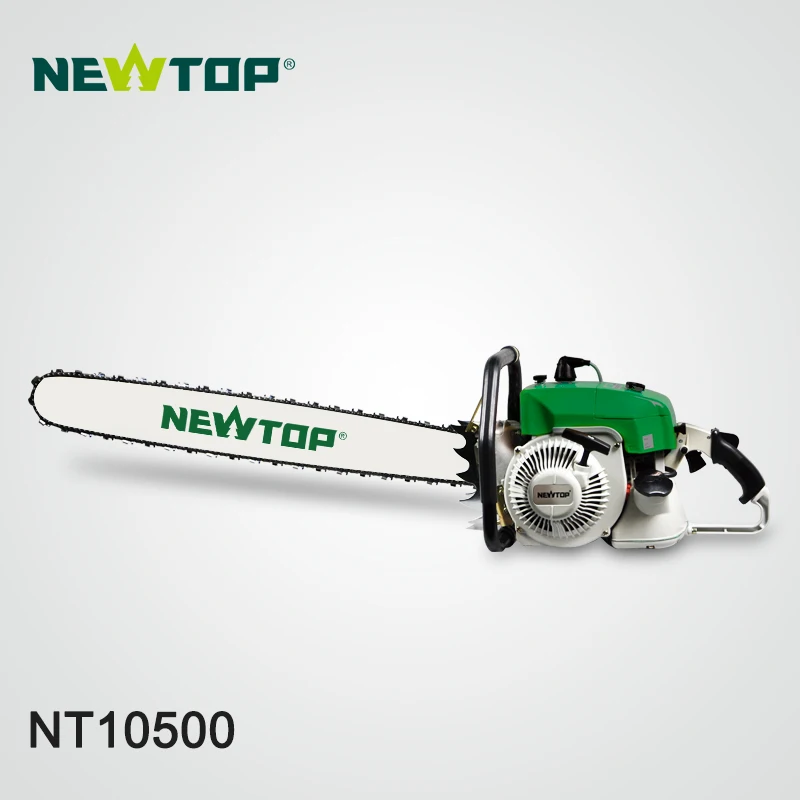

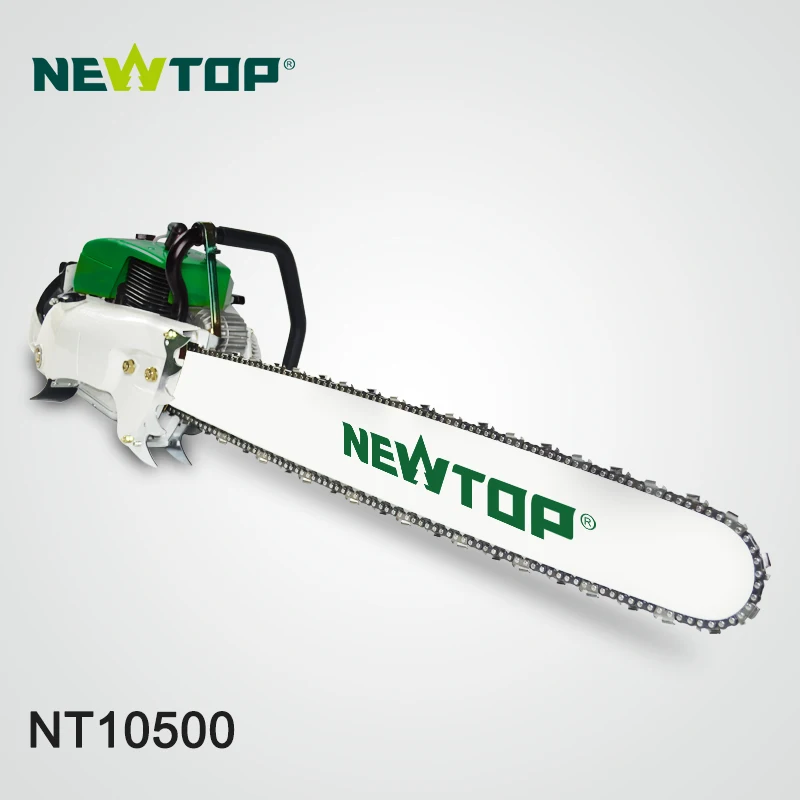

Chinese Professional 070 ST Chainsaw Wood Cutting machine

Product Overview

Description

Chinese Professional 070 ST Chainsaw Wood Cutting machine

Model NO.	NT10500
Power type	Single Cylinder, Two-stroke, Air-cooling
Cylinder diameter	58mm*40mm
Engine Displacement	105cc
Rated output power	4.8kw (6.4 hp)
Relevant speed	8000rpm
Standard Bar Lengths	36" (91.4cm)
Chain pitch (inch)	0.404"
Chain Gauge	0.063"
Fuel mixture ratio	25:1(Gasoline 25 : Two-cycle Oil 1)
Fuel capacity	1200ml (42.2 oz.)
Chain oil capacity	530ml (18.7 oz.)
Ignition system	Digital
Dry weight (without bar and chain)	10.5kg (23.1 lbs.)
Weight (with bar and chain)	12.5kg (27.6 lbs.)
Box weight	15.5kg (34.2 lbs.)
Meas	558*370*370mm
20"FCL	360pcs



1. The 070 chainsaw is a portable, mechanical saw which cuts with a set of teeth attached to a rotating chain that runs along a guide bar.



2. The 070 chain saw is used in activities such as tree felling, limbing, bucking, pruning, cutting firebreaks in wildland fire suppression and harvesting of firewood.



3. Chainsaws with specially designed bar and chain combinations have been developed as tools for use in chainsaw art and chainsaw mills. Specialized chainsaws are used for cutting concrete.



4. The 070 Chainsaws are sometimes used for cutting ice, for example for ice sculpture and in Finland for winter swimming. Someone who uses a saw is a sawyer.





^{Shanghai Newtop Machinery Co.ltd}
