Walkie battery full electric forklift stacker
- Category: >>>
- Supplier: Hangzhou Noelift Equipment Co. Ltd.
Share on (60768158315):
Product Overview
Description
1T electric pallet stacker, stacker for sale
1ton electric pallet stacker, ESM Series steering wheel pallet stacker, rated load capacity: 1000kg, lift height is optional from 1600mm-3000mm. Max. lifting height: 3000mm.
1. Intelligent controller takes protection measures in case of over voltage, low voltagef, over current, over temperature and short circuit occasions;
2. With explosion-proof valve at the bottom of cylinder, even if the pipe burst, the mast will not rapidly decline;
3. Easy-Access Emergency plug mounted on upright side of truck frame helps operator take immediate action if any emergency occurs;
4. Operating handle is on the side, make more room for wide view;
5. Non-maintenance battery, improve working efficiency.

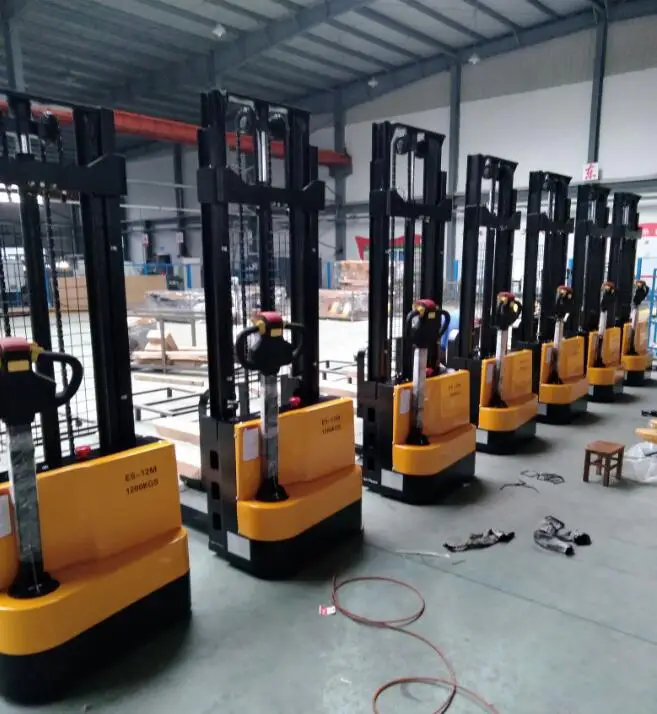

Product Pictures
Product Parameter
MODEL NO. |
| ES10M-30 | |||||
Standard | Power Type |
| Battery | ||||
Operate Type |
| walkie | |||||
Rated Capacity | Q(kg) | 1000 | |||||
Load center | C(mm) | 500 | |||||
Tyre | Wheel Type |
| Polyurethane Tyre | ||||
Front wheel |
| Φ80×70 | |||||
Rear wheel |
| Φ210×70 | |||||
Tyres No. -front/rear (X=drive wheel) |
| 2/1X+1 | |||||
Dimension | Mast Type |
| 2-stage | ||||
Lift Height | h1(mm) | 3000 | |||||
Height--Free Lift | h2(mm) | / | |||||
Height---Mast Lowered | h3(mm) | 2035 | |||||
Height-Mast Extended | h4(mm) | 3570 | |||||
Fork Min Ground Clearance | h5(mm) | 86 | |||||
Overall Length | 11(mm) | 1716 | |||||
Length to fork face | 12(mm) | 780 | |||||
Wheel Base | y(mm) | 1215 | |||||
Overall Width | b1(mm) | 800 | |||||
Tread Front/rear | b3(mm) | 400/525 | |||||
Fork Dimensions | mm | 1150*160*60 | |||||
Width across forks | b4(mm) | 560 | |||||
Aisle width for pallet 1000*1200 | Ast(mm) | 2250 | |||||
Aisle with for pallet 800*1200 | Ast(mm) | 2180 | |||||
Trurning radius | Wa(mm) | 1378 | |||||
Function | Travel Speed -laden/unladen | km/h | 3.5/4 | ||||
Gradeability -laden/unladen | % | 3/6 | |||||
Power | Drive Motor type |
| DC | ||||
Driving Motor (S2 60) | kw | 0.75 | |||||
Lift motor type |
| DC | |||||
| Lift Motor (S3 15%) | kw | 2.2 | ||||
Battery V/AH | V/AH | 2*12 /80 | |||||
Weight | Battery | kg | 2*25.5 | ||||
Service Weight | kg | 560 | |||||
Steering | Steering type |
| Mechanical | ||||
Parking Brake |
| Electromagnetic | |||||
Parking Operation type |
| Hand Operation | |||||
Service Brake type |
| Electromagnetic | |||||
Our Services
1. One-stop solution service.
2. Customized-service all accepted
3. Customer service is in time.
4, Warranty: 12 months.
Any questions please feel freely to contact me, I will reply asap!
Noelift would love to provide most professional service to you!
