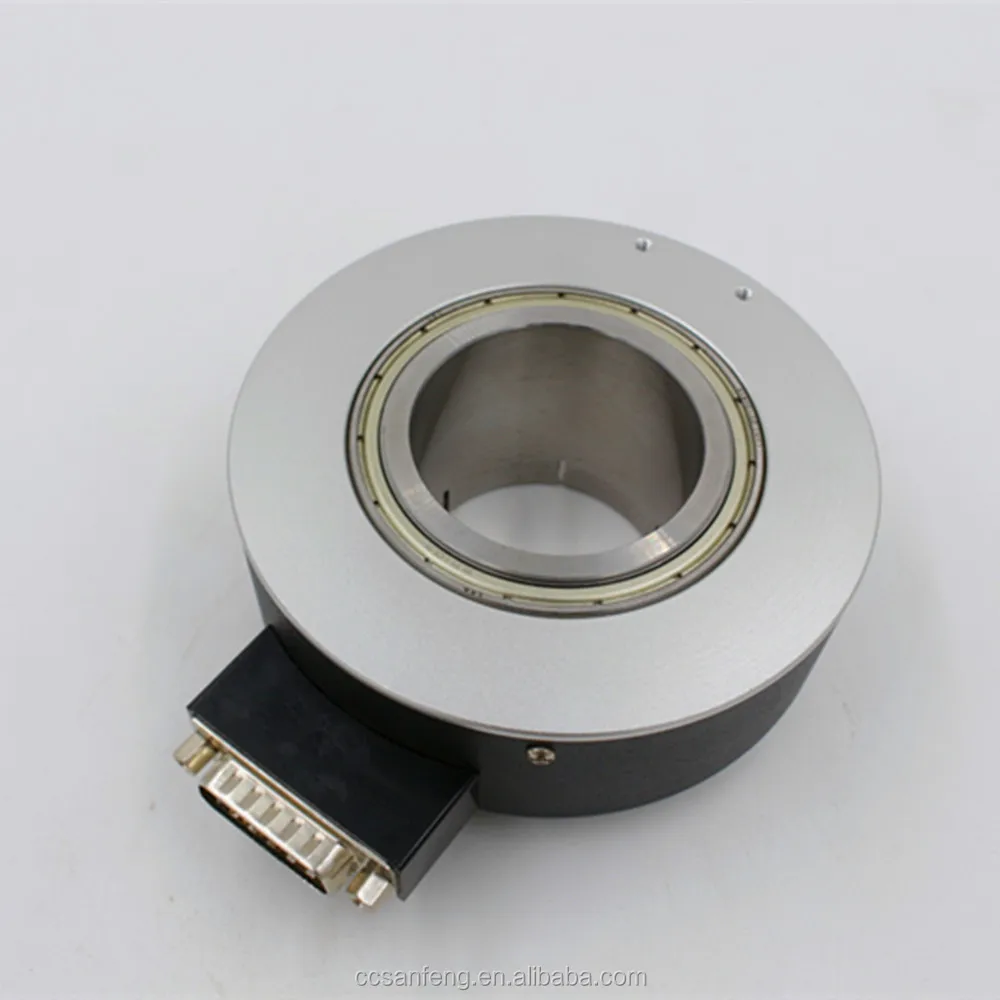

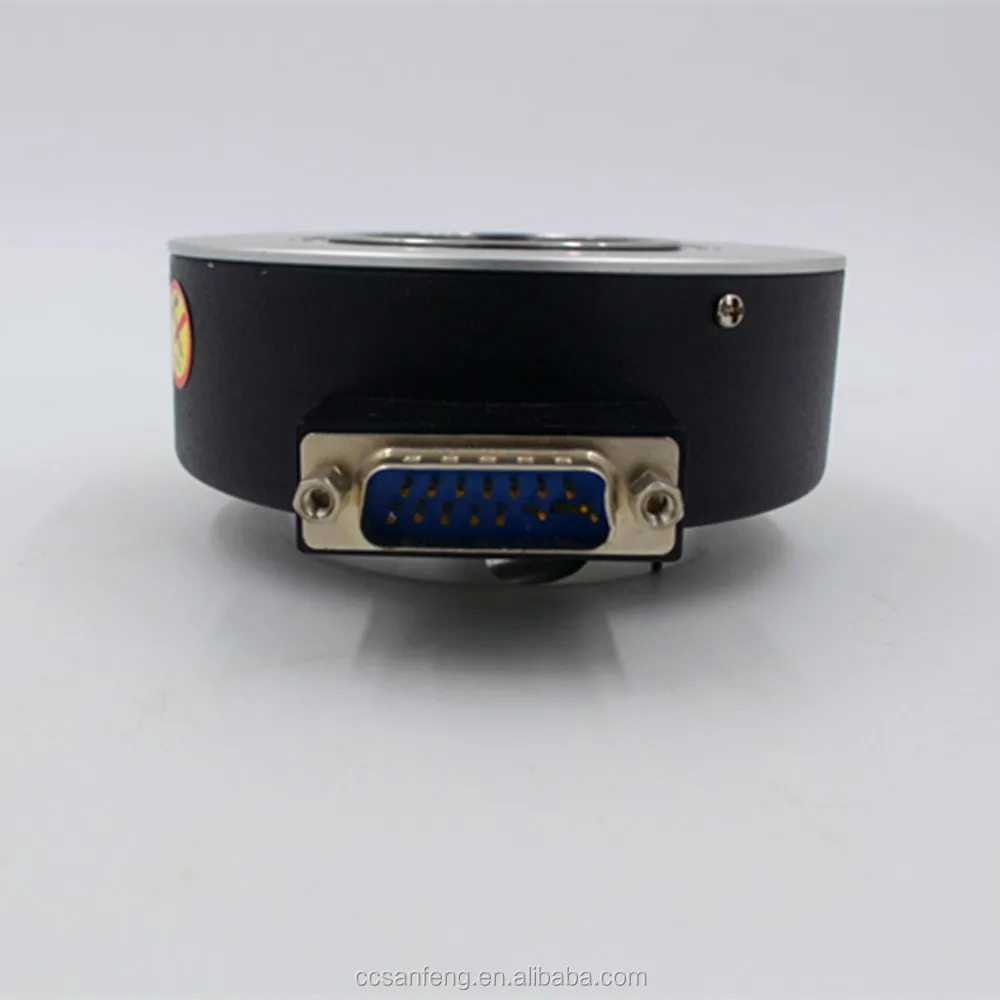

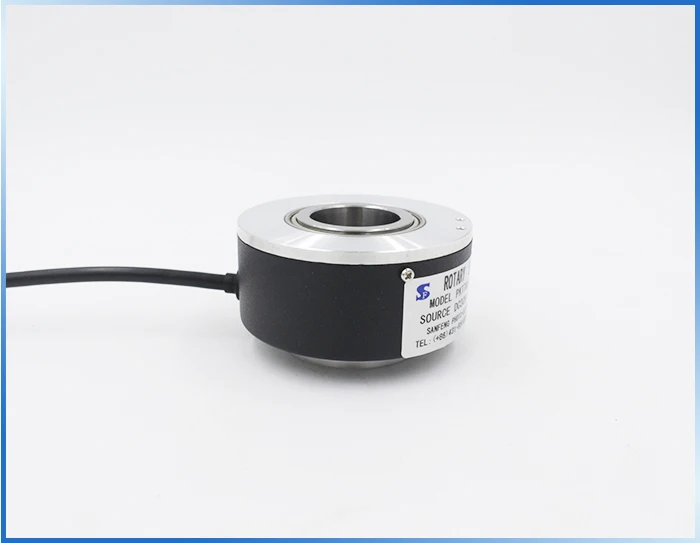

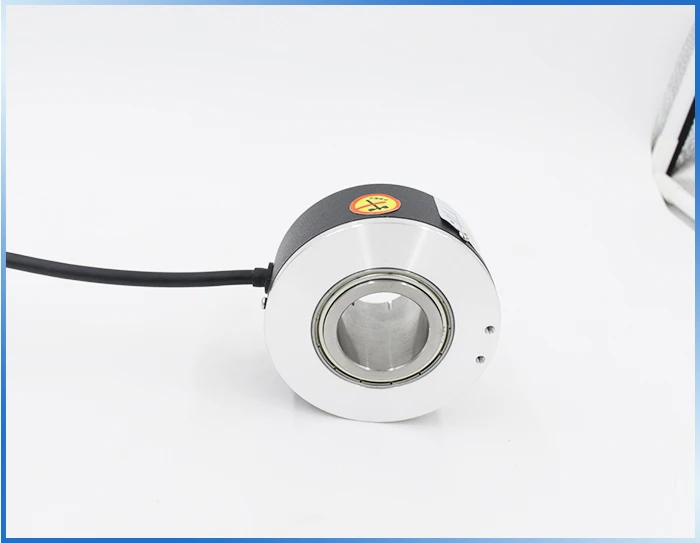

new series elevator and lift using incremental hollow shaft rotary encoder

512 600 1024ppr

Supply Voltage

DC15V±5%

V_H Output Voltage

≥Vcc*70%

V_L Output Voltage

≤0.5V

Current Consumption

≤100mA

Output phase

A.B

Rise / Fall Time

-

Injection Current

≤50mA

Measurement Range

0~360°

Measurement Error

±20”

Starting Torque

1.5*10^-3N*m(+25℃)

Shaft Loading

Radial

20N

Axial

10N

Rotating Inertia

6*10^-4Kg*m²

Max Rotating Speed

2500r/min

Vibration Resistance

50m/s²(10~200Hz)2 Hours in xyz Direction

Shock Resistance

980m/s²   3 Times in xyz Direction,continue 6 mS

Protection

IP54

Operating Temperature

-10℃~+70℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

Around  2Kg

Accessories

Elastic mounting plate

Are you a trading company or a manufacturer?

We are a manufacturer of 20 years experience.

Do you accept OEM brand?

Accept large OEM brand customers, or a large number of customers.

Does your product have a factory inspection?

Every product we send is strictly factory inspection.

How long will you ship the goods?

Our delivery time ranges from 3 days to 3 weeks.

Can you provide free samples?

Regular products provide samples according to the original price. Customized products are provided at cost price.

What kind of packing do you send?

We use high-quality corrugated paper packing box, internal environmental protection buffer material.

What is our loading port?

Dalian port, or apply for other ports.

How long is your quality guarantee period?

The guarantee period for our products is one year.
