1.Product Specifications
Product Parameter | Parameter Description |
Lock Size | 160Lx25Wx31H(mm) |
Strike Struiture | Stainless Steel |
Holding Force | 500kg |
Voltage | 12-24V (Adjustable) |
Current | DC12V/200mA,DC24V/100mA |
Feature | Fail Safe(NC) |
Surface Temperature | Within +20℃ |
Suitable Temperature | -10~+55℃(14-131F) |
Operating Humidity | 0~90%(non-condensing) |
Face plate Housing | Painted Steel |
Funtion | Built-out MOV |
Glass Thickness | 12-15mm |
Opening Mode | 90 Degree Swinging Door |
Weight | 0.4kg |
2.Picture Show

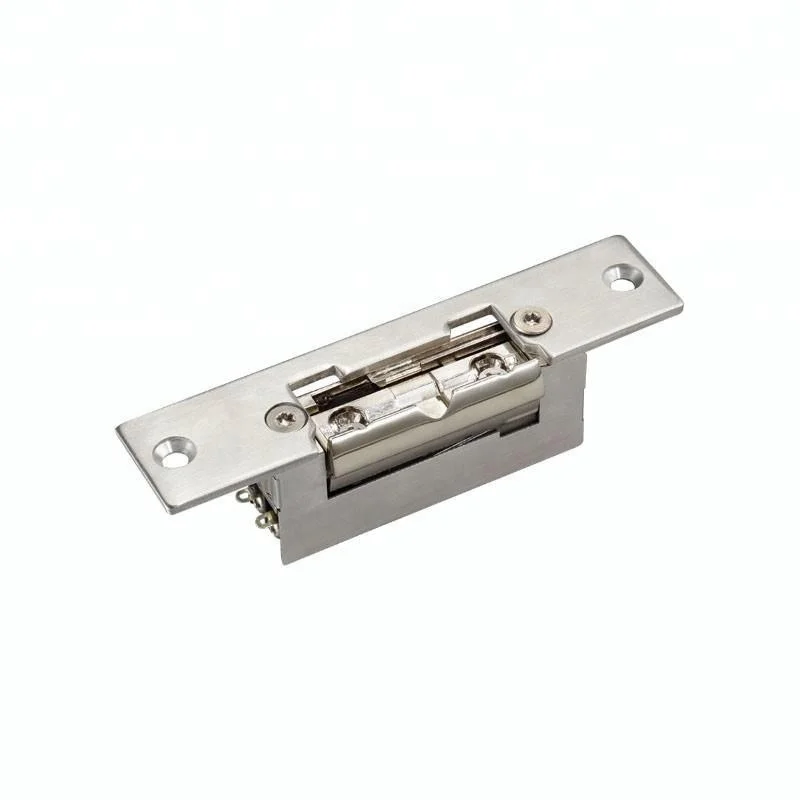

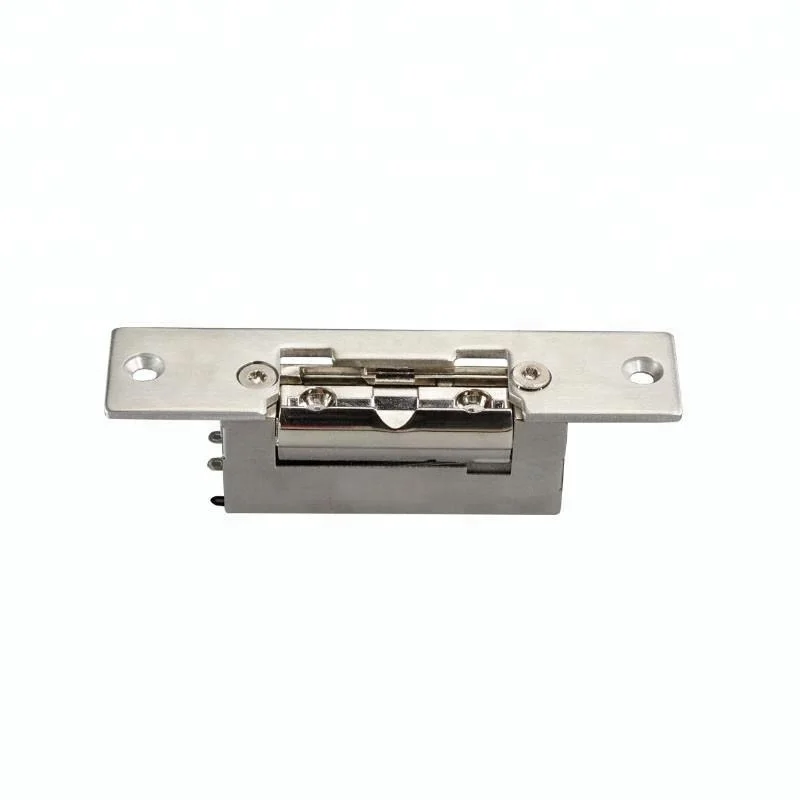

DH-133NC is designed for the glass door without frame. The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.






Q1. Are you a manufacture or a trade company?
A: We are a real manufacture and have been in this line for more than 20 years.
Q2. How we can trust you?
A: We are Alibaba Trade Assurance Supplier and 8 years Ali Gold Supplier.
Q3. What is the warranty?
A: The warranty is 1 year without man-made damage,A lifetime technical support.
Q4. What’s your delivery time?
A:Around 2~10 working days according to exact order quantity and stock situation.
Q5. Your products can be customized?
A:Yes,sure. pls talk to sales about your exact requirements. Udohow offer the OEM or ODM service.
Q6: Your software is free and easy to use?
A:Our software is free and we have manual to teach you how to use it.
